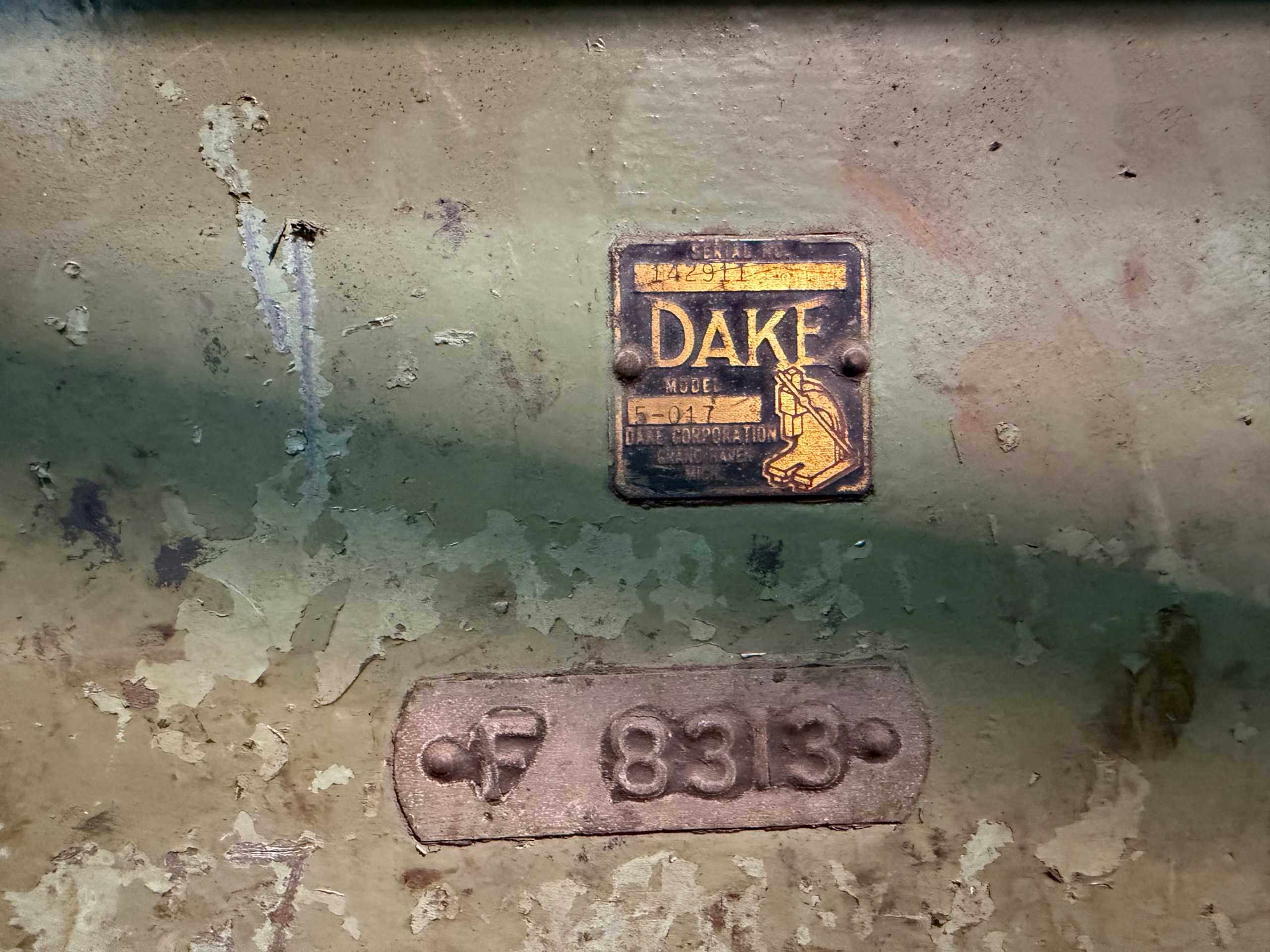

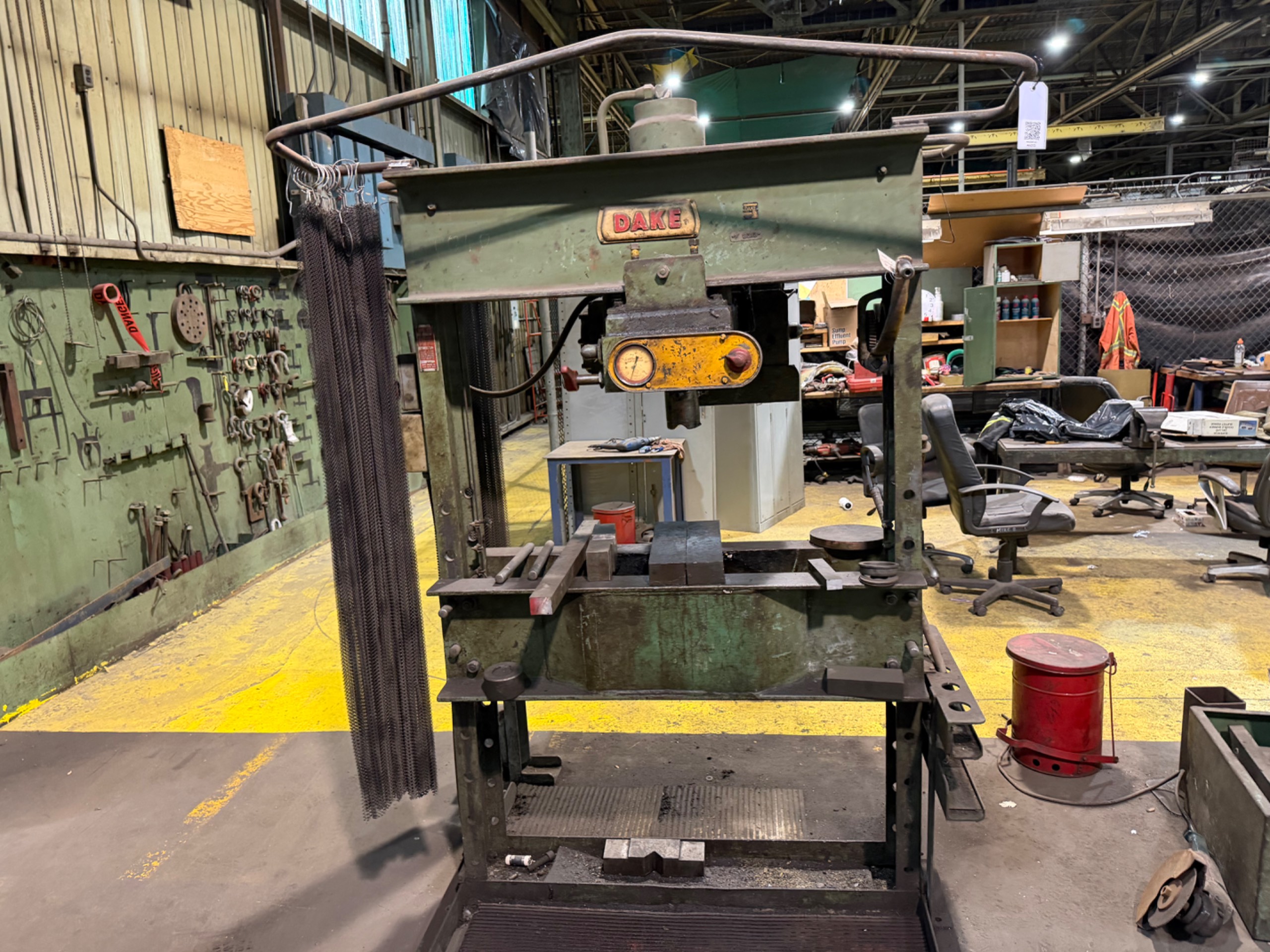

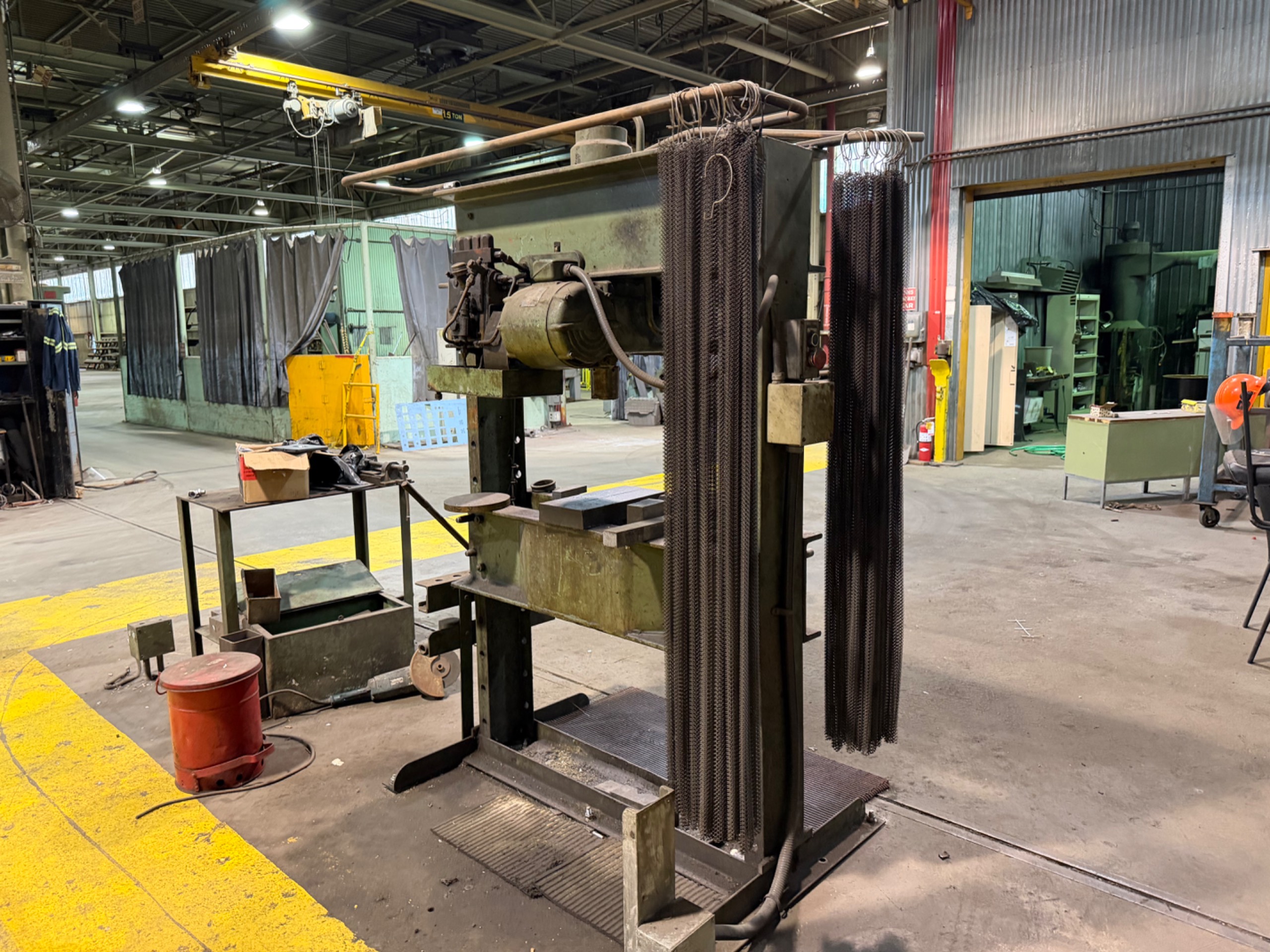

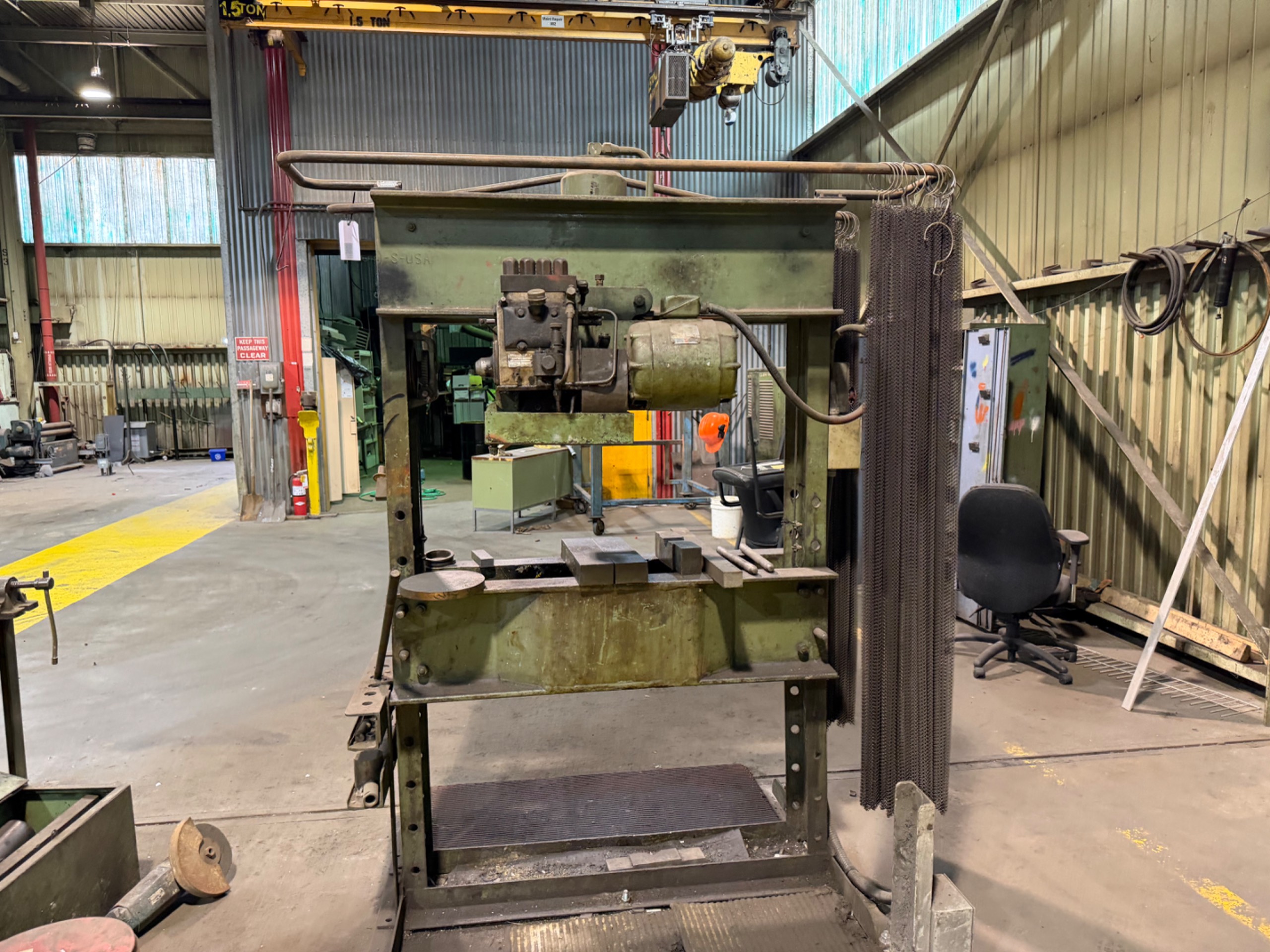

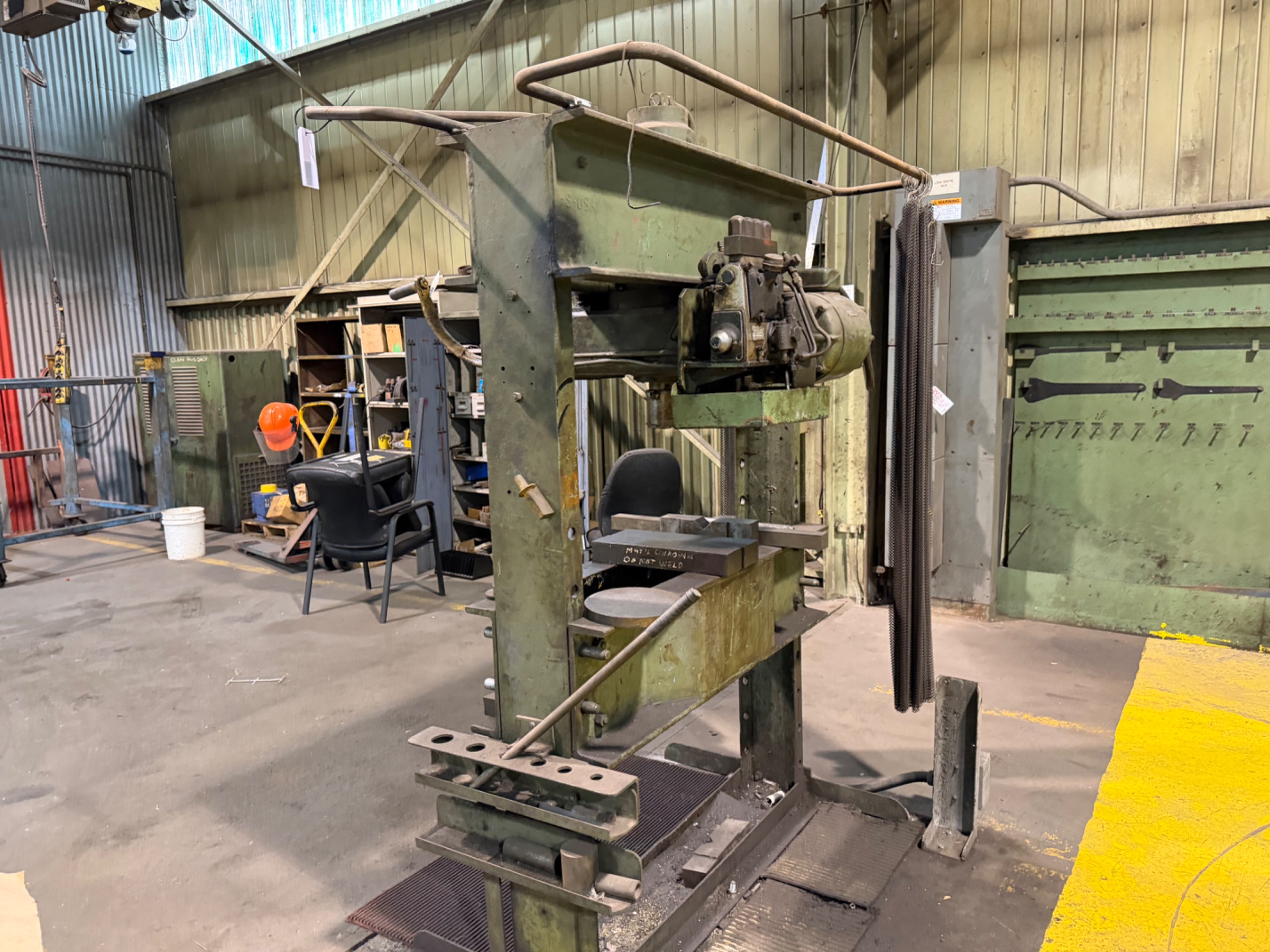

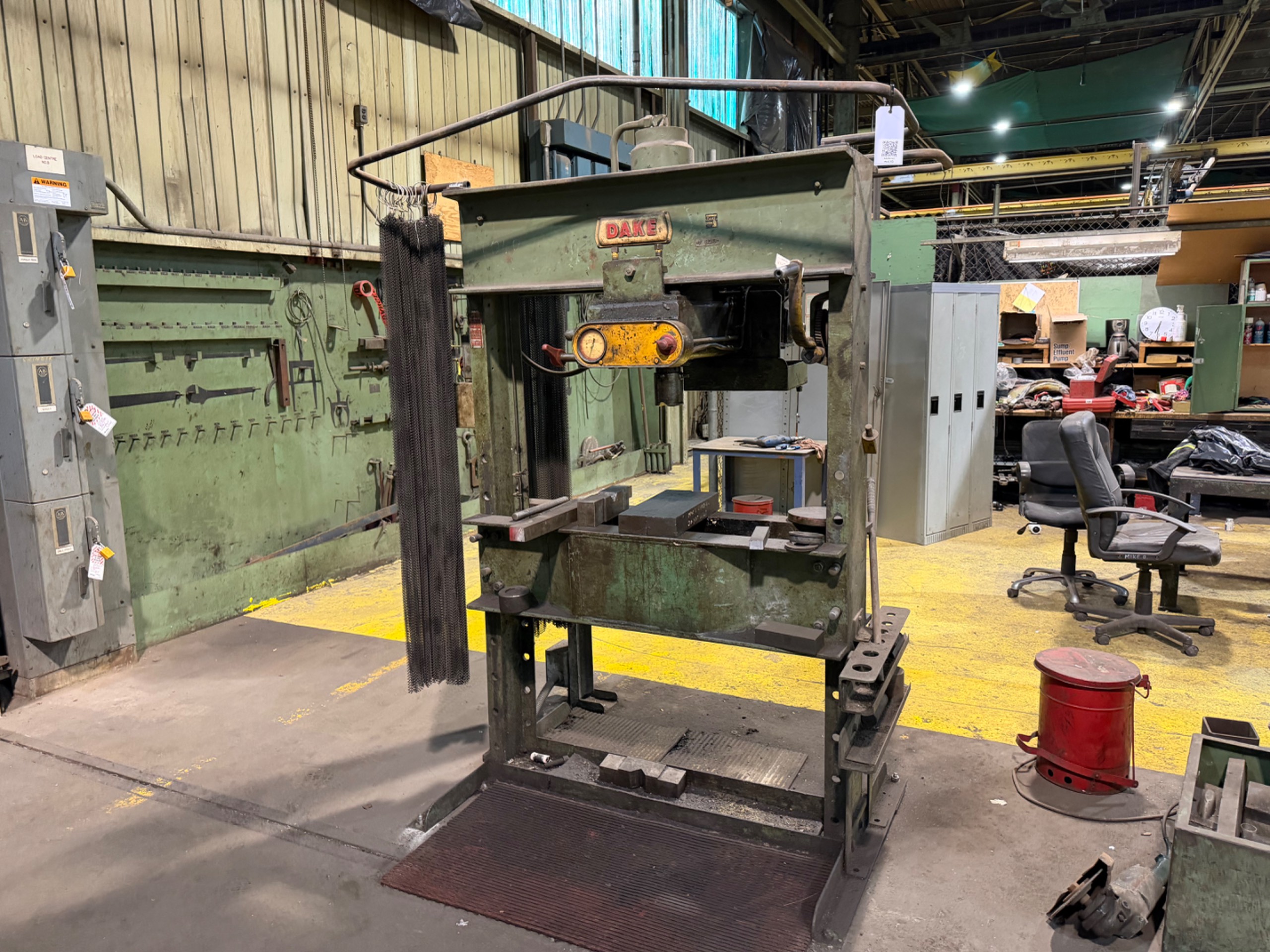

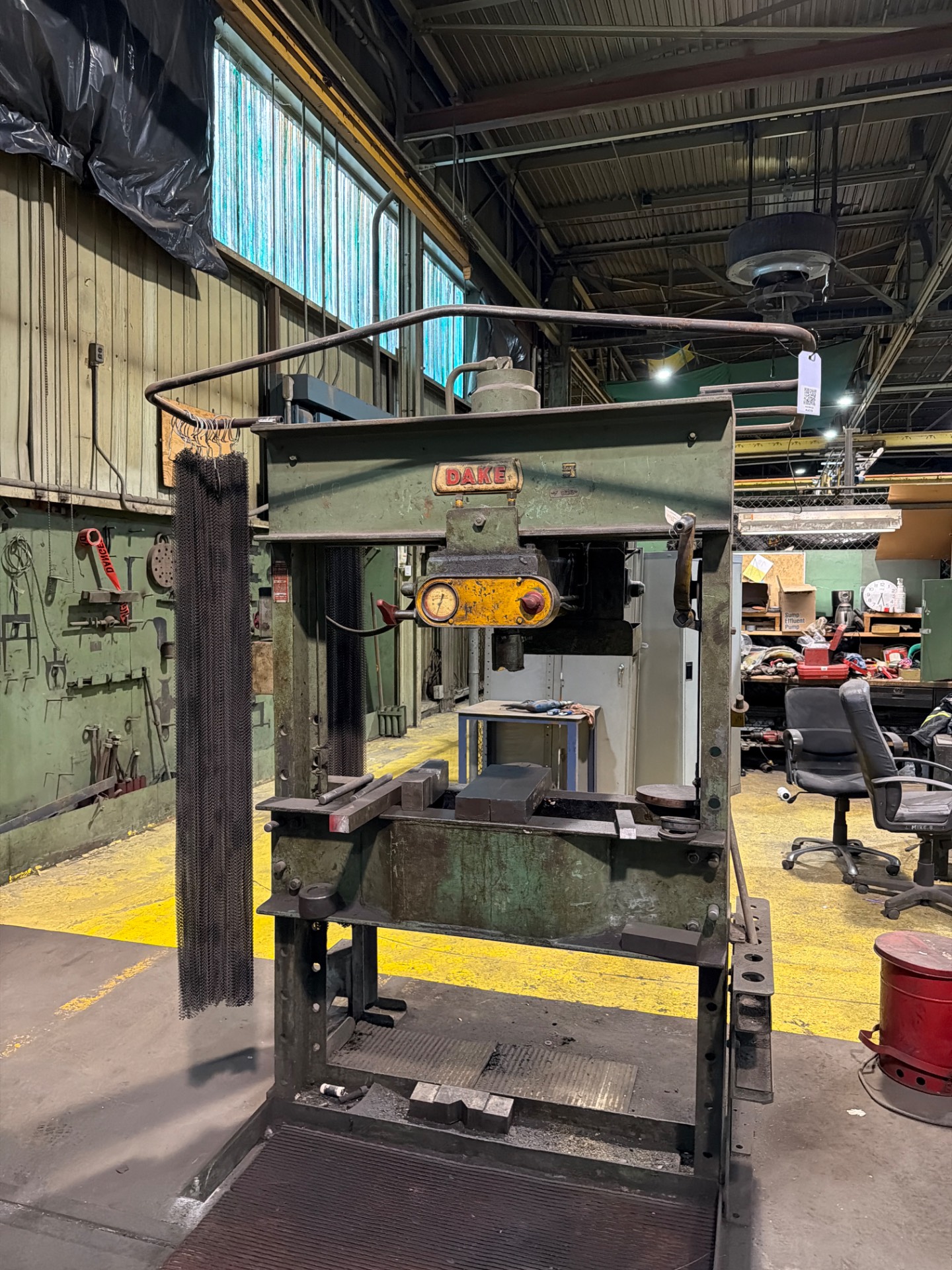

DAKE 5-017 75-TON HYDRAULIC H-FRAME PRESS, 4.5IN STROKE, 44IN BETWEEN UPRIGHTS, MANUAL PUMP

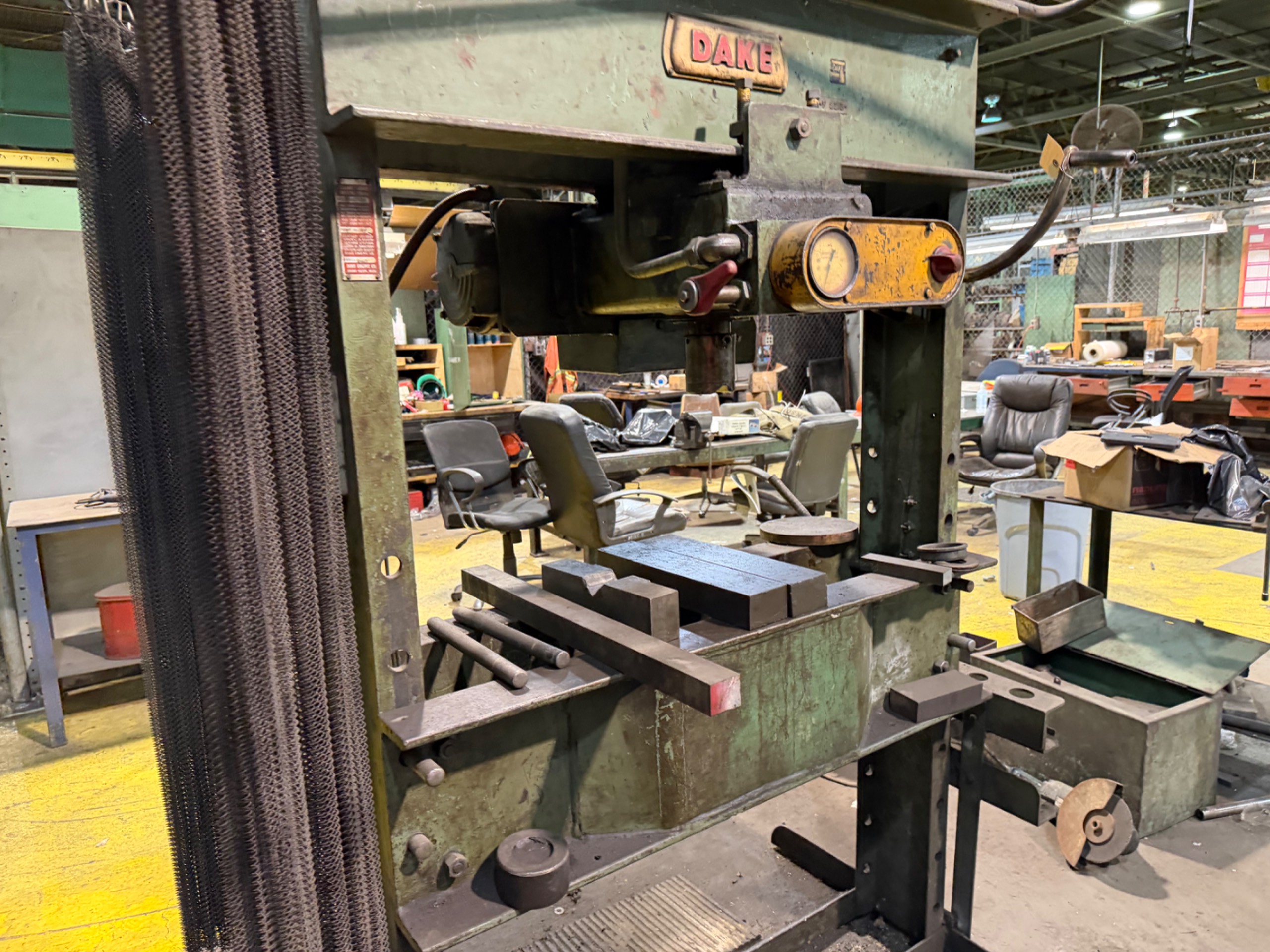

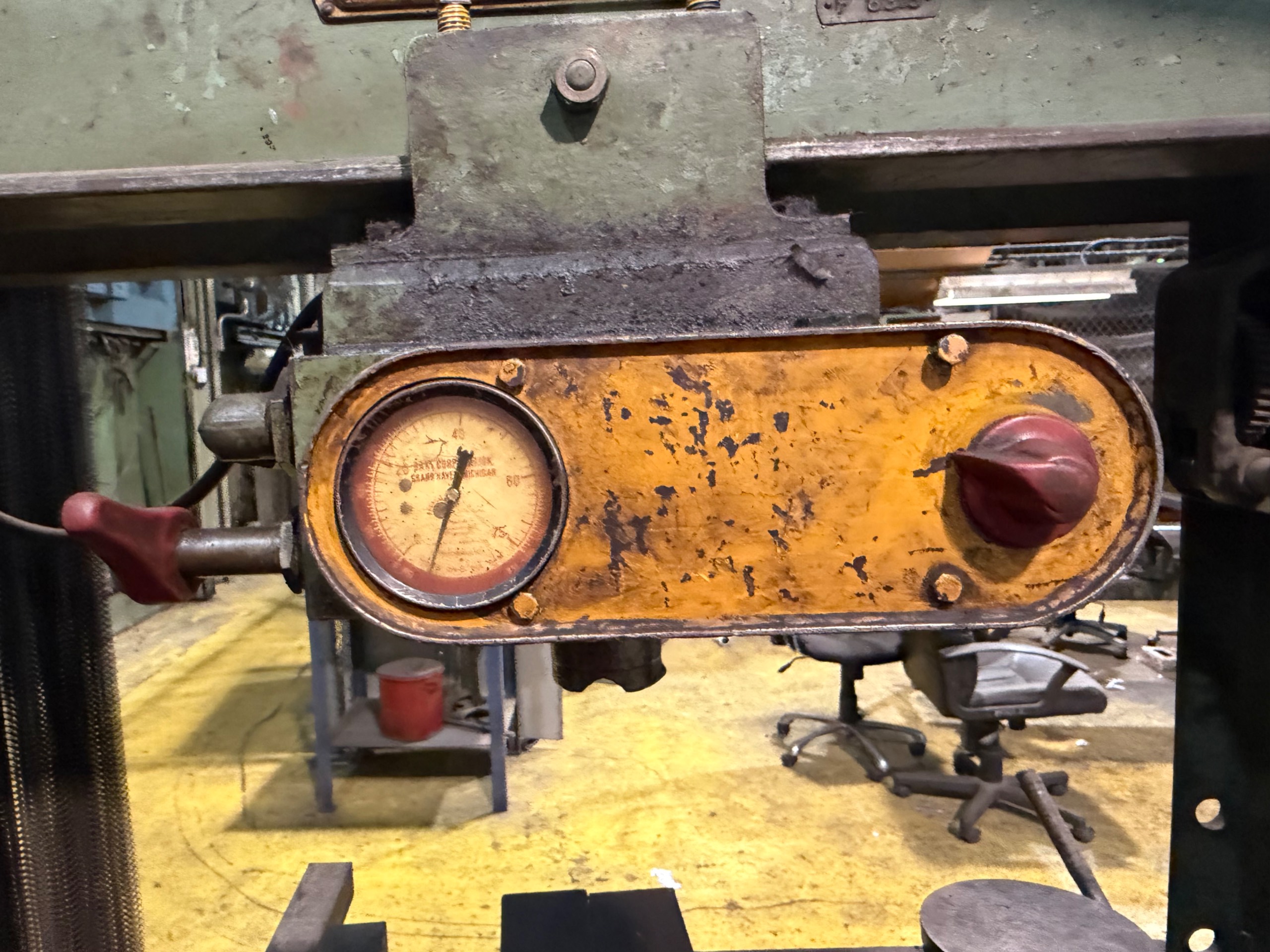

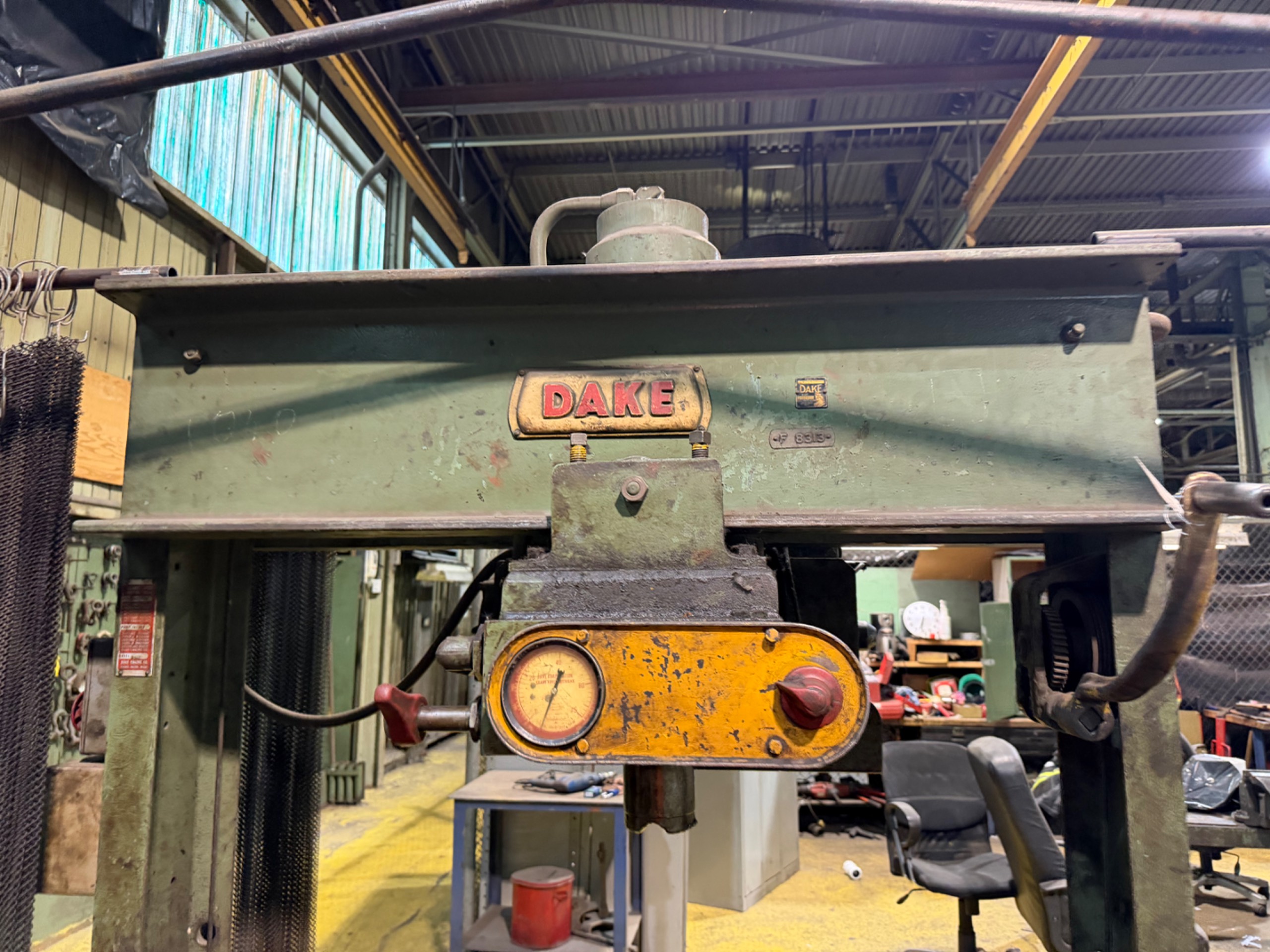

THE DAKE MODEL 5-017 IS A 75-TON CAPACITY HAND-OPERATED HYDRAULIC H-FRAME PRESS DESIGNED FOR HEAVY-DUTY APPLICATIONS SUCH AS STRAIGHTENING, BENDING, AND ASSEMBLY. THIS MANUAL PRESS FEATURES A SINGLE-ACTING CYLINDER AND A HIGH-EFFICIENCY HAND PUMP FOR PRECISE PRESSURE CONTROL. THE FRAME IS CONSTRUCTED FROM HEAVY-DUTY ARC-WELDED STEEL TO ENSURE RIGIDITY AND DURABILITY. KEY TECHNICAL SPECIFICATIONS INCLUDE A WIDTH OF 44 INCHES BETWEEN THE UPRIGHTS AND 8.25 INCHES BETWEEN THE TABLE CHANNELS. THE MACHINE OFFERS A MAXIMUM RAM-TO-TABLE DISTANCE OF 36 INCHES AND A MINIMUM DISTANCE OF 4 INCHES. THE RAM HAS A TOTAL TRAVEL STROKE OF 4.5 INCHES, SUPPLEMENTED BY A 7-INCH SCREW TRAVEL FOR QUICK ADJUSTMENTS TO THE WORK AREA. TO FACILITATE THE HANDLING OF LARGE OR HEAVY WORKPIECES, THE PRESS IS EQUIPPED WITH A SELF-LOCKING HOIST FOR EASY VERTICAL MOVEMENT OF THE TABLE. STANDARD EQUIPMENT TYPICALLY INCLUDES A PRESSURE GAUGE FOR MONITORING FORCE, TWO FORGED STEEL V-BLOCKS, AND TWO FORGED STEEL TABLE PLATES. THE UNIT STANDS APPROXIMATELY 87 INCHES TALL WITH A BASE FOOTPRINT OF 55 BY 36 INCHES AND A TOTAL WEIGHT OF APPROXIMATELY 1,200 LBS.
