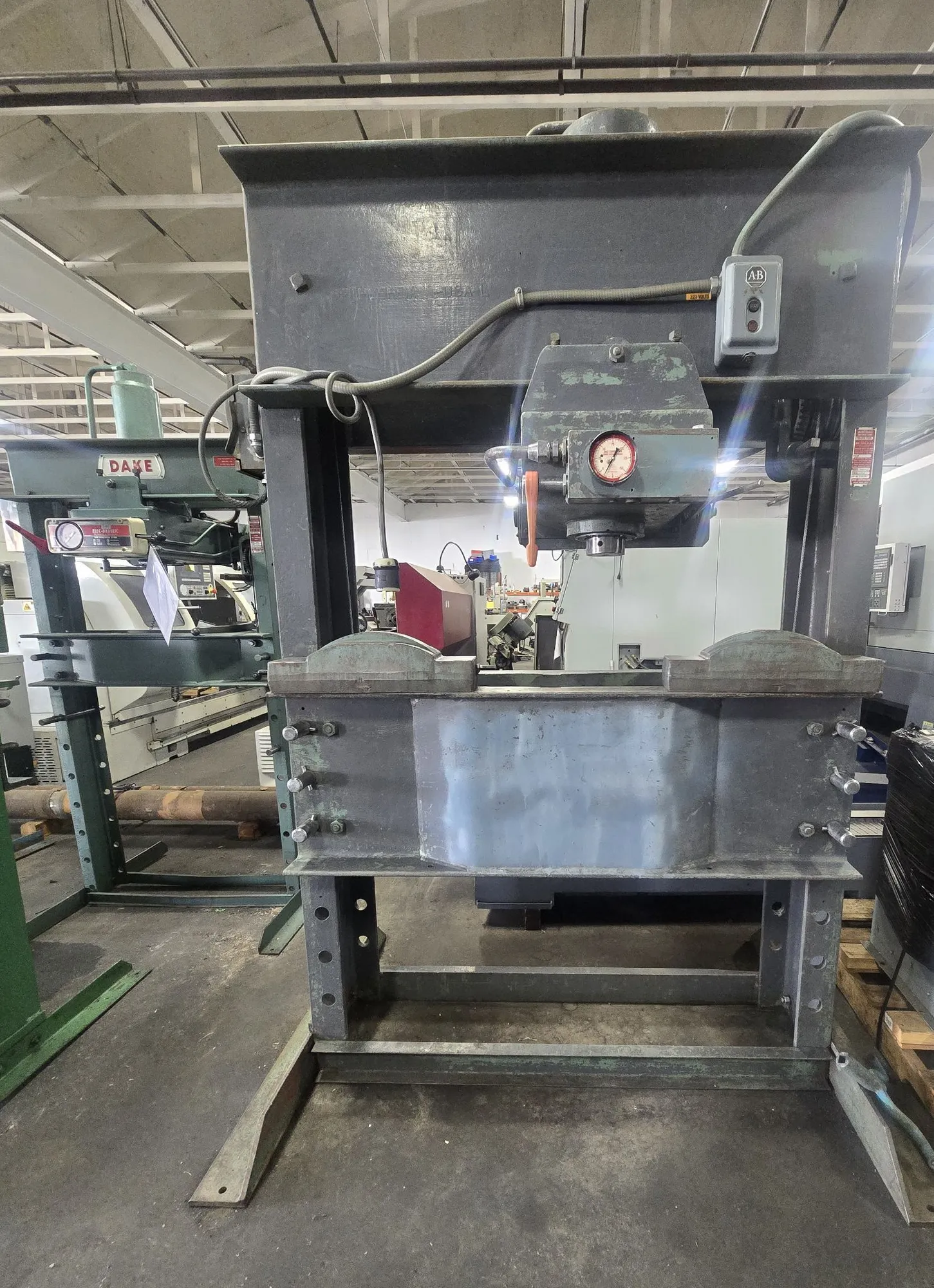

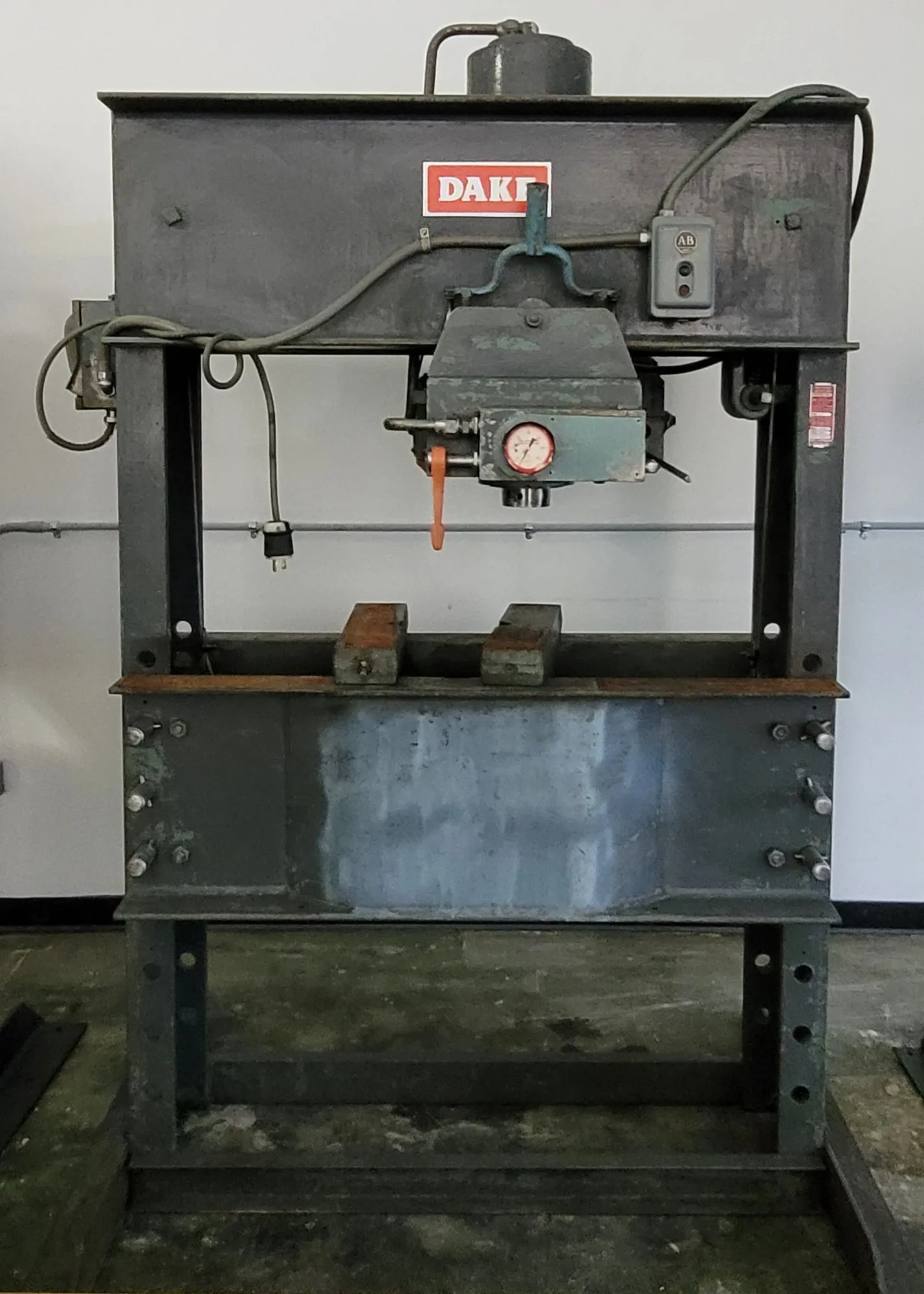

DAKE 5-150A HYDRAULIC H-FRAME PRESS 150-TON, 16" STRK, 24-3/4" HORIZ TRAVEL, 220/440V 3PH, 3000 LBS

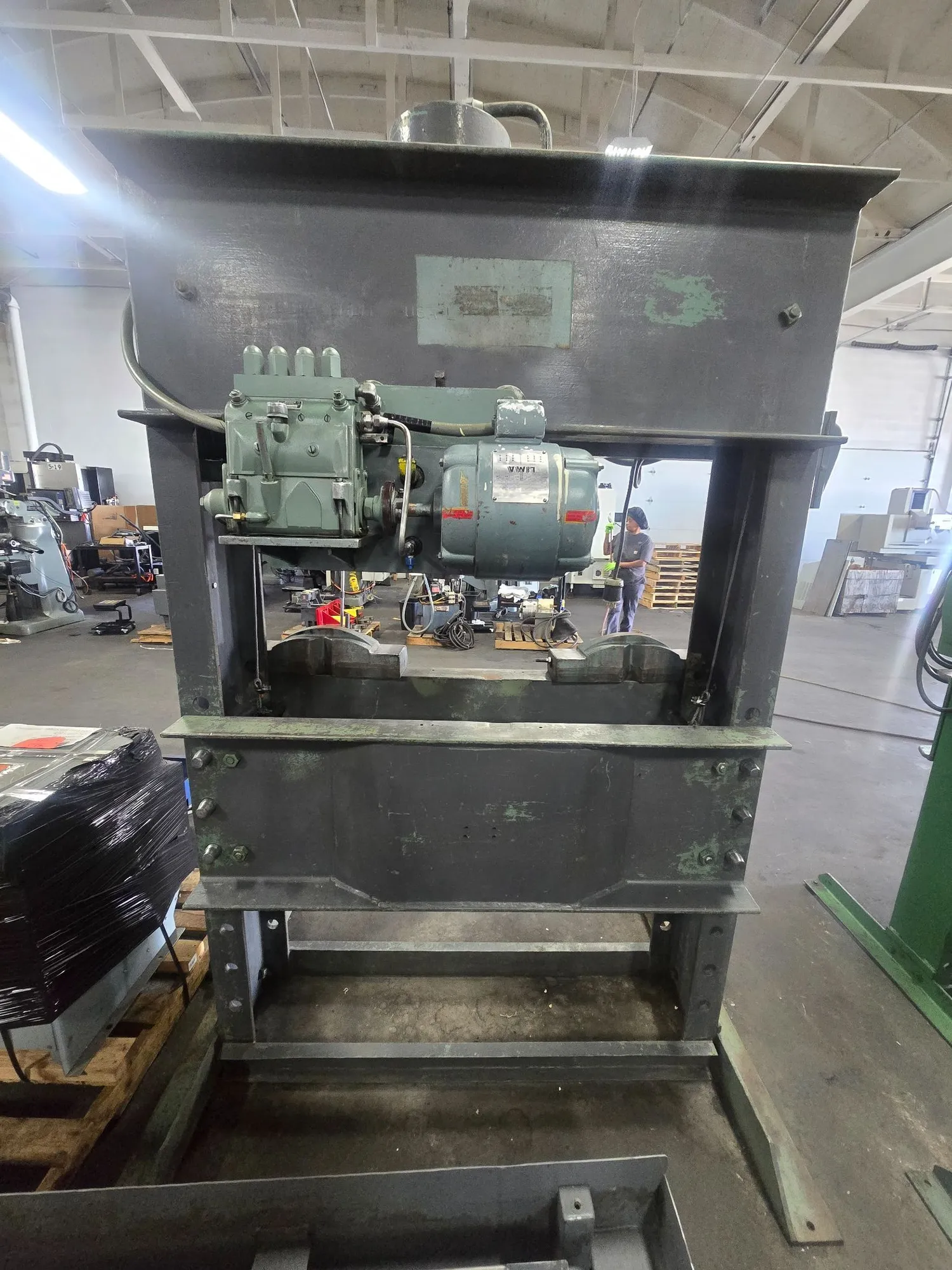

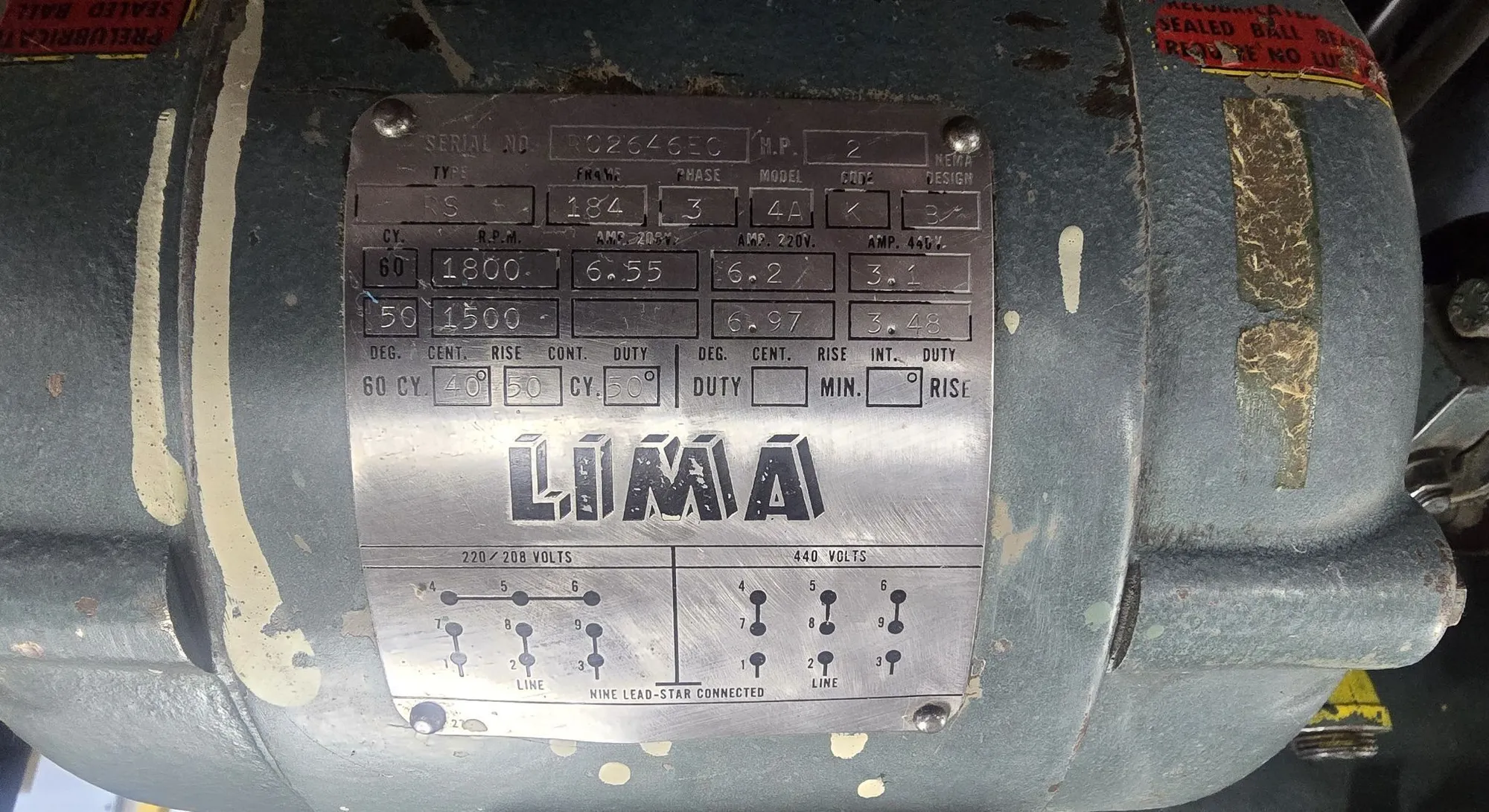

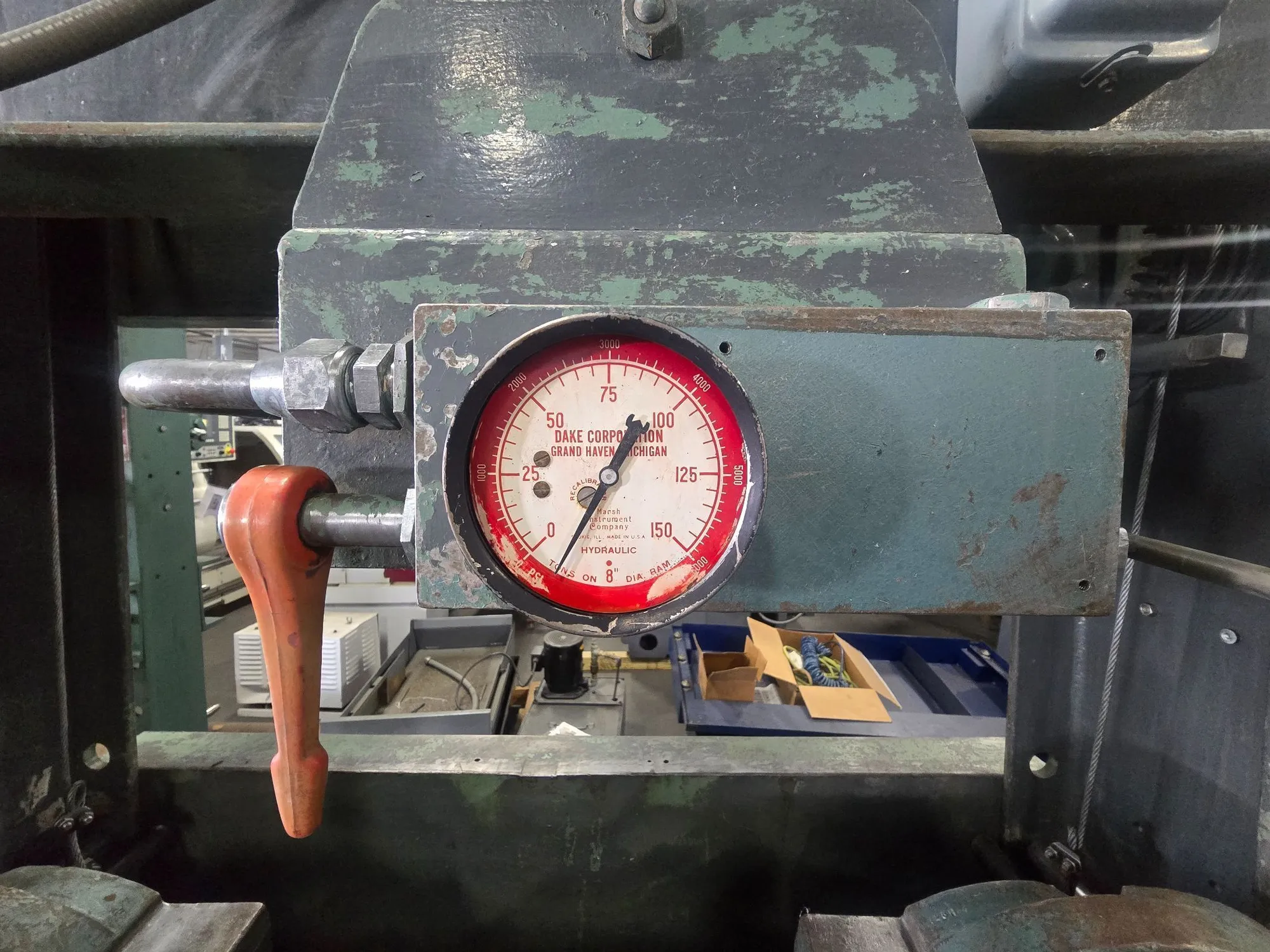

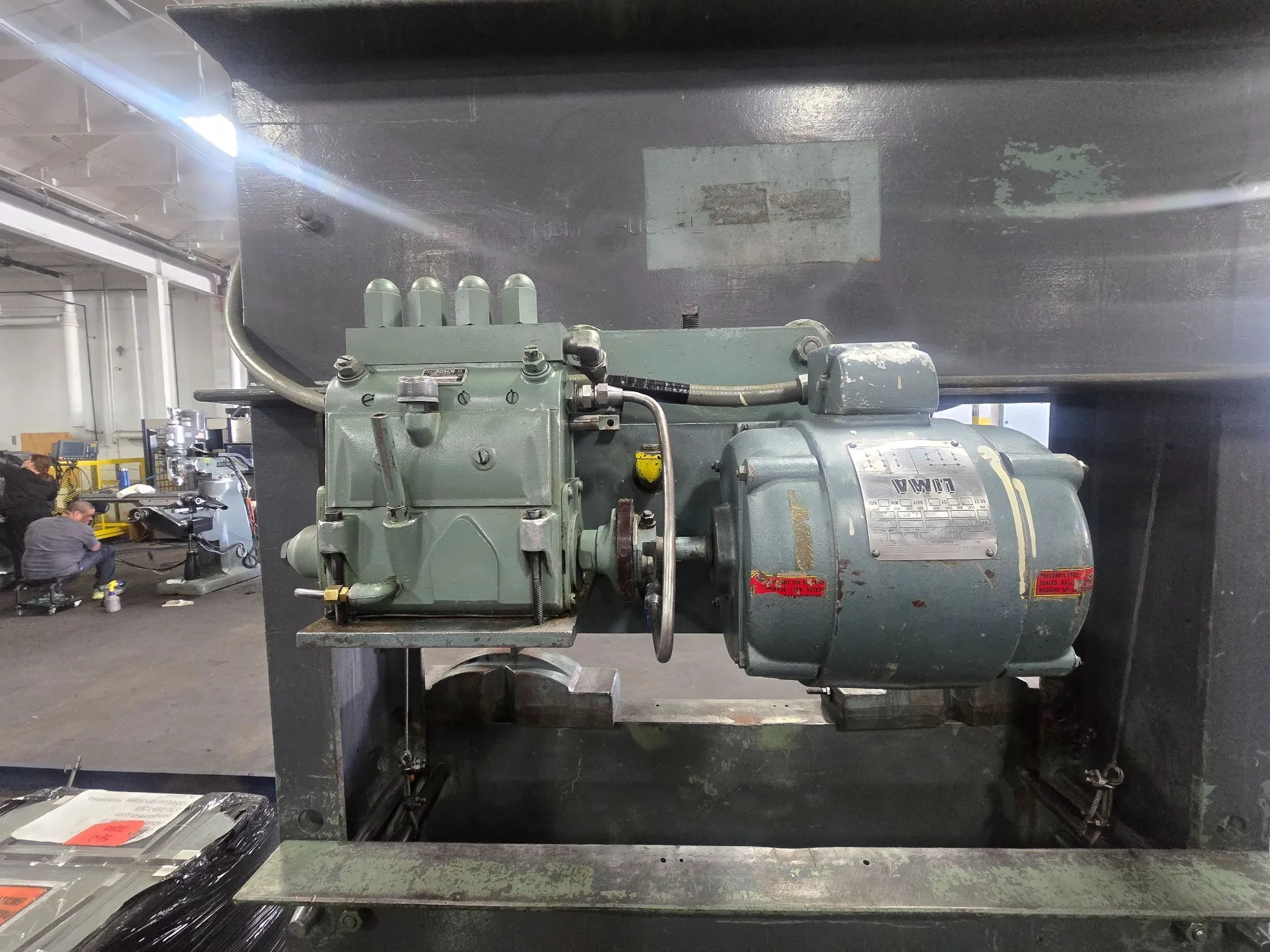

THE DAKE MODEL 5-150A IS A 150-TON ELECDRAULIC H-FRAME PRESS DESIGNED FOR FABRICATING AND PRESSING APPLICATIONS. IT OPERATES ON AN ELECTRIC, THREE-PHASE POWER SOURCE (220/440V) DRIVEN BY A 2 HP MOTOR. KEY DIMENSIONS INCLUDE A 48-INCH WIDTH BETWEEN THE UPRIGHTS AND 12-1/4 INCHES BETWEEN THE TABLE CHANNELS. THE WORK AREA PROVIDES AN ADJUSTABLE RAM-TO-TABLE RANGE FROM A MINIMUM OF 10 INCHES TO A MAXIMUM OF 30 INCHES. THE RAM HAS A 16-INCH TRAVEL (STROKE), WITH AN ADVANCE SPEED OF APPROXIMATELY 16 IPM AND A PRESSING SPEED OF APPROXIMATELY 2-3/4 IPM. THE PRESS FEATURES A MOVABLE, ROLLER-MOUNTED WORKHEAD WITH 24-3/4 INCHES OF HORIZONTAL TRAVEL. FOR SAFETY AND CONVENIENCE, IT INCLUDES A SELF-LOCKING HOIST FOR TABLE HEIGHT ADJUSTMENT, A SAFETY OVERLOAD VALVE, A PRESSURE GAUGE, AND A STROKE INDICATOR. THE UNIT WEIGHS APPROXIMATELY 3,000 LBS, WITH BASE DIMENSIONS (FOOTPRINT) OF 66 INCHES BY 42 INCHES AND AN OVERALL HEIGHT OF APPROXIMATELY 95 INCHES.
