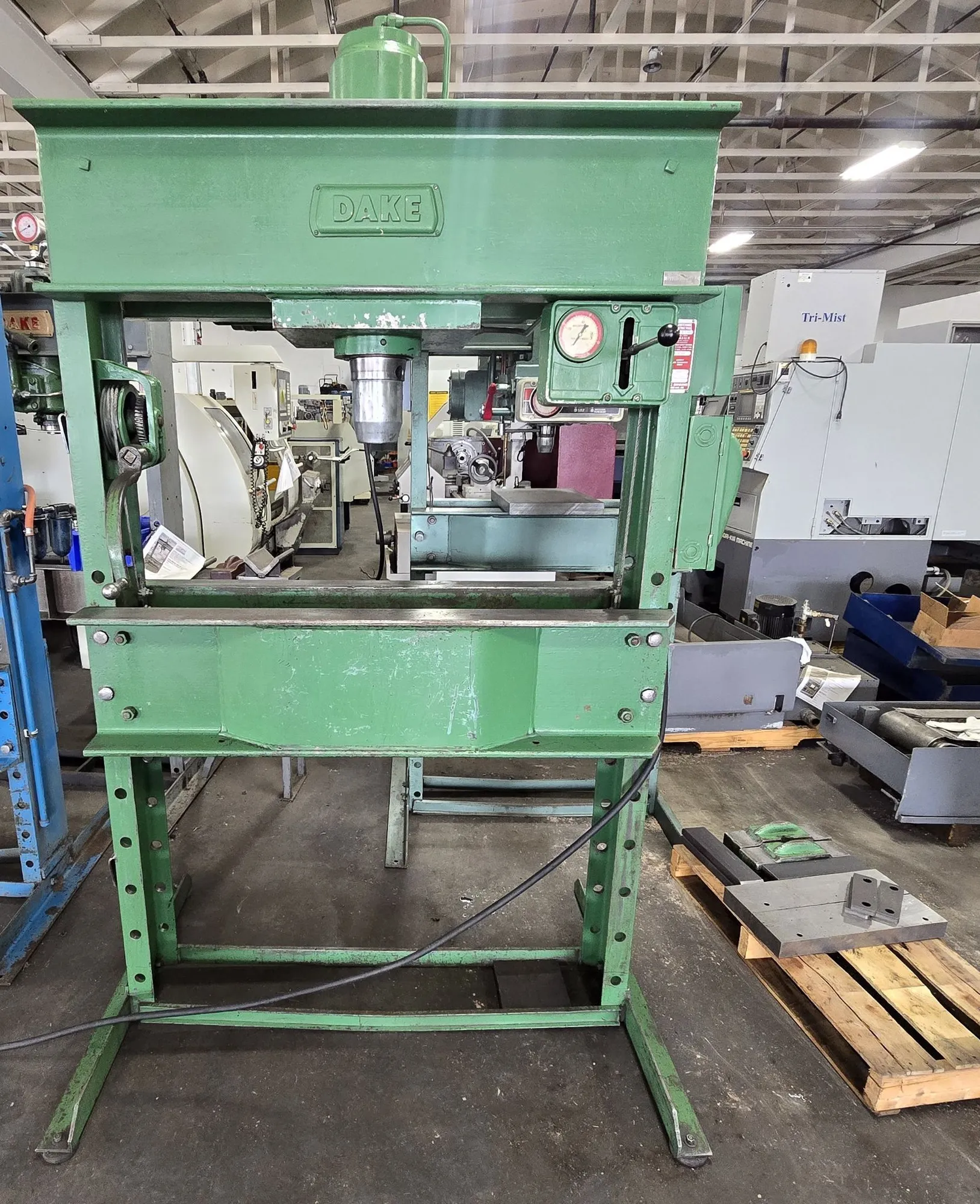

DAKE 908075 H-FRAME PRESS - 75T PRESS, 28T PULL, 2 HP, 440V, 10-IN STROKE, 5 IPM

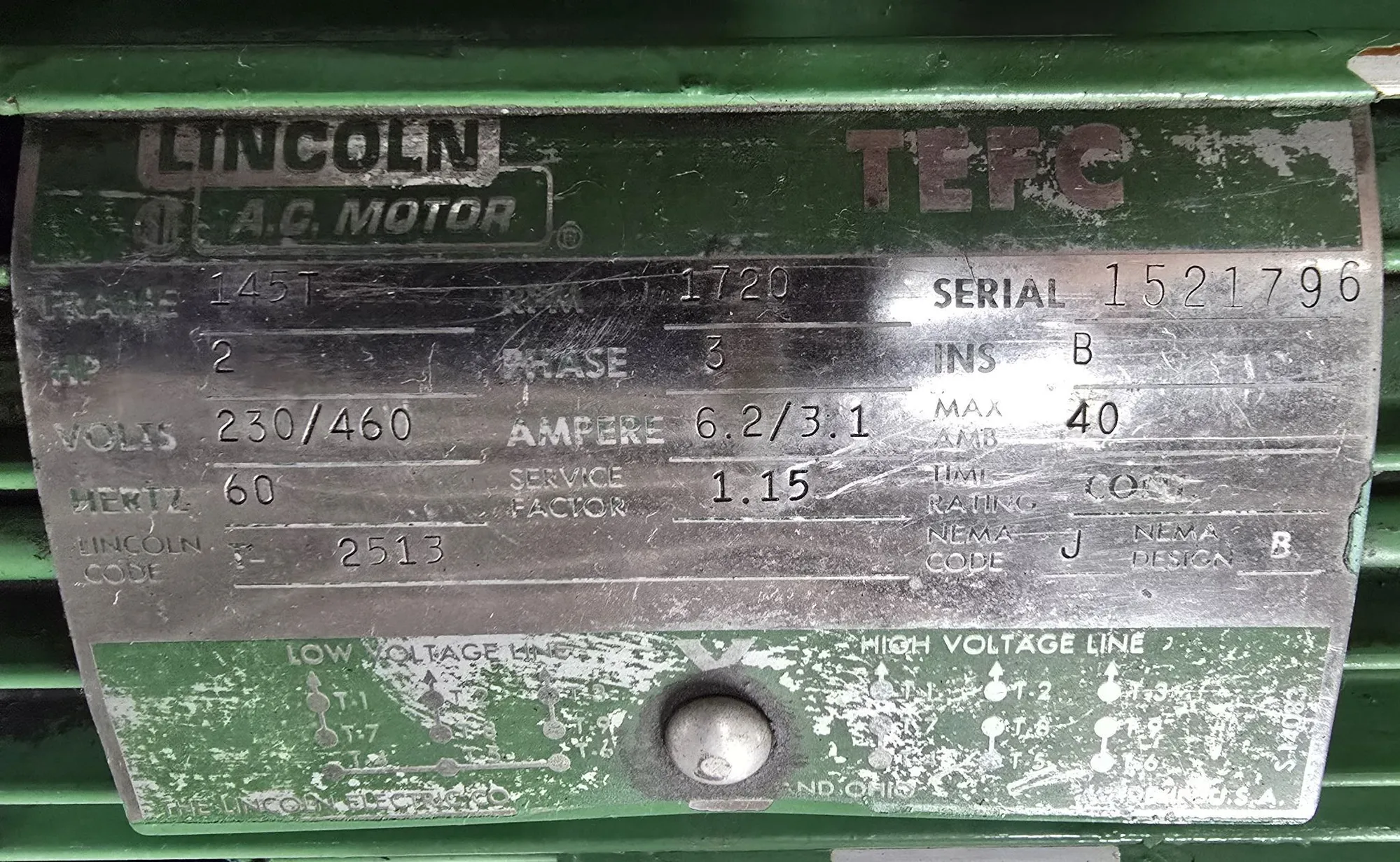

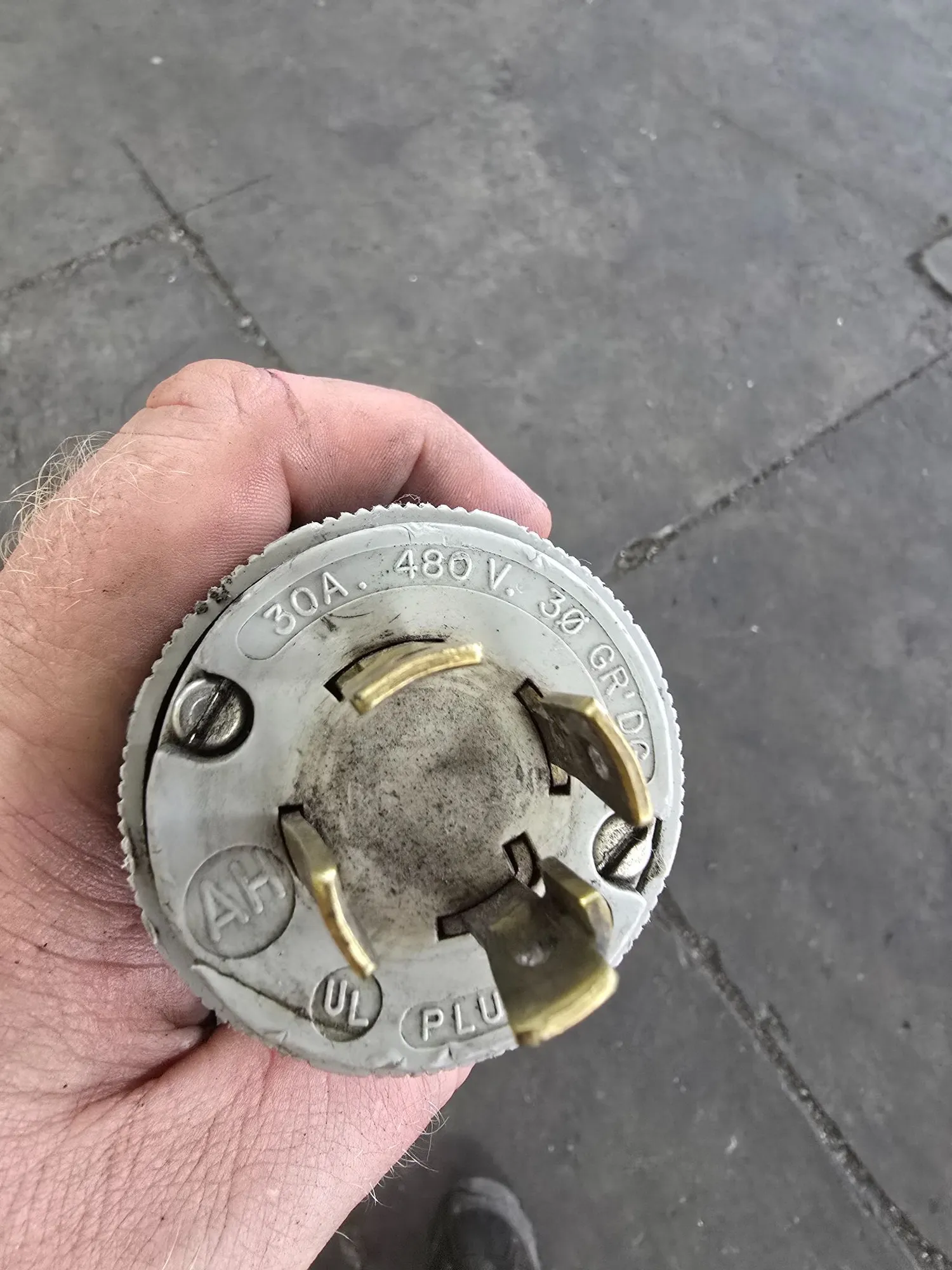

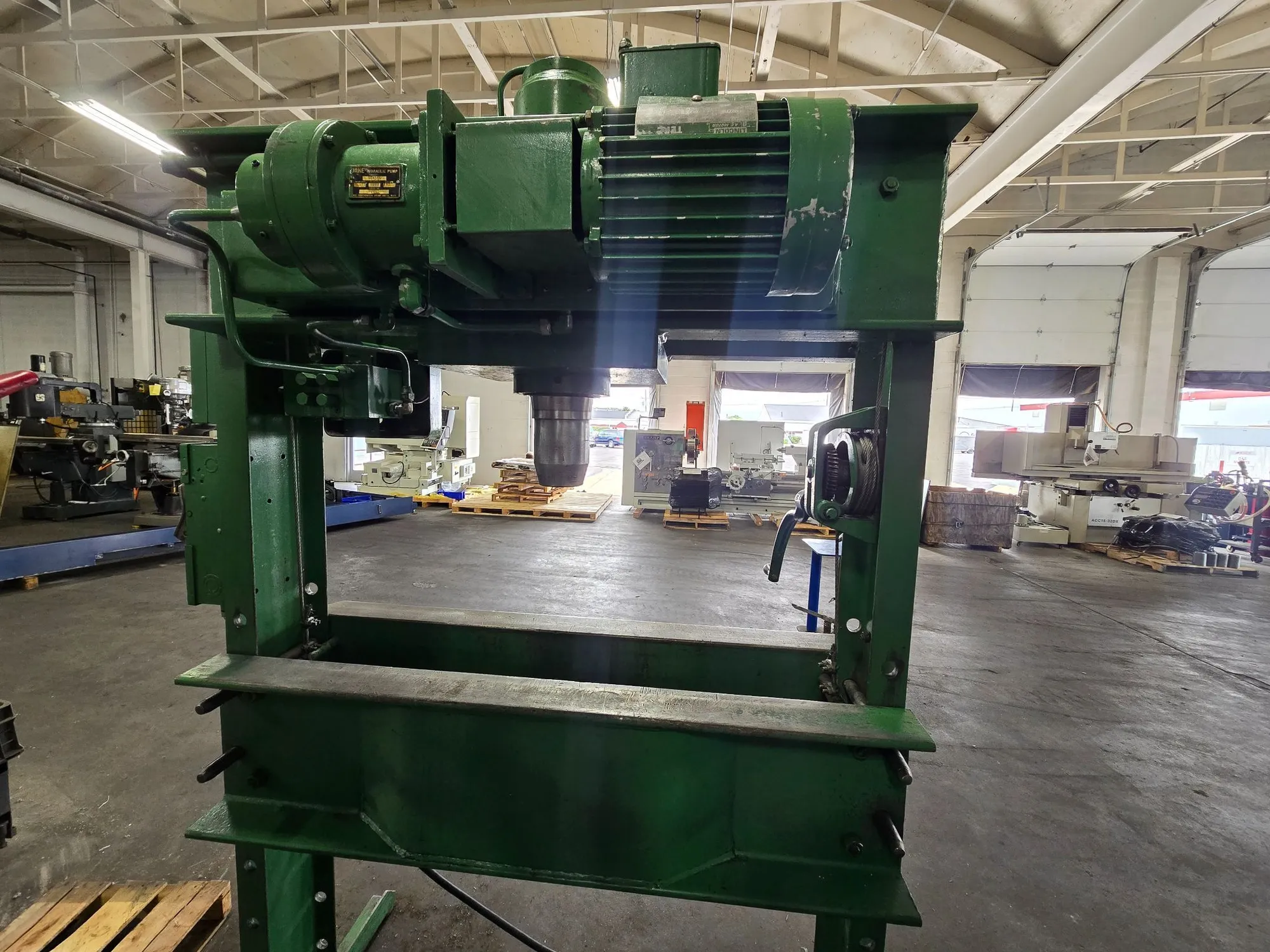

THE DAKE MODEL 908075, AN ELECTRIC-HYDRAULIC H-FRAME PRESS, OFFERS A DUAL-ACTING CAPACITY OF 75 TONS FOR PRESSING AND 28 TONS FOR PULLING. IT IS POWERED BY A 2 HP MOTOR, RATED FOR 220V OR 440V, 3-PHASE OPERATION, AND IS CURRENTLY WIRED FOR 440V. THE FRAME FEATURES A 44-INCH WIDTH BETWEEN UPRIGHTS AND AN 8 1/4-INCH WIDTH BETWEEN TABLE CHANNELS. THE RAM MECHANISM PROVIDES A 10-INCH STROKE, A MAXIMUM DAYLIGHT OPENING OF 33 INCHES, AND A RAM TRAVEL SPEED OF 5 INCHES PER MINUTE (IPM). THE OVERALL DIMENSIONS OF THE PRESS ARE APPROXIMATELY 55.5 INCHES LONG BY 36 INCHES WIDE BY 86 INCHES HIGH, WITH AN APPROXIMATE MACHINE WEIGHT OF 1,950 LBS.
