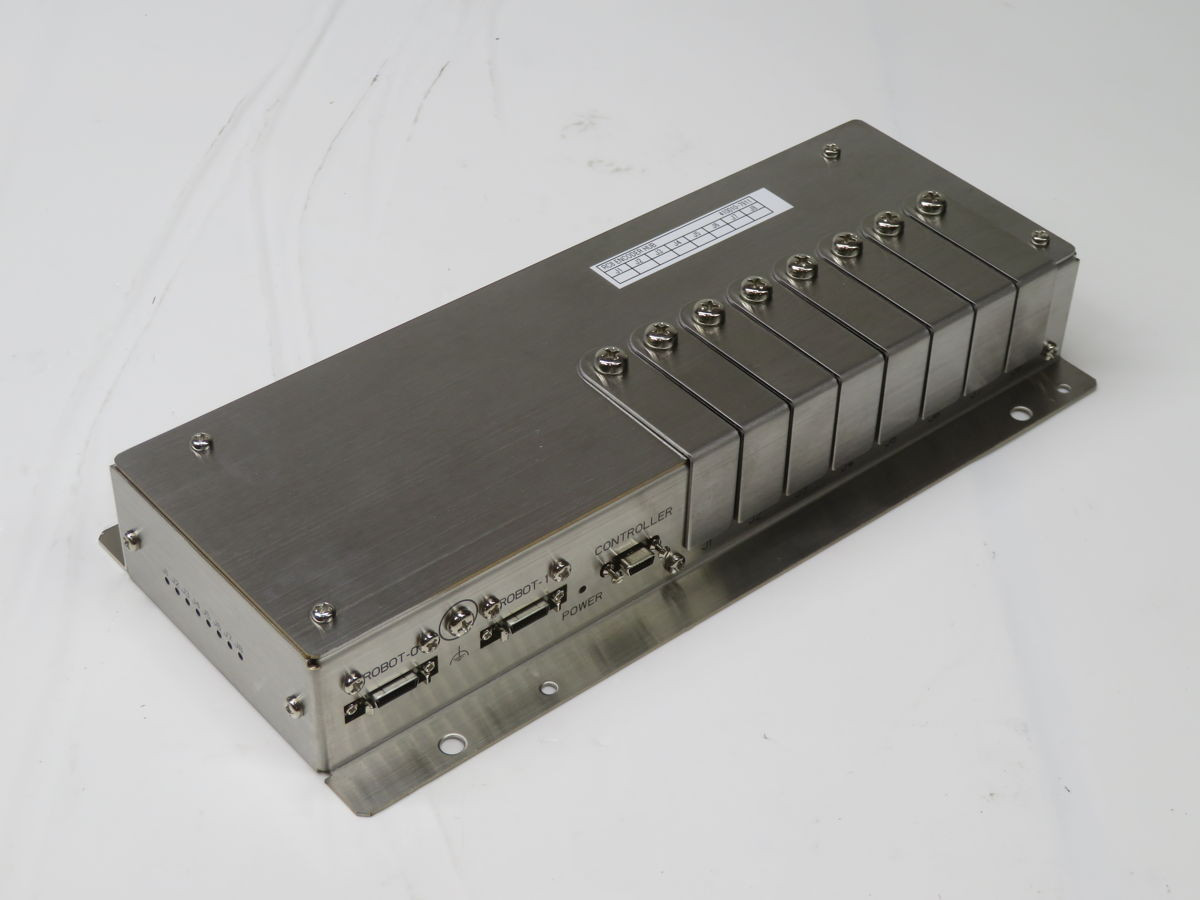

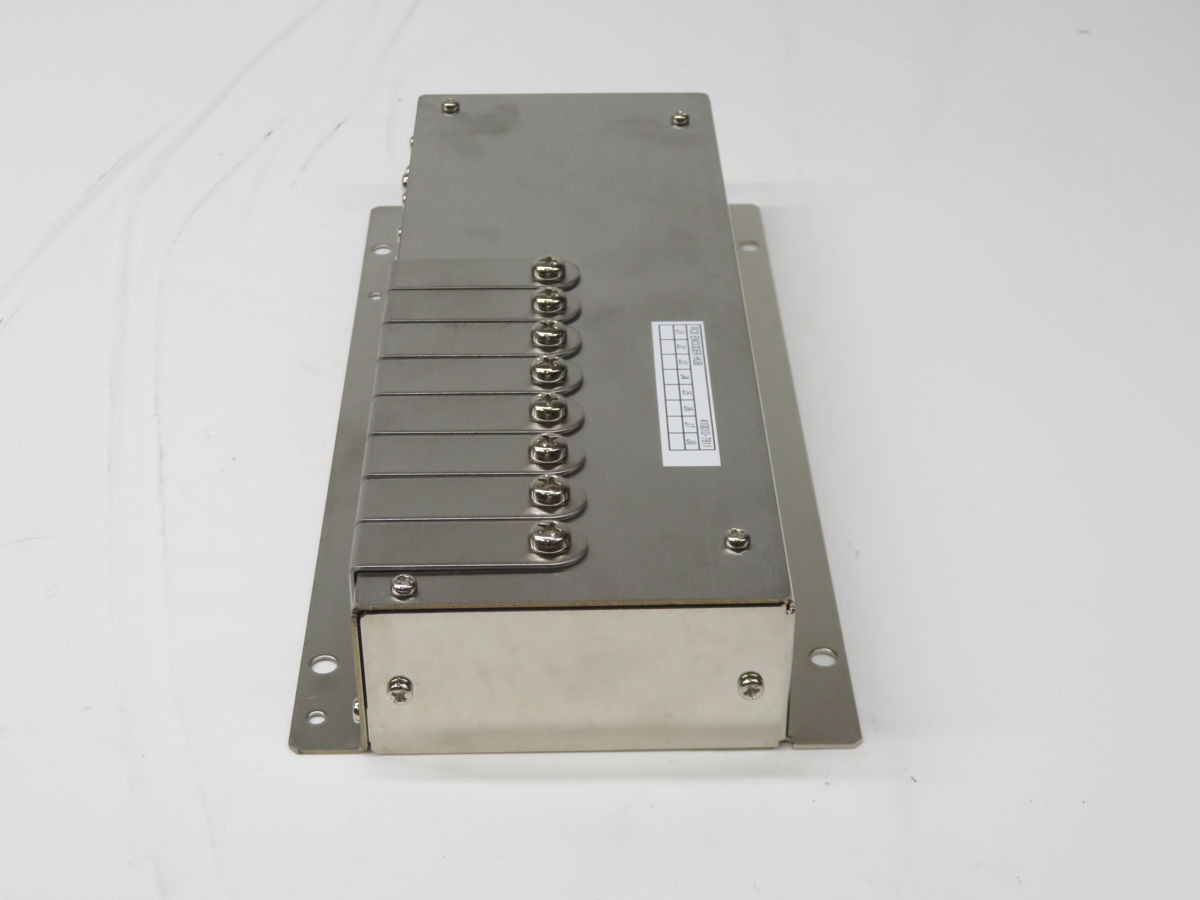

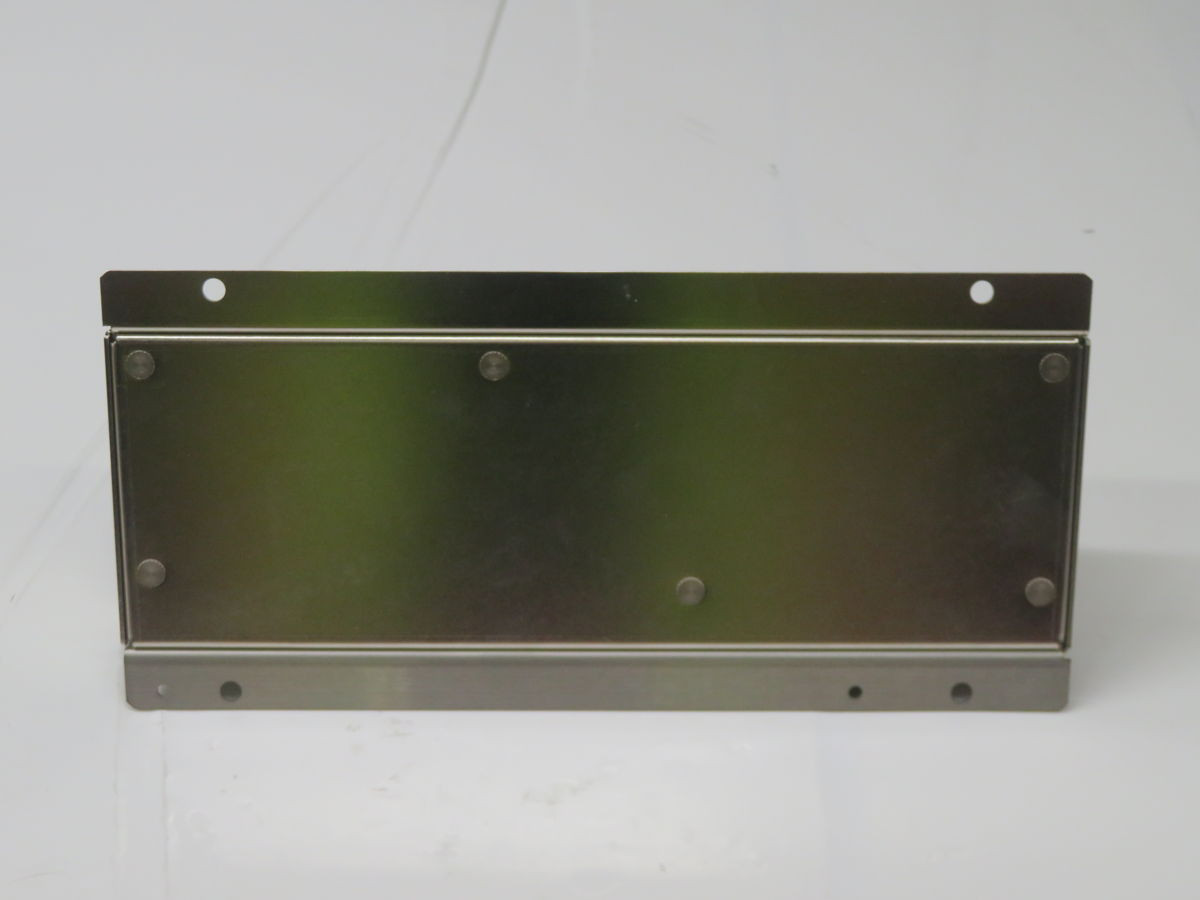

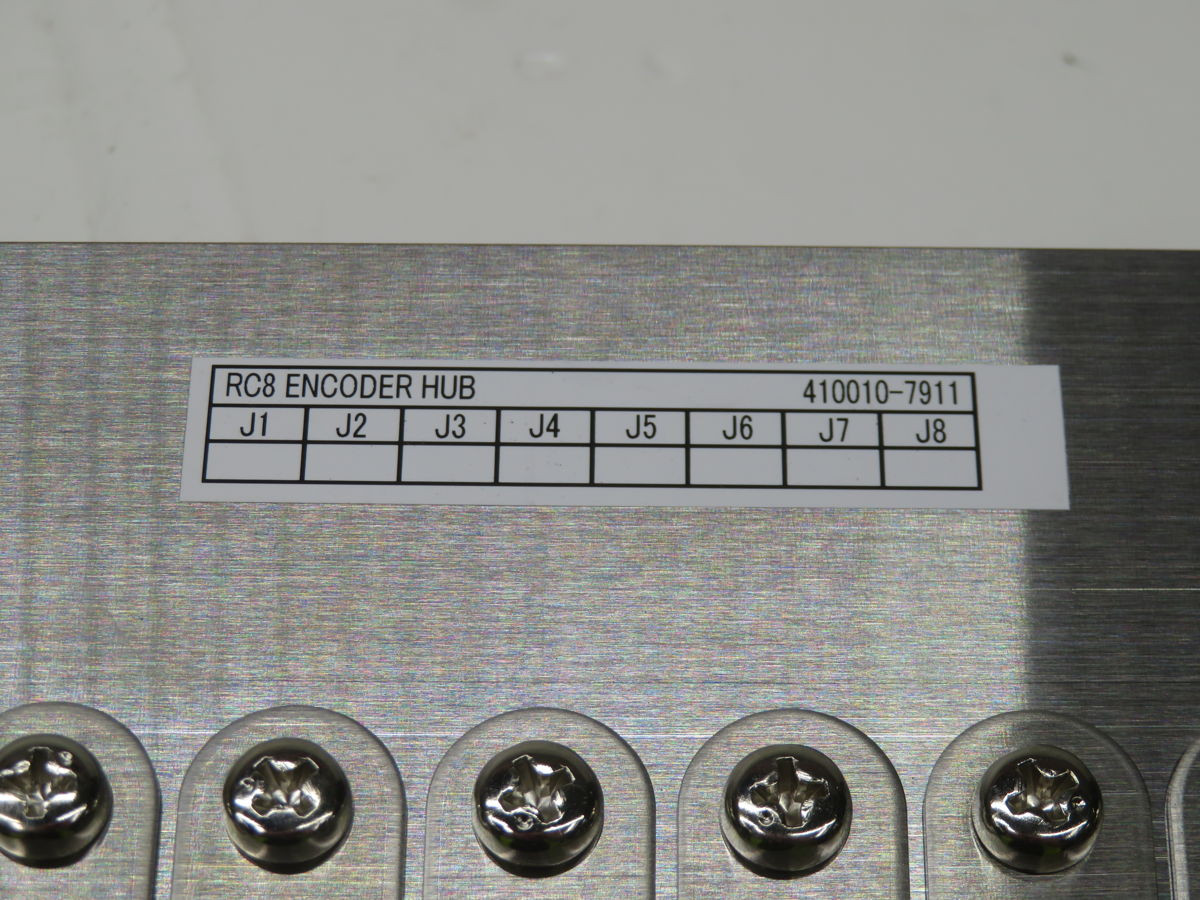

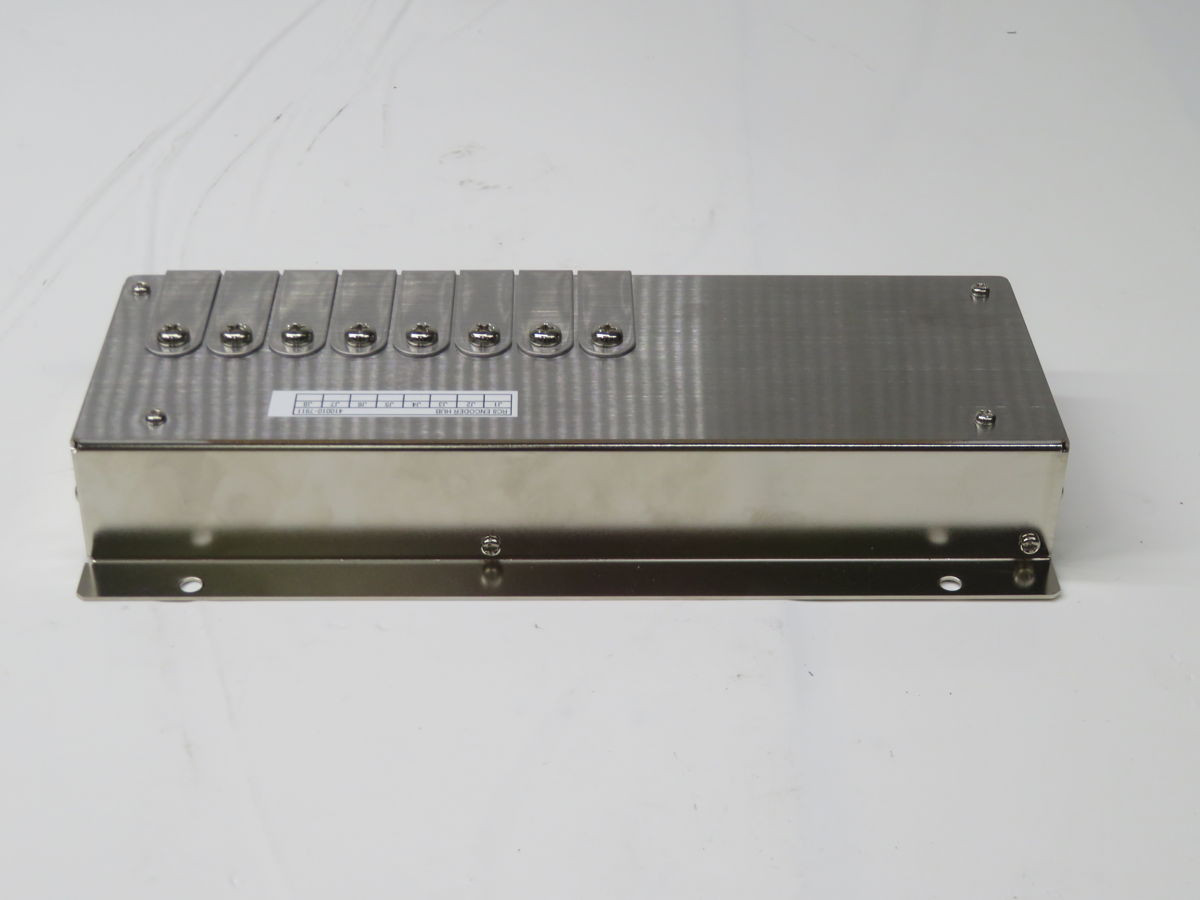

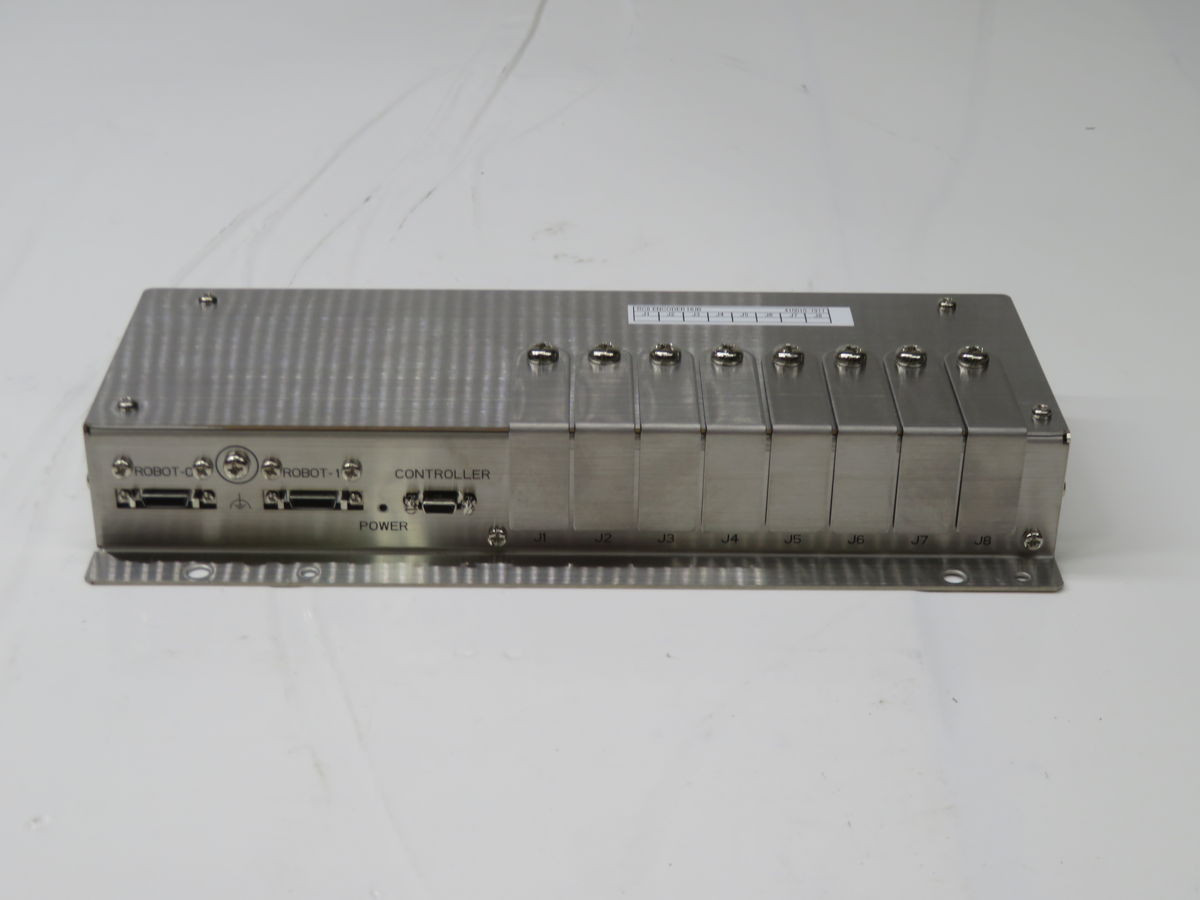

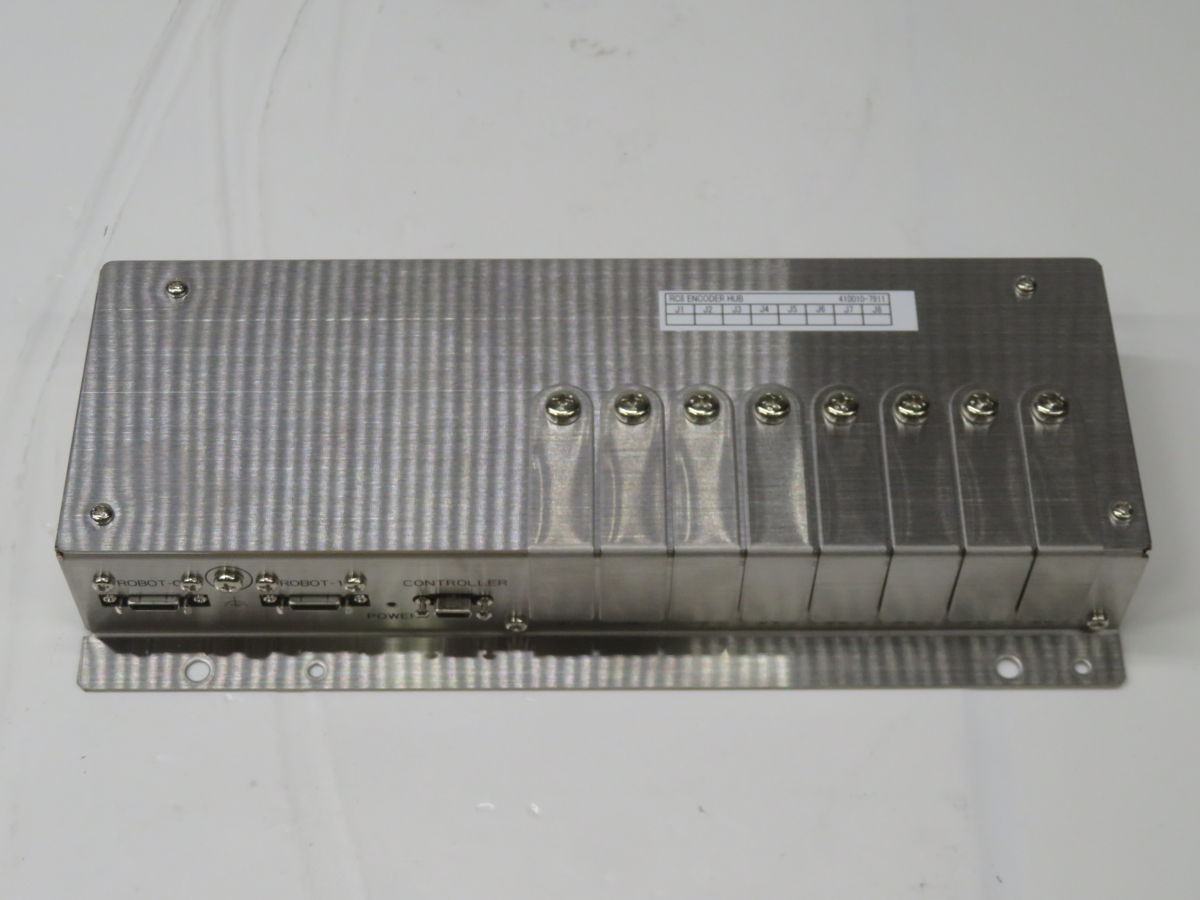

DENSO 410010-7911 RC8 SERIES ROBOT CONTROLLER ENCODER HUB

THE DENSO 410010-7911 IS AN RC8 SERIES ROBOT CONTROLLER DESIGNED FOR INDUSTRIAL AUTOMATION APPLICATIONS. THIS COMPACT, HIGH-PERFORMANCE MOTION CONTROLLER DRIVES DENSO'S 4-AXIS AND 6-AXIS INDUSTRIAL ROBOTS, INCLUDING VS, VM, AND HS SERIES MODELS. IT IS CAPABLE OF CONTROLLING A MAXIMUM OF 8 AXES, CONFIGURABLE AS 4 ROBOT AXES WITH 4 AUXILIARY AXES OR 6 ROBOT AXES WITH 2 AUXILIARY AXES. THE CONTROLLER OPERATES ON A SINGLE-PHASE AC100-240V POWER SUPPLY. STANDARD COMMUNICATION INTERFACES INCLUDE ETHERNET (100BASE-TX), USB (VER 2.0), AND RS-232C, ALONGSIDE DEDICATED I/O PORTS. INTEGRATED SAFETY FUNCTIONS MEET CATEGORY 3 / PLD REQUIREMENTS PER EN ISO 13849-1. ROBOT PROGRAM DEVELOPMENT IS FACILITATED USING THE PAC LANGUAGE. THE UNIT HAS APPROXIMATE DIMENSIONS OF 290 MM (W) × 200 MM (D) × 140 MM (H) AND WEIGHS APPROXIMATELY 5.5 KG.
