Denso RC7M-VSA2-2NNM-NB-NNN Controls for Robots, 6 Axis, 2.53 kW Output, 16 Di, 16 Do

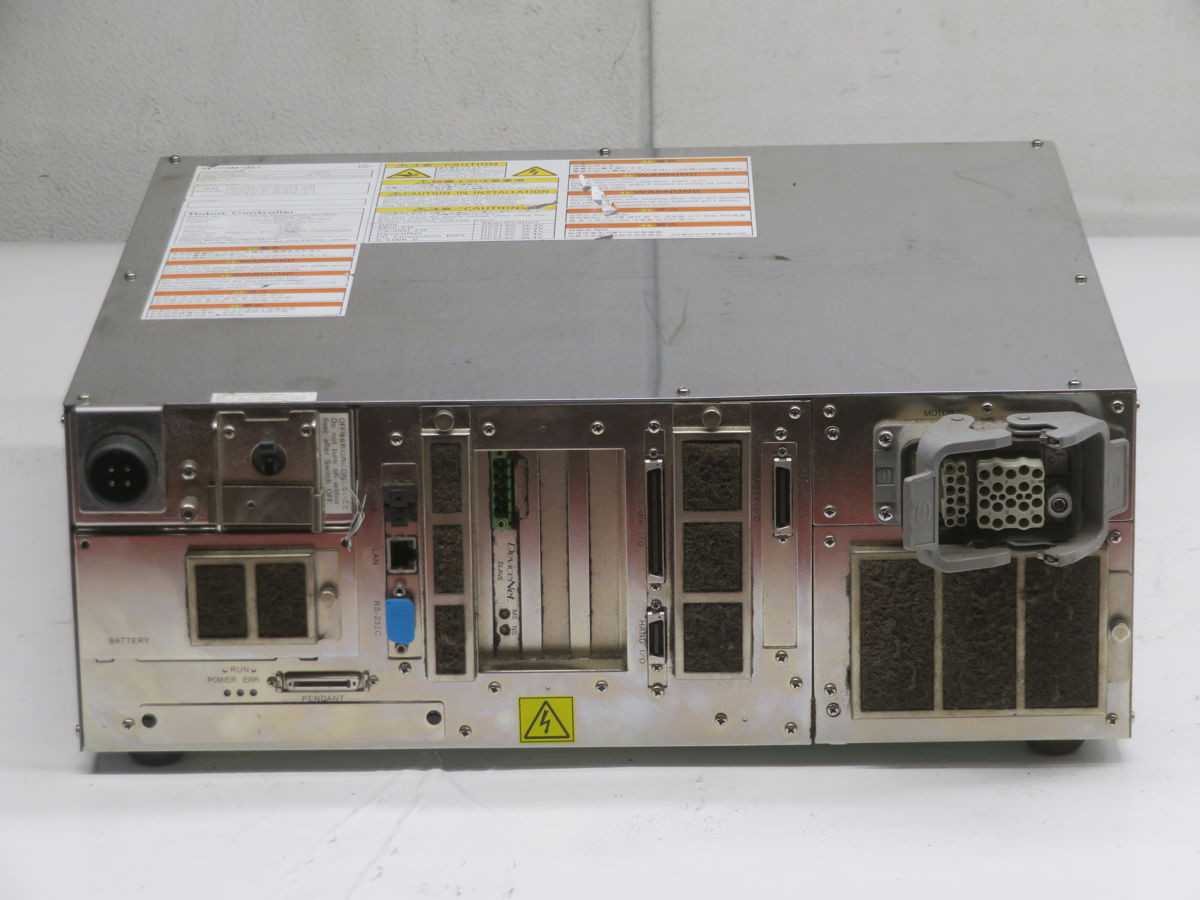

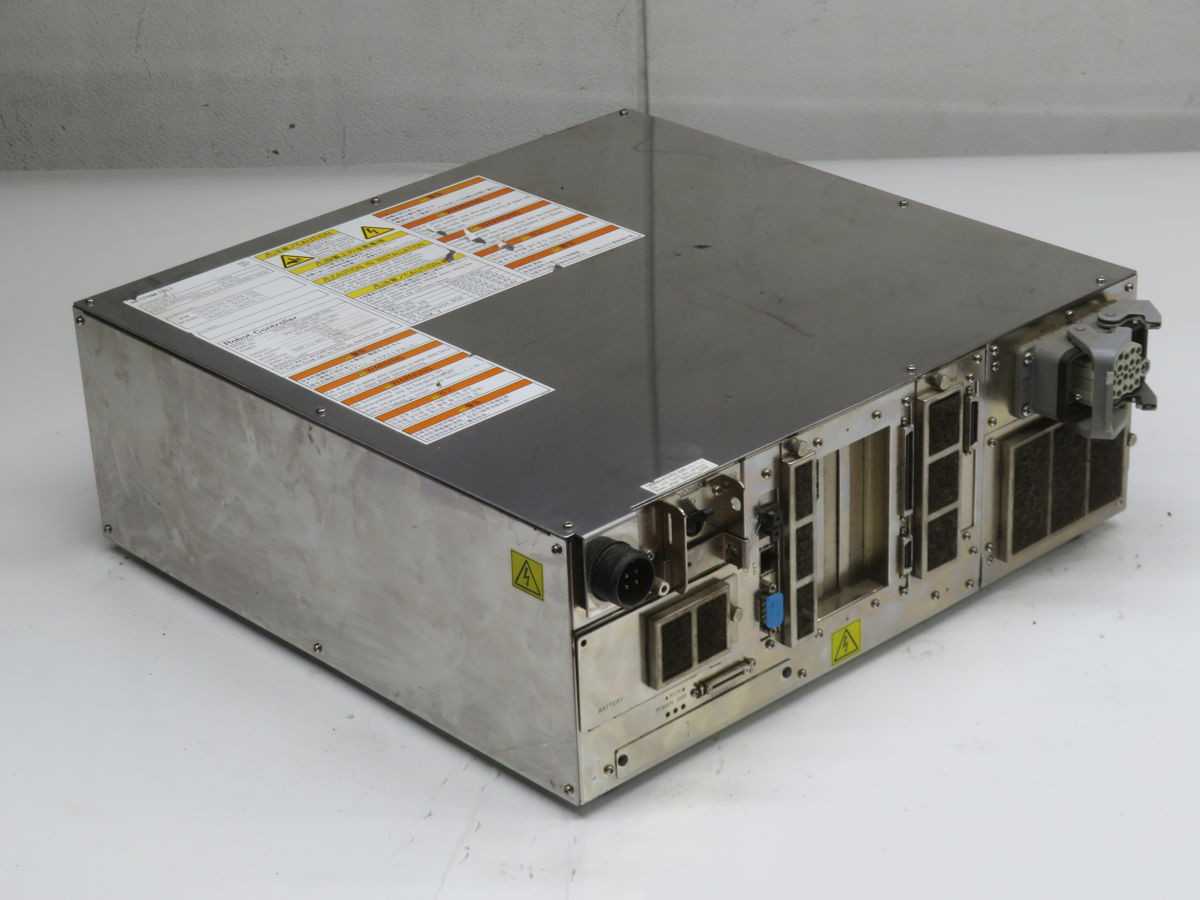

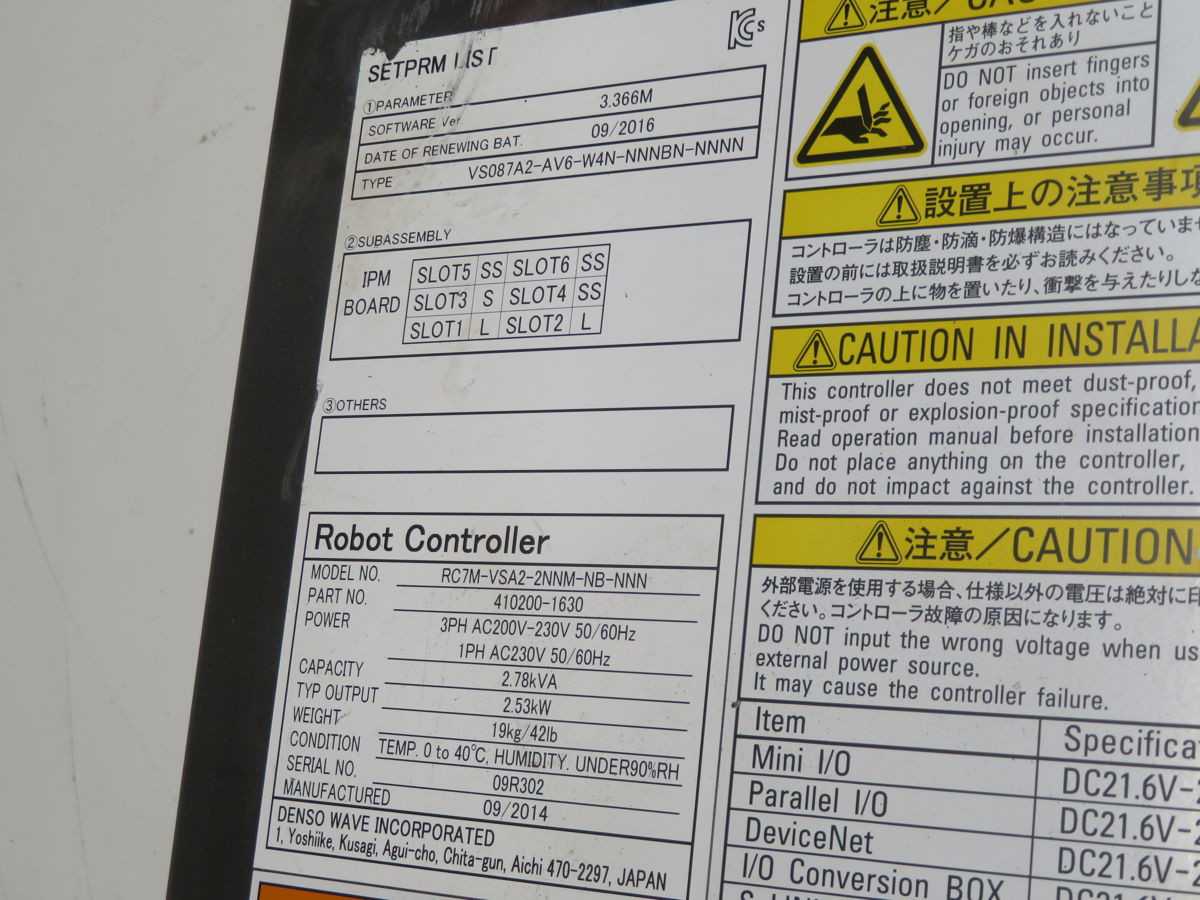

The Denso RC7M-VSA2-2NNM-NB-NNN robot controller, identified also by part number 410200-1630, is a control unit for robotic systems. It operates with a power input of 3-phase AC200V-230V 50/60Hz or 1-phase AC230V 50/60Hz, providing a total capacity of 2.78 kVA and a typical output of 2.53 kW. This controller is designed to manage up to 6 axes, supporting articulated robot series. It incorporates integrated safety functions compliant with category 3 performance level E (PLE) standards. Standard communication interfaces include Ethernet (100BASE-TX), USB, and RS-232C. The system utilizes Denso's native PAC programming language and typically provides 16 digital inputs and 16 digital outputs for external device integration.
