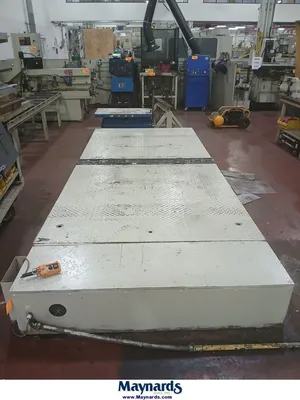

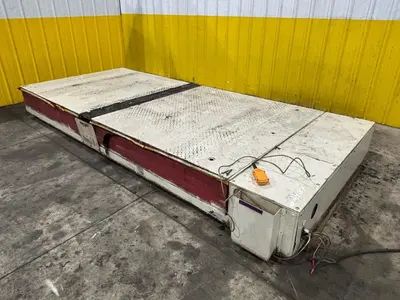

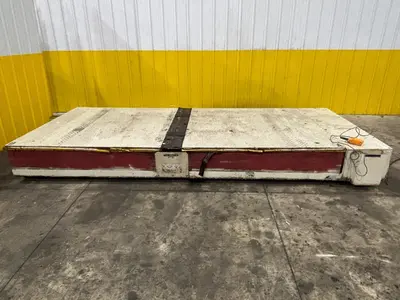

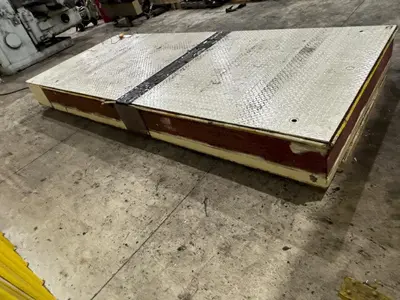

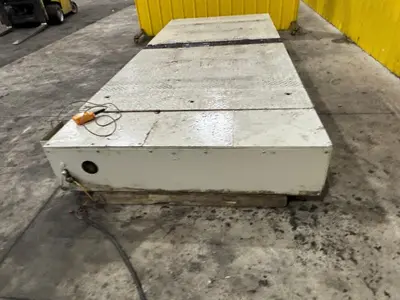

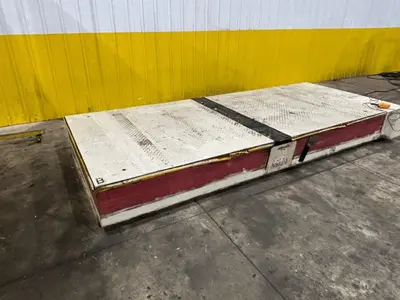

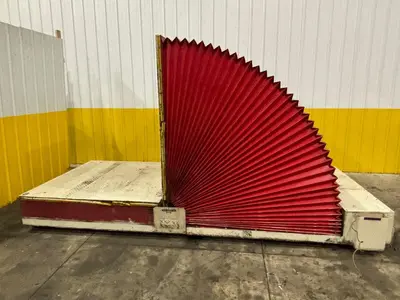

DENSON DIE/MOLD FLIPPER TABLE ST-1620, 20 TON MAXIMUM FLIPPING LOAD

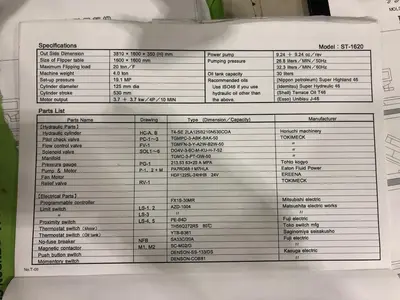

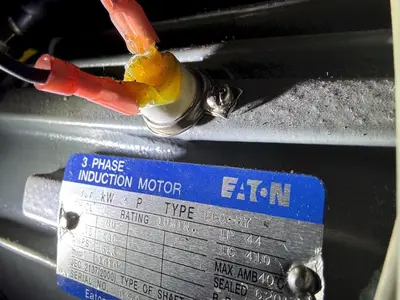

THE DENSON DIE/MOLD FLIPPER TABLE MODEL ST-1620 IS ENGINEERED FOR HANDLING HEAVY LOADS, FEATURING A MAXIMUM FLIPPING CAPACITY OF 20 TONS (40,000 LB). THE ROBUST UNIT HAS OUTSIDE DIMENSIONS OF 3810 X 1600 X 350 (H) MM, WITH A FLIPPER TABLE SIZE OF 1600 X 1600 MM. OPERATING SPECIFICATIONS INCLUDE A SET-UP PRESSURE OF 19.1 MP, A CYLINDER DIAMETER OF 125 MM, AND A CYLINDER STROKE OF 530 MM. THE SYSTEM IS POWERED BY DUAL MOTORS PROVIDING 3.7 + 3.7 KW OF OUTPUT. THE POWER PUMP OPERATES AT 9.24 + 9.24 CC/REV, DELIVERING A PUMPING PRESSURE OF 26.8 LITERS/MIN AT 50HZ AND 32.3 LITERS/MIN AT 60HZ. THE UNIT IS EQUIPPED WITH A 30-LITER OIL TANK CAPACITY.
