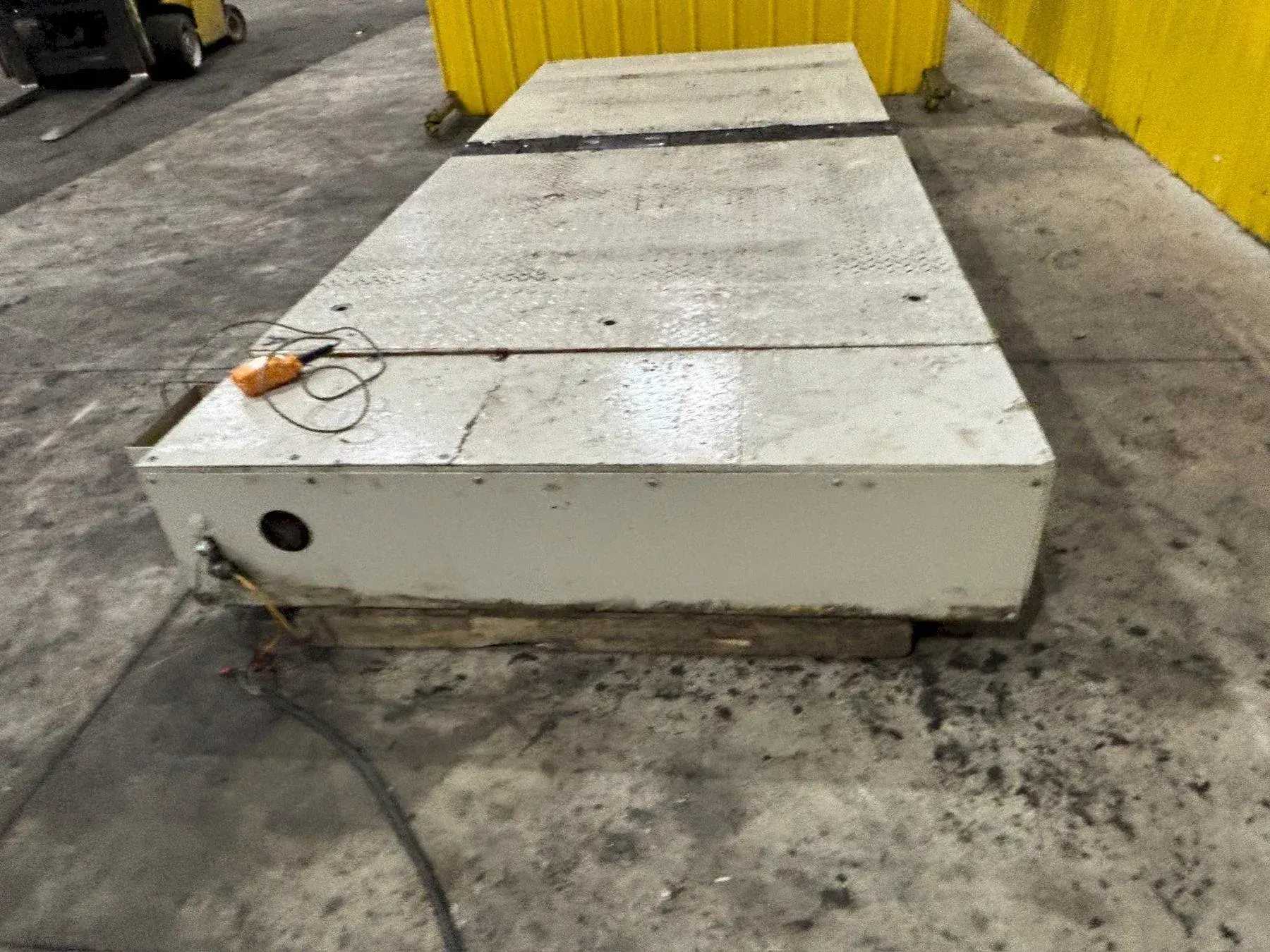

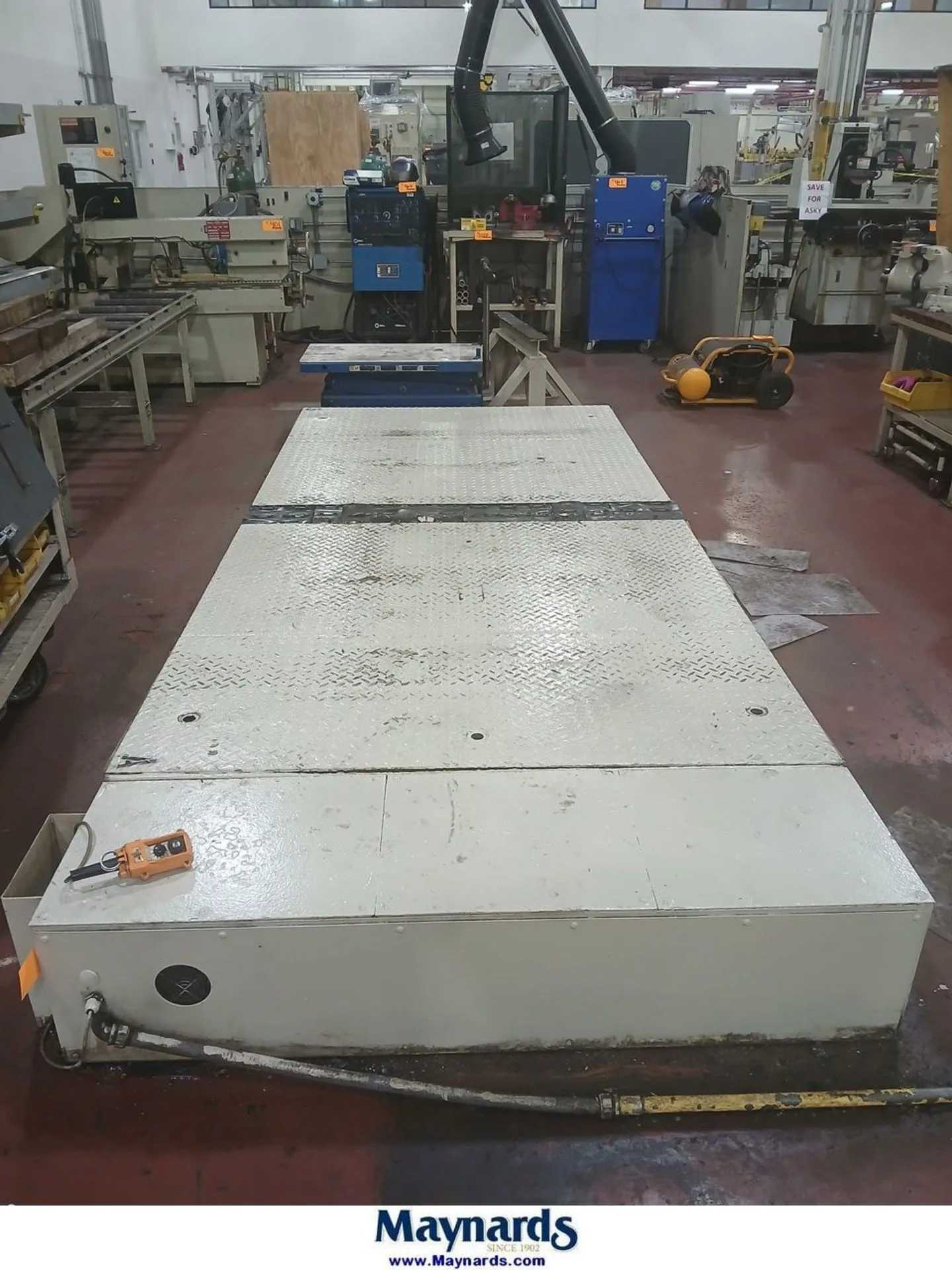

Denson Die/Mold Flipper Table ST-1620, 20 Ton Maximum Flipping Load

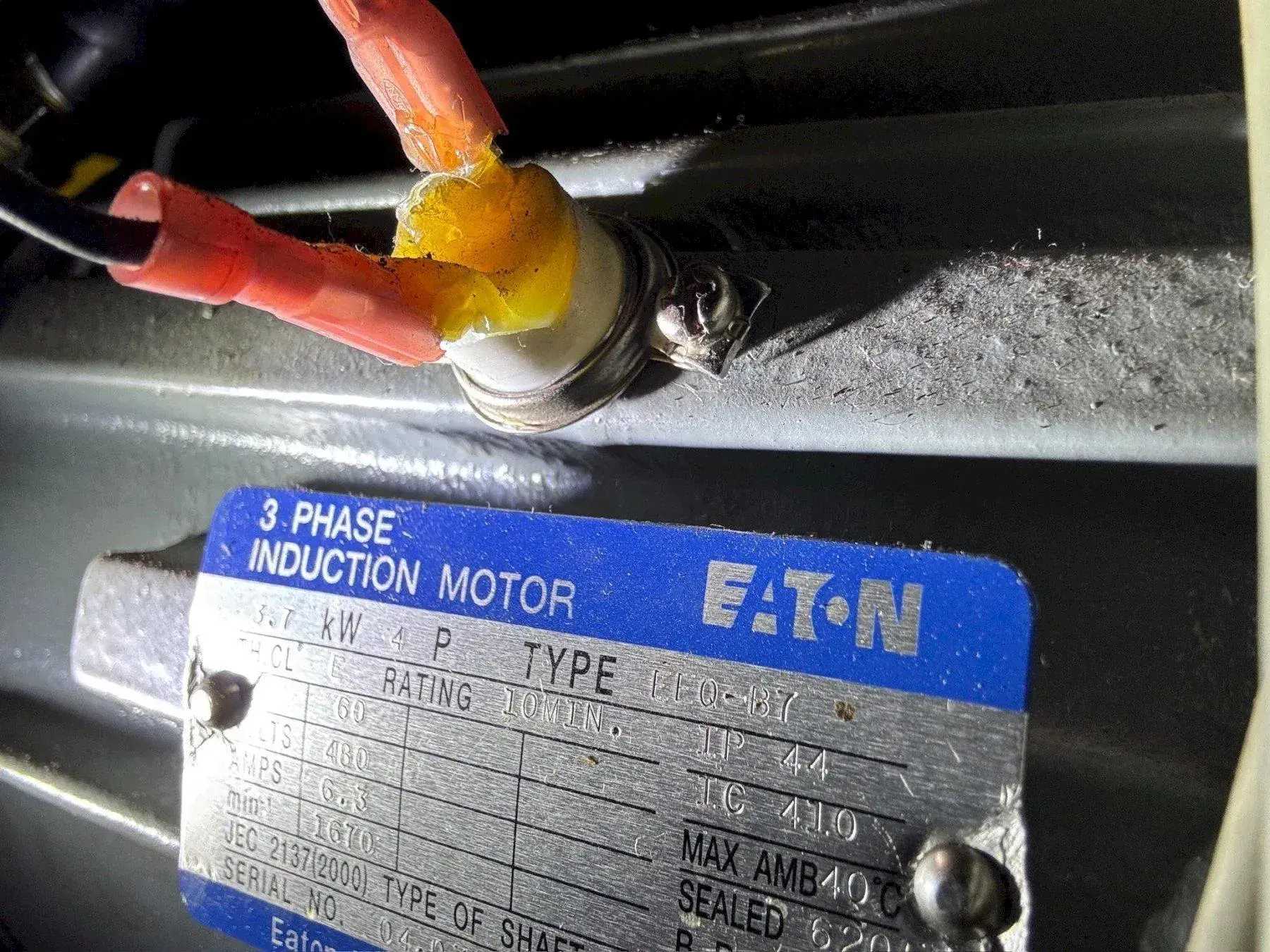

The Denson die/mold flipper table model ST-1620 is engineered for handling heavy loads, featuring a maximum flipping capacity of 20 tons (40,000 lb). The robust unit has outside dimensions of 3810 x 1600 x 350 (H) mm, with a flipper table size of 1600 x 1600 mm. Operating specifications include a set-up pressure of 19.1 MP, a cylinder diameter of 125 mm, and a cylinder stroke of 530 mm. The system is powered by dual motors providing 3.7 + 3.7 kW of output. The power pump operates at 9.24 + 9.24 cc/rev, delivering a pumping pressure of 26.8 liters/min at 50Hz and 32.3 liters/min at 60Hz. The unit is equipped with a 30-liter oil tank capacity.
