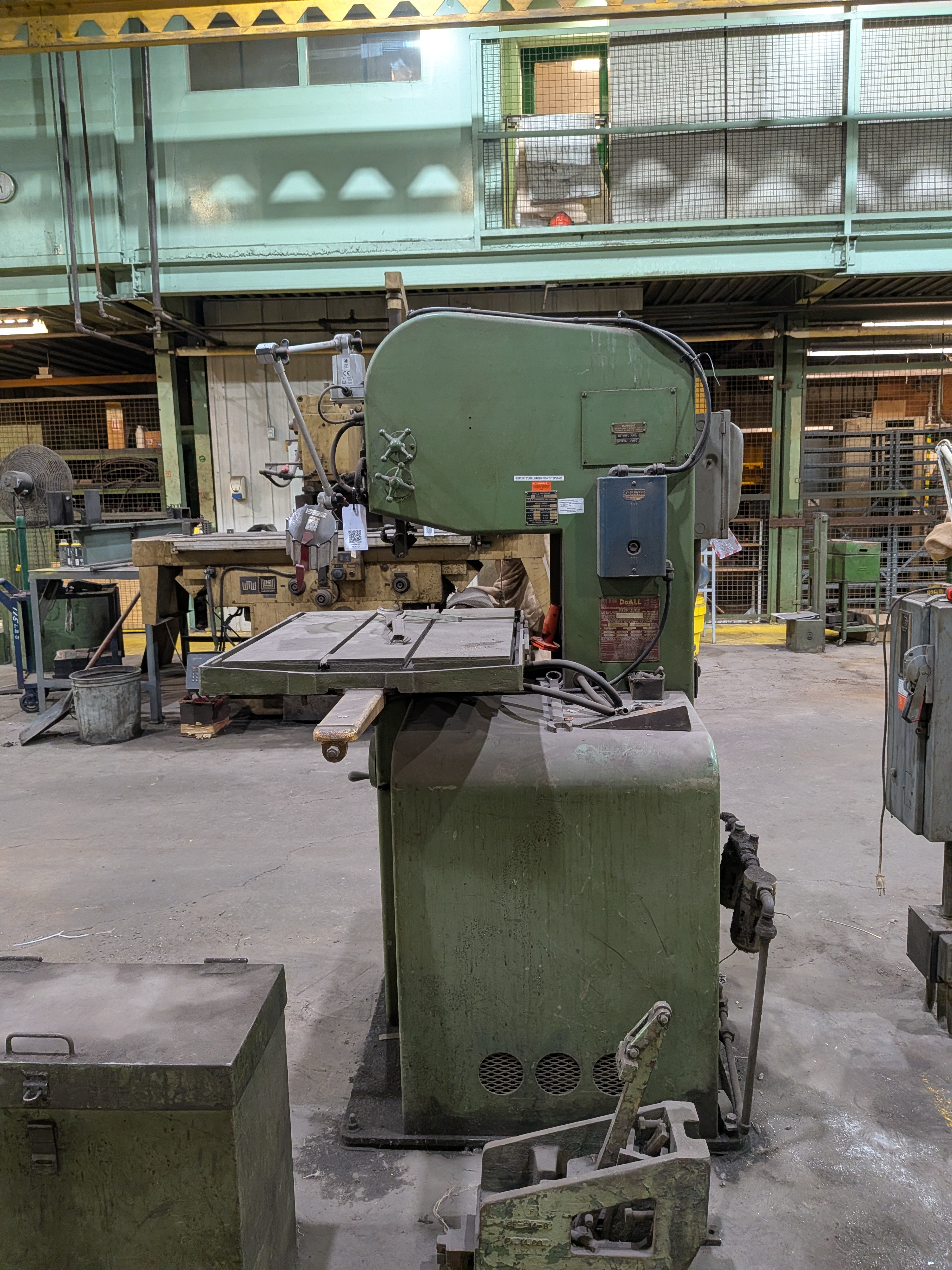

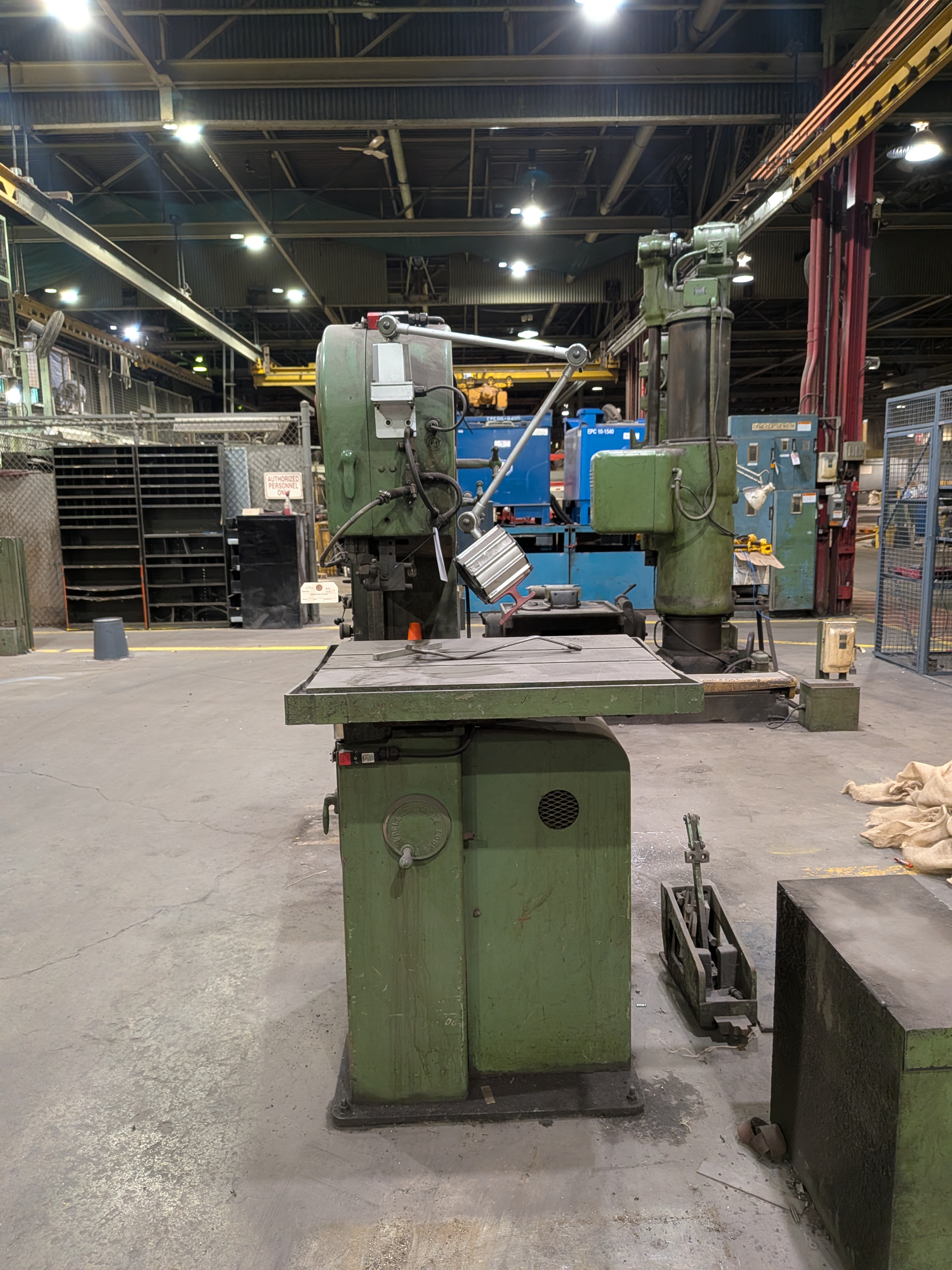

DOALL 16-3 VERTICAL CONTOUR BAND SAW, 3 HP, 16IN THROAT, 25-6000 FPM, HYDRAULIC TABLE FEED

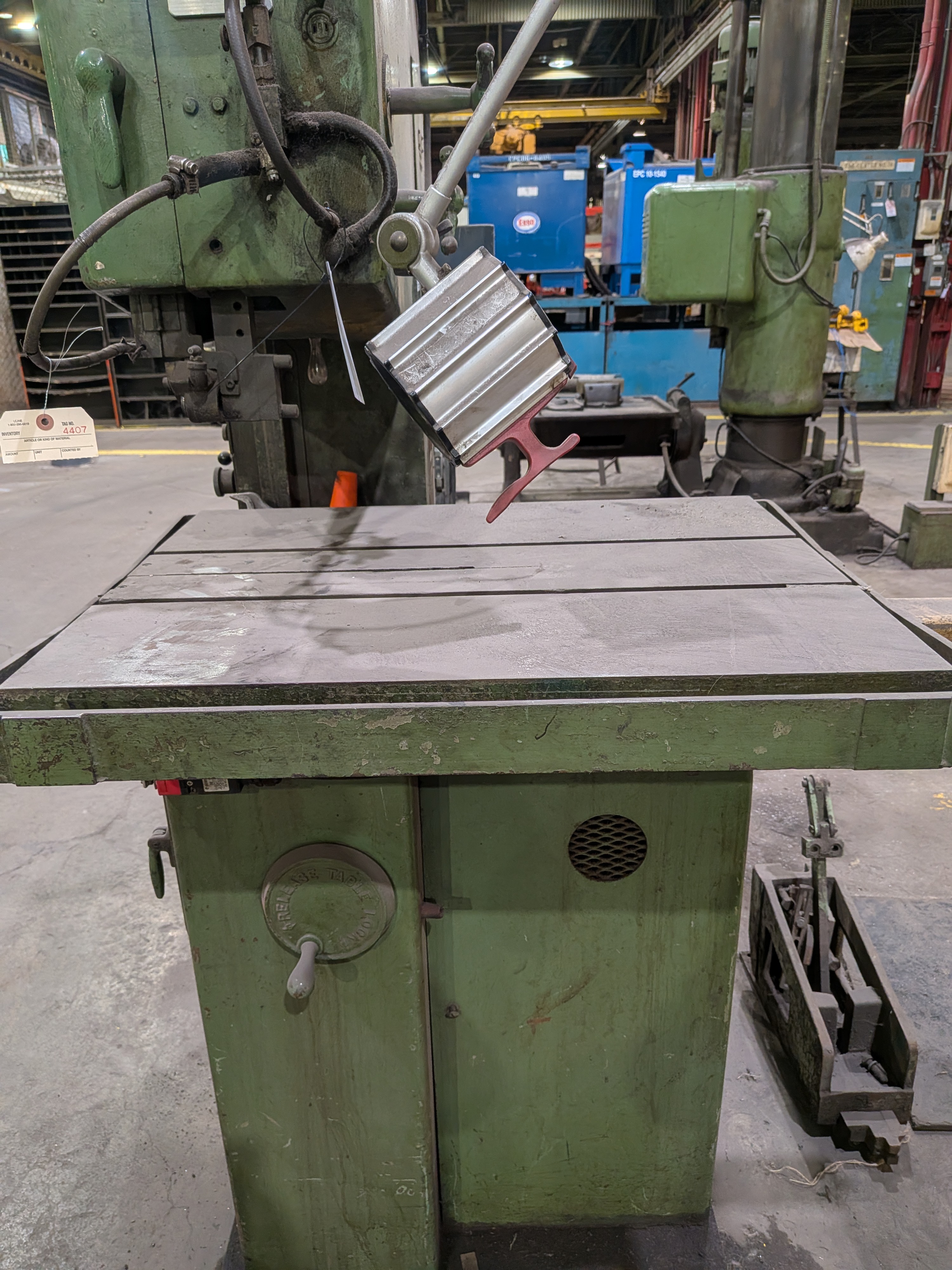

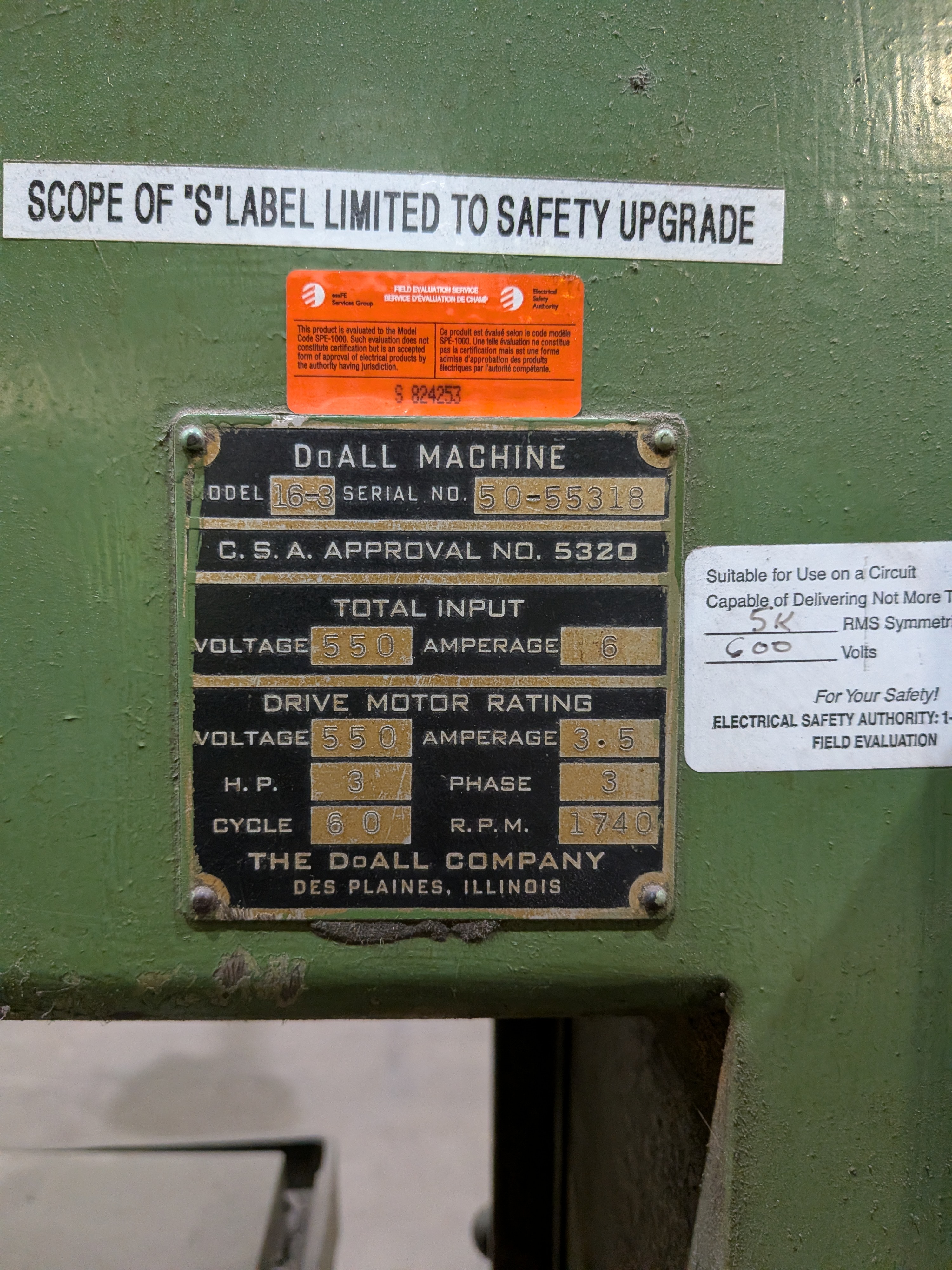

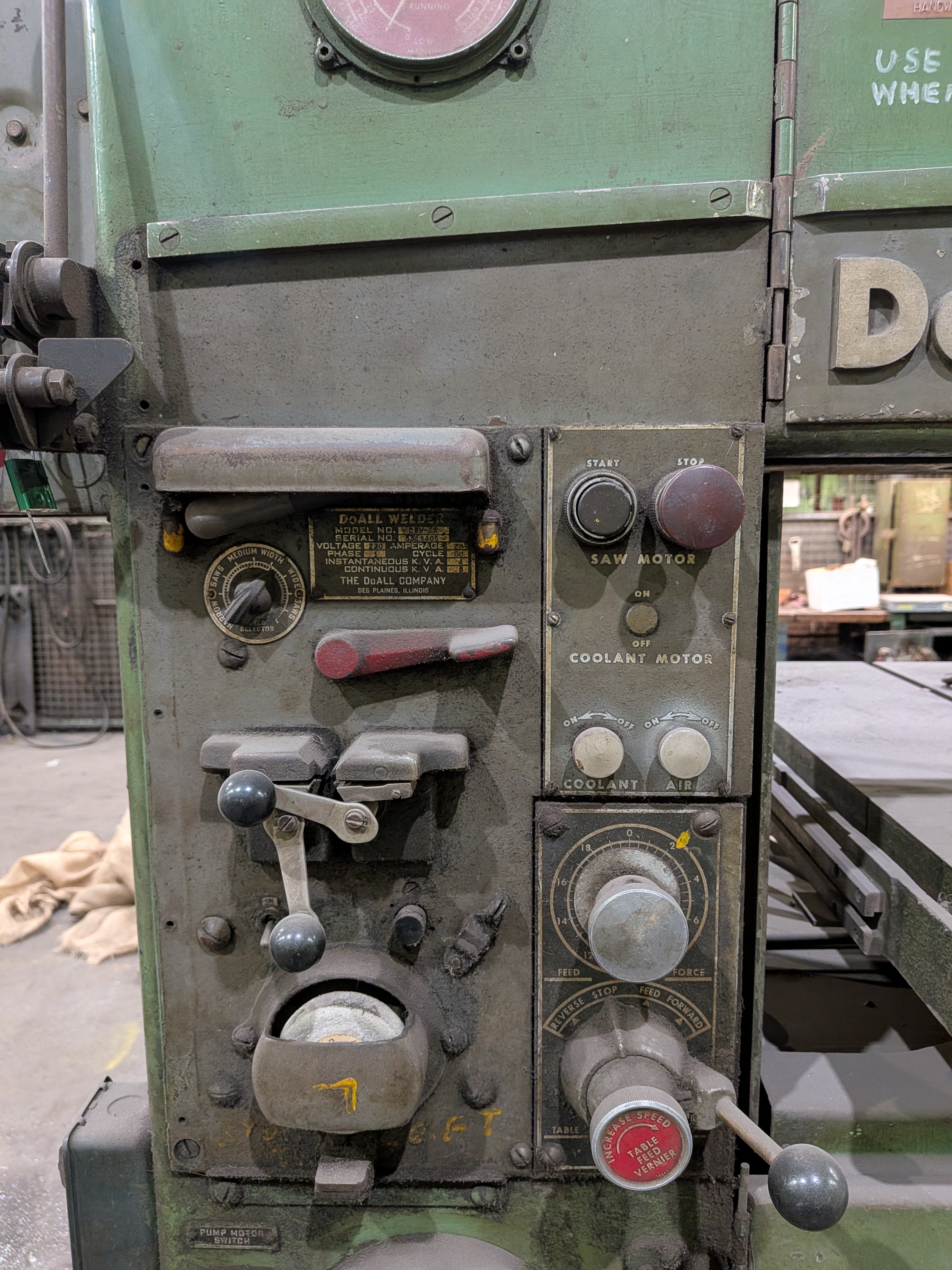

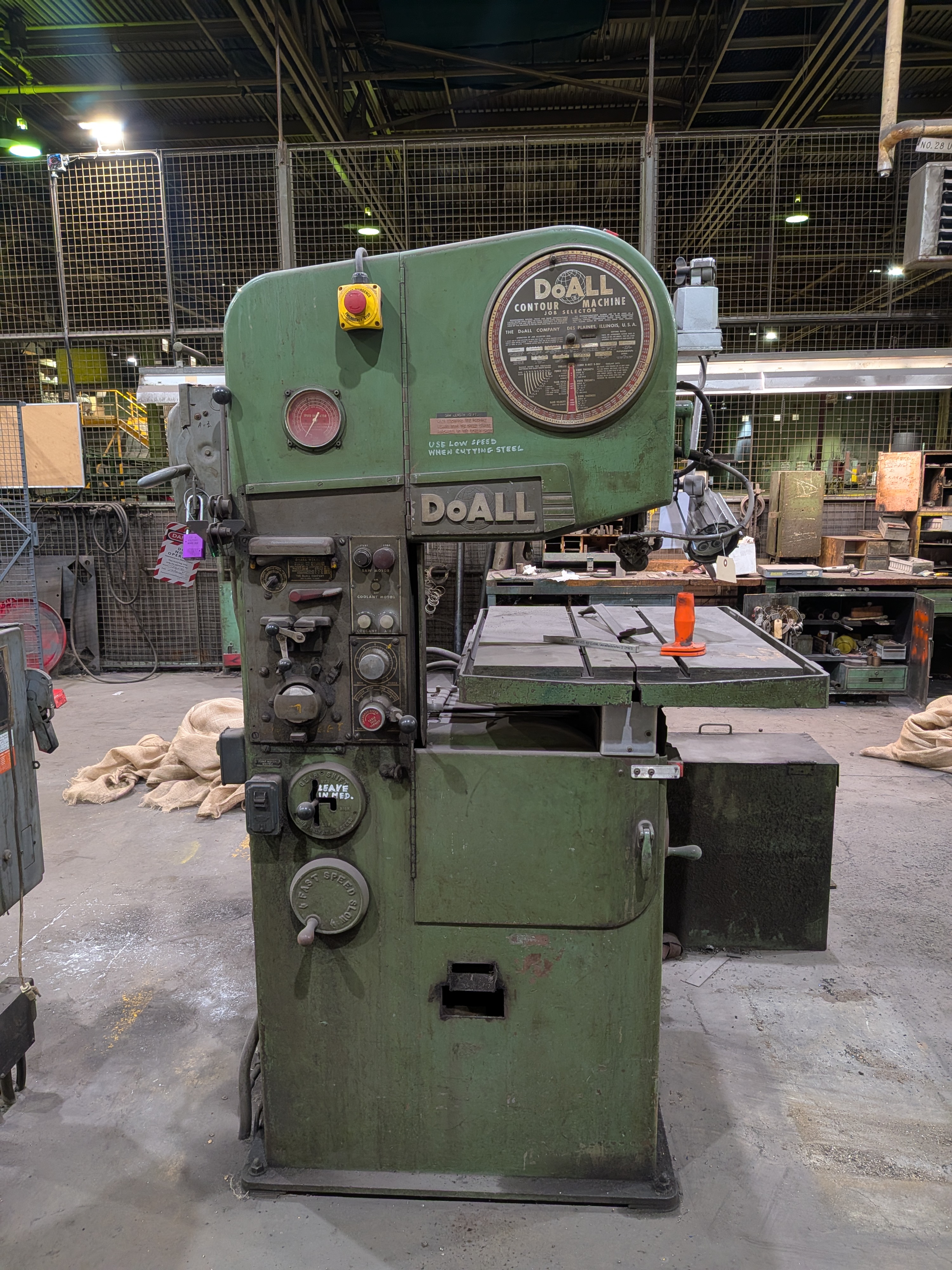

THE DOALL 16-3 IS A 16-INCH VERTICAL CONTOUR BAND SAW DESIGNED FOR VERSATILE METAL CUTTING AND INDUSTRIAL APPLICATIONS. THIS MACHINE FEATURES A 16-INCH THROAT DEPTH AND A MAXIMUM WORK THICKNESS CAPACITY OF 8-3/4 INCHES. IT IS POWERED BY A 3 HP DRIVE MOTOR, TYPICALLY CONFIGURED FOR 220/440V THREE-PHASE POWER, ENABLING INFINITELY VARIABLE BLADE SPEEDS RANGING FROM 25 TO 6000 FPM. THE MACHINE IS EQUIPPED WITH A 26-1/2-INCH BY 33-1/2-INCH WORK TABLE THAT TILTS 45 DEGREES TO THE RIGHT AND 10 DEGREES TO THE LEFT. A KEY TECHNICAL FEATURE IS THE HYDRAULIC TABLE FEED, WHICH OFFERS A 12-INCH MAXIMUM STROKE WITH VARIABLE TRAVEL SPEEDS FROM 0 TO 20 FPM AND ADJUSTABLE FEED PRESSURE UP TO 200 POUNDS PER INCH. IT ACCOMMODATES BLADES UP TO 1 INCH IN WIDTH WITH A MAXIMUM LENGTH OF 120 INCHES. STANDARD INTEGRATED EQUIPMENT INCLUDES A DOALL BLADE WELDER WITH AN ASSOCIATED GRINDER AND BLADE SHEAR FOR CUSTOM BLADE SIZING AND REPAIR.
