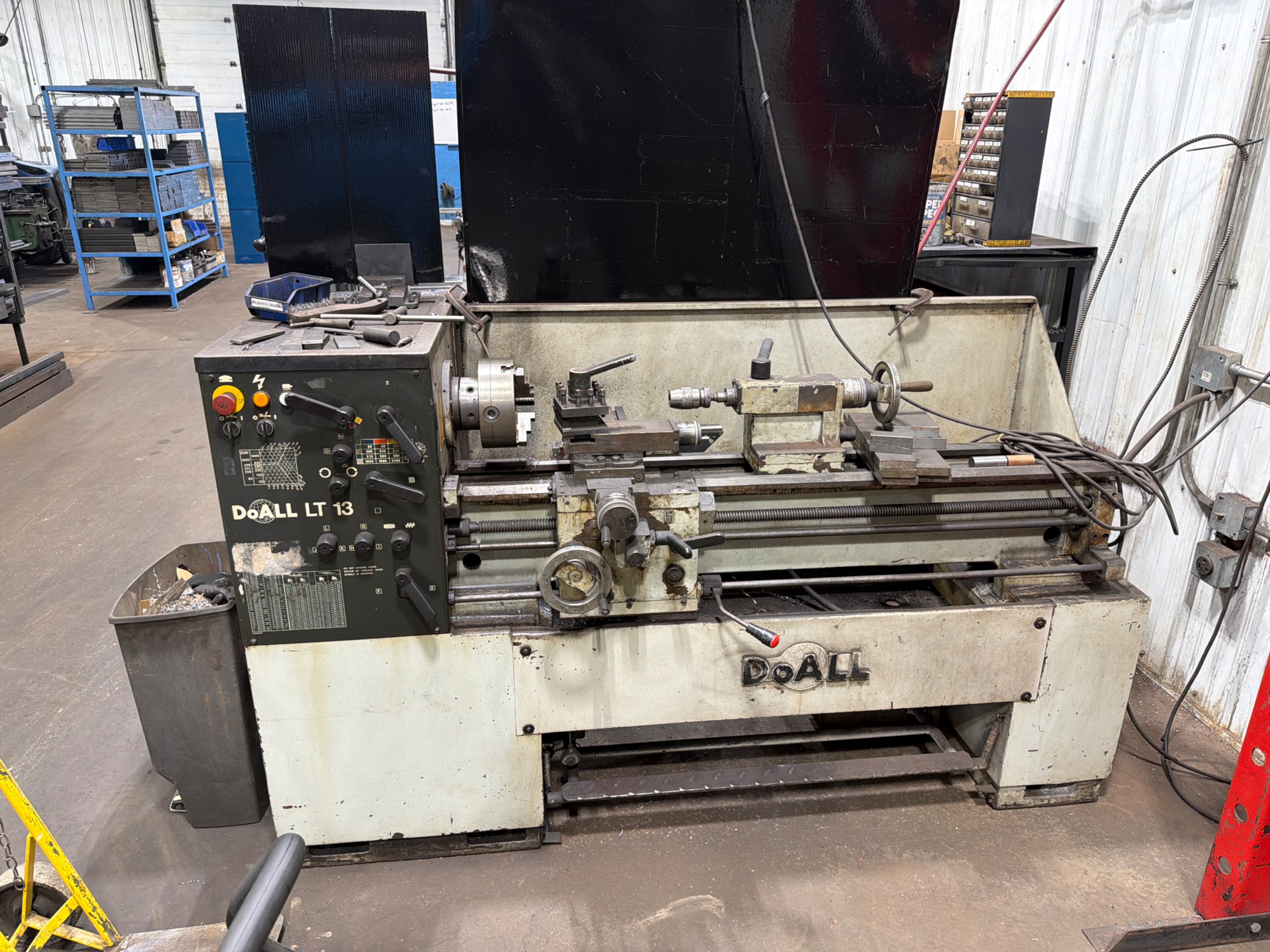

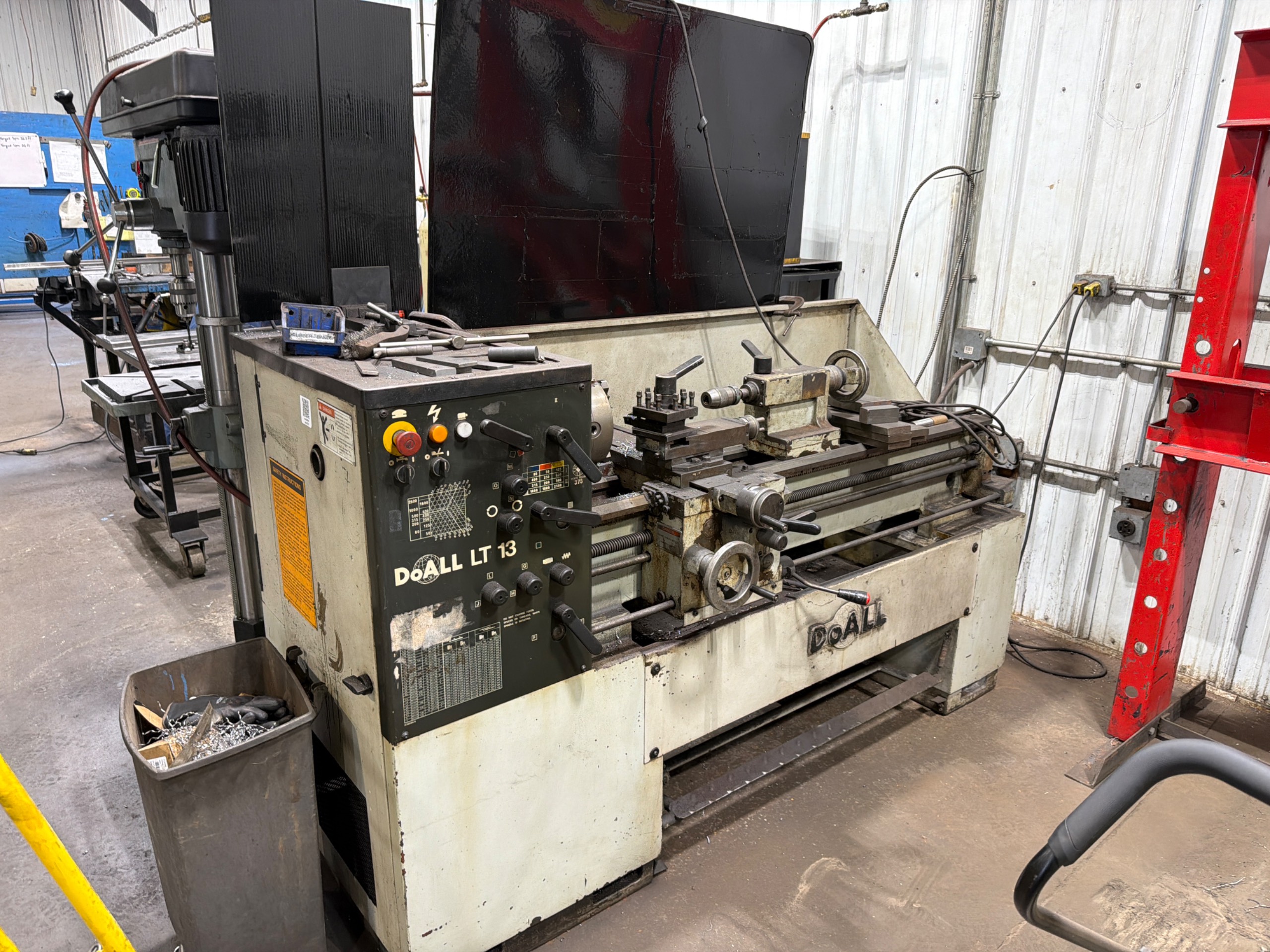

Doall LT13 Engine Lathe, 13in Swing, 5HP, Up to 2500 RPM, D1-6 Spindle, MT3 Tailstock

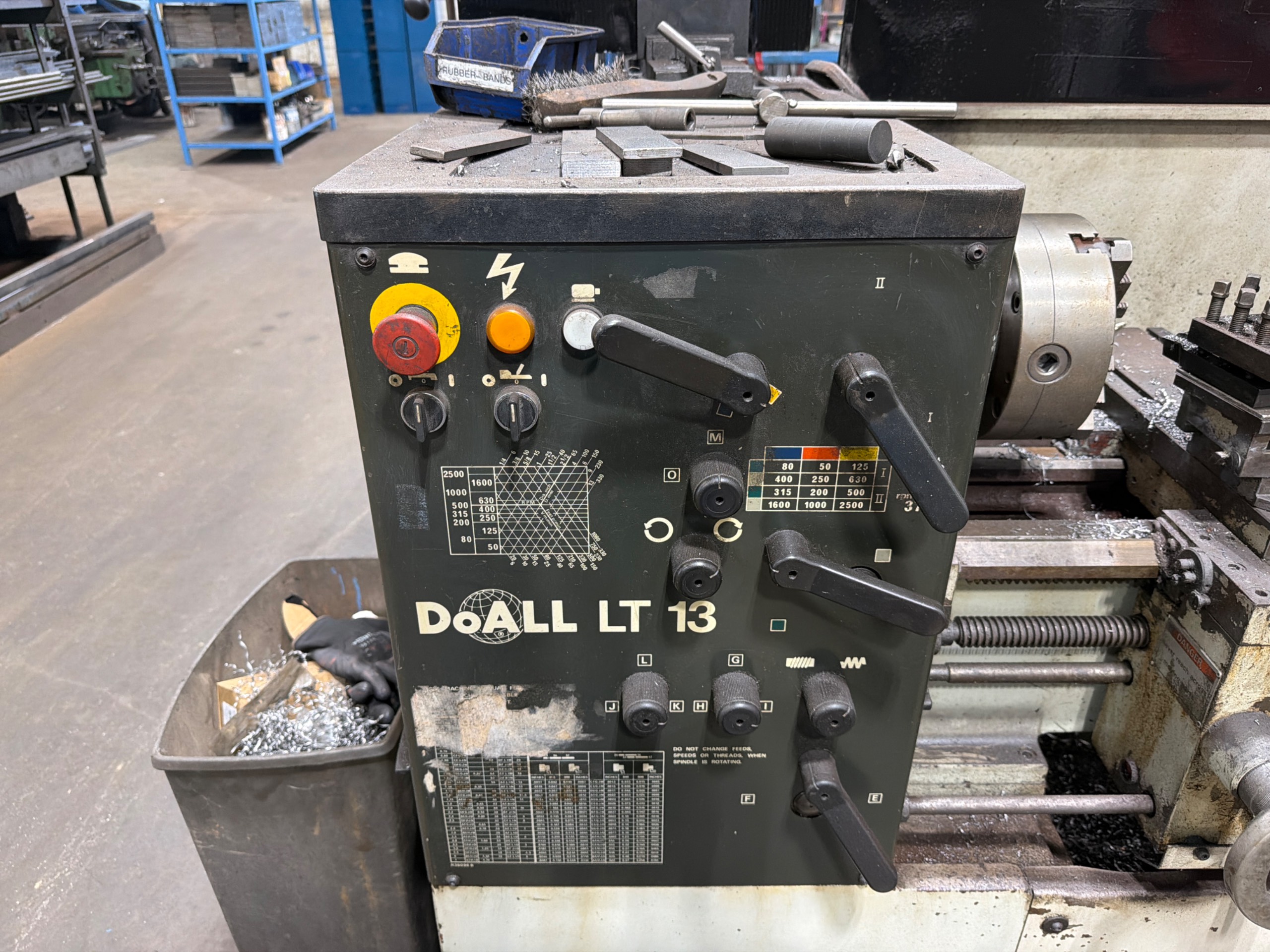

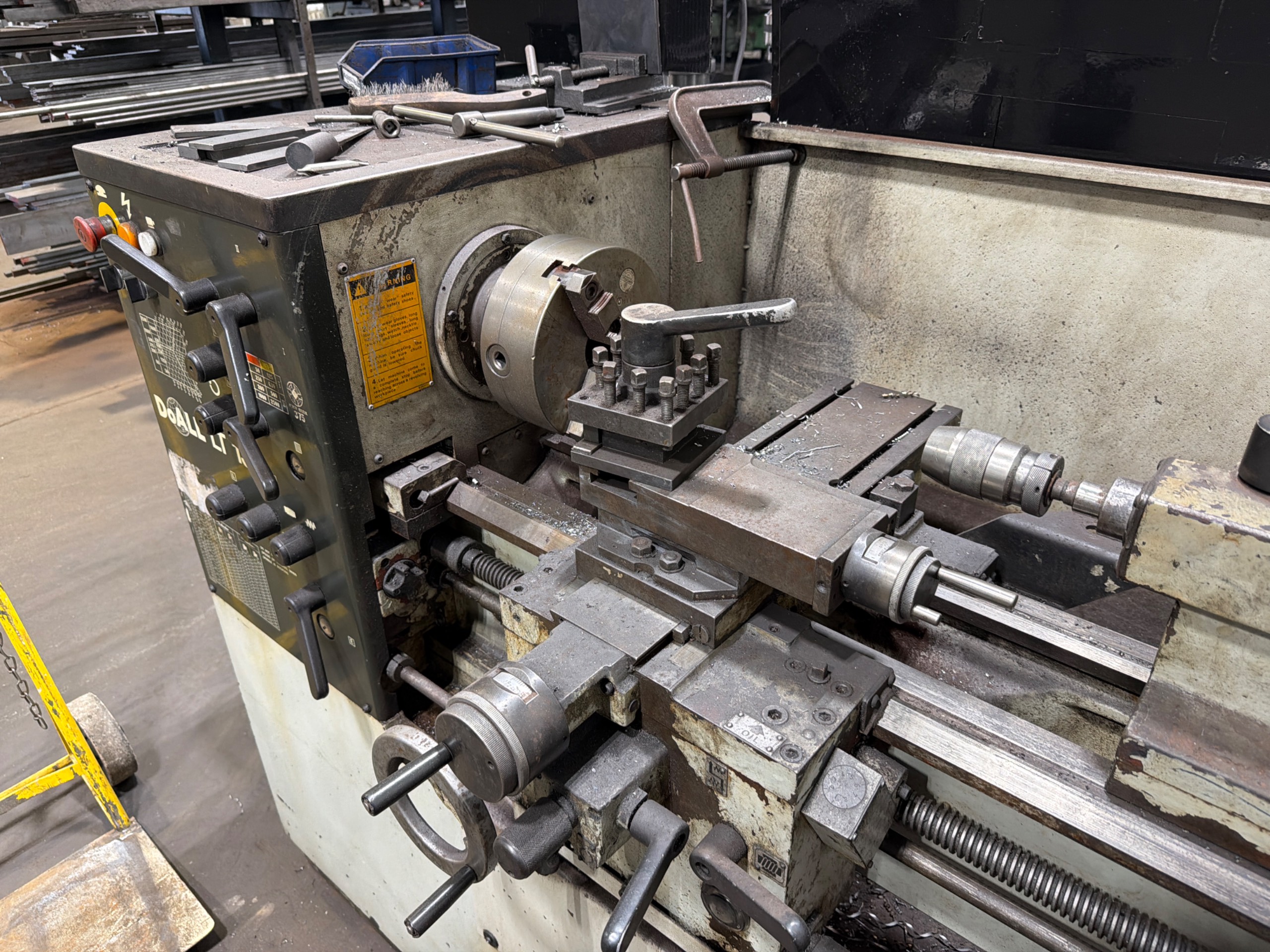

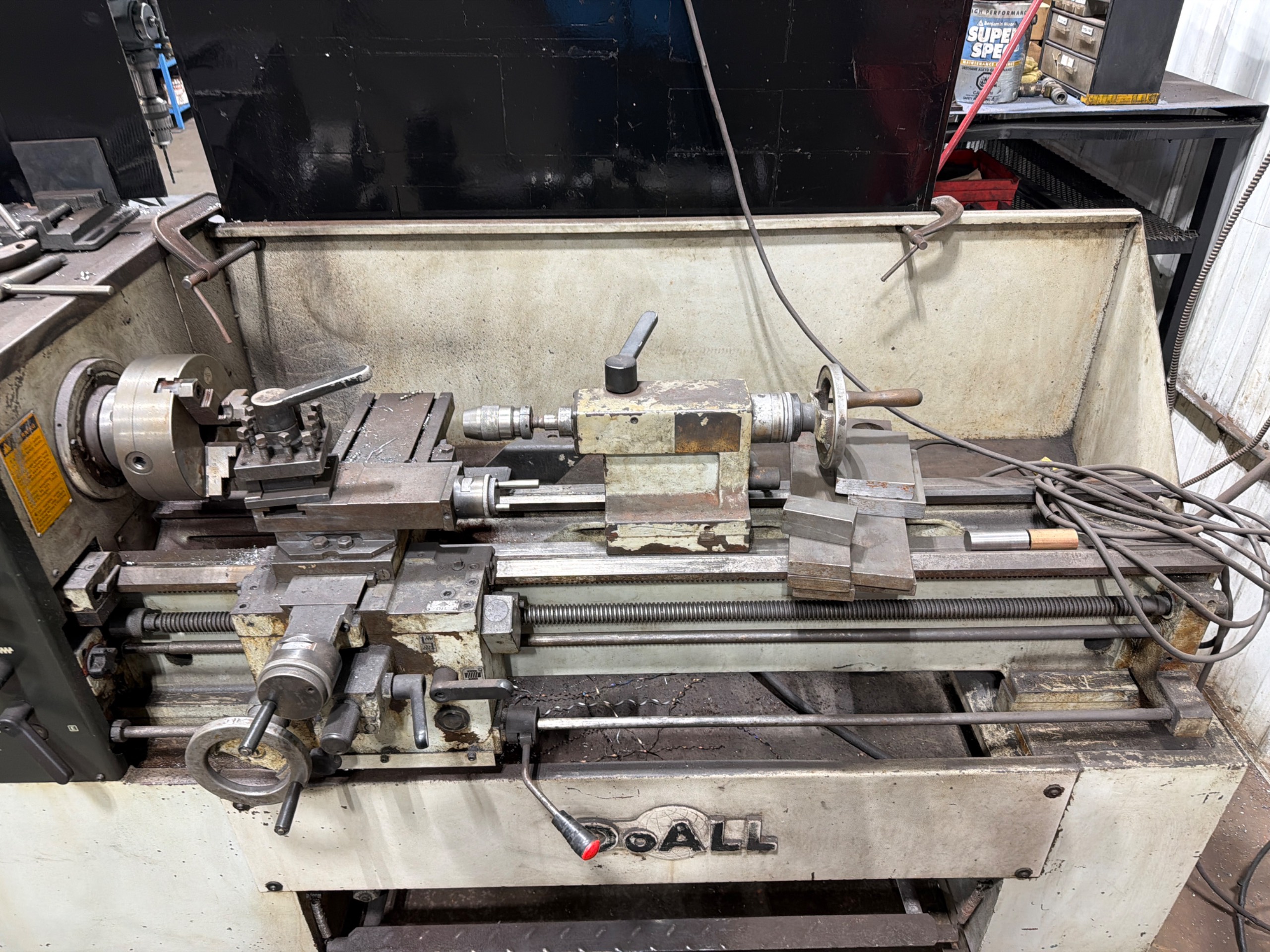

The Doall LT13 is a precision engine lathe designed for industrial toolroom applications. It features a 13 inch swing over the bedways and a distance between centers typically around 40 inches. The machine is powered by a 5 HP main motor, providing a spindle speed range of up to 2,500 RPM across multiple speed settings. The headstock is equipped with a D1-6 spindle nose and a spindle bore diameter of approximately 1-3/8 inches. Its threading capabilities cover an English range of 4 to 72 TPI and a metric range of 0.2 to 7 mm. The longitudinal feed range typically spans .0017 to .0287 IPR, while the cross feed range covers .0008 to .0130 IPR. The tailstock features a Morse taper #3 and a quill travel of approximately 4-3/4 inches. Constructed with an 8-7/8 inch wide hardened bed, the lathe requires a 220/440V three-phase power supply. Standard features often include a foot brake, a thread dial indicator, and a removable chip pan. The approximate physical footprint is around 76 inches in length.
