Dorian Tool Cxa Series Tool Holder Set, D35CXA-1, D35CXA-2, D35CXA-7, 14-17 Inch Swing

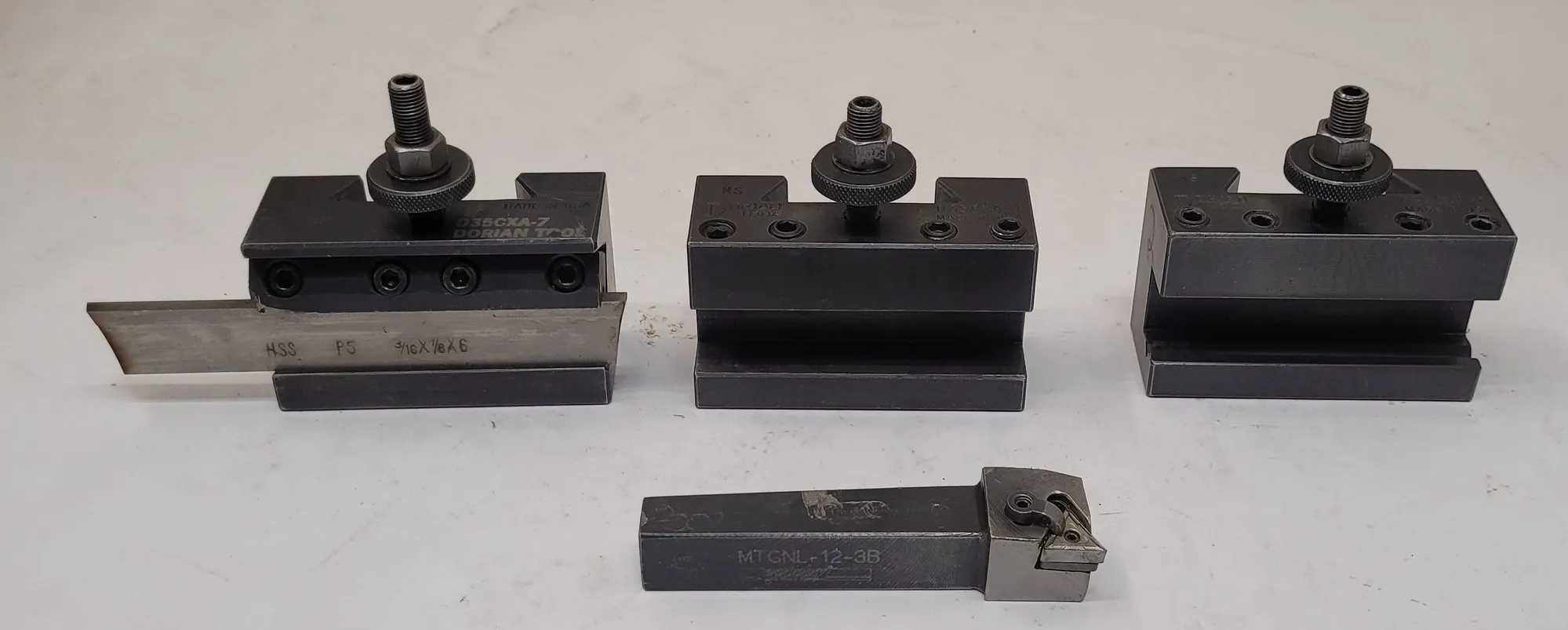

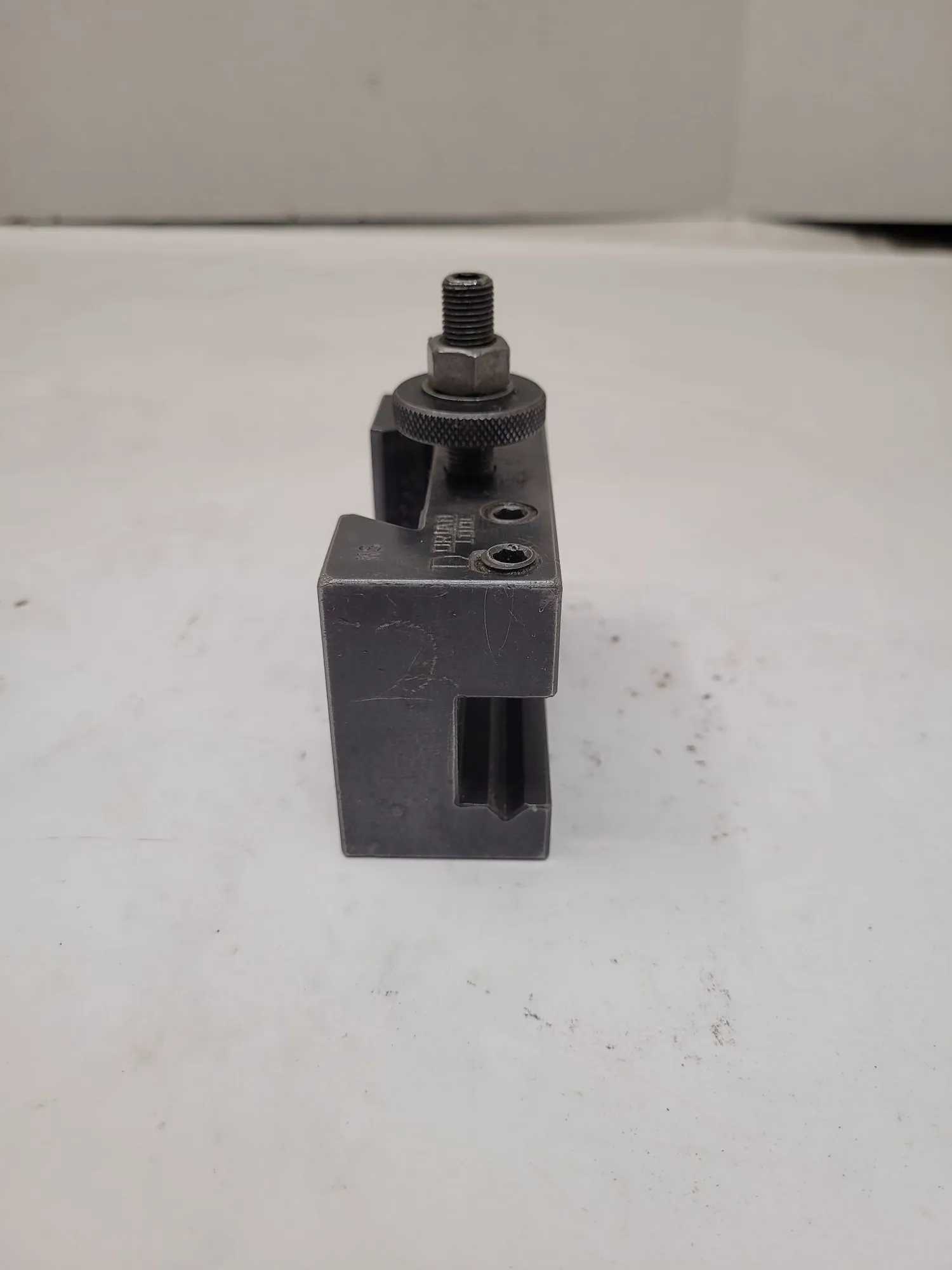

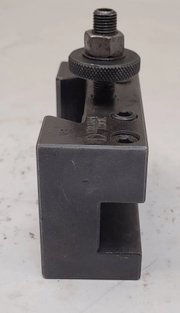

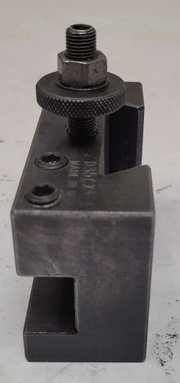

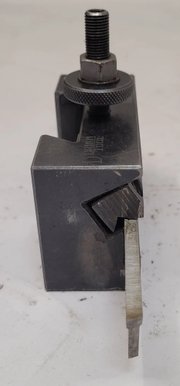

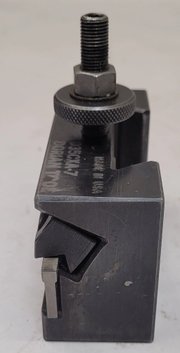

The Dorian Tool set of three tool holders is designed for lathes with a 14 to 17-inch swing, specifically within the CXA series. The set includes a D35CXA-1 turning and facing holder with a tool capacity for 3/4 to 1-inch square shanks, measuring 3.75 inches in length, 2.5 inches in height, and 1.75 inches in width, with a maximum centerline height of 2.29 inches. The D35CXA-2 holder features a V-groove for versatility, accommodating 3/4 to 1-inch square shanks and boring bars up to 1 inch, with identical exterior dimensions and centerline height. The D35CXA-7 reversible cut-off holder is compatible with SGIH 26 series blades (2mm to 6mm) and accepts a maximum shank size of 1 inch. It has an overall height of 2.5 inches, an overall width of 3.75 inches, and a maximum centerline height of 2.04 inches. Additionally, the set includes a Seco Carboloy MTGNL-12-3B tool with a .750 x .750-inch shank size and an overall length of 4.50 inches.
