Dorian Tool D35CXA-41 Boring Bar Holder, 1.25" Bore, Seco S1-MWLNR-20-3 Bar, 14" Swing Lathes

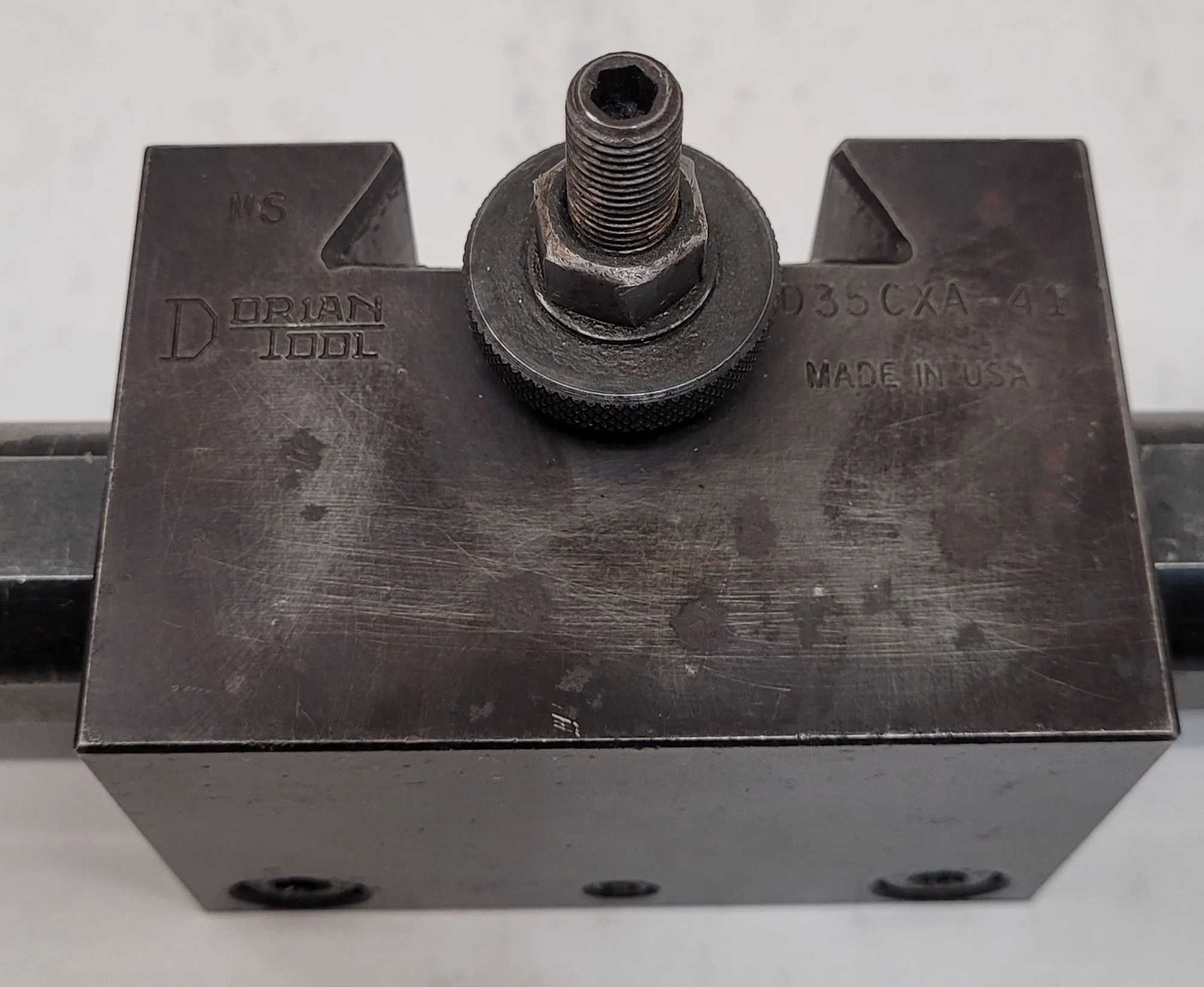

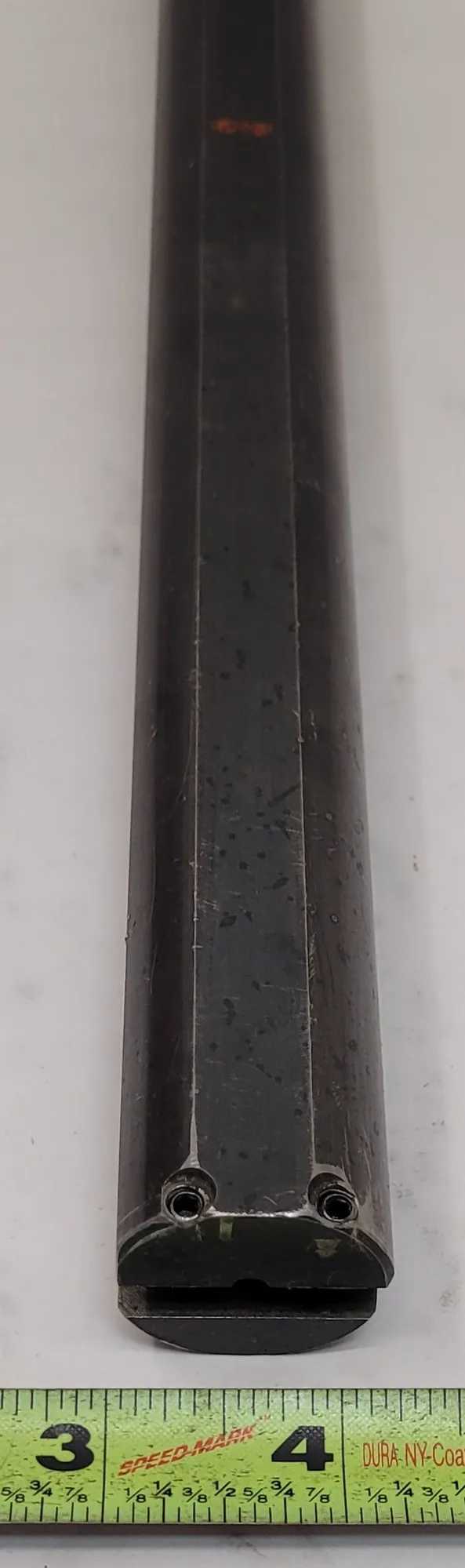

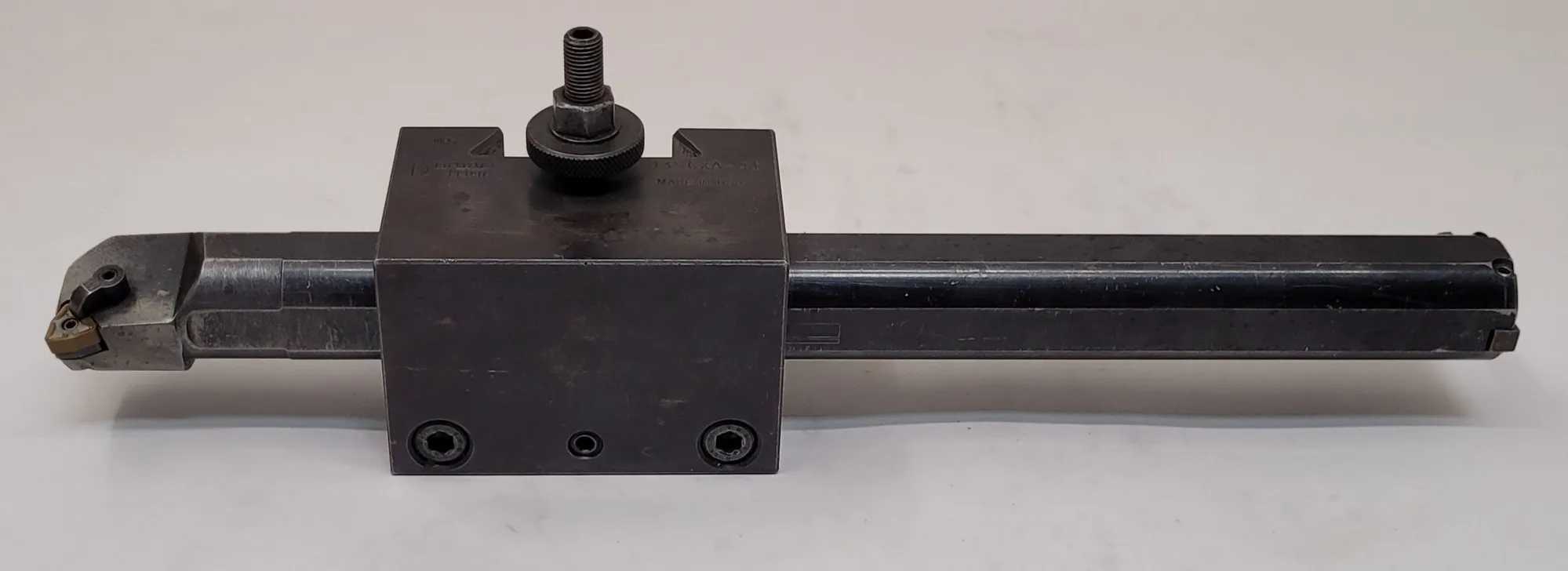

The Dorian Tool D35CXA-41 boring bar holder is designed for lathes with a swing of 14 to 17 inches. The holder features a 1.25-inch bore and has overall dimensions of 3.75 inches in width, 2.5 inches in height, and 2.5 inches in length. This tool holder is paired with a Seco Carboloy S1-MWLNR-20-3 boring bar, which has an overall length of 14 inches and a diameter of 1.25 inches. The boring bar is a right-hand tool with a 95-degree approach angle and a negative 5-degree lead angle. It is designed for a minimum bore diameter ranging from 1.47 inches to 1.53 inches. The assembly utilizes an M-style clamp-on/lock pin clamping system and is compatible with WNMG 33X or 43X insert types.
