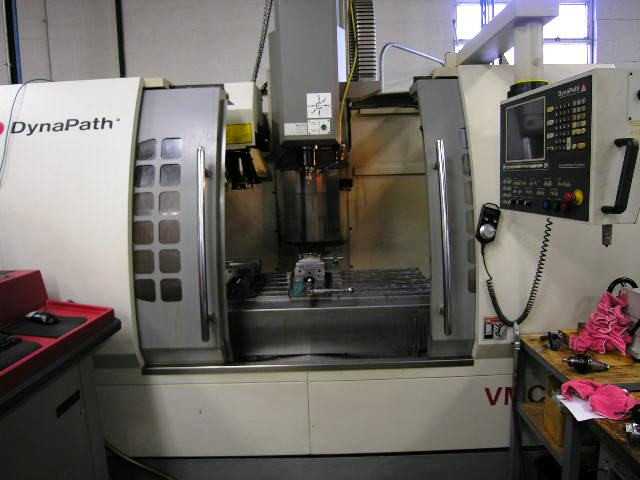

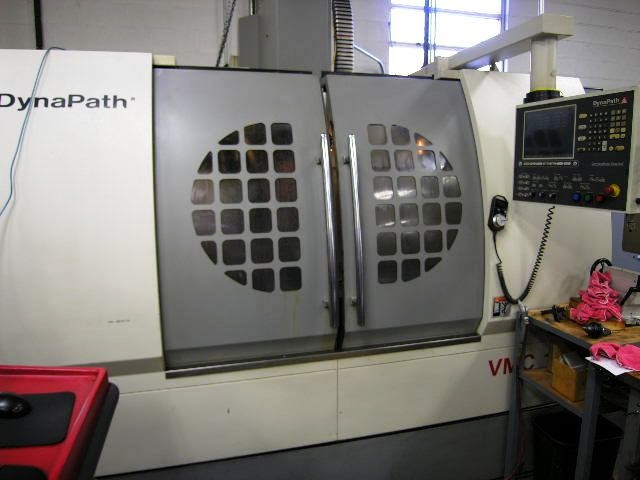

Dynapath 4-axis VMC1000

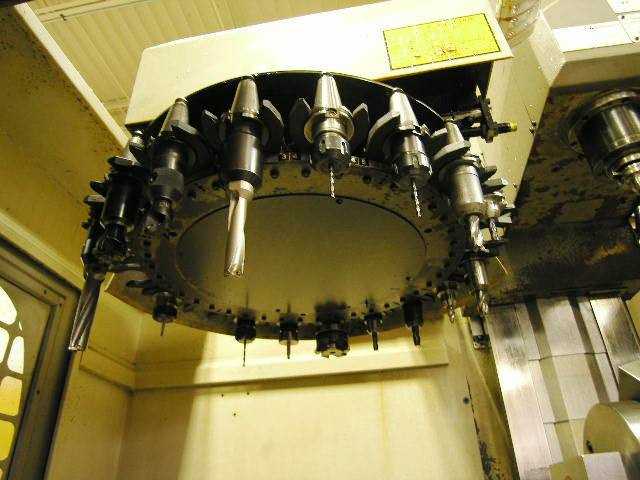

Model: MV-1000 Table dimensions: 47.2” x 21.6” Travels: 39.3” x 23.6” x 24” in Z Max. work piece: 1,760 lbs. Spindle taper: Cat 40 Spindle speeds: 8,000 rpm Spindle HP: 15/10 Spindle nose to table: 5.1” to 29.1” Spindle center to slide ways: 22.8” ATC: 20 positions Feed rates: 1 to 325 ipm Rapids: 787 ipm Dimensions: 112” x 85.4” x 106” high x 11,500 lbs. EQUIPPED WITH: DynaPath Delta 2000 CNC control with interactive conversational programming graphics and color LCD RS-232 Remote MPG Coolant thru spindle Screw type chip conveyor Chip flushing Full enclosures Habor Spindle oil chiller 4th axis drive Troyke Md. DL-10-B-6041-10, 10” diameter rotary table with Md. TS-10-6041-10 tail stock (fixture in photo not included) Pratt Burnerd 10” 3-jaw chuck with 2.990” hole thru and chuck wrench Rebuilt spindle April 2013 Parts manual, Operators manual, Programming manual, wiring schematics, Parameters on disc Recent new battery back ups installed Spare parts include - Pull studs, two new drive belts, new springs and fingers for ATC SN: 12204133, new 2004, delivered 2005 Video link: https://youtu.be/jMfaxEpqAaM F.O.B. – Milwaukee, WI
