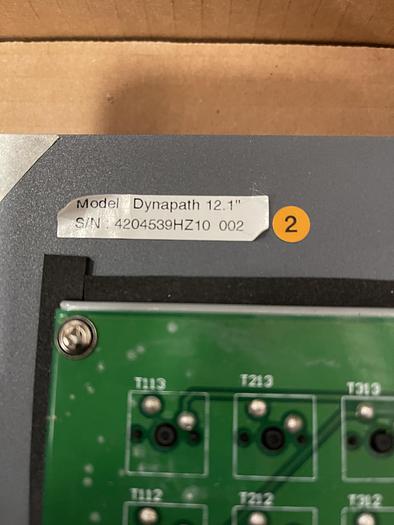

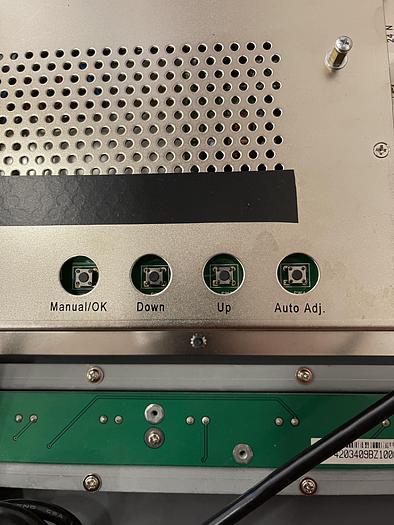

Dynapath Windelta DP-12.1 CNC Control Panel, 2GB Ram, 8GB Ssd, Touchscreen, Ethernet

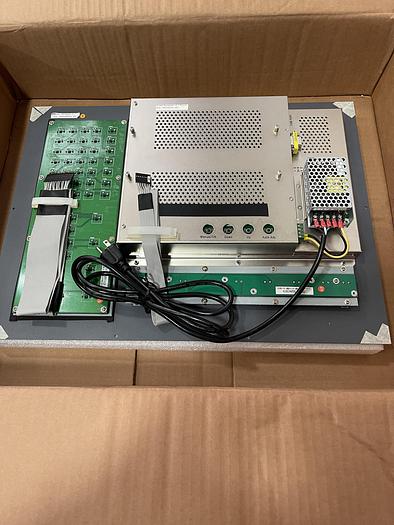

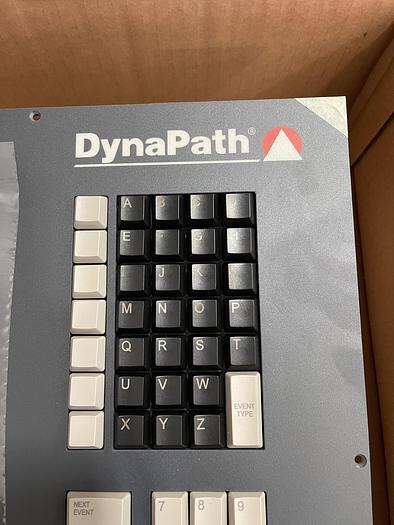

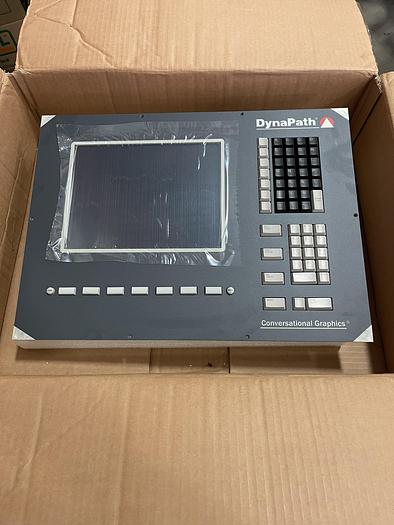

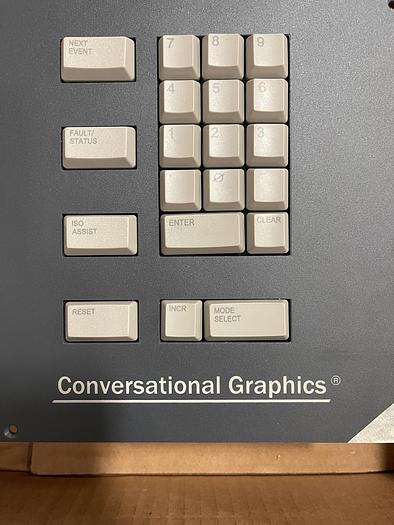

The Dynapath Windelta operator's panel is a CNC control system designed for milling, turning, and grinding applications. It features a 12.1-inch touchscreen LCD interface and is built on a Windows PC-based platform. Technical specifications include 2 GB of RAM and 8 GB of solid-state drive (SSD) storage. Connectivity is provided through two USB ports for file transfer and an Ethernet port for networking and FTP server functionality. The control utilizes a 1000-line look-ahead capability for advanced motion control and supports both conversational and ISO/G-CODE programming. It includes a built-in DXF reader for grouped hole and contour selection, as well as 3D rendered graphics for toolpath simulation. Additional features include 54 work datums, background editing, tool life management, and 4th axis capability. The system supports remote monitoring and diagnostics via Wi-Fi or network connection. Various panel configurations are available, including mode screen and mode switch options for different machine types such as knee mills, bed mills, and machining centers. The control supports the IEC61131-3 standard for PLC programming and utilizes a real-time multi-task kernel for deterministic execution. Search data indicates versions of this technology were available circa 2015.
