EASY-LASER E420 SHAFT ALIGNMENT SYSTEM, 10M RANGE, 0.01MM RESOLUTION, IP65 PROTECTION

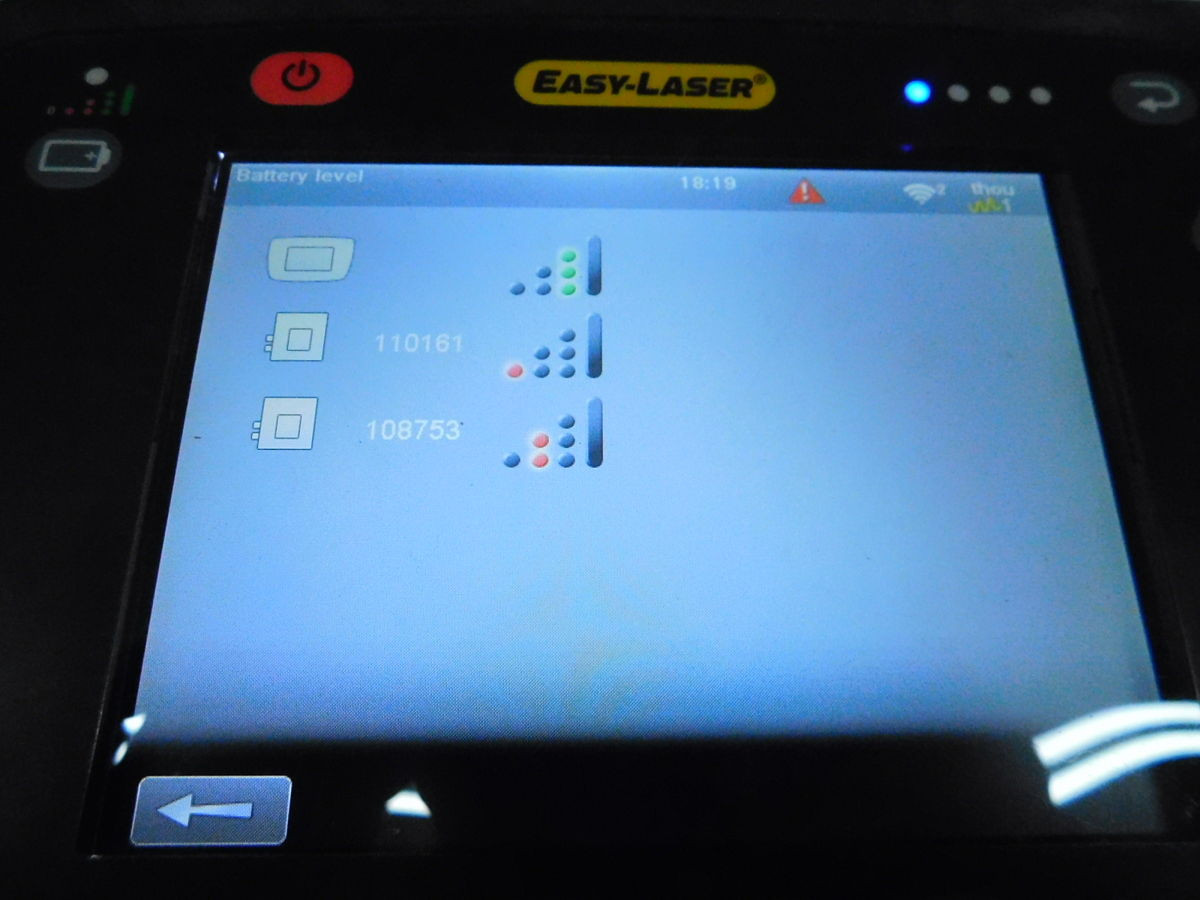

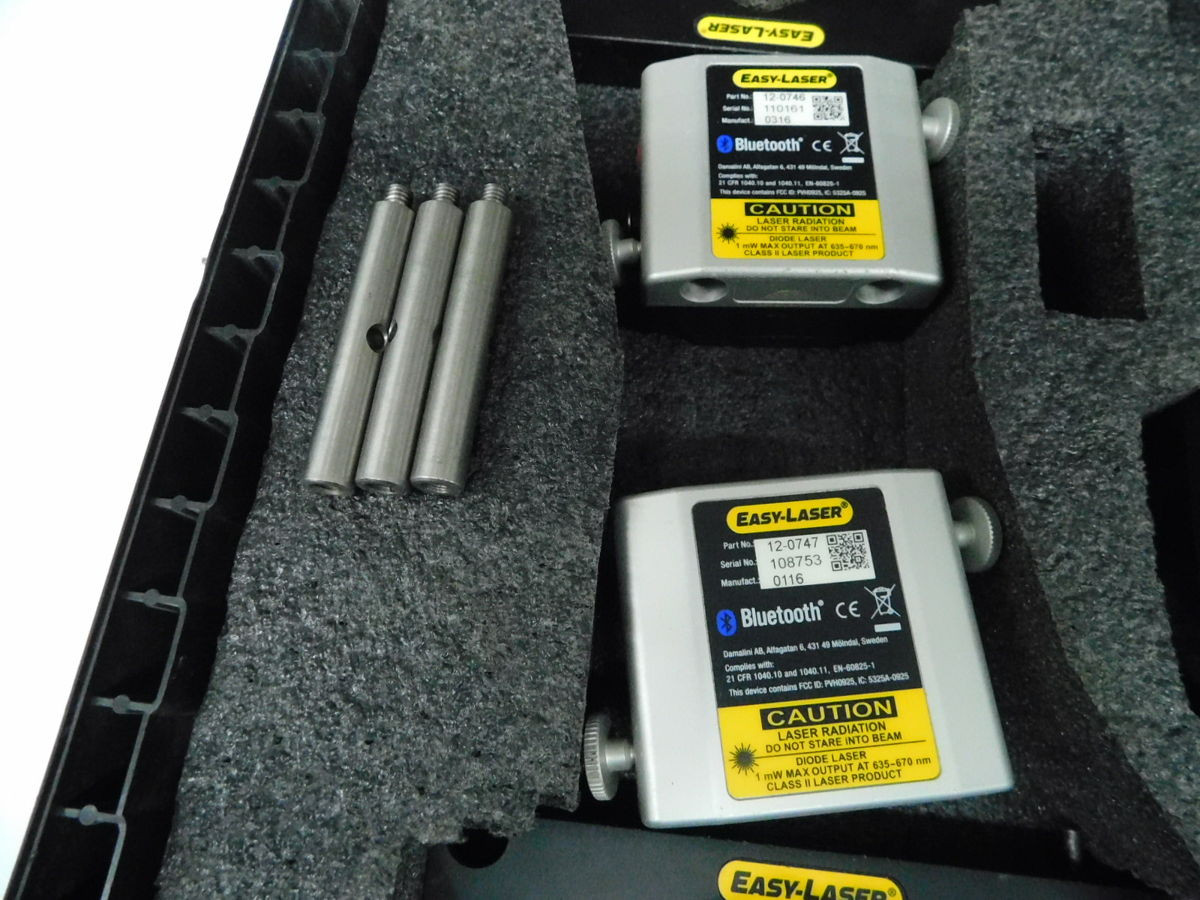

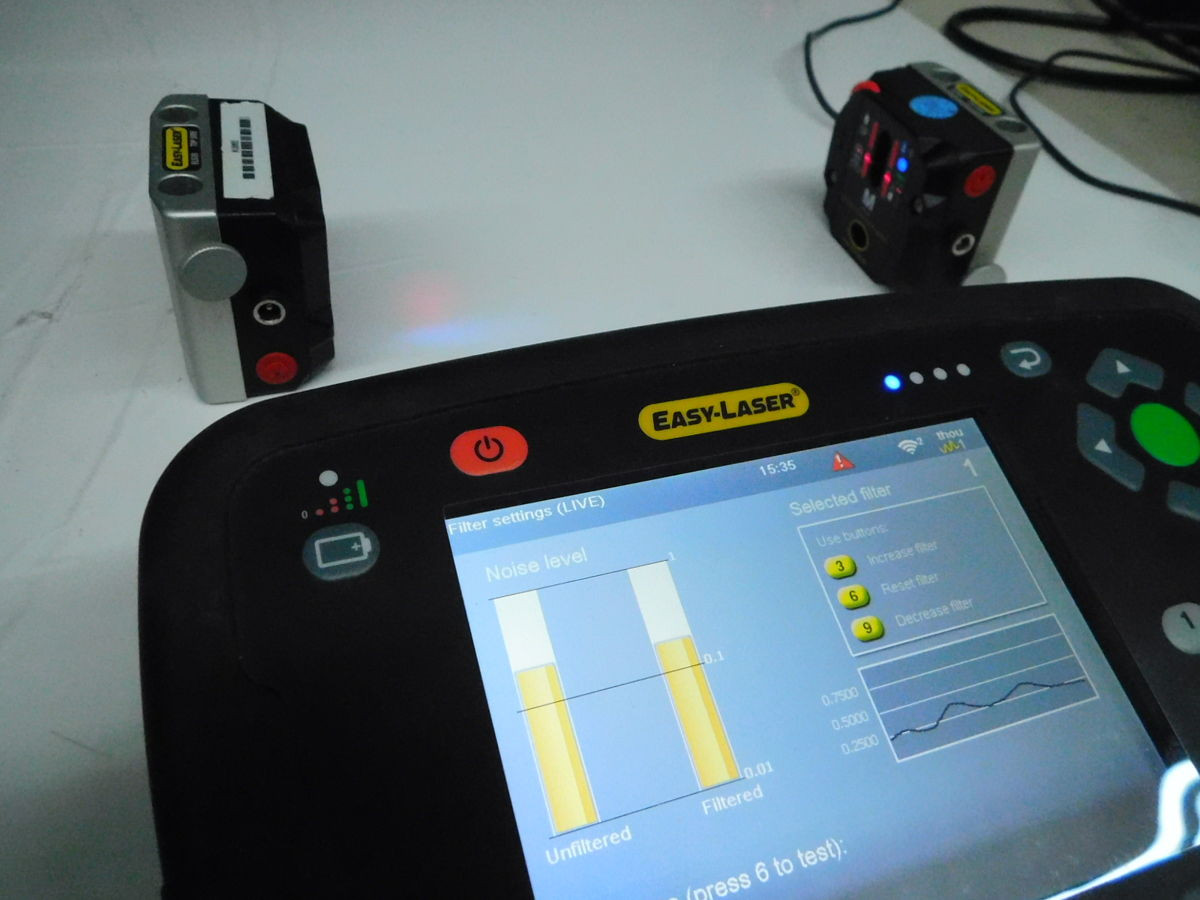

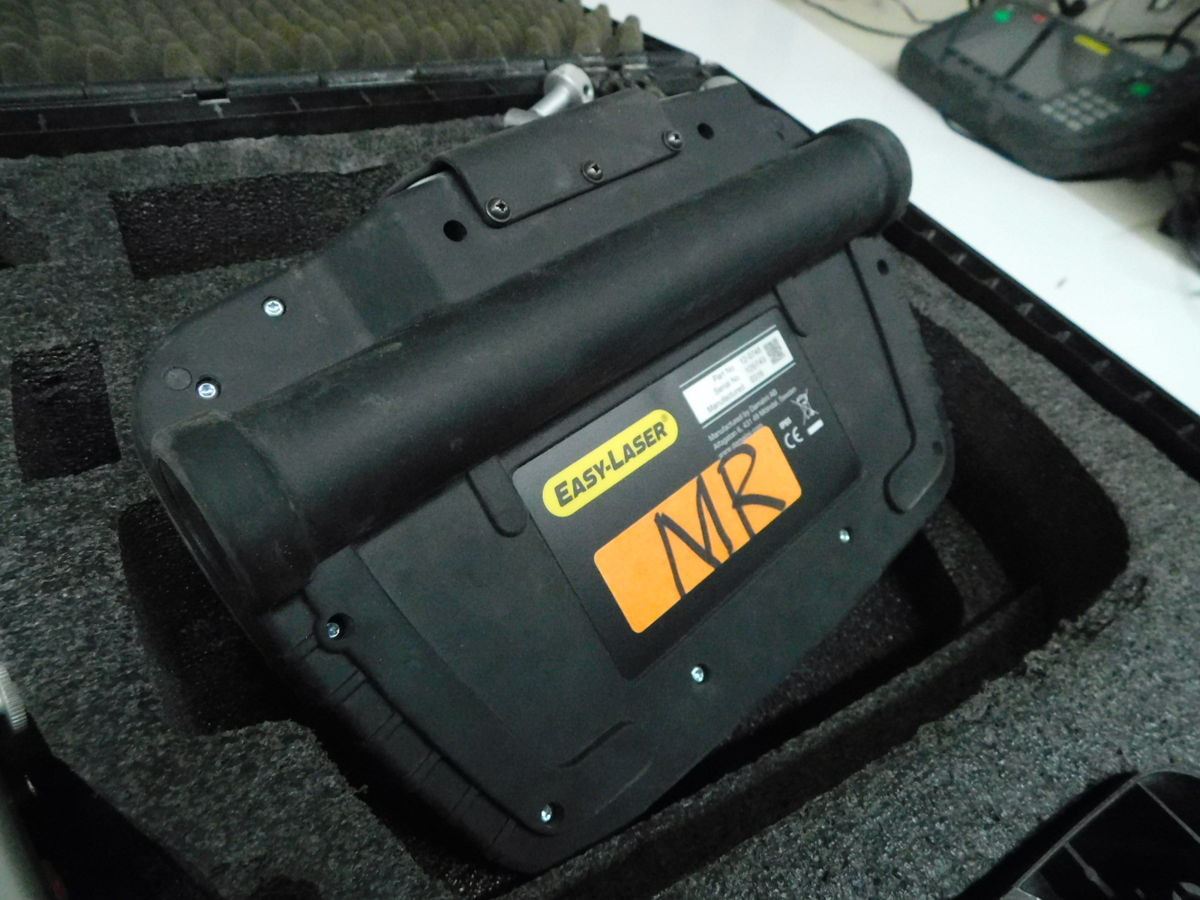

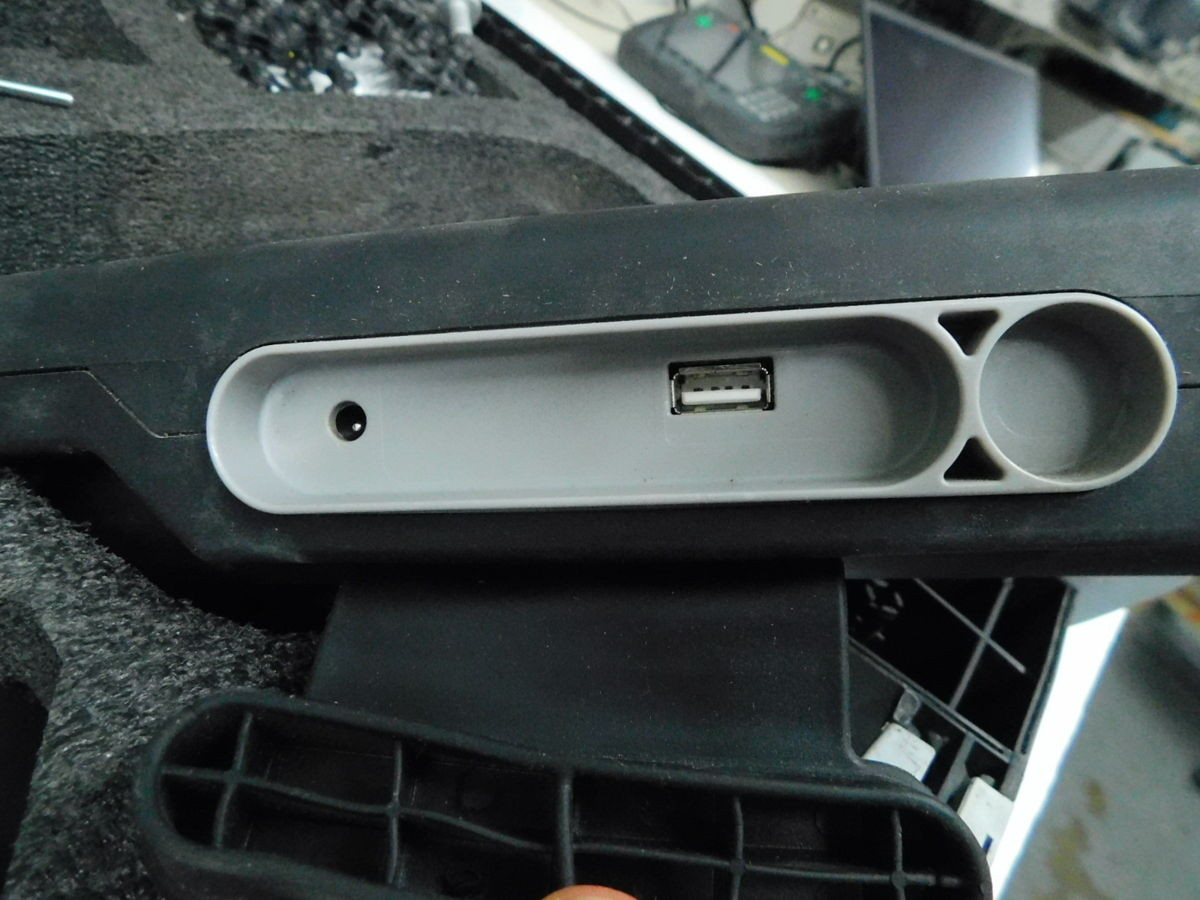

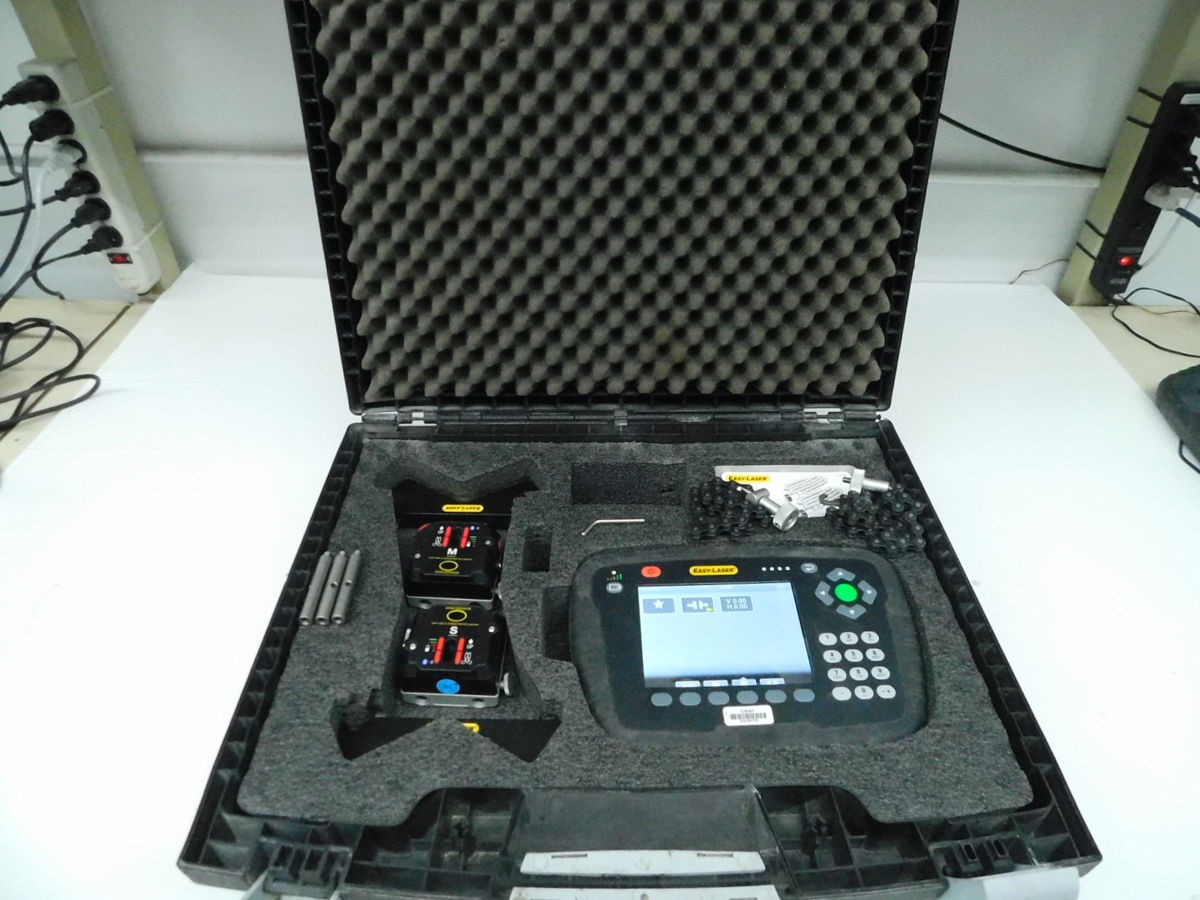

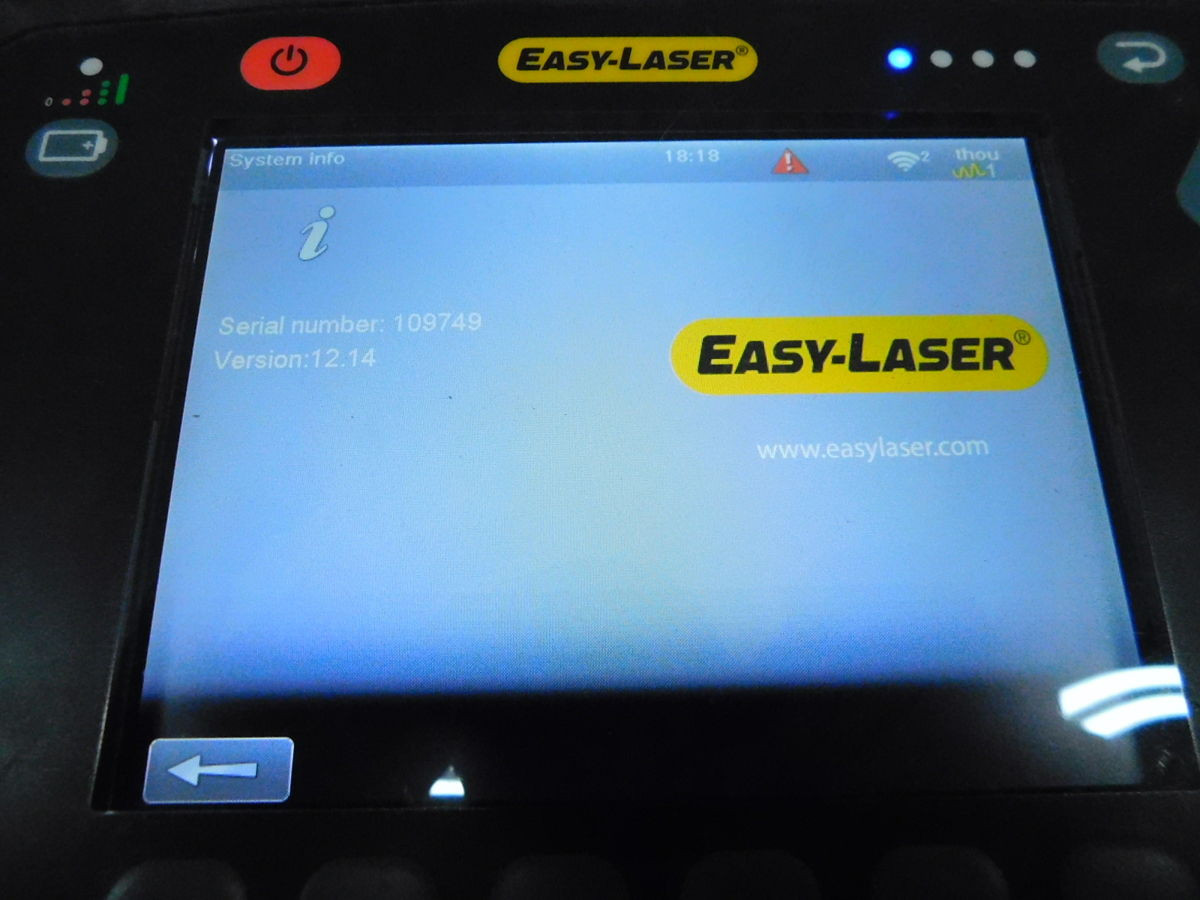

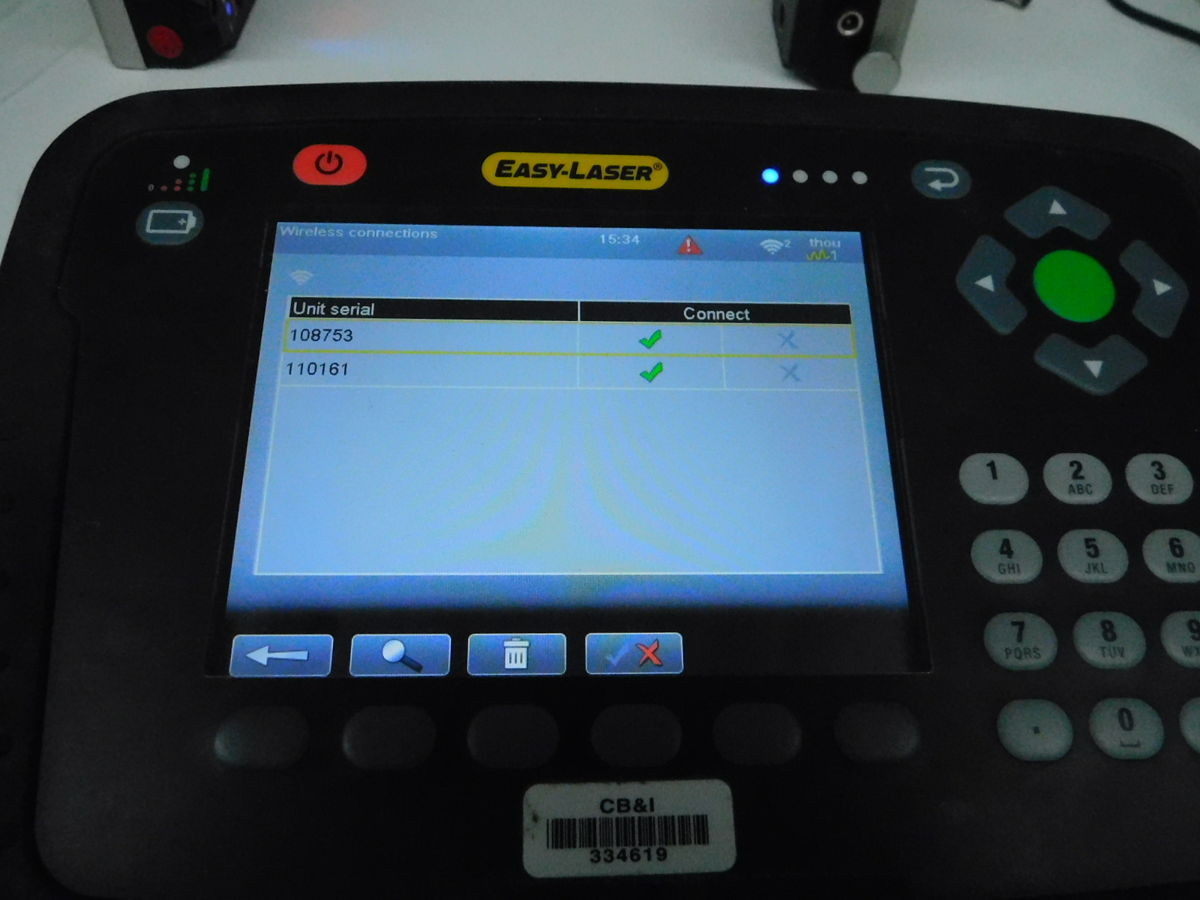

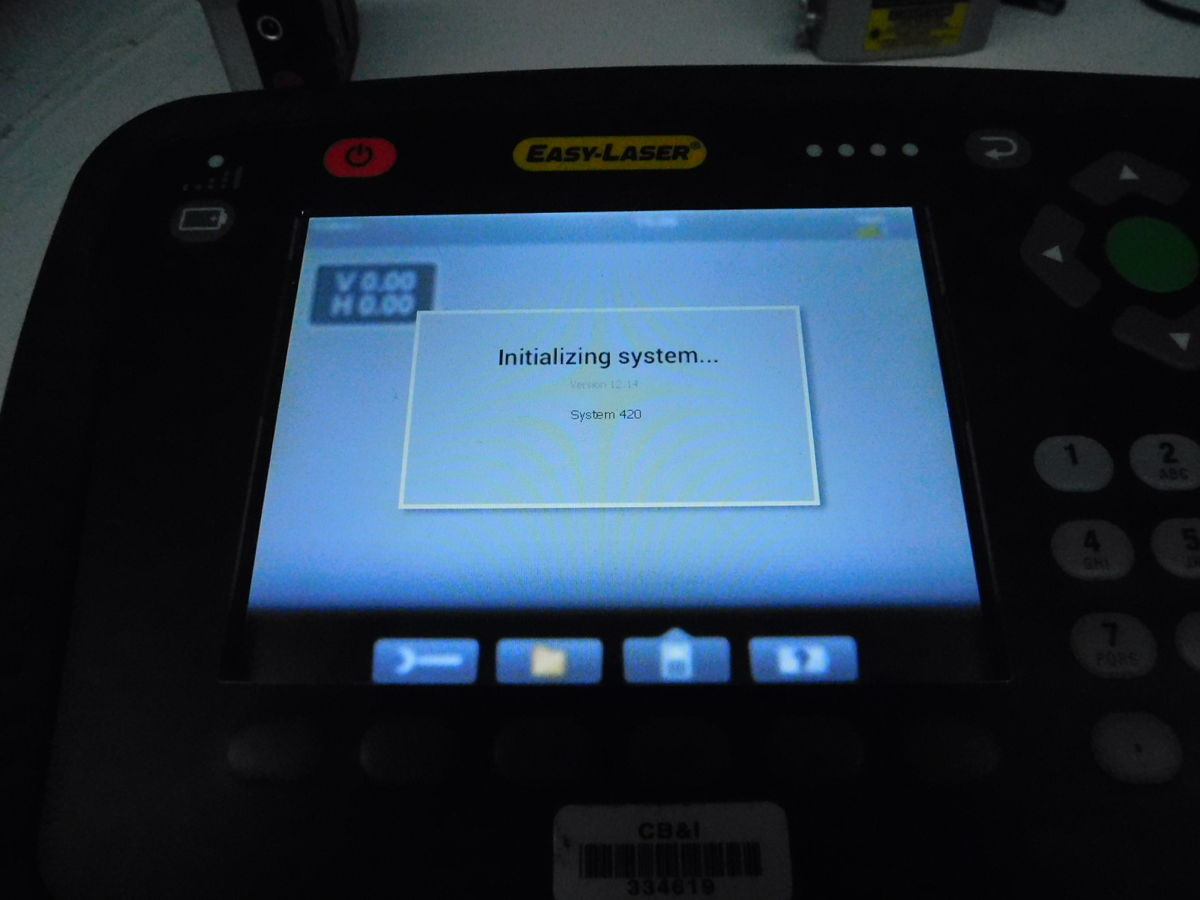

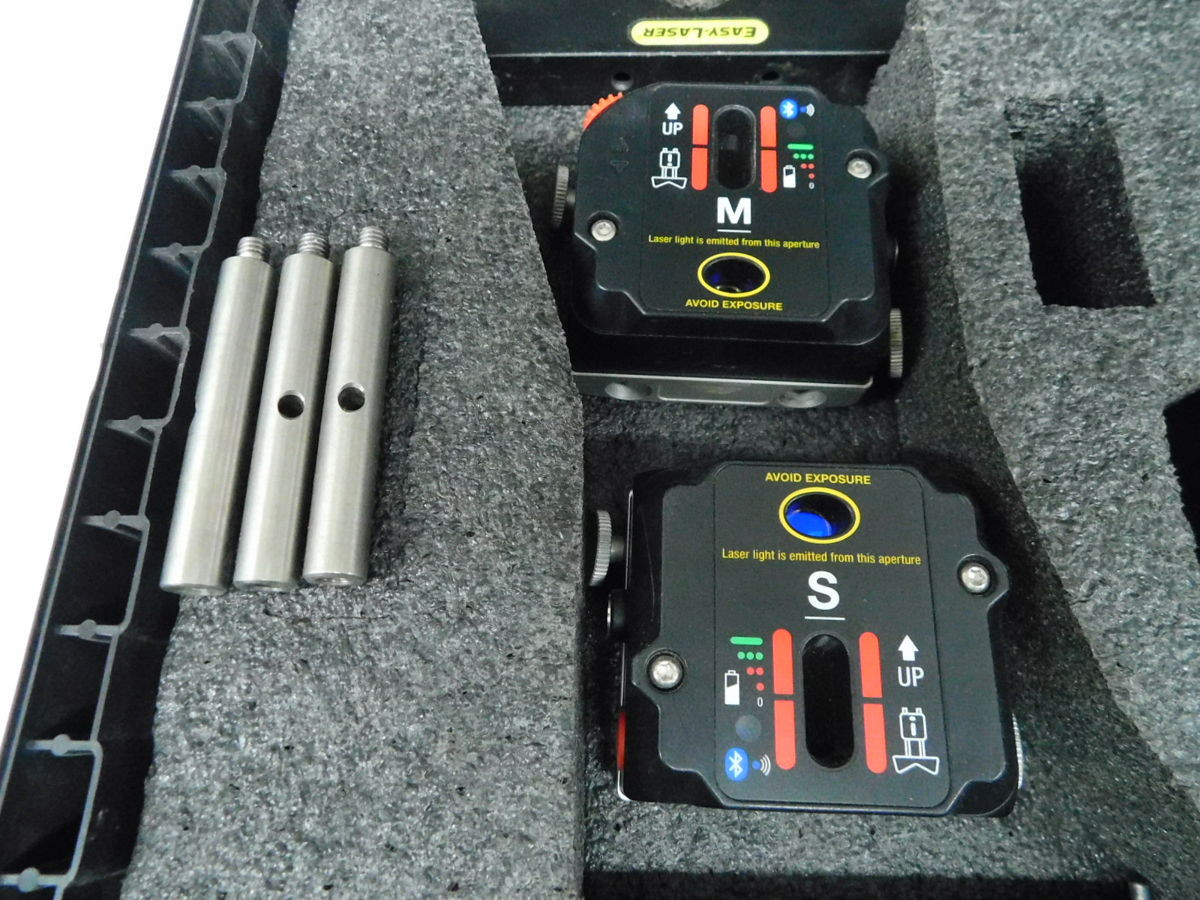

THE EASY-LASER E420 IS A LASER-BASED SHAFT ALIGNMENT SYSTEM DESIGNED FOR PRECISION MEASUREMENT AND CORRECTION OF MACHINE GEOMETRY. IT INCORPORATES DUAL-AXIS MEASURING UNITS UTILIZING 20X20 MM POSITION SENSITIVE DETECTOR (PSD) TECHNOLOGY, OFFERING A MEASUREMENT RESOLUTION OF 0.01 MM (0.05 MIL) OVER A MAXIMUM RANGE OF 10 METERS. THE INTEGRATED LASERS ARE CLASS 2 DIODE LASERS WITH A WAVELENGTH BETWEEN 635-670 NM AND AN OUTPUT POWER OF LESS THAN 1 MW. DATA ACQUISITION AND DISPLAY ARE MANAGED BY A DEDICATED D279 CONTROL UNIT FEATURING A 5.7-INCH BACKLIT COLOR SCREEN. WIRELESS COMMUNICATION BETWEEN THE MEASURING UNITS AND THE DISPLAY UNIT IS FACILITATED VIA BLUETOOTH, WITH A USB PORT AVAILABLE FOR PC CONNECTIVITY. BOTH THE MEASURING UNITS AND THE DISPLAY UNIT ARE RATED IP65 FOR ENVIRONMENTAL PROTECTION. THE SYSTEM OPERATES ON RECHARGEABLE LI-ION BATTERIES, PROVIDING OVER 8 HOURS OF CONTINUOUS OPERATION.
