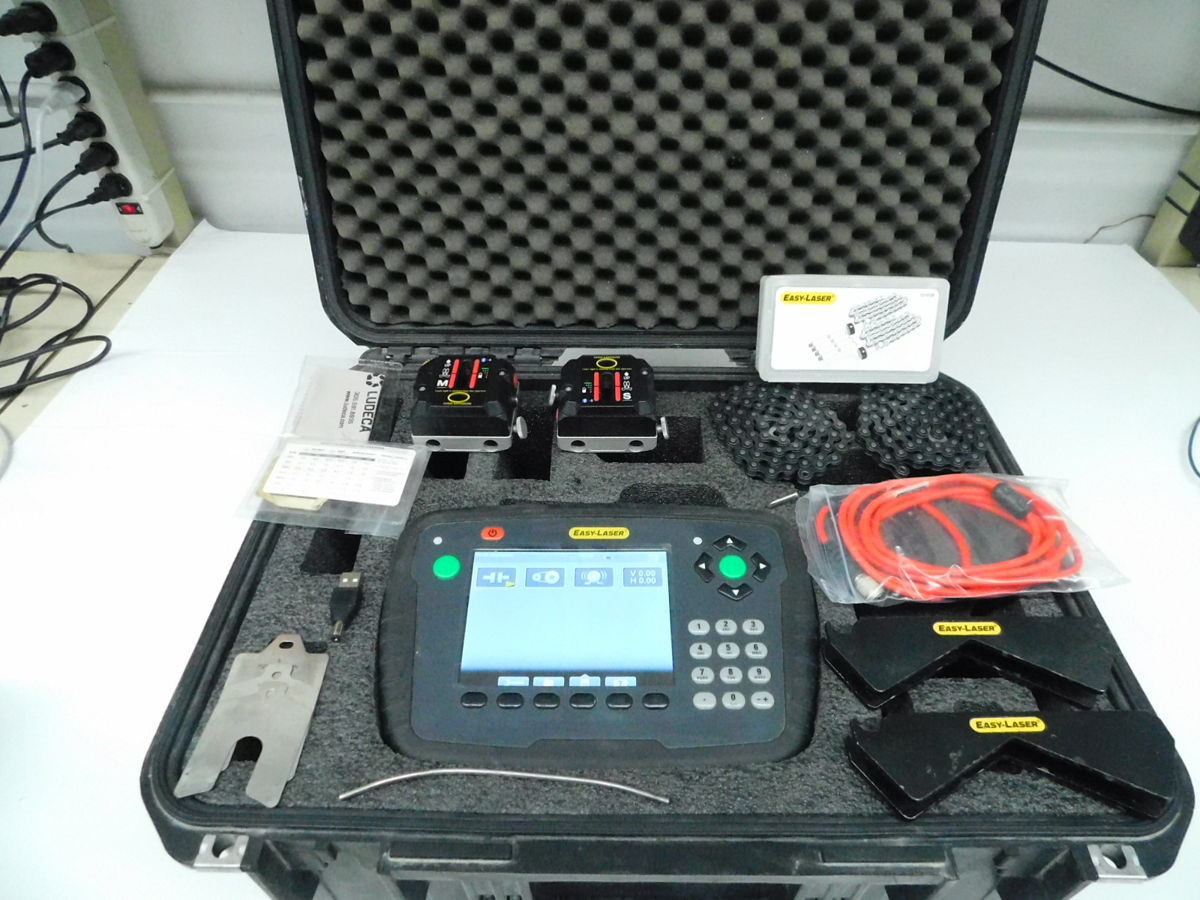

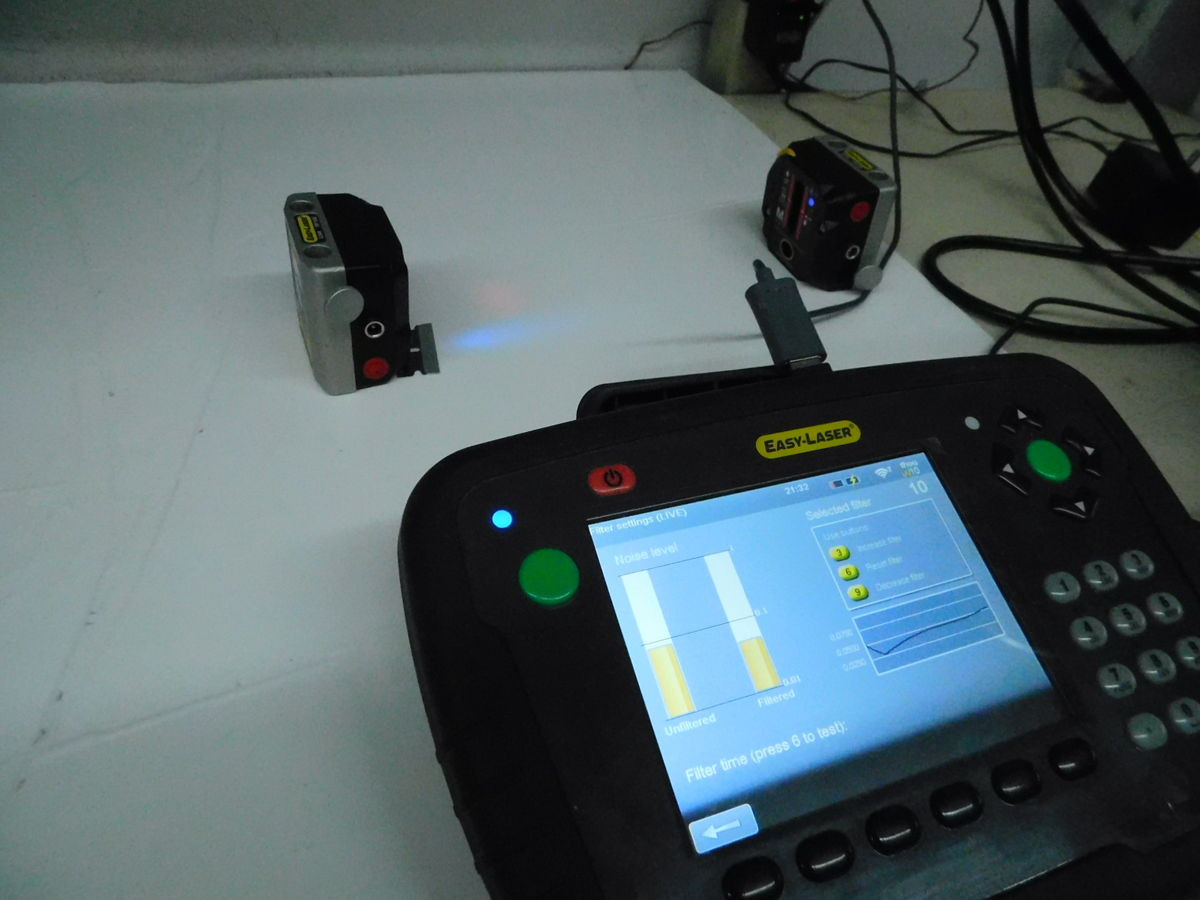

EASY-LASER E540 SHAFT ALIGNMENT SYSTEM, 30MM MEASUREMENT AREA, 0.001MM RESOLUTION, IP65

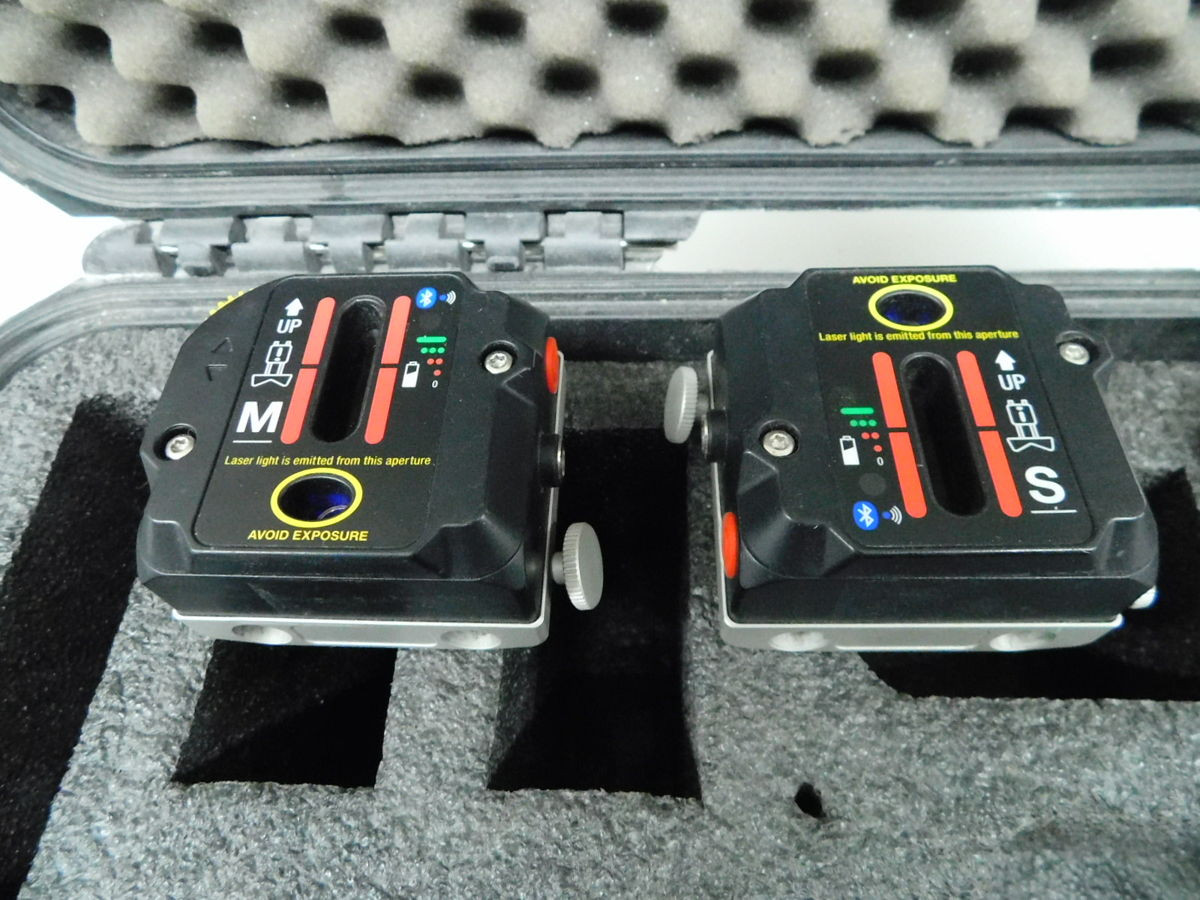

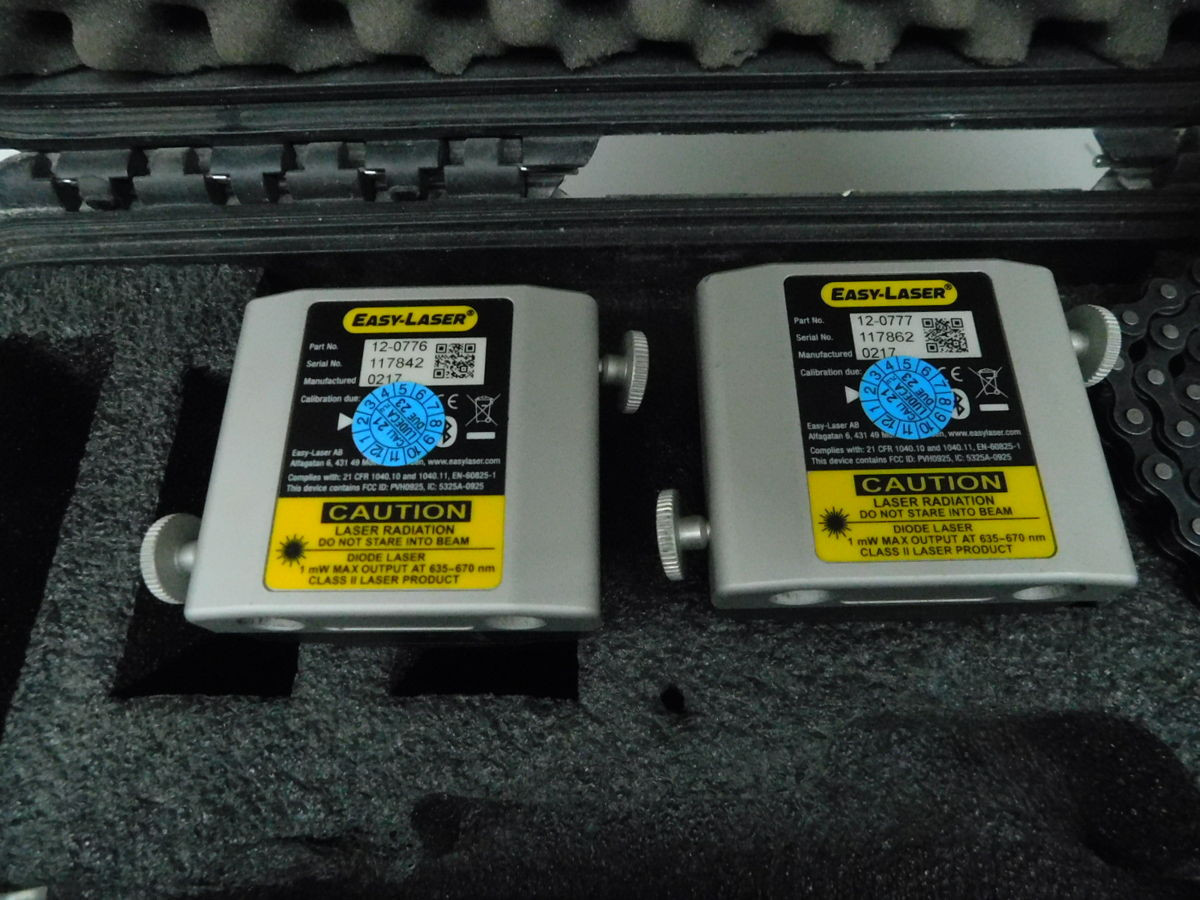

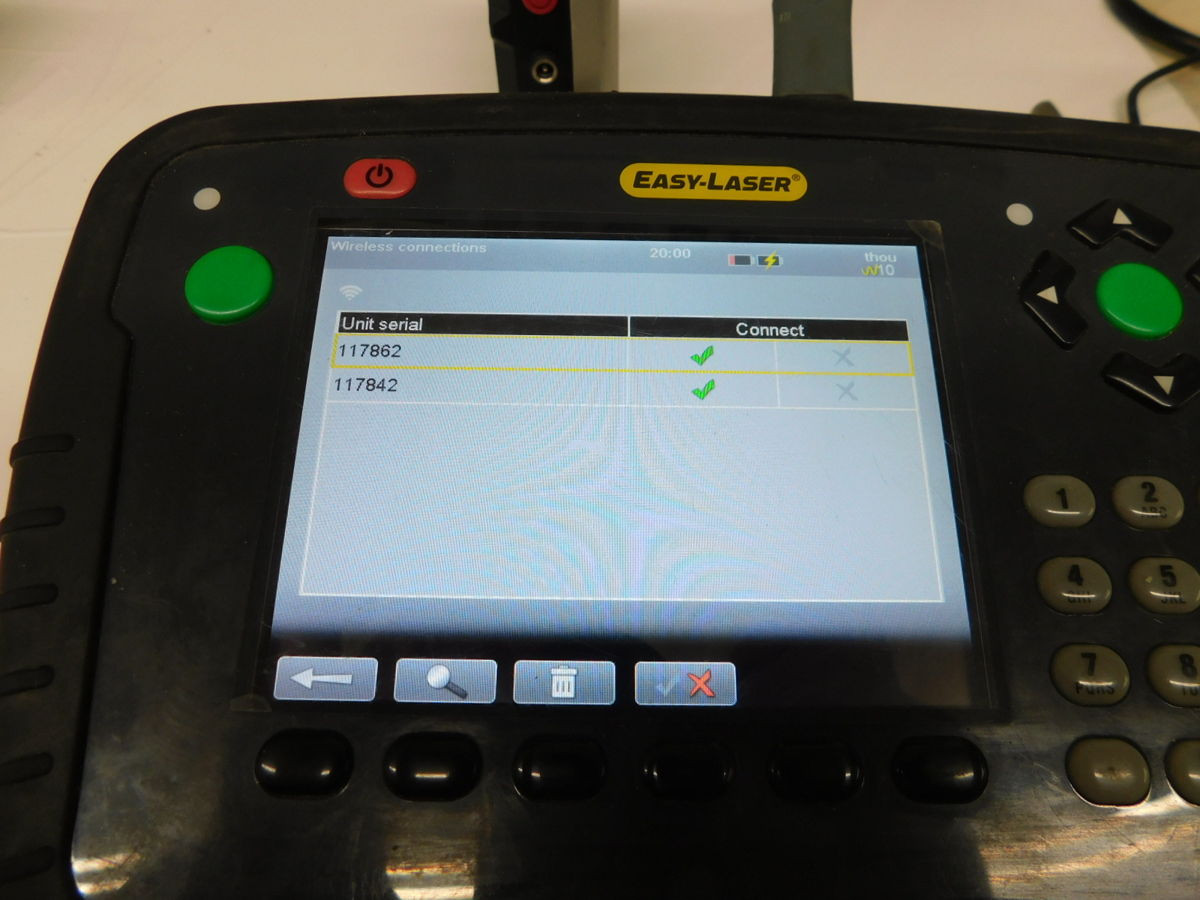

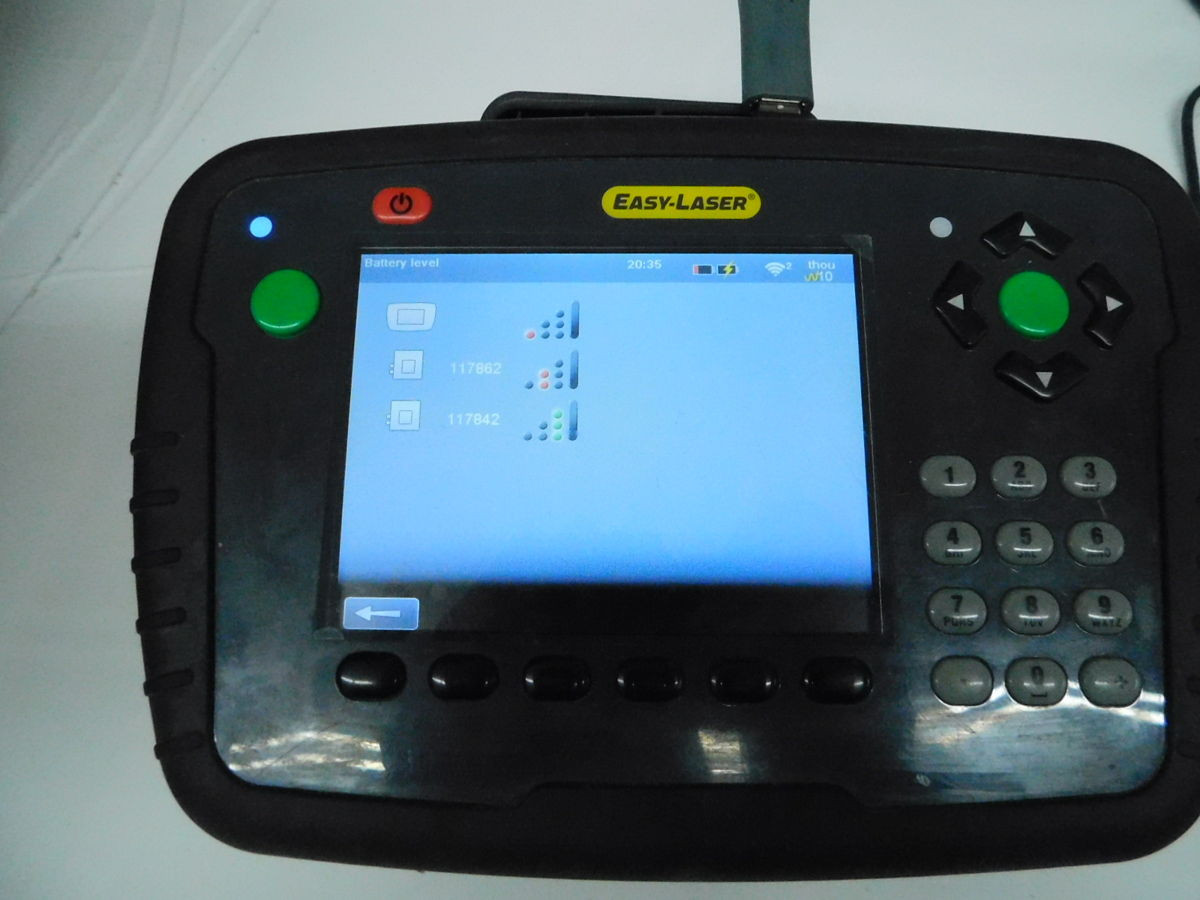

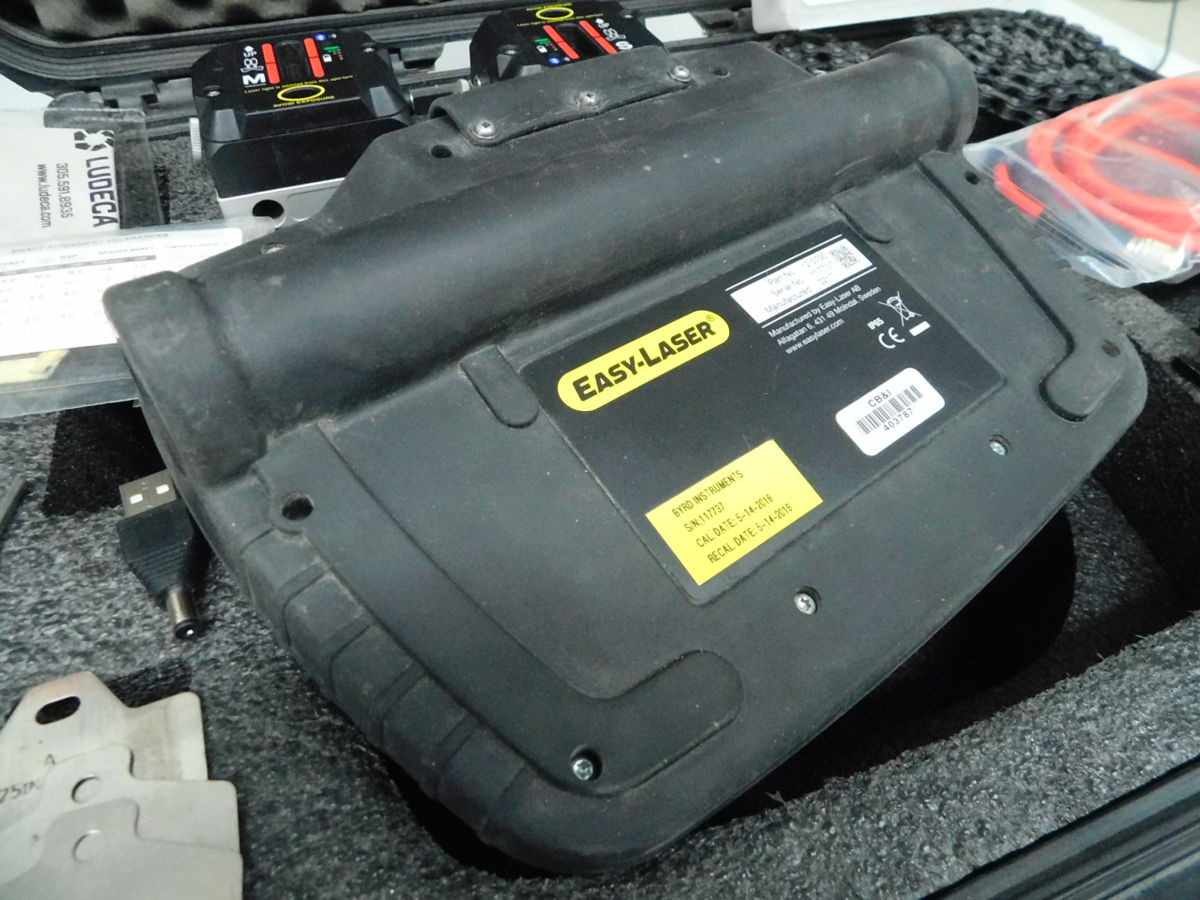

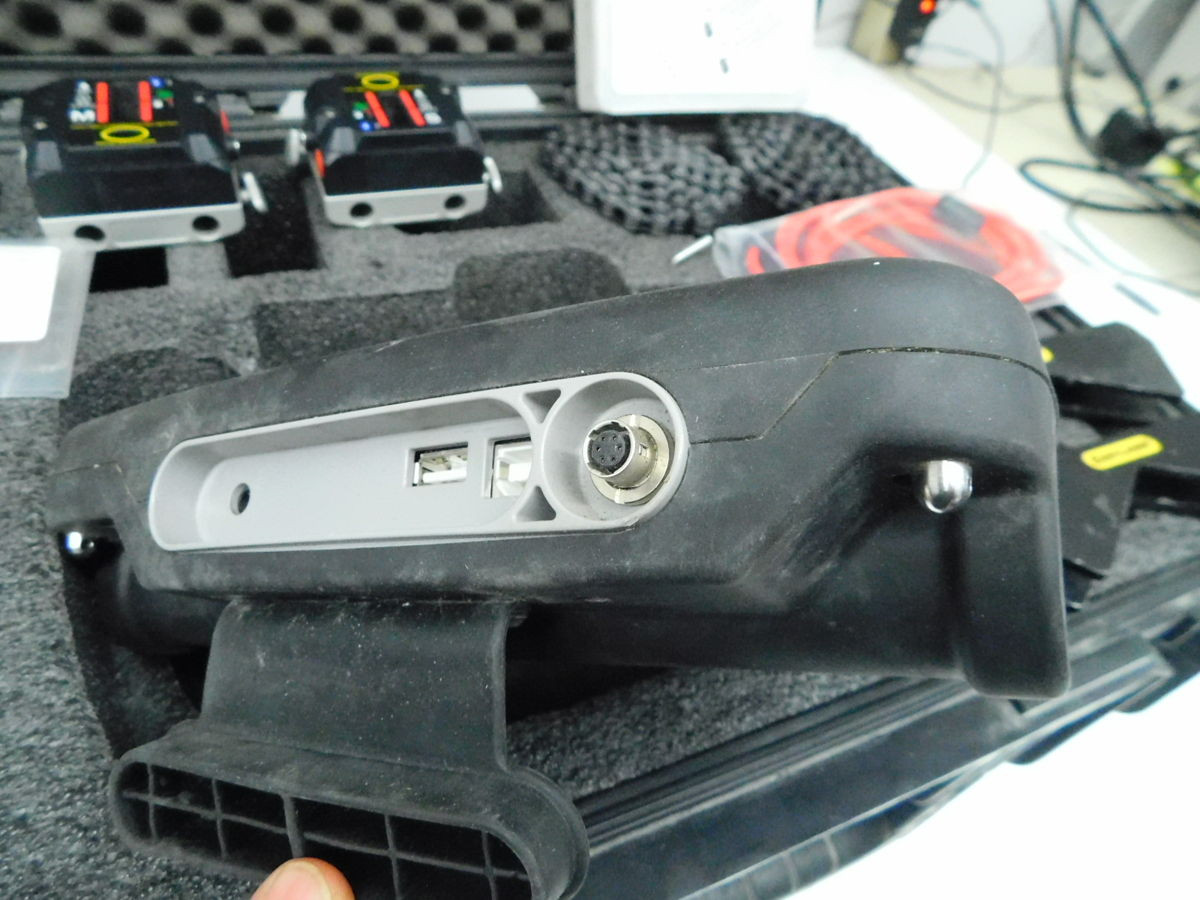

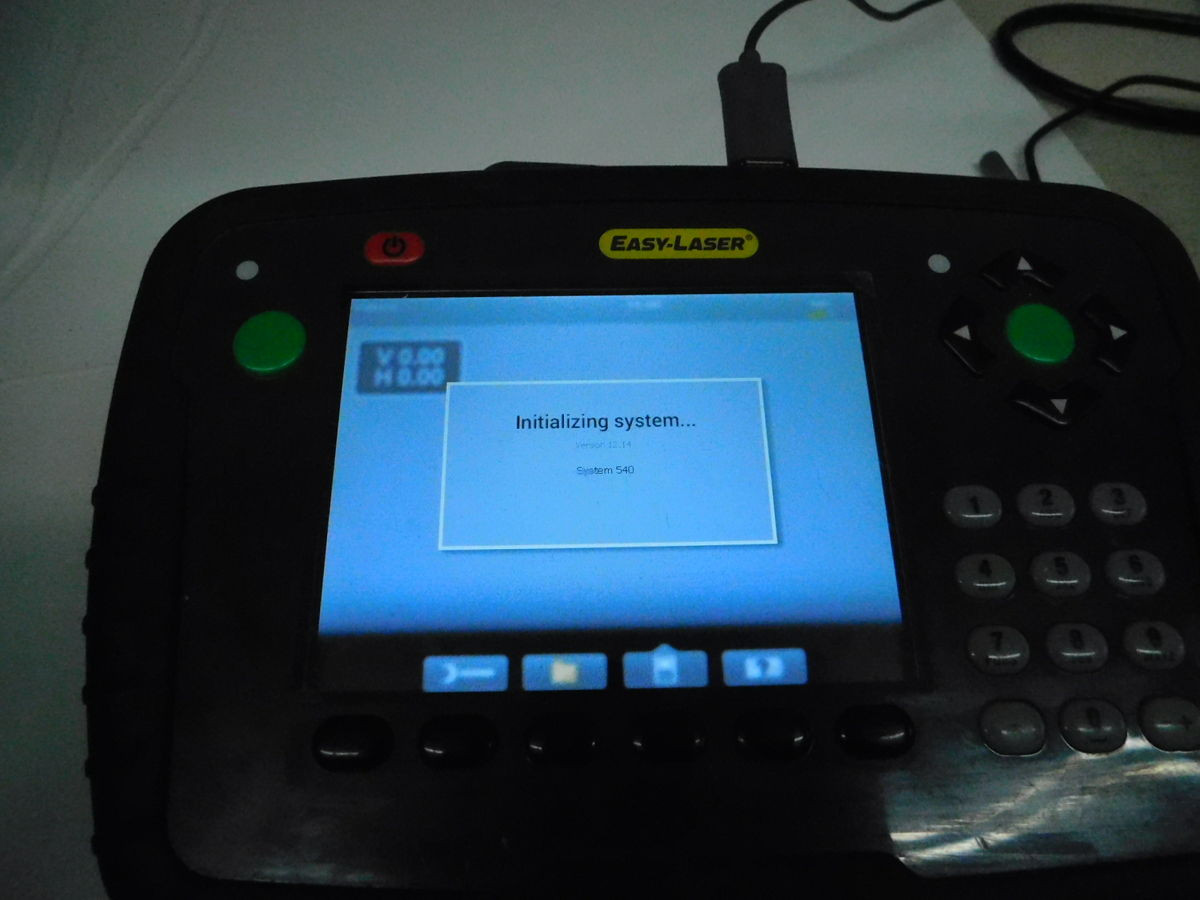

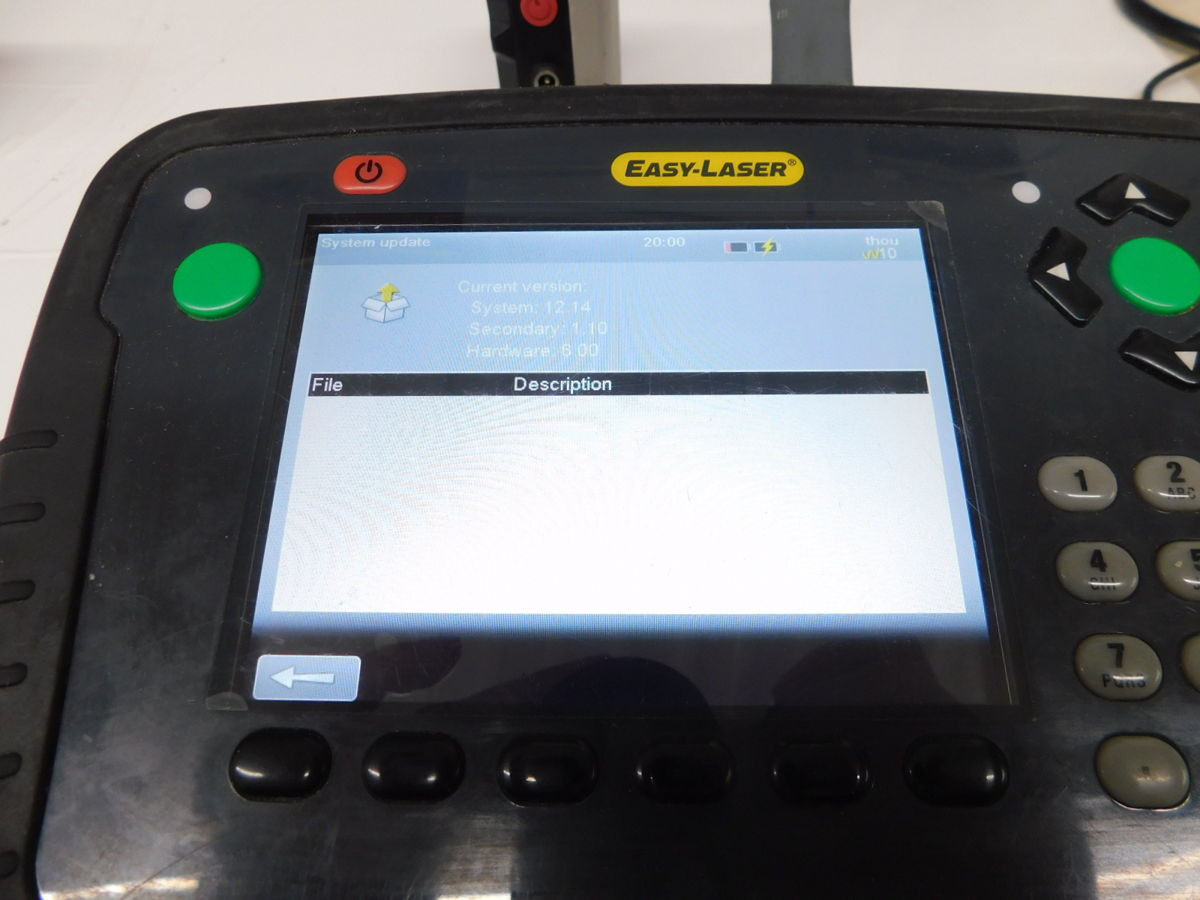

THE EASY-LASER E540 IS A SHAFT ALIGNMENT SYSTEM FEATURING 2ND GENERATION HIGH DEFINITION (HD) PSCCD DETECTORS WITH A 30 MM MEASUREMENT AREA, OFFERING A RESOLUTION OF 0.001 MM. IT PROVIDES A MEASUREMENT ACCURACY OF 0.005 MM ±1% OF THE MEASUREMENT VALUE ACROSS A DISTANCE OF UP TO 10 METERS. THE SYSTEM UTILIZES CLASS 2 DIODE LASERS WITH A WAVELENGTH RANGE OF 635–670 NM AND AN OUTPUT POWER LESS THAN 1 MW. INTEGRATED 360° ELECTRONIC INCLINOMETERS AID IN PRECISE ANGULAR POSITIONING. WIRELESS COMMUNICATION IS HANDLED VIA BLUETOOTH. THE SYSTEM COMPONENTS, INCLUDING BOTH THE MEASUREMENT AND DISPLAY UNITS, ARE POWERED BY RECHARGEABLE LI-ION BATTERIES, OFFERING UP TO 17 HOURS AND 16 HOURS OF OPERATION, RESPECTIVELY. BOTH UNITS ARE RATED IP65 FOR ENVIRONMENTAL PROTECTION AND OPERATE WITHIN A TEMPERATURE RANGE OF -10 TO 50 °C. THE DISPLAY UNIT INCORPORATES A 5.7" TRANSFLECTIVE BACKLIT COLOR LCD WITH VGA RESOLUTION AND IS EQUIPPED WITH USB A AND B PORTS.
