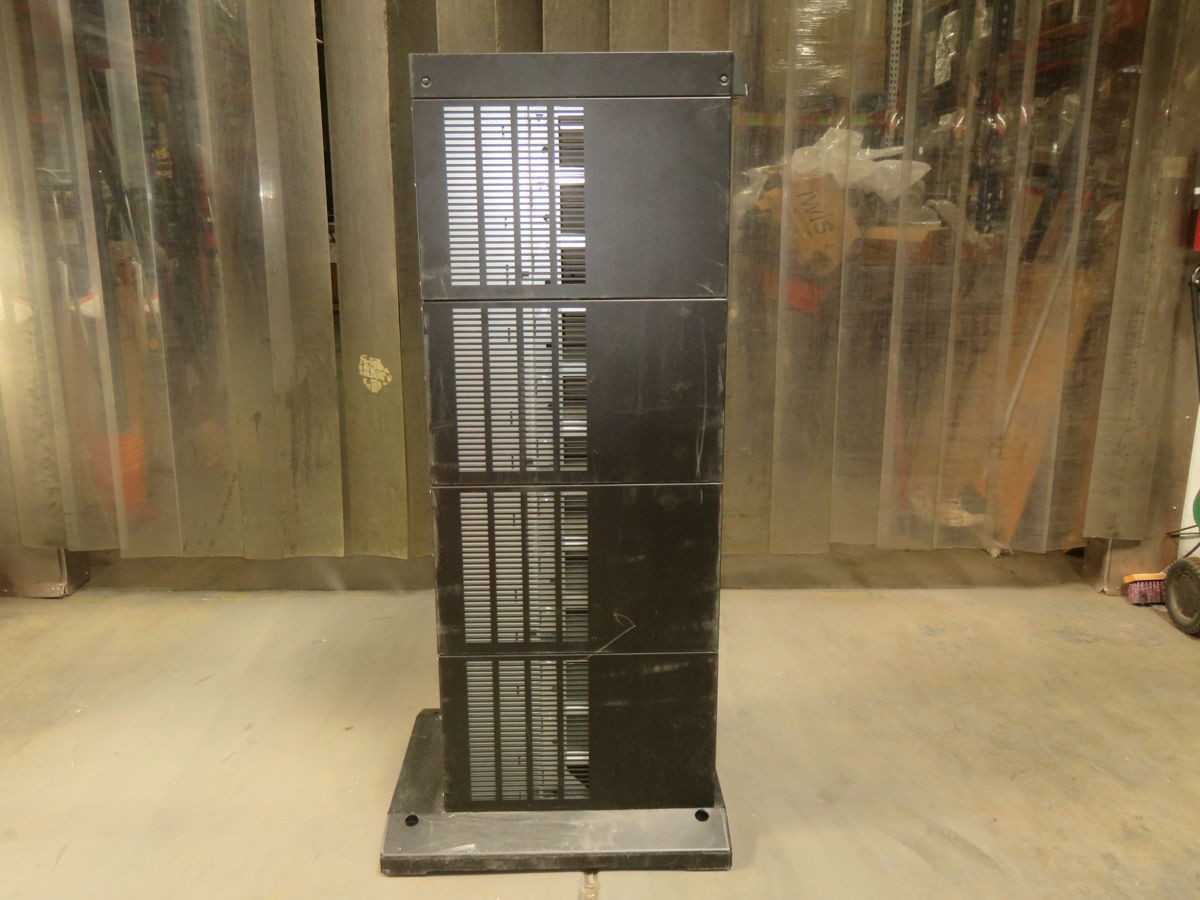

Eaton 660C120AAAAAAAI Enclosure, 12 Slot, 27 kVA Power, 445X440X660 mm Dims, 50 kg Weight

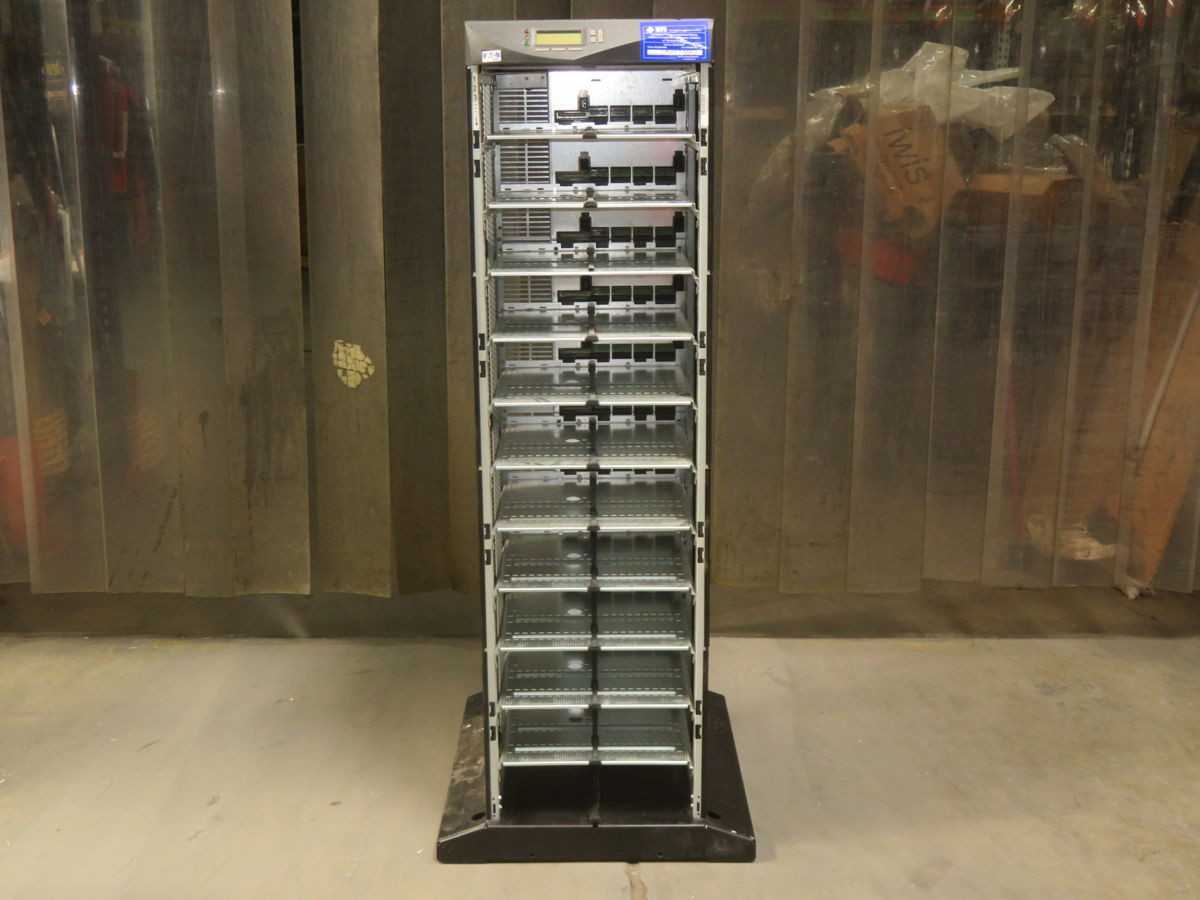

The Eaton 660C120AAAAAAAI is a hardwired, 12-slot modular enclosure designed for the Eaton 9170 plus uninterruptible power supply (UPS) system. This enclosure provides 12 configurable slots for the integration of power modules and/or battery modules. It is engineered to support a maximum system power capacity of up to 27 kVA when populated with nine 3 kVA power modules. The unit features hardwired input and output electrical connections. Its physical dimensions are approximately 445 mm (17.5 inches) in height, 440 mm (17.3 inches) in width, and 660 mm (26 inches) in depth, corresponding to a 10U rack-mountable form factor. The empty enclosure has an approximate weight of 50 kg (110 lbs) and incorporates an integrated forced-air cooling system. A front panel display facilitates system status monitoring and configuration, complemented by dedicated bays for optional communication cards.
