EATON 660C120AAAAAAAI HARDWIRED ENCLOSURE

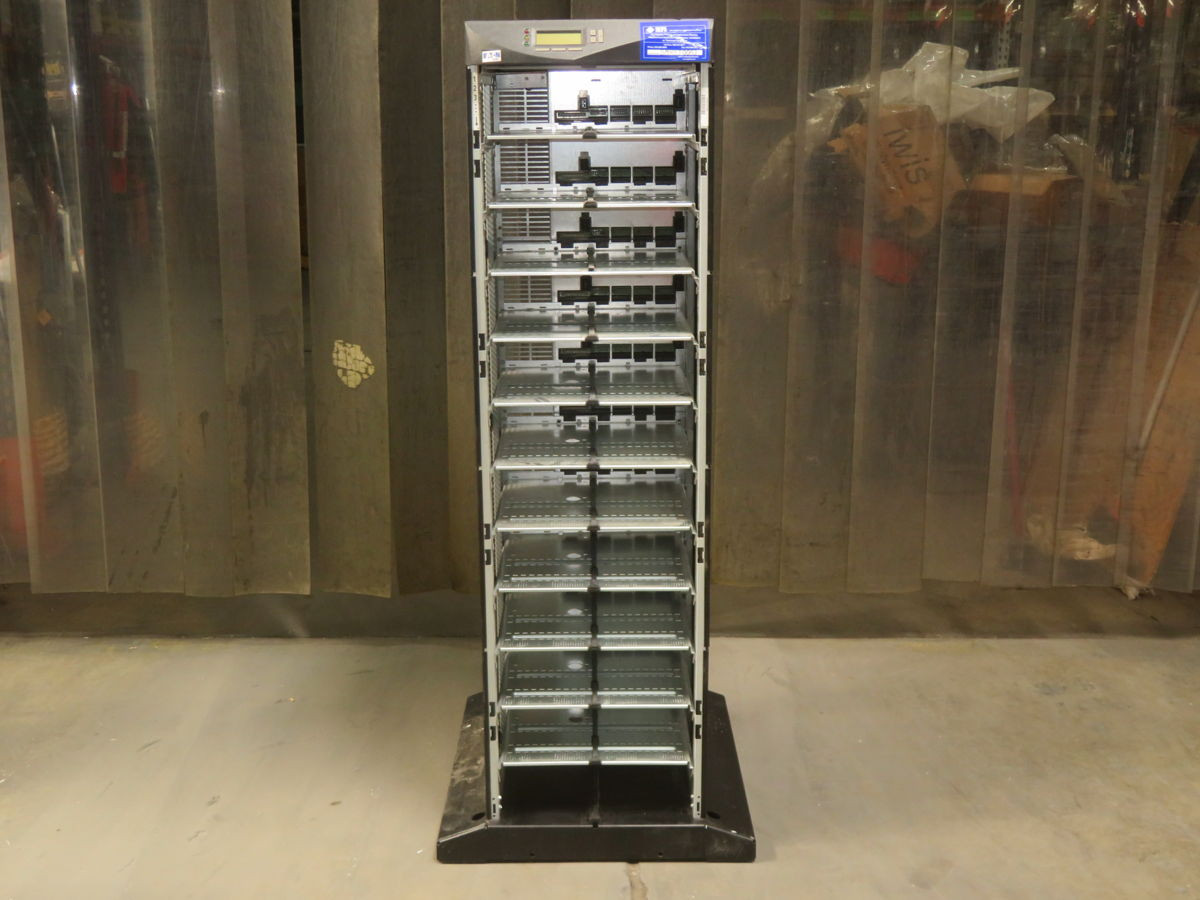

THE EATON MODEL 660C120AAAAAAAI IS A HARDWIRED ENCLOSURE SPECIFICALLY ENGINEERED FOR THE EATON 9170 PLUS UNINTERRUPTIBLE POWER SUPPLY (UPS) SYSTEM. THIS MODULAR POWER ENCLOSURE FEATURES 12 DEDICATED SLOTS DESIGNED TO ACCOMMODATE EATON 9170 PLUS 3KVA POWER MODULES AND/OR BATTERY MODULES, FACILITATING FLEXIBLE CONFIGURATION OF UPS CAPACITY AND RUNTIME. THE ENCLOSURE PROVIDES INTERNAL DC BUS CONNECTIONS FOR SEAMLESS MODULE INTEGRATION AND EXTERNAL HARDWIRE TERMINALS FOR PRIMARY AC INPUT AND OUTPUT POWER. CAPABLE OF SUPPORTING A TOTAL SYSTEM OUTPUT OF UP TO 27KVA WHEN FULLY POPULATED WITH COMPATIBLE POWER MODULES, IT ENSURES ROBUST POWER DELIVERY. PHYSICALLY, THE UNIT IS A FLOOR-STANDING DESIGN WITH TYPICAL DIMENSIONS OF APPROXIMATELY 696 MM (27.4 IN) IN HEIGHT, 440 MM (17.3 IN) IN WIDTH, AND 722 MM (28.4 IN) IN DEPTH. THE EMPTY ENCLOSURE HAS AN APPROXIMATE MASS OF 75 KG (165 LBS).
