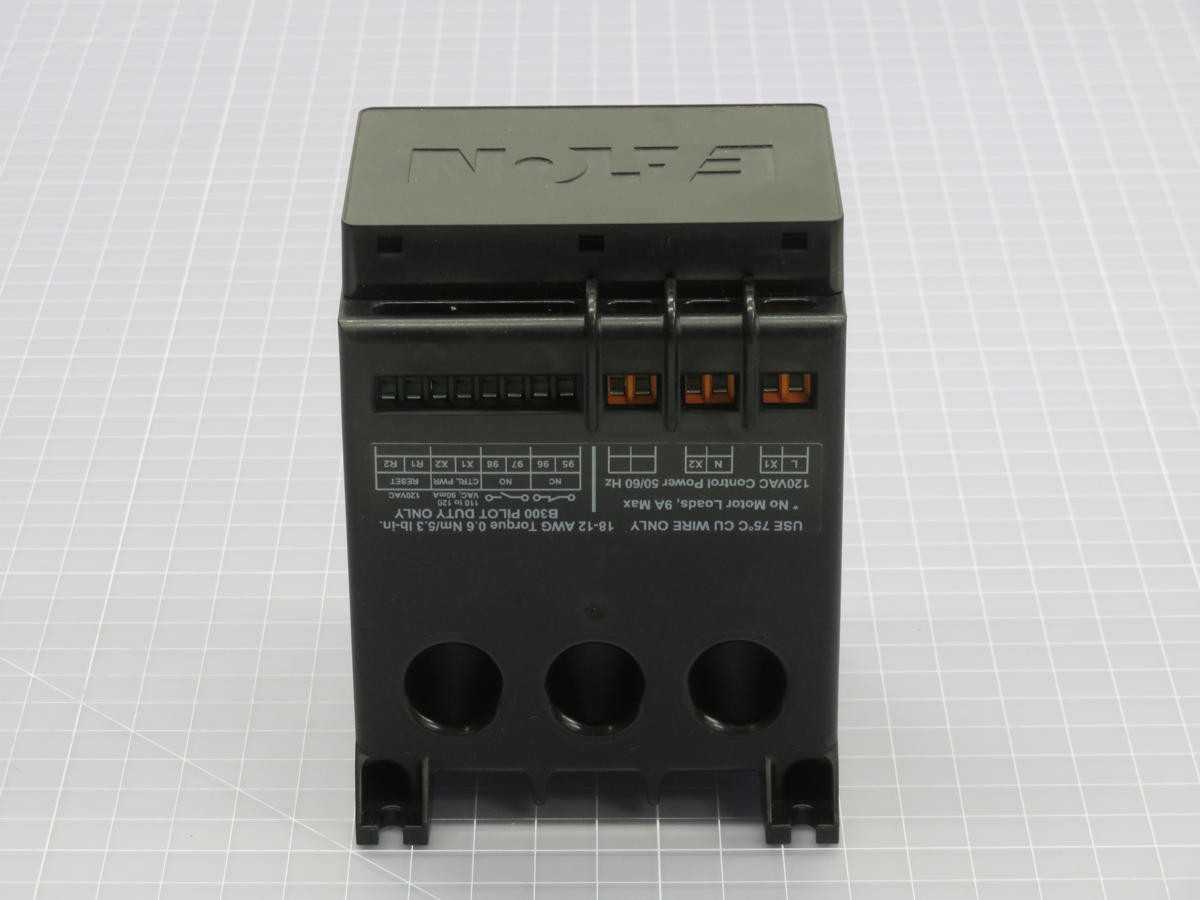

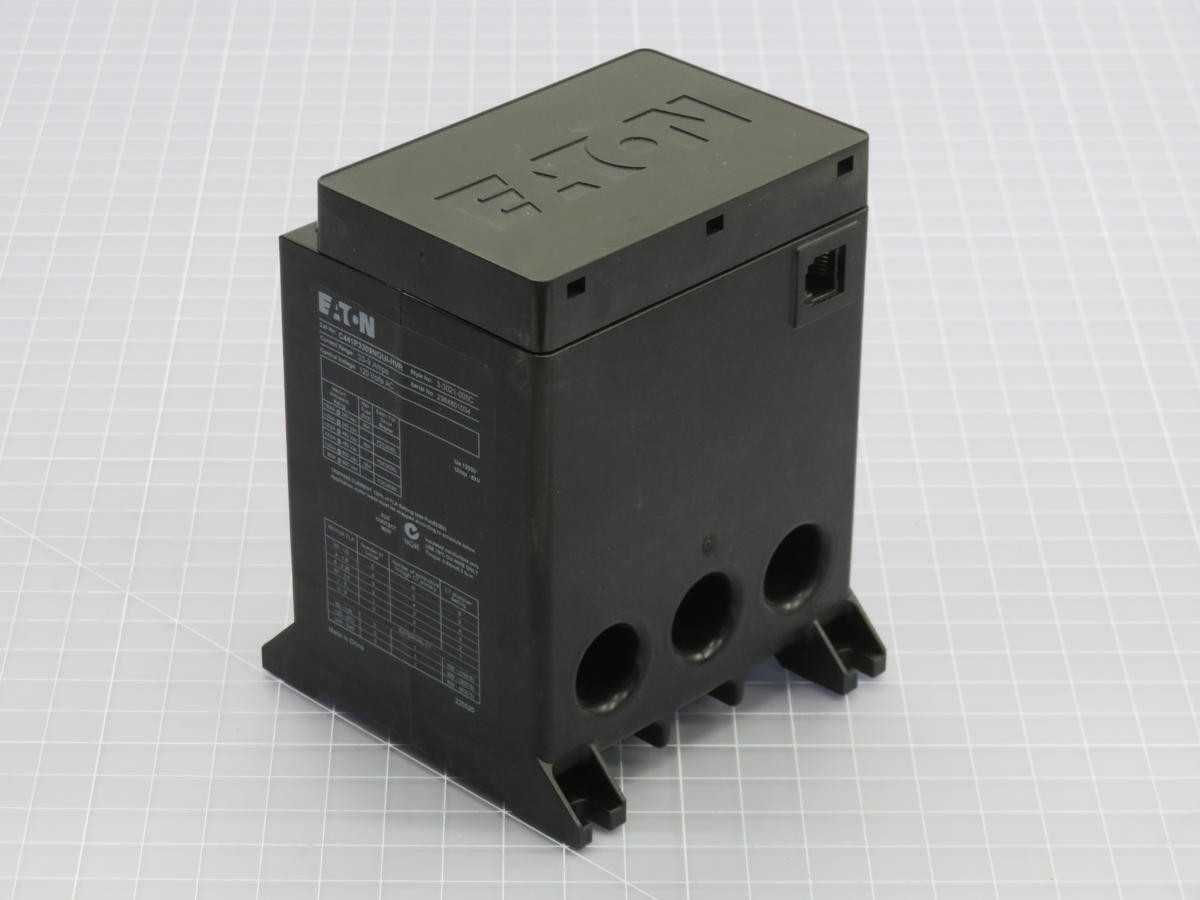

Eaton C441P3309NOUI-HVR Electronic Overload Relay, 110-120 VAC Ctrl, 0.33-9 a Current

The Eaton C441P3309NOUI-HVR is an XT IEC electronic overload relay designed for motor protection applications. This device operates with a control voltage range of 110-120 VAC at 50/60 Hz and provides an adjustable current range from 0.33 to 9 A. It features selectable trip classes, offering class 5, 10, 20, or 30 overload response characteristics. The relay includes integrated auxiliary contacts, consisting of one normally open (NO) and one normally closed (NC) contact. It supports both manual and automatic reset functions and incorporates phase loss sensitivity. The operational temperature range for this unit is specified from -40°C to 85°C.
