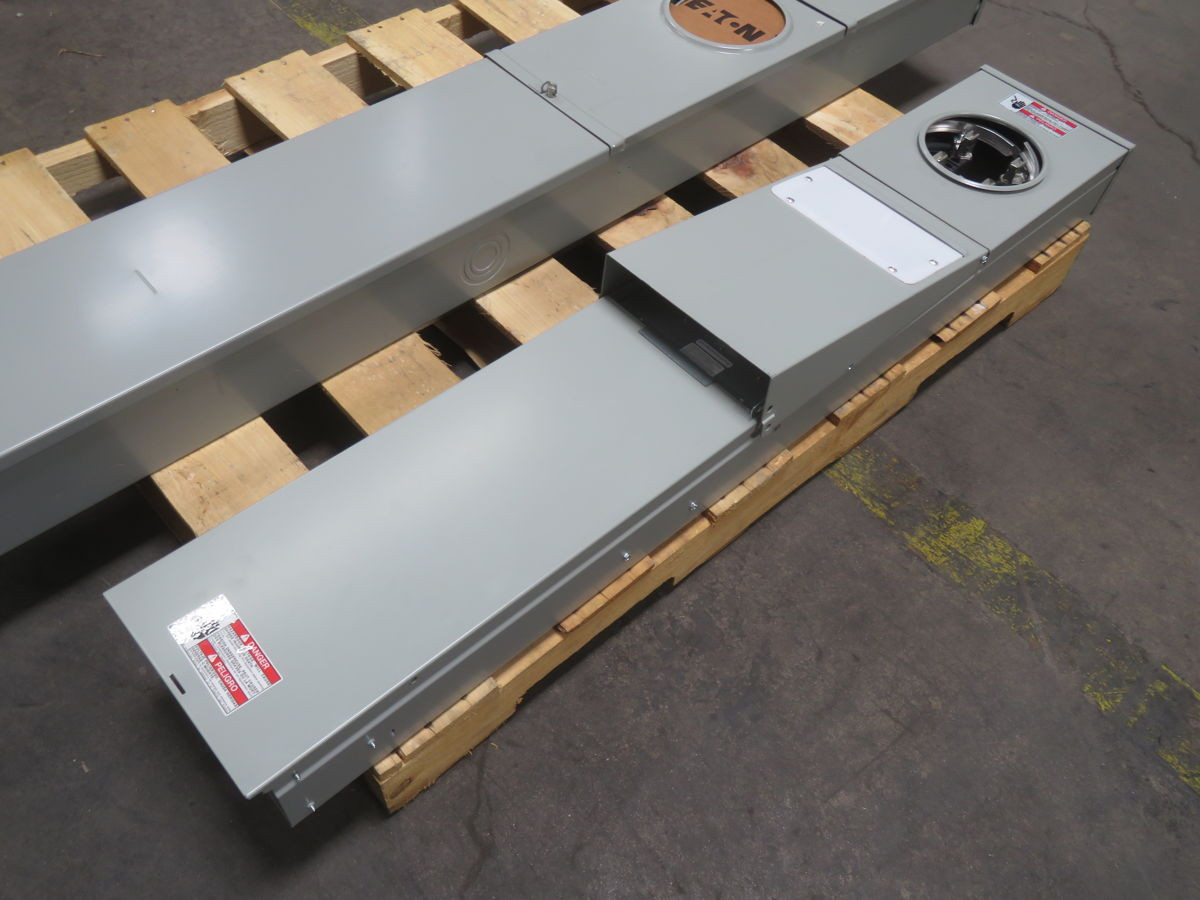

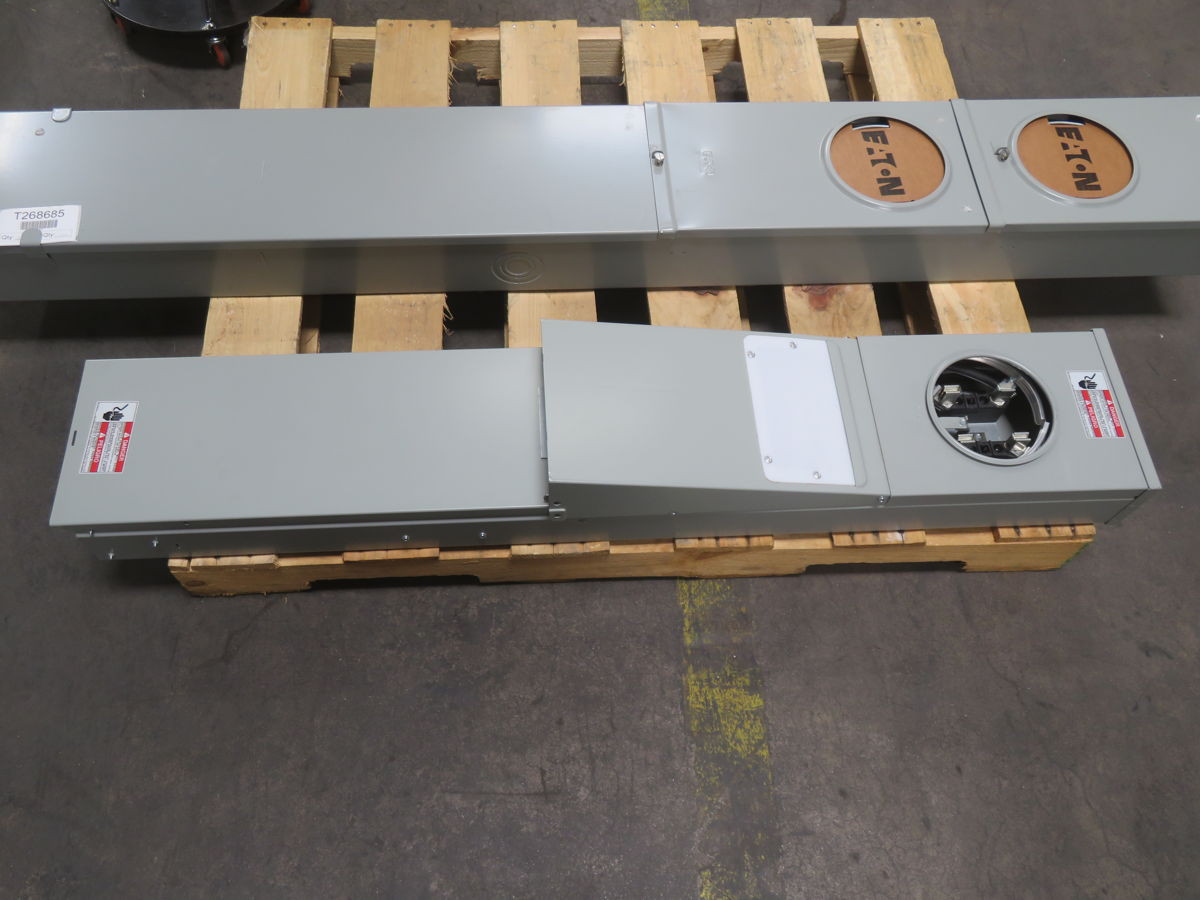

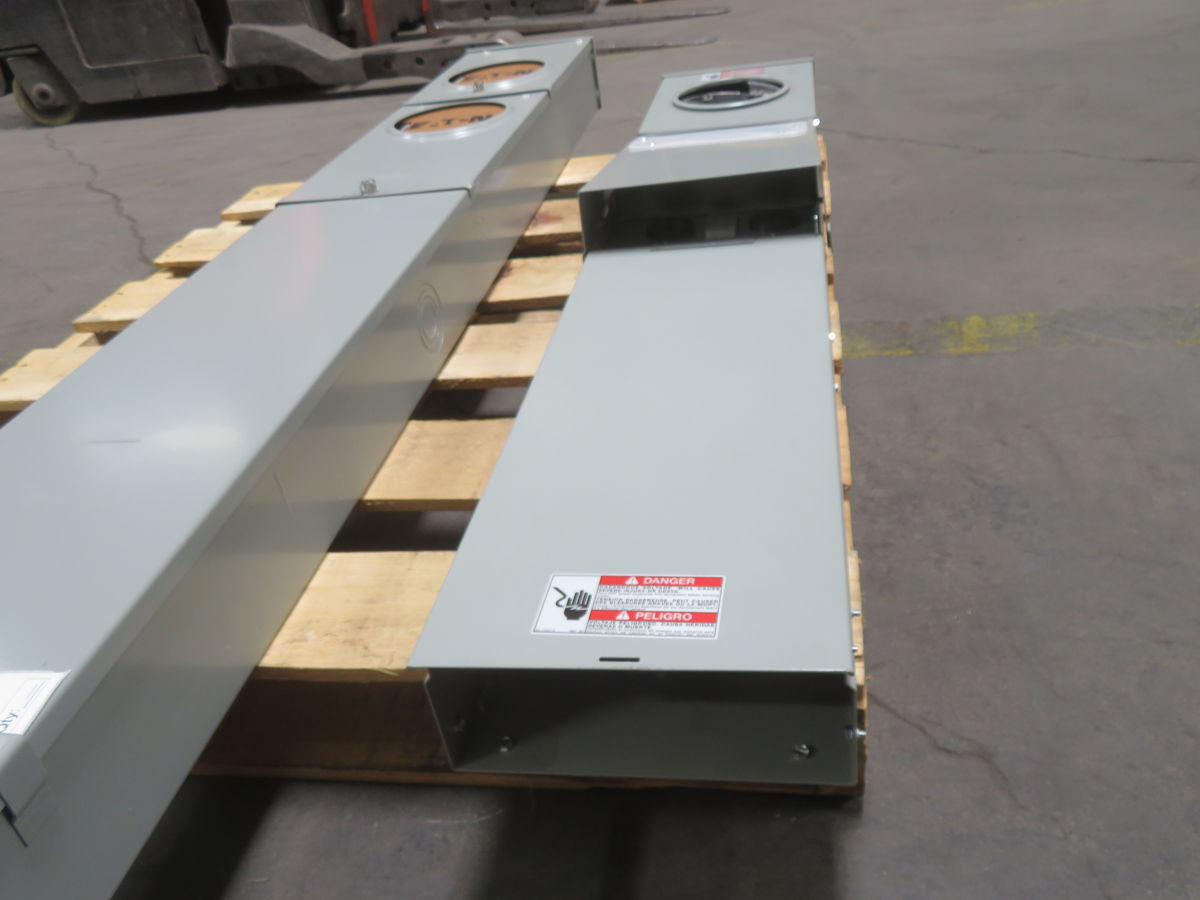

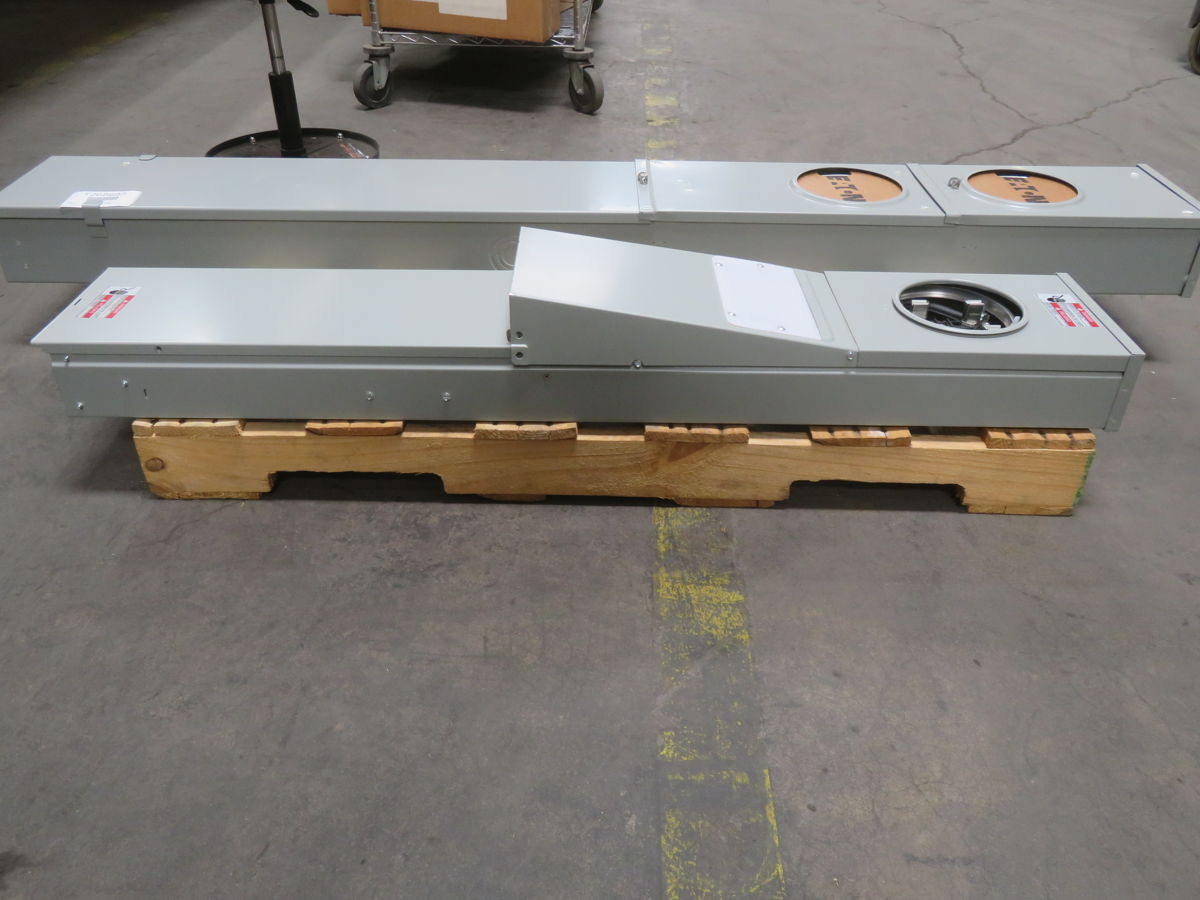

EATON CHM1N9N4NPL POWER OUTLET PEDESTAL

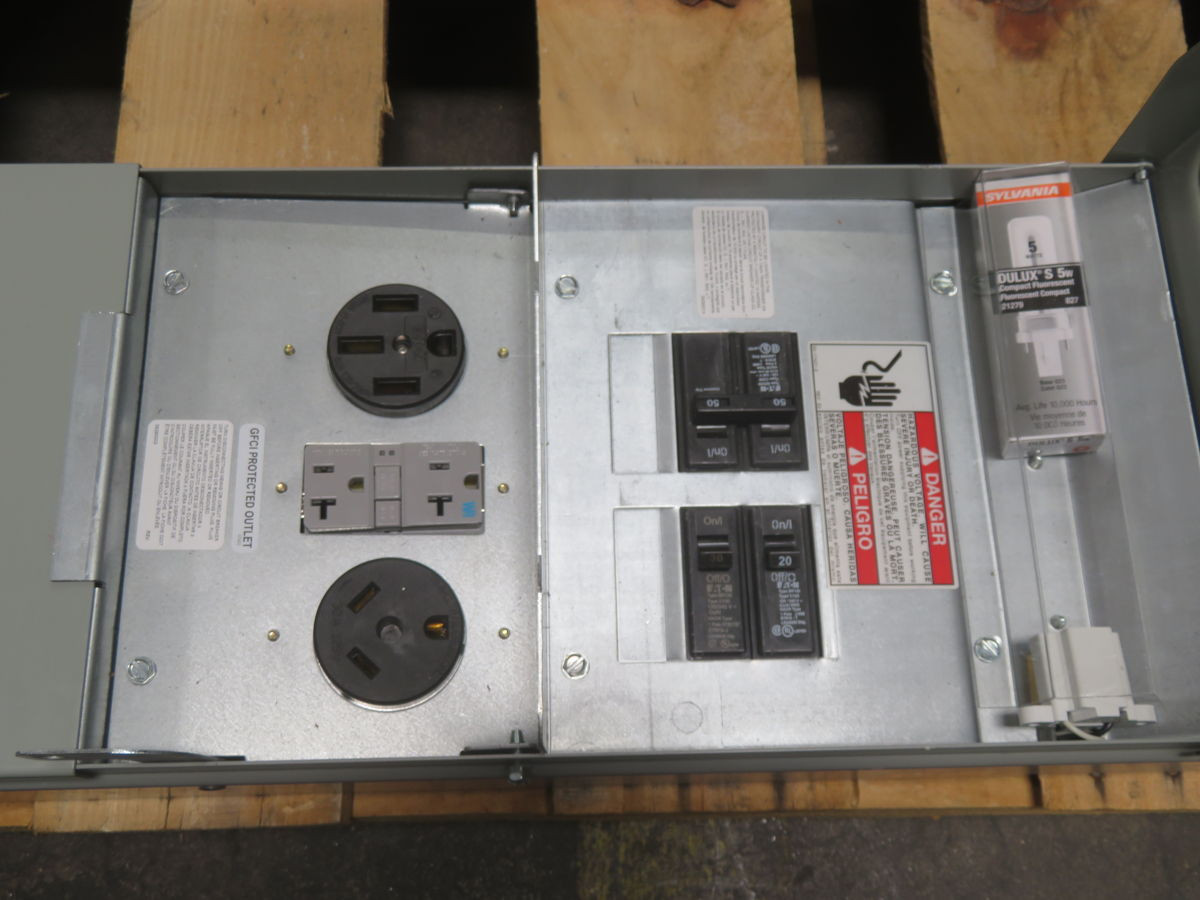

THIS EATON CHM1N9N4NPL IS A SINGLE-PHASE POWER OUTLET PEDESTAL FEATURING A HEAVY-DUTY NEMA 3R RAINPROOF ENCLOSURE, ENGINEERED FOR OUTDOOR ELECTRICAL POWER DISTRIBUTION. THE UNIT INCORPORATES A RING-TYPE METER SOCKET, TYPICALLY RATED FOR 125A SERVICE, AND AN INTEGRATED LIGHTING KIT FOR ENHANCED VISIBILITY. POWER DISTRIBUTION IS FACILITATED THROUGH SPECIFIC RECEPTACLE CONFIGURATIONS: ONE 50A, 125/250V NEMA 14-50R RECEPTACLE, ONE 30A, 125V NEMA TT-30R RECEPTACLE, AND ONE 20A, 125V GFI NEMA 5-20R2 DUPLEX RECEPTACLE. EACH POWER OUTLET IS INDIVIDUALLY PROTECTED BY A DEDICATED CIRCUIT BREAKER; SPECIFICALLY, A 50A DOUBLE-POLE BREAKER, A 30A SINGLE-POLE BREAKER, AND A 20A SINGLE-POLE GFCI BREAKER. THE PEDESTAL IS CONSTRUCTED FOR DURABILITY IN DEMANDING ENVIRONMENTS.
