EATON CUTLER-HAMMER T20P11S37 TRANSFORMER, 37.5 KVA, 1PH, 240X480V/120/240V, 150C RISE, 300 LBS

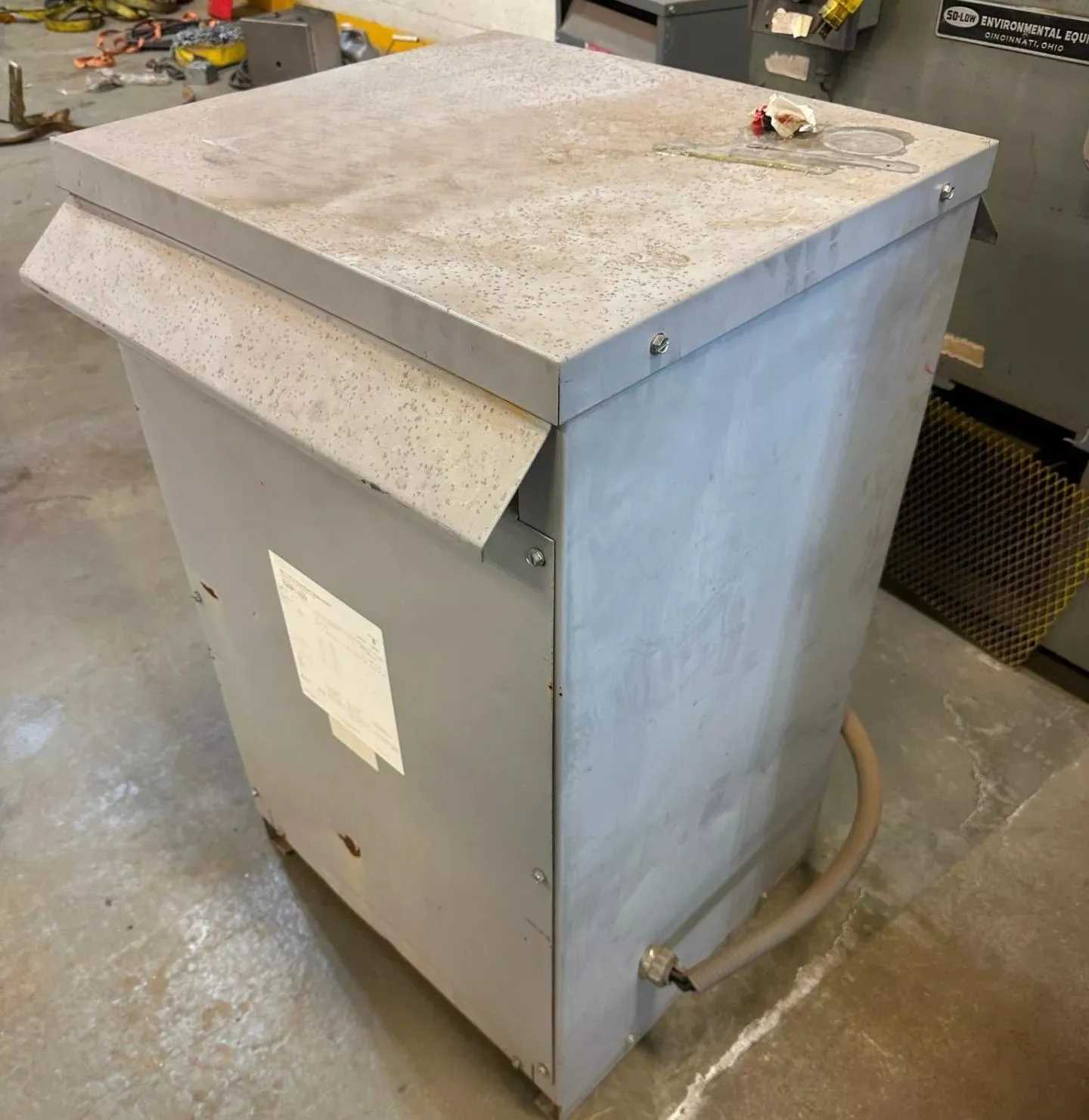

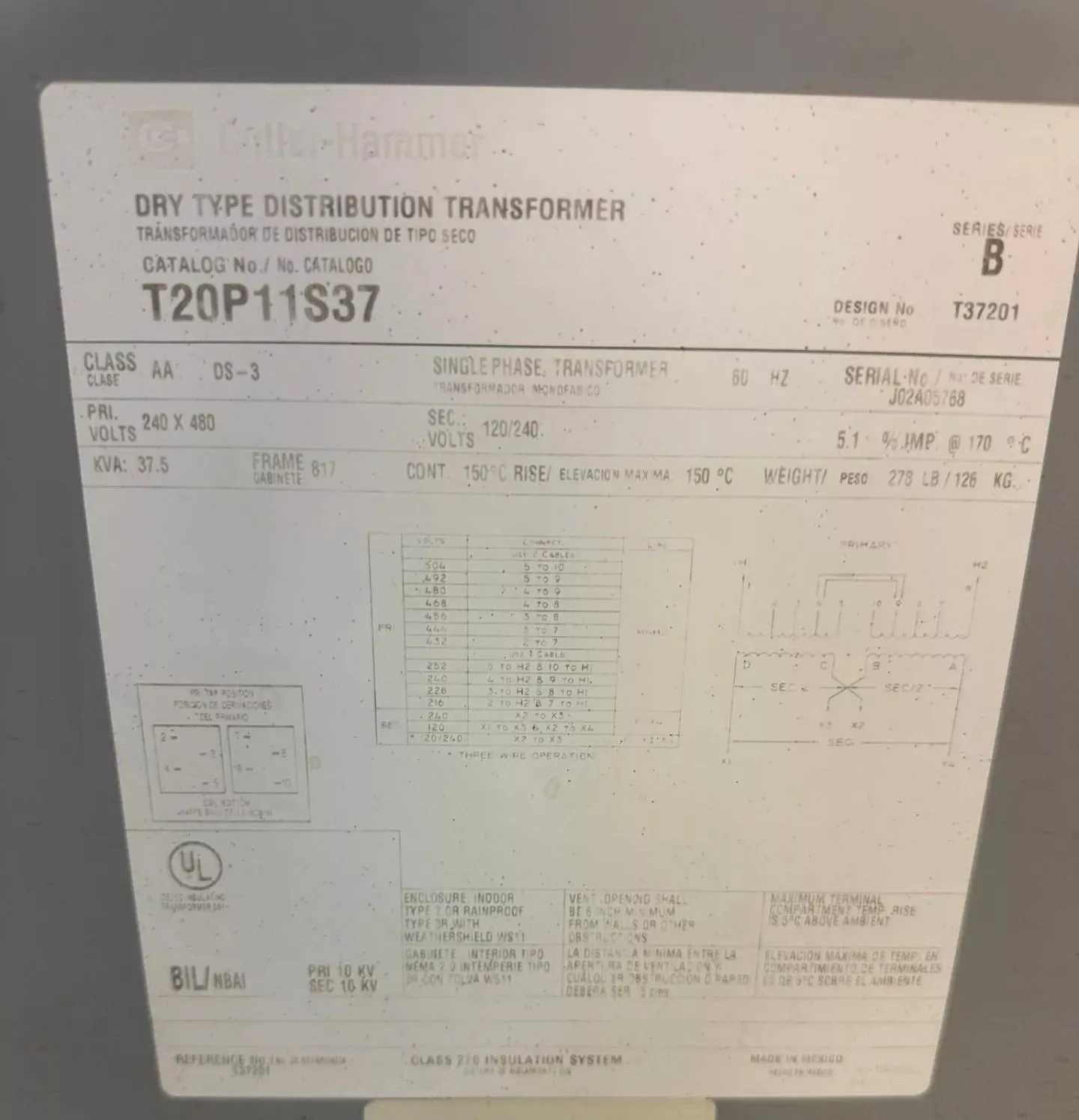

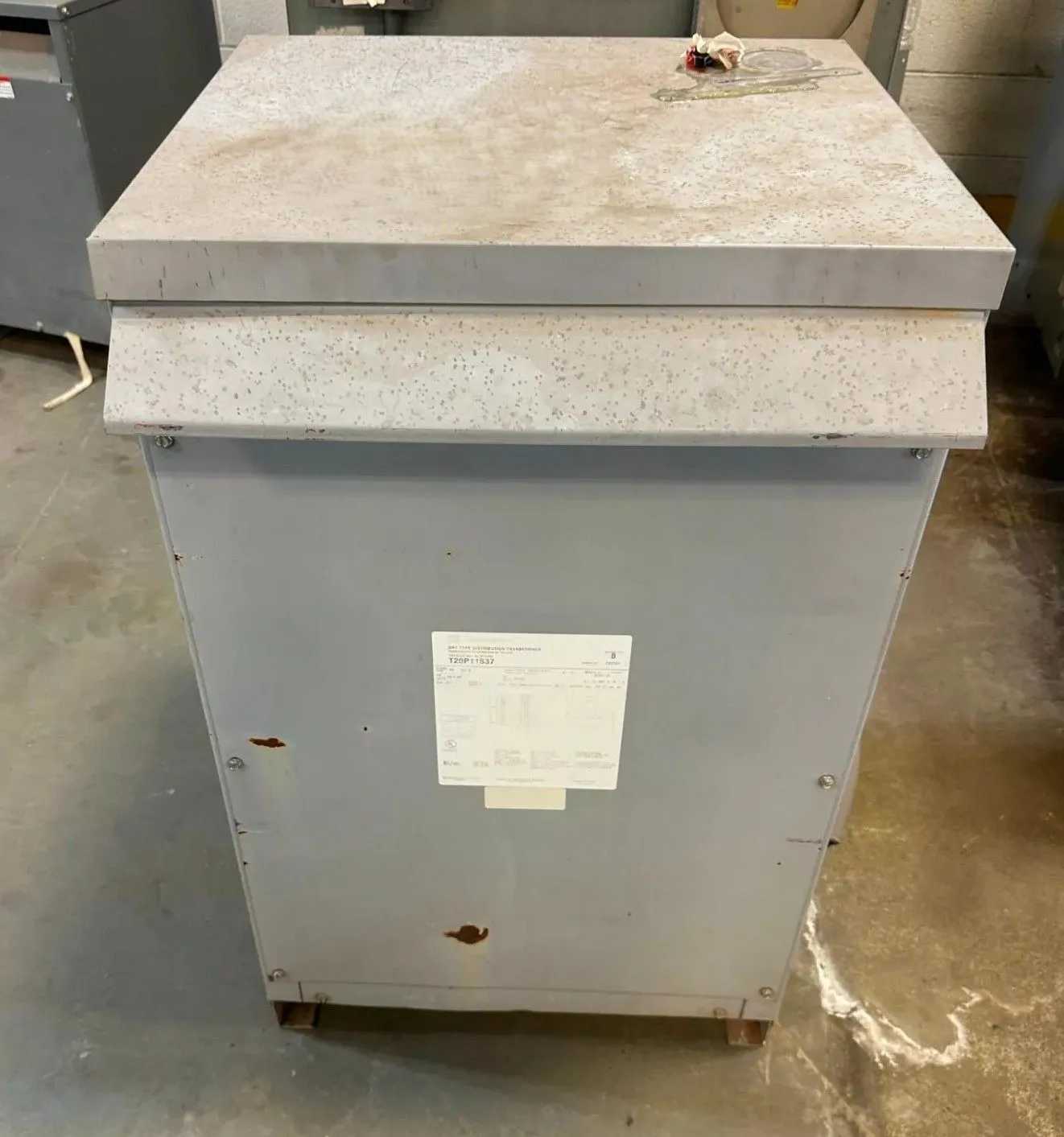

THIS EATON CUTLER-HAMMER MODEL T20P11S37 IS A 37.5 KVA SINGLE-PHASE GENERAL-PURPOSE VENTILATED DRY TYPE DISTRIBUTION TRANSFORMER. IT FEATURES A PRIMARY VOLTAGE OF 240 X 480V AND A SECONDARY VOLTAGE OF 120/240V. THE UNIT IS DESIGNED WITH DS-3 ARCHITECTURE AND UTILIZES FRAME 817. TECHNICAL SPECIFICATIONS INCLUDE ALUMINUM WINDINGS AND A 150°C TEMPERATURE RISE RATING. VOLTAGE REGULATION IS MANAGED THROUGH MULTIPLE TAPS, INCLUDING 1 AT +5% FCAN, 2 AT -5% FCBN, 2 AT +2.5% FCAN, AND 4 AT -2.5% FCBN. THIS TRANSFORMER WEIGHS APPROXIMATELY 300 LBS AND IS COMPATIBLE WITH WS11 MOUNTING.
