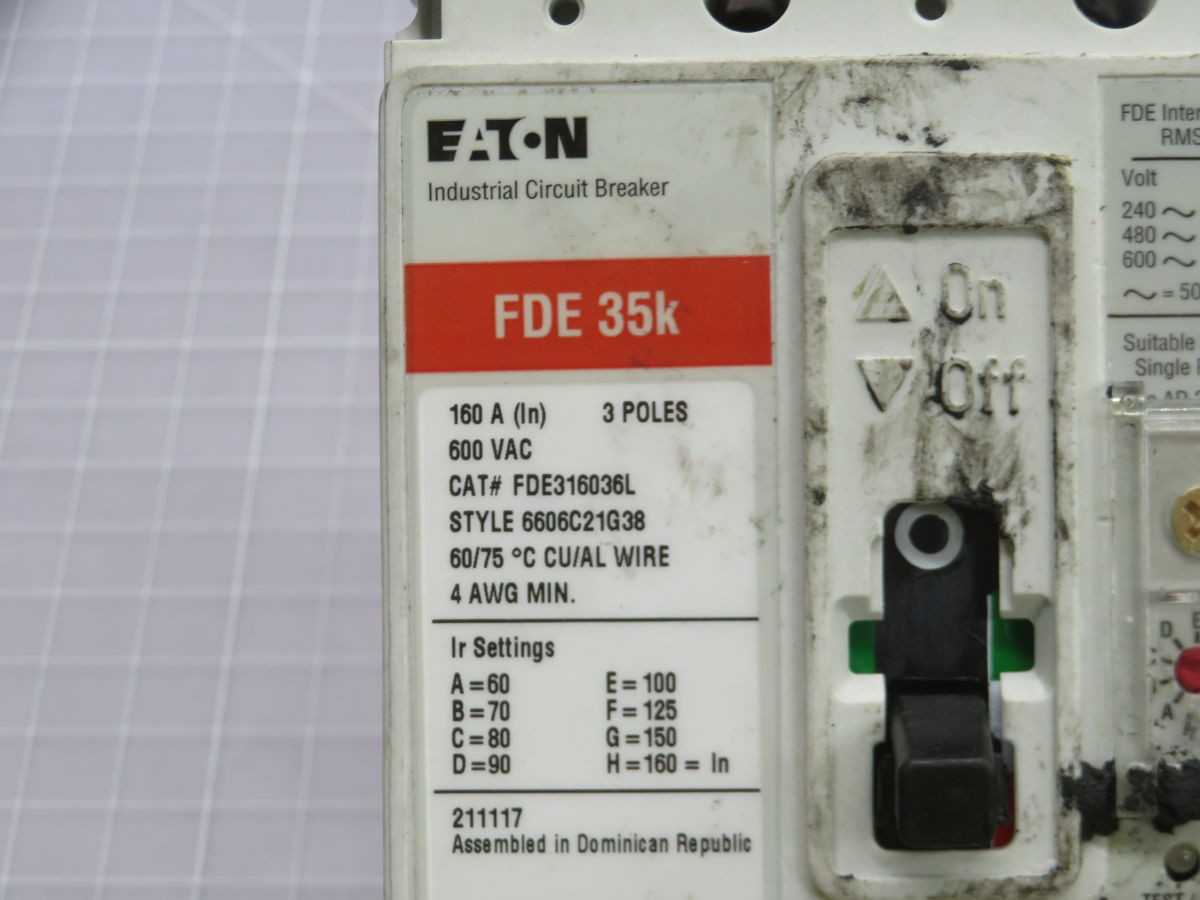

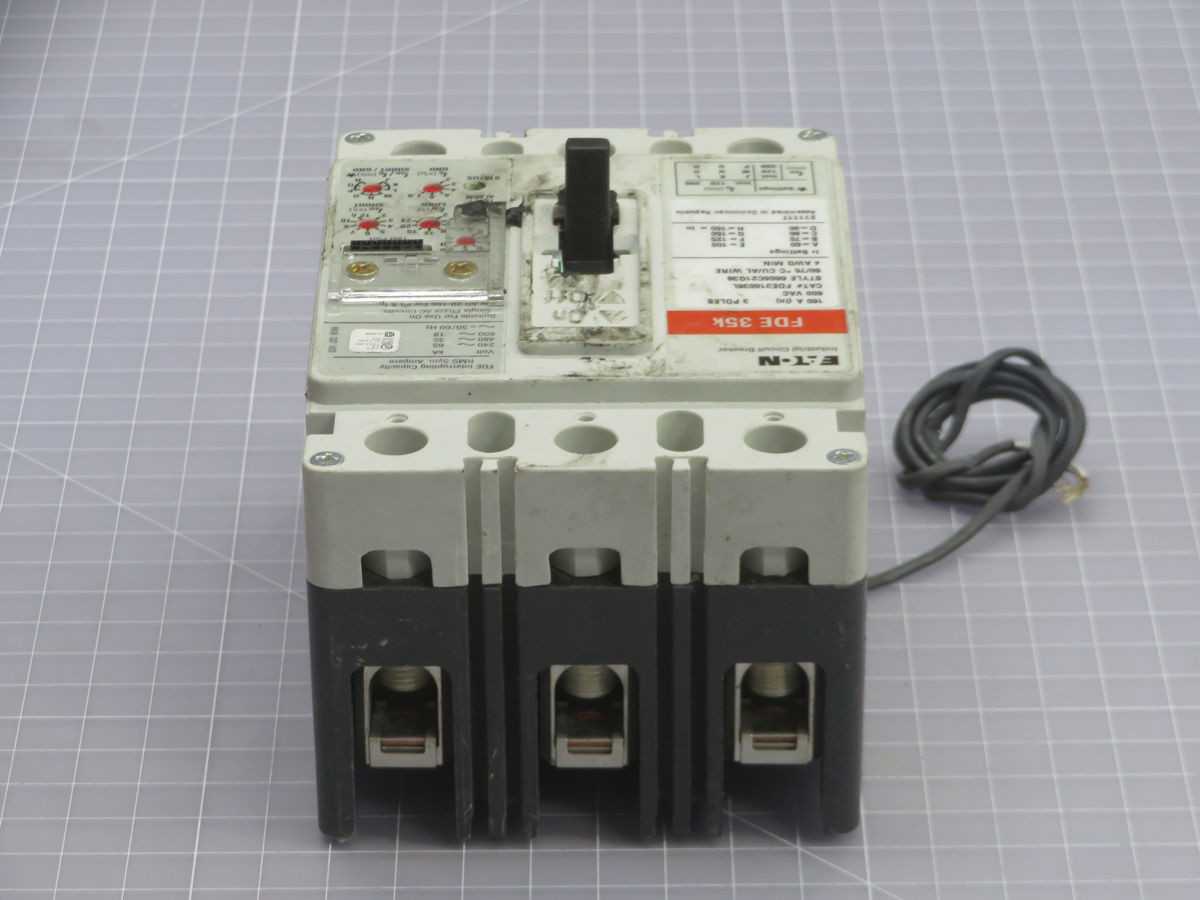

EATON FDE316036L CIRCUIT BREAKERS, 3-POLE, 160A RATED, LSIG, 600 VAC, 250 VDC, 50/60 HZ, 65 KAIC IC

THE EATON FDE316036L IS A SERIES C ELECTRONIC MOLDED CASE CIRCUIT BREAKER, FEATURING AN F-FRAME AND FDE DESIGNATION. IT IS A THREE-POLE DEVICE RATED FOR 160A. THE CIRCUIT BREAKER INCORPORATES A DIGITRIP 310 RMS ELECTRONIC TRIP UNIT WITH LSIG (LONG-TIME, SHORT-TIME, INSTANTANEOUS, GROUND FAULT) PROTECTION. IT IS DESIGNED FOR OPERATION AT 600 VAC AND 250 VDC, WITH A FREQUENCY RANGE OF 50/60 HZ. INTERRUPTING CAPACITIES ARE SPECIFIED AS 65 KAIC AT 240 VAC AND 35 KAIC AT 480 VAC. THE UNIT INCLUDES LINE AND LOAD CONNECTIONS AND IS NOT UL RATED.
