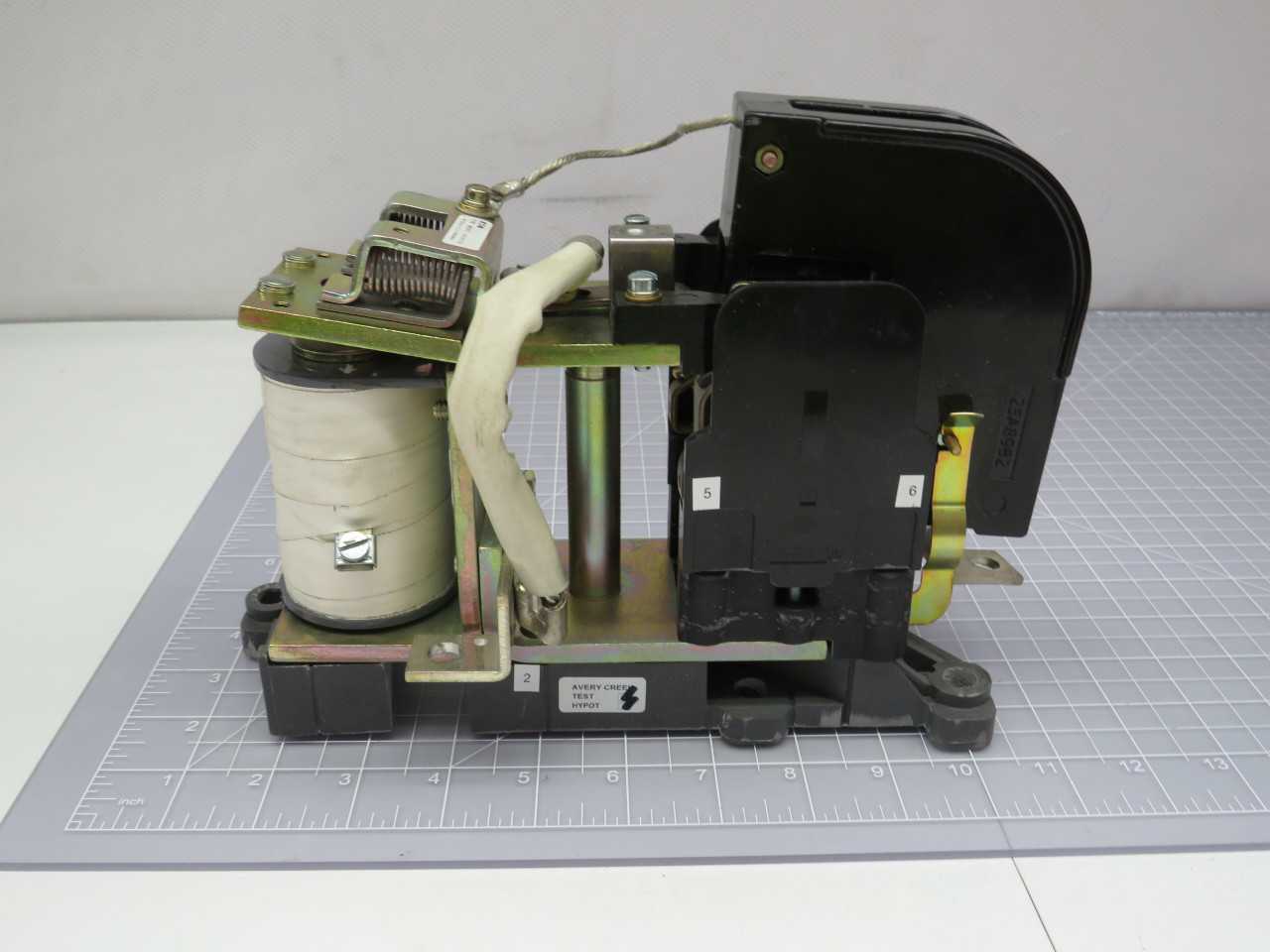

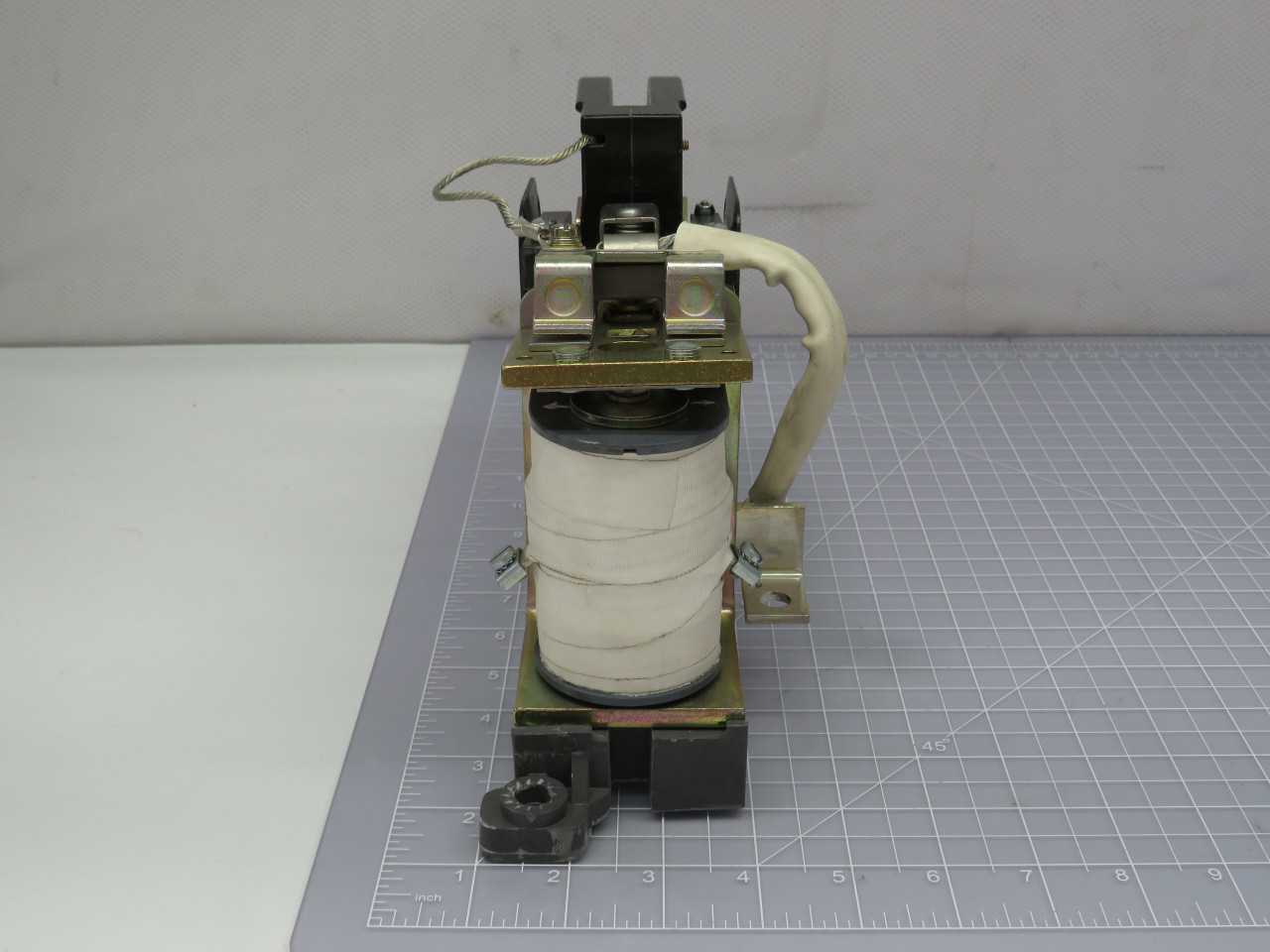

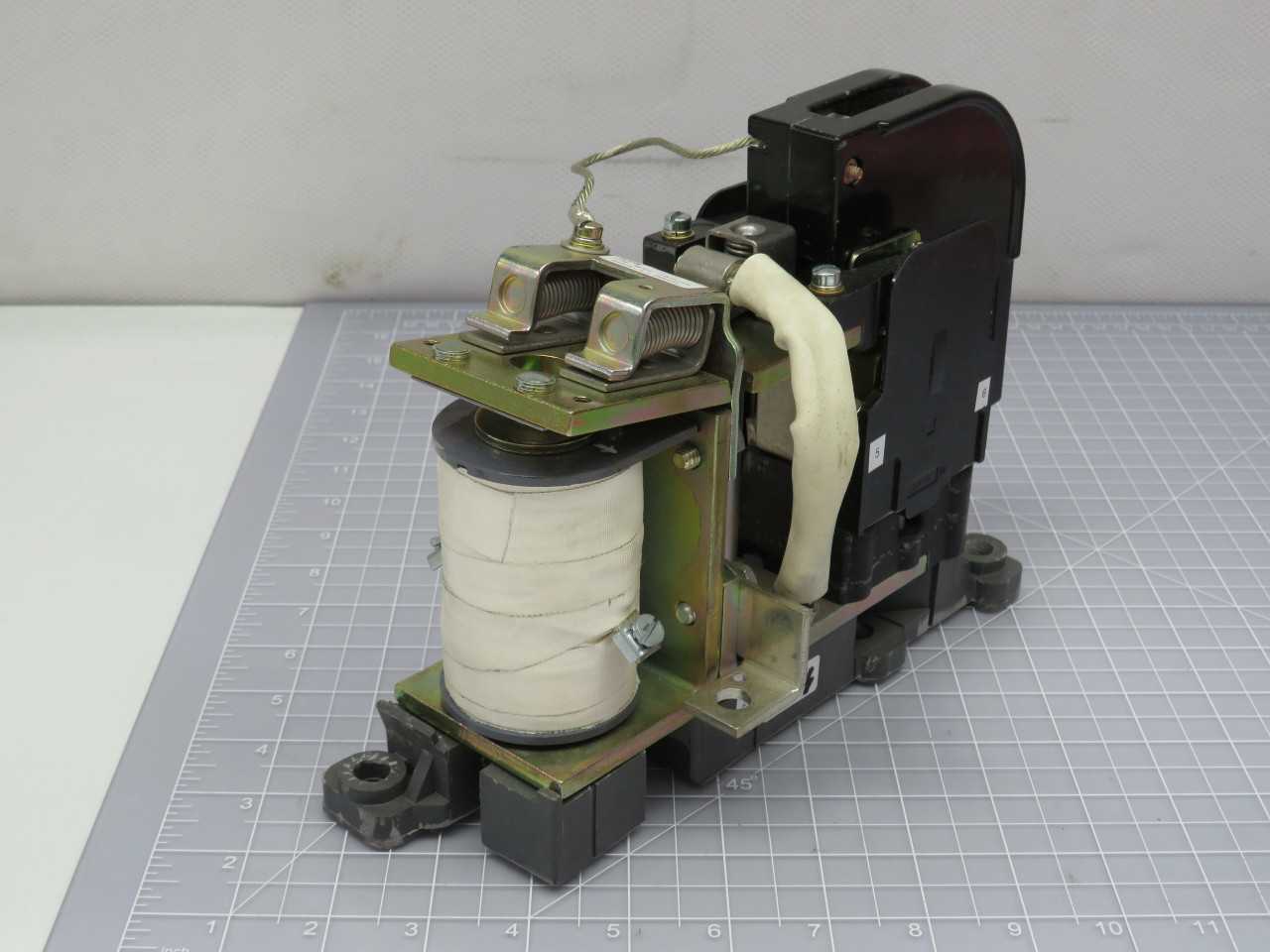

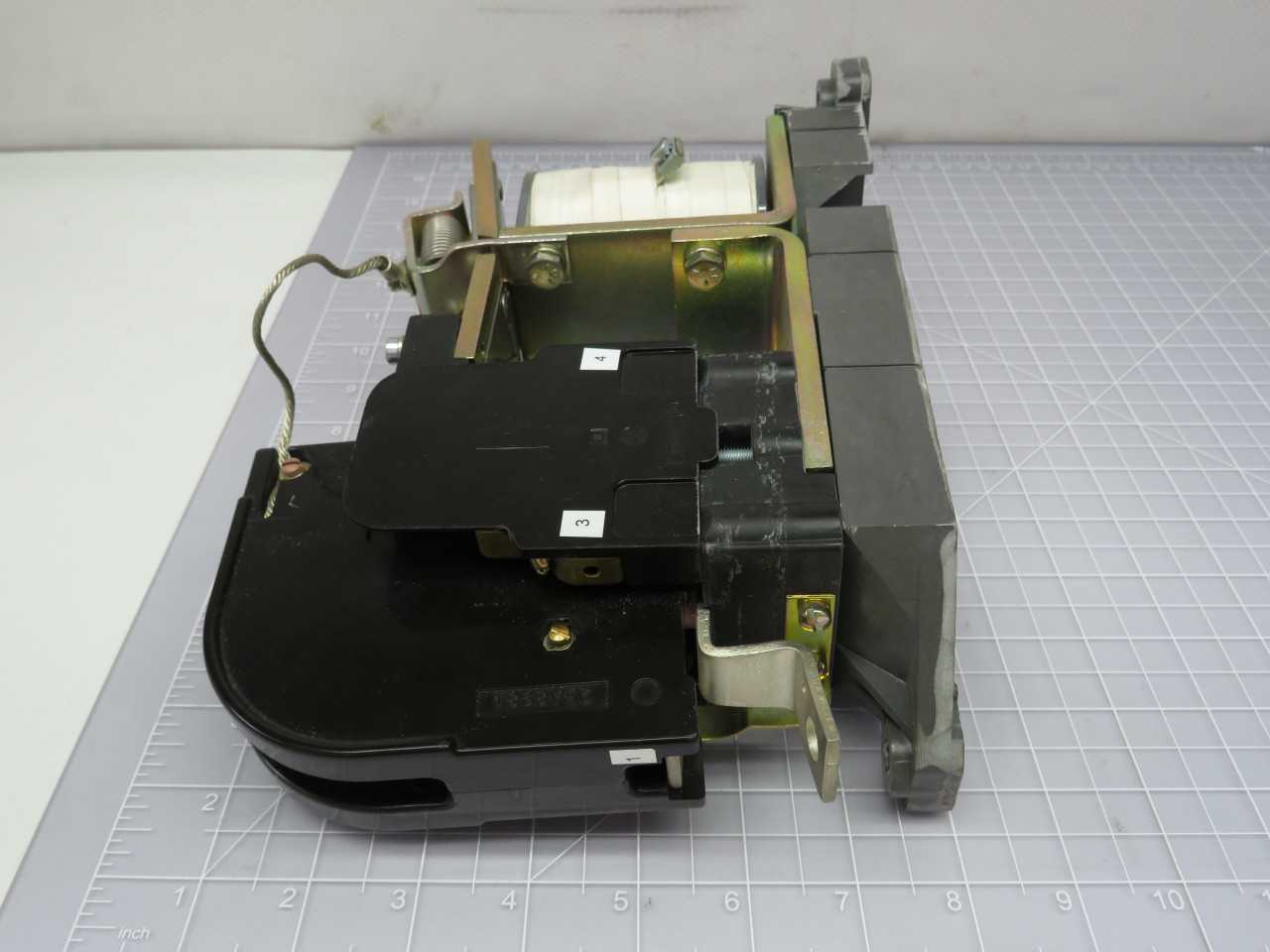

EATON ME301C Definite Purpose Contactor, 3-Pole, 30A FLA, 40A Resistive, 600V Max Volt, 10 HP

THE EATON ME301C IS A 3-POLE DEFINITE PURPOSE CONTACTOR DESIGNED FOR MOTOR AND RESISTIVE LOAD CONTROL APPLICATIONS. IT FEATURES A FULL LOAD AMPERE (FLA) RATING OF 30A AND A RESISTIVE AMPERE RATING OF 40A, WITH A MAXIMUM OPERATIONAL VOLTAGE OF 600 VAC. THIS MODEL PROVIDES HORSEPOWER RATINGS OF 2 HP AT 120V, 5 HP AT 208-240V, AND 10 HP AT BOTH 480V AND 575-600V. THE ME301C IS TYPICALLY SUPPLIED WITHOUT INTEGRATED AUXILIARY CONTACTS AND IS AVAILABLE WITH VARIOUS COMMON AC CONTROL COIL VOLTAGES TO SUIT DIVERSE CONTROL CIRCUIT REQUIREMENTS. IT ADHERES TO INDUSTRY SAFETY AND PERFORMANCE STANDARDS, HOLDING UL LISTING AND CSA CERTIFICATION.
