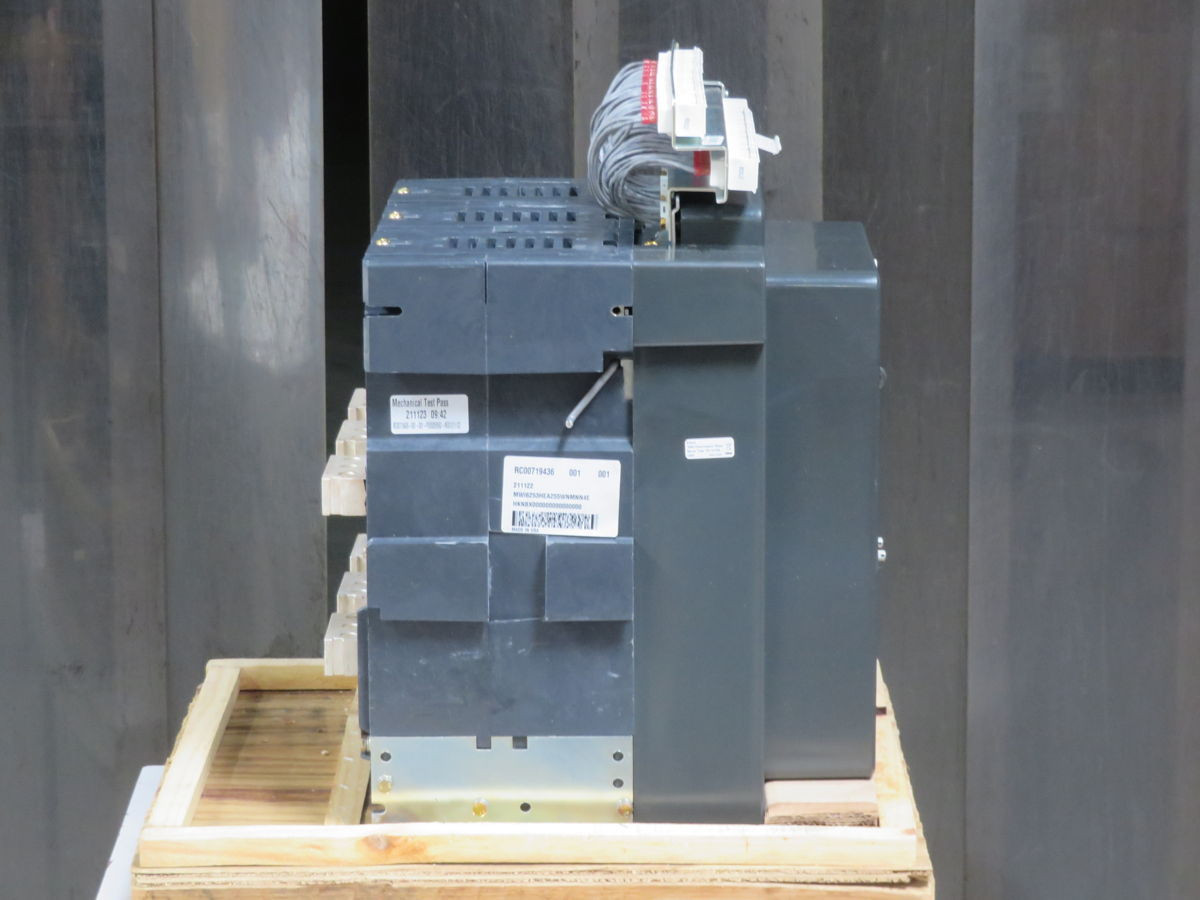

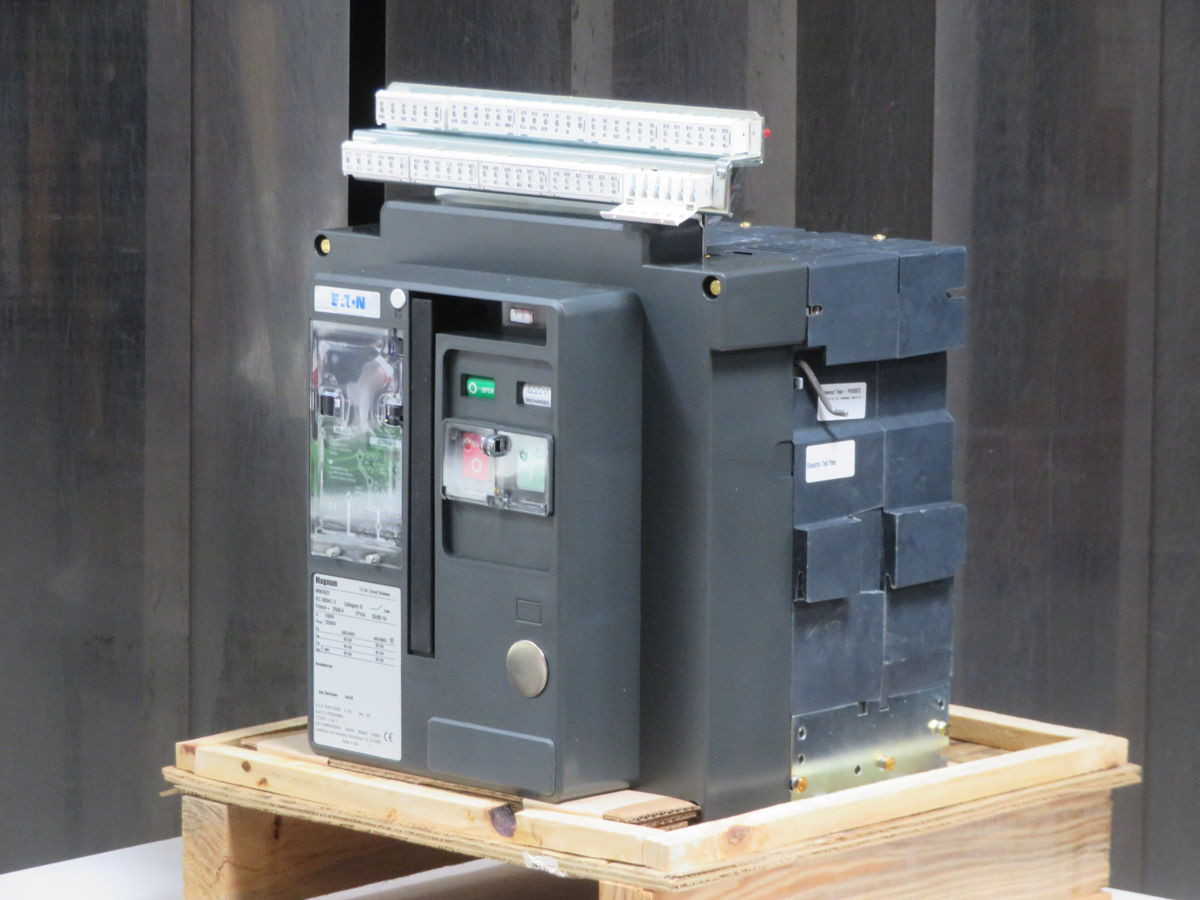

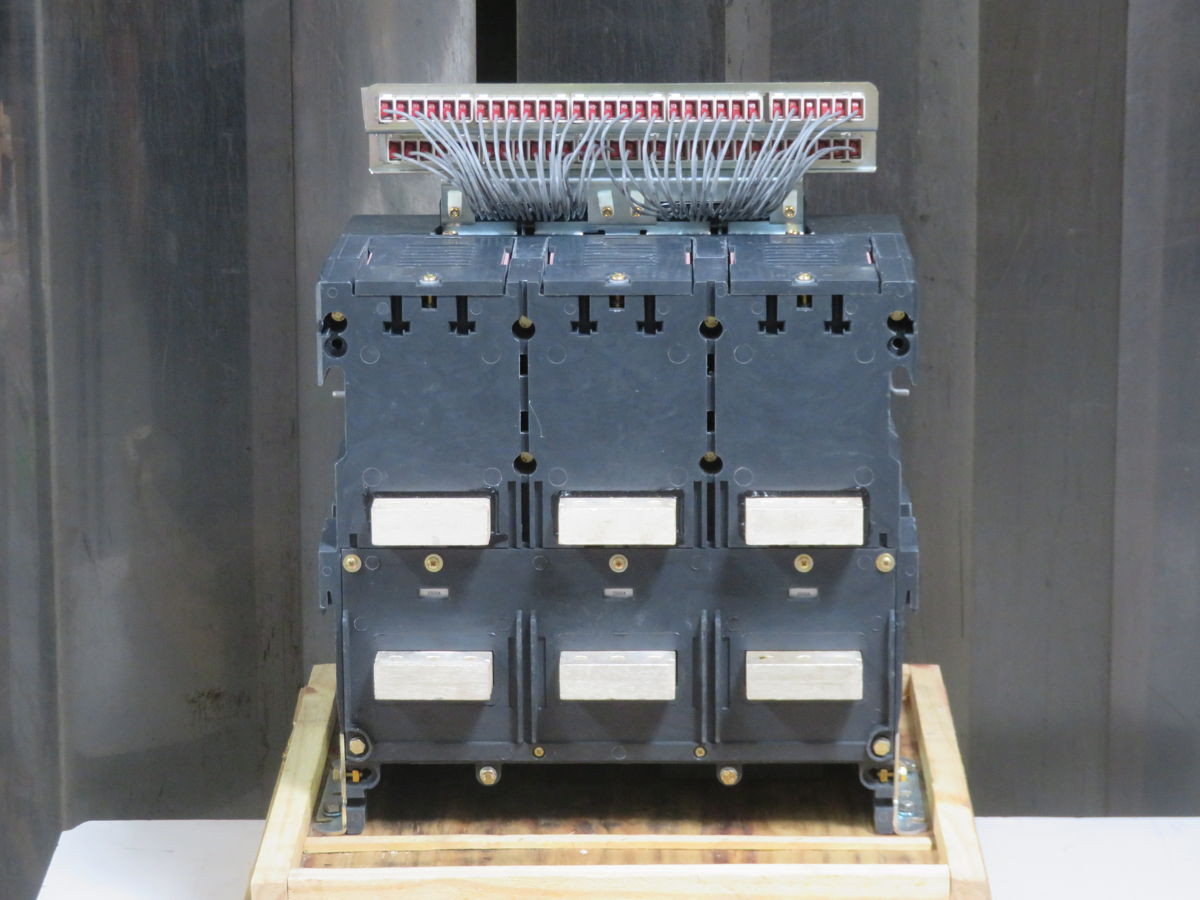

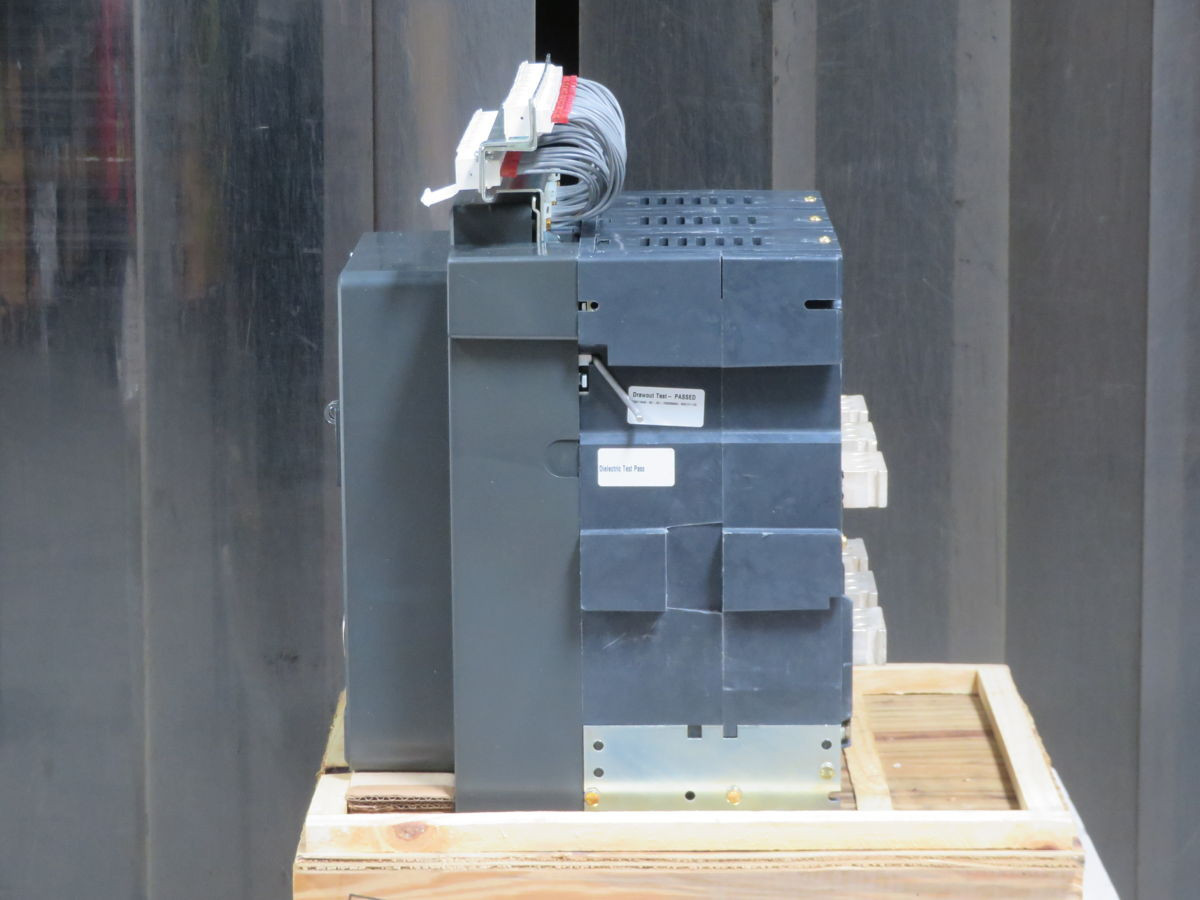

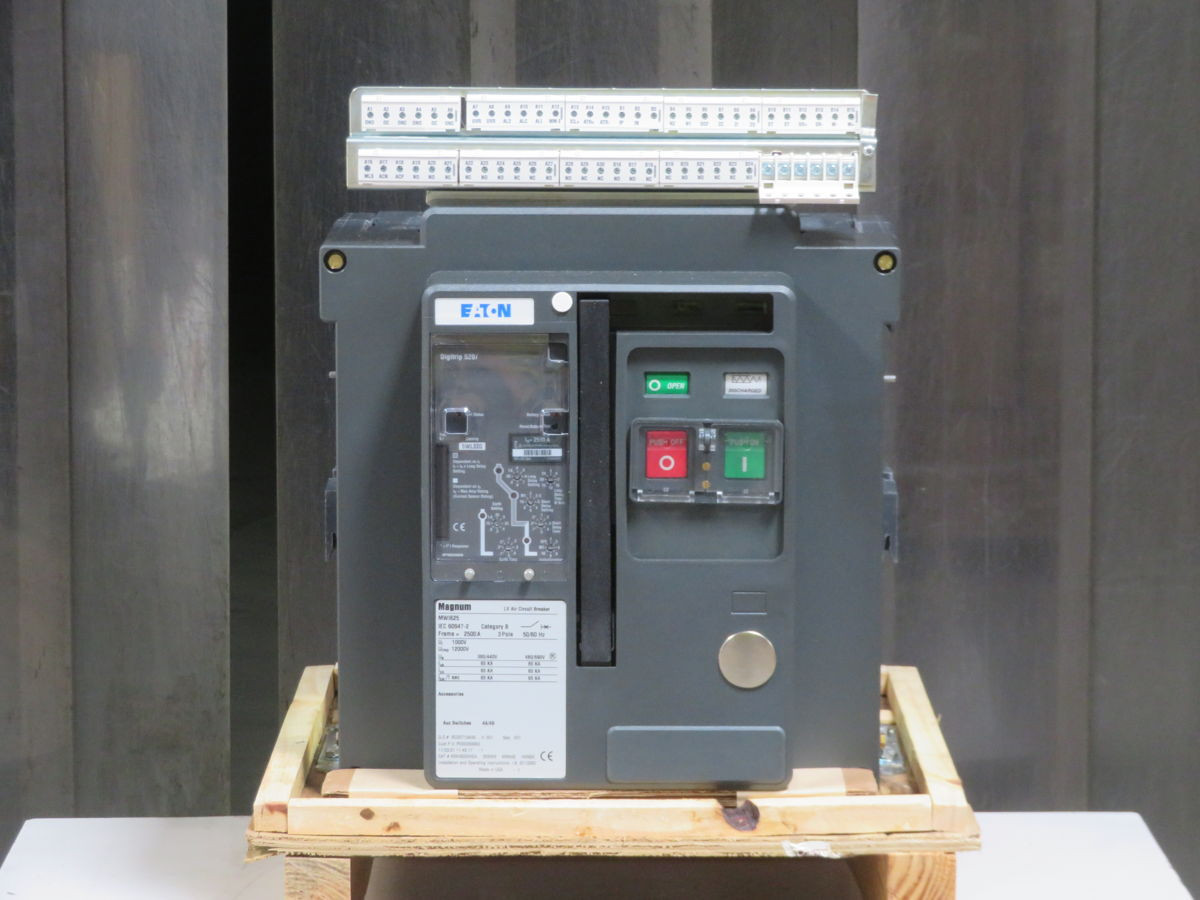

EATON MWI625 MWI6253HEA LV AIR CIRCUIT BREAKER

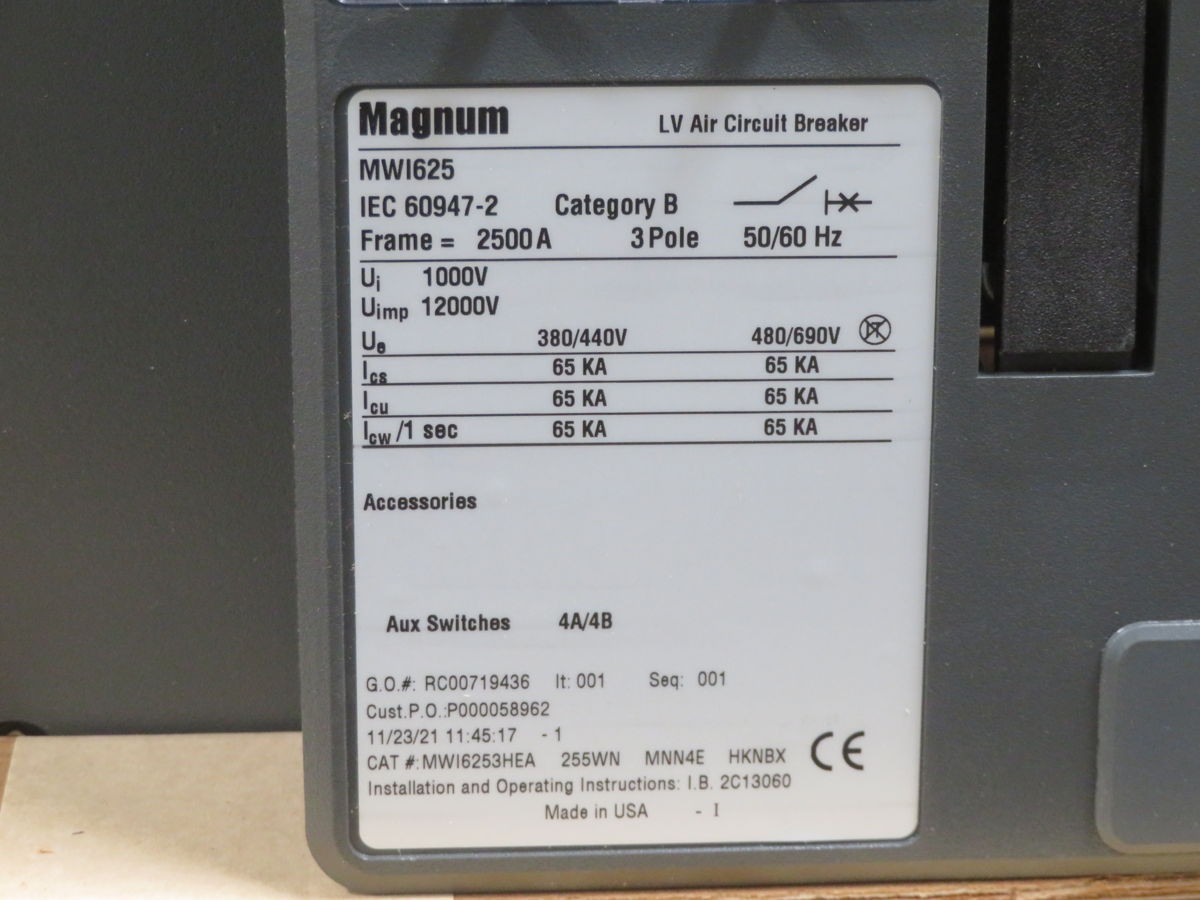

THIS EATON MWI625 MWI6253HEA IS A 3-POLE LOW VOLTAGE AIR CIRCUIT BREAKER DESIGNED FOR SYSTEMS OPERATING AT 50/60 HZ. IT FEATURES A 2500 A FRAME SIZE AND IS RATED FOR AN OPERATIONAL VOLTAGE UP TO 690V AC, WITH A RATED INSULATION VOLTAGE OF 1000V AC AND AN IMPULSE WITHSTAND VOLTAGE OF 12KV. THE BREAKER PROVIDES A RATED ULTIMATE SHORT-CIRCUIT BREAKING CAPACITY (ICU) OF 65KA AT 400V AC, WITH A CORRESPONDING RATED SERVICE SHORT-CIRCUIT BREAKING CAPACITY (ICS) OF 65KA AT 400V AC. ITS RATED SHORT-TIME WITHSTAND CURRENT (ICW) IS 65KA FOR 1 SECOND. COMPLIANCE IS TO IEC 60947-2 STANDARDS.
