EATON PVM13L3TWR3/UNV1 HIGH BAY LIGHT, 130 W POWER, 13226 LUMENS, 5000 K COLOR TEMP, NEMA 4X/IP66

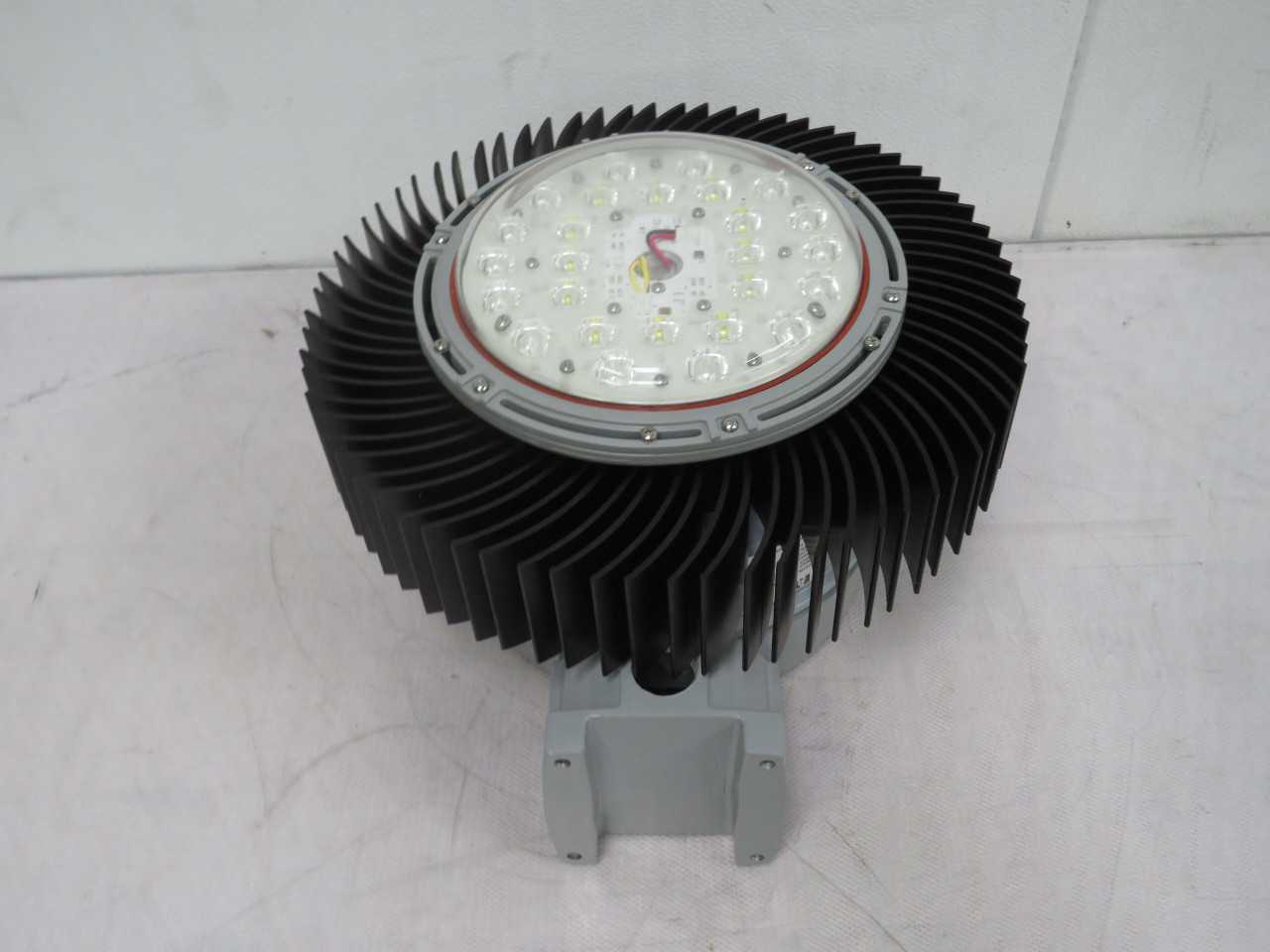

THE EATON PVM13L3TWR3/UNV1 IS A CROUSE-HINDS CHAMP® PRO HIGH BAY LUMINAIRE EQUIPPED WITH A TYPE III OPTIC. IT OPERATES ON AN INPUT VOLTAGE RANGE OF 120 TO 277 VAC OR 108 TO 250 VDC, CONSUMING 130 W AND DRAWING 0.48 TO 1.08 A. THIS LED LUMINAIRE DELIVERS 13226 LUMENS, ACHIEVING AN EFFICACY OF 102 LUMENS/W. IT PRODUCES COOL WHITE LIGHT WITH A 5000 K COLOR TEMPERATURE AND A COLOR RENDERING INDEX OF 70. DIMMING FUNCTIONALITY IS SUPPORTED VIA A 0 TO 10 VDC DIMMING BALLAST, AND THE UNIT FEATURES A GLASS LENS. THE ESTIMATED AVERAGE OPERATIONAL LIFE IS 60000 HOURS. ITS CONSTRUCTION INCLUDES A DIE-CAST ALUMINUM HOUSING FINISHED WITH CORRO-FREE™ EPOXY POWDER COATING, OFFERING NEMA 4X AND IP66 ENVIRONMENTAL PROTECTION. DESIGNED FOR WALL MOUNTING, THE LUMINAIRE MEASURES 16.39 INCHES WIDE, 10.05 INCHES HIGH, AND 5.92 INCHES DEEP.
