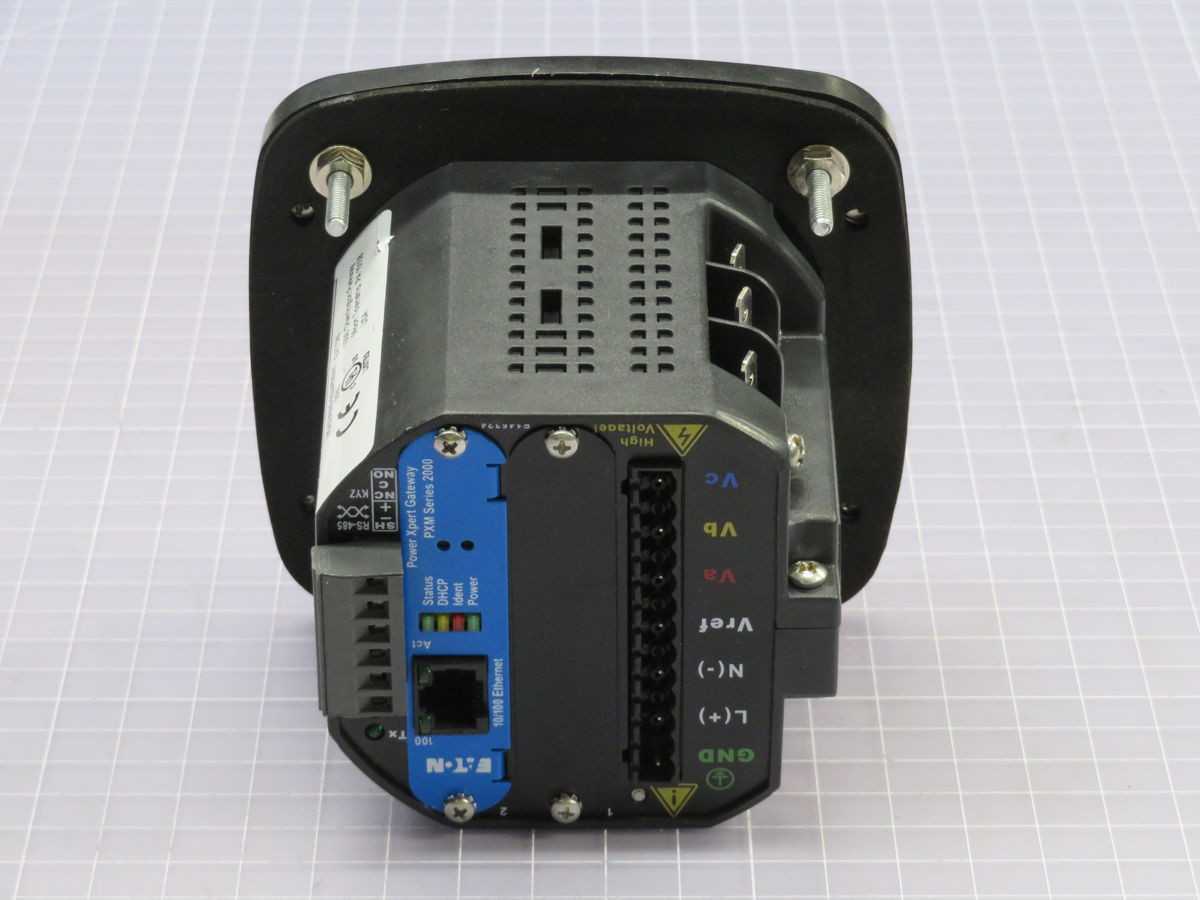

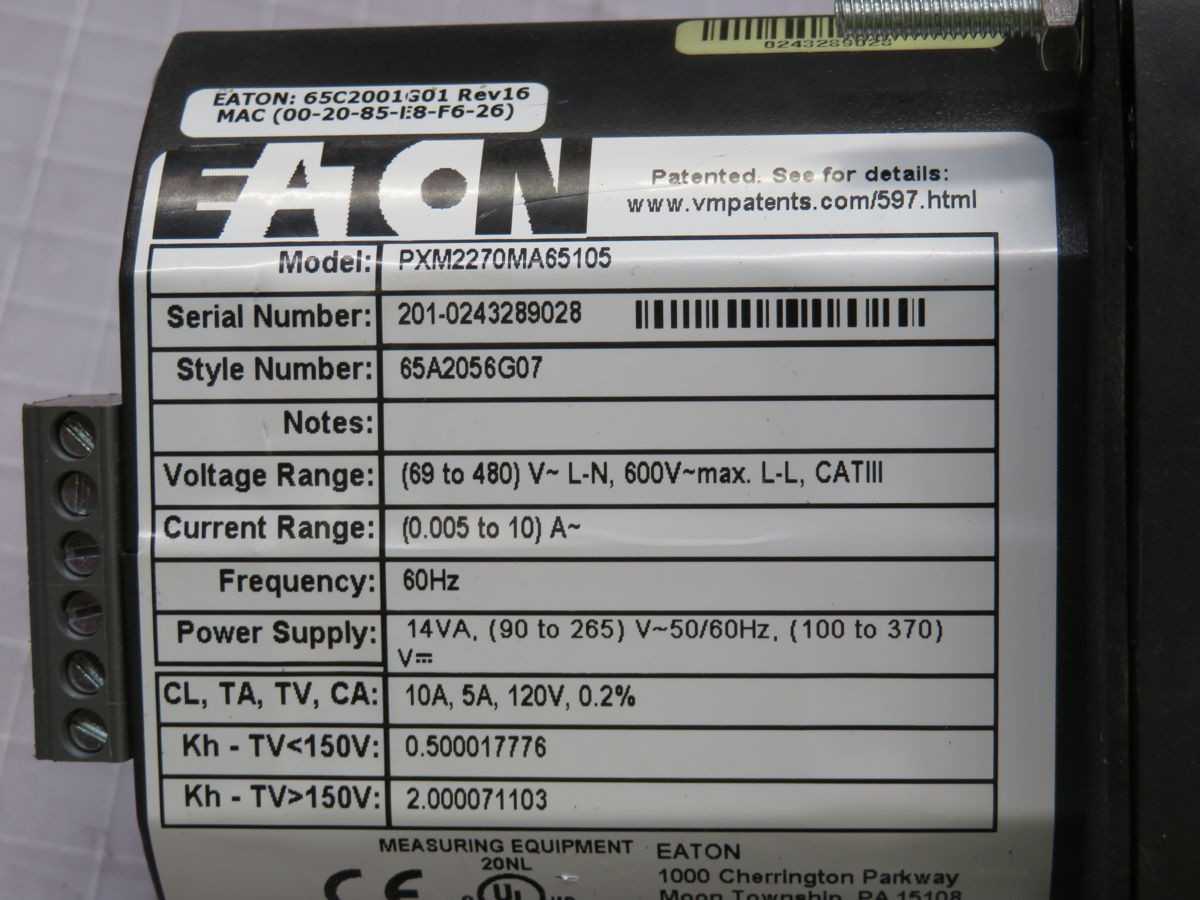

EATON PXM2270MA65105 PQM, 768 MB MEMORY, 60 HZ FREQUENCY, 5 A CURRENT, 90-265 V VOLTAGE

THE EATON PXM2270MA65105 IS A POWER QUALITY PLUS METER DESIGNED FOR AUTOMATION APPLICATIONS. IT FEATURES 768 MB OF INTERNAL MEMORY AND IS CONFIGURED FOR 60 HZ OPERATION. THE METER ACCEPTS A 5 AMP CURRENT INPUT AND ACCOMMODATES A WIDE VOLTAGE INPUT RANGE OF 90-265 VAC/DC. AN INTEGRAL COLOR GRAPHICAL DISPLAY PROVIDES LOCAL VISUALIZATION. COMMUNICATION CAPABILITIES ARE FACILITATED BY A GATEWAY CARD, WHICH INCLUDES ETHERNET AND RS-485 INTERFACES SUPPORTING MODBUS TCP/IP, MODBUS RTU, DNP 3.0, AND BACNET/IP PROTOCOLS. THE DEVICE PERFORMS COMPREHENSIVE POWER QUALITY ANALYSIS, INCLUDING HARMONIC DISTORTION UP TO THE 63RD HARMONIC, SAGS, SWELLS, AND TRANSIENT DETECTION, ALONGSIDE MONITORING OF VOLTAGE, CURRENT, POWER, AND ENERGY PARAMETERS.
