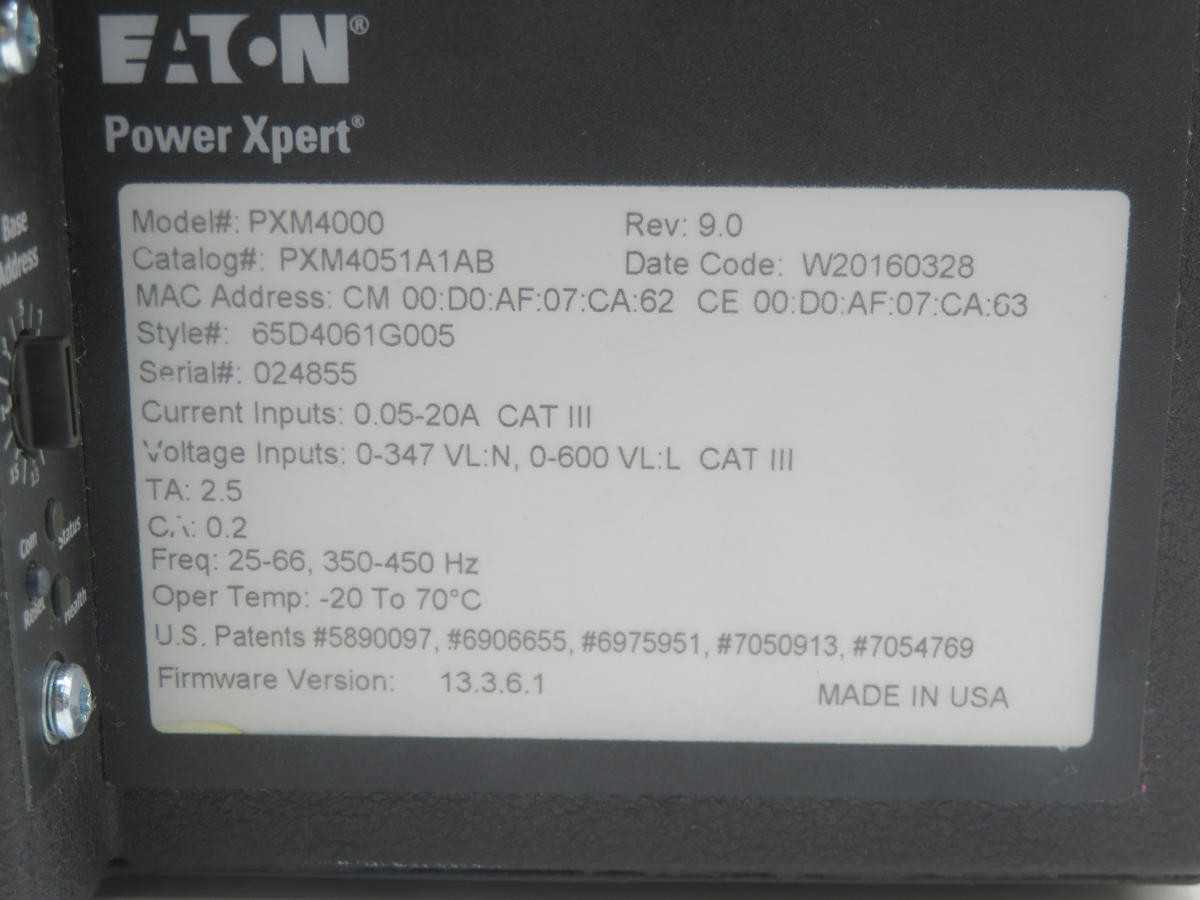

EATON PXM4000 PXM4051A1AB VOLTAGE MONITOR, 0-347V VOLTAGE, 0.2 CLASS ACCURACY, ETHERNET

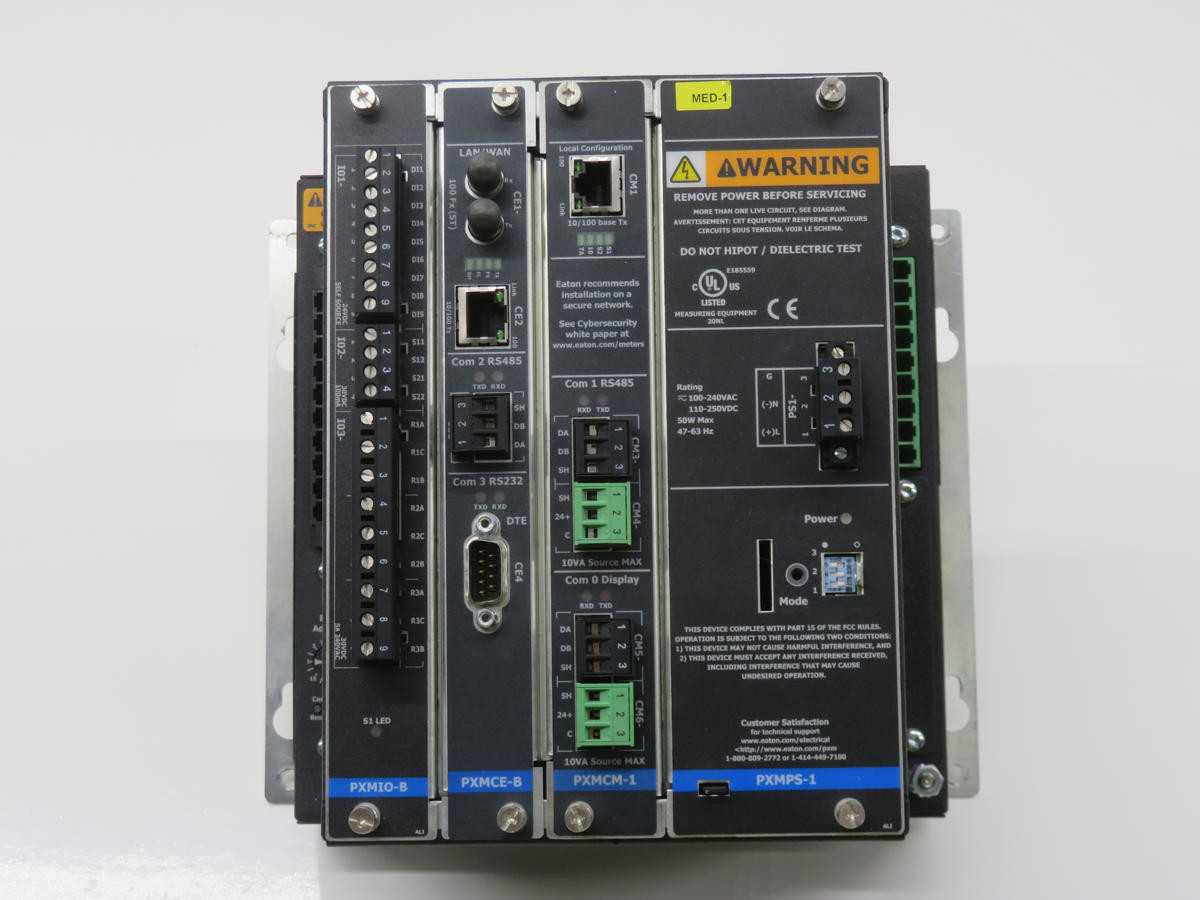

THE EATON PXM4000 PXM4051A1AB IS AN ADVANCED POWER AND ENERGY METER, CATEGORIZED AS A VOLTAGE MONITOR. IT SUPPORTS DIRECT VOLTAGE INPUTS FROM 0 TO 347 V LINE-TO-NEUTRAL (L-N), COMPATIBLE WITH 3-PHASE 4-WIRE WYE, 3-WIRE DELTA, OR SINGLE-PHASE CONFIGURATIONS. CURRENT MEASUREMENT IS FACILITATED VIA 333 MV CURRENT TRANSFORMERS. THE DEVICE ACHIEVES HIGH MEASUREMENT ACCURACY, CONFORMING TO ANSI C12.20 CLASS 0.2 FOR ENERGY AND IEC 61557-12 CLASS 0.2 FOR POWER AND ENERGY METRICS. STANDARD COMMUNICATION INTERFACES INCLUDE 10/100BASE-T ETHERNET, SUPPORTING MODBUS TCP/IP, BACNET/IP, AND AN INTEGRATED WEB SERVER. IT FEATURES A COLOR LCD FOR LOCAL DATA DISPLAY AND OPERATES ON AN AUXILIARY POWER SUPPLY OF 90-264 VAC/DC. COMPREHENSIVE MEASUREMENT CAPABILITIES INCLUDE VOLTAGE (L-N, L-L, AVERAGE), CURRENT (PHASE, NEUTRAL, AVERAGE), REAL, REACTIVE, AND APPARENT POWER AND ENERGY (IMPORT/EXPORT), POWER FACTOR, FREQUENCY, DEMAND, AND HARMONIC ANALYSIS UP TO THE 63RD ORDER. THIS UNIT IS DESIGNED FOR PANEL MOUNTING.
