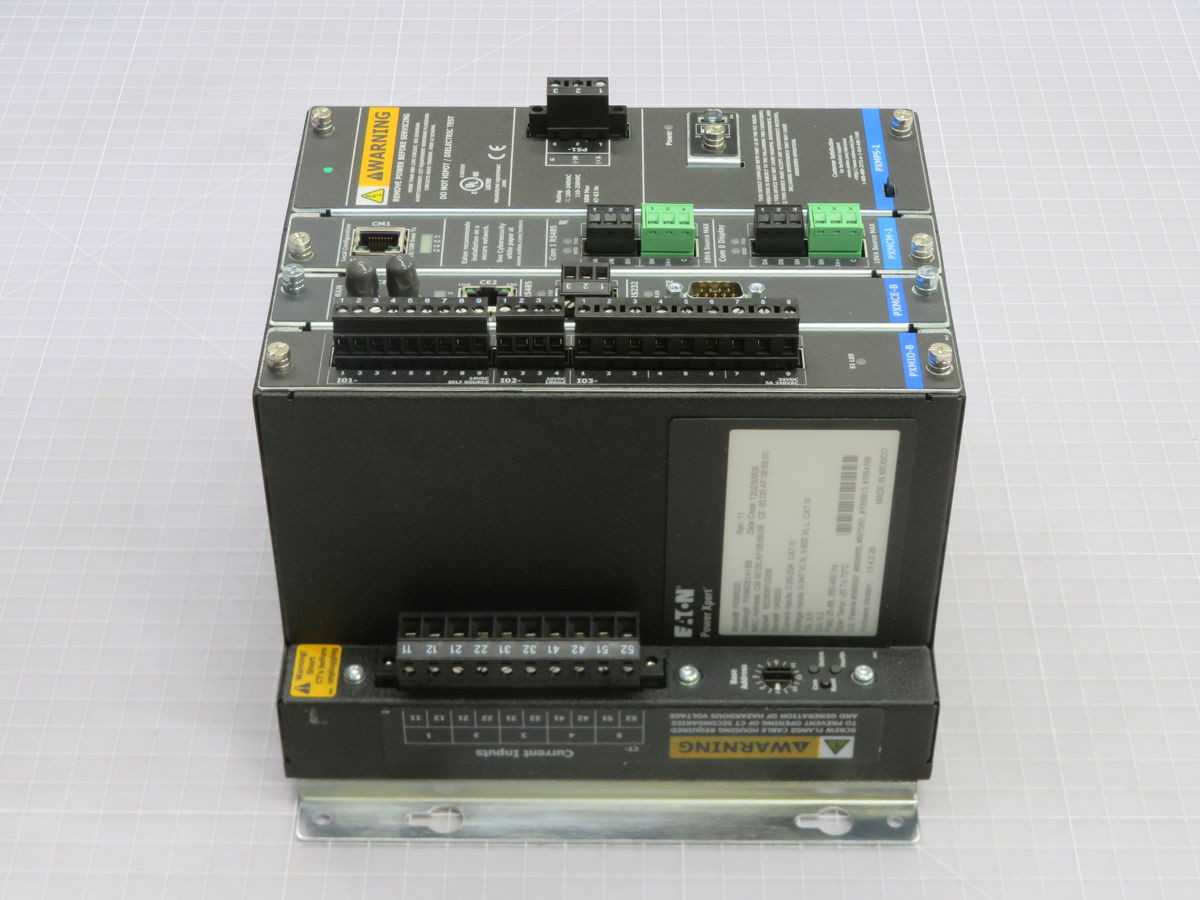

EATON PXM6051A1BB POWER QUALITY METER, 690V MAX V, 0.2 ACCURACY, 4GB STORAGE, 63RD HARMONIC

THE EATON PXM6051A1BB POWER XPERT METER 6000 IS AN ENHANCED POWER QUALITY METER FEATURING 4 GB OF INTERNAL STORAGE. IT SUPPORTS STANDARD VOLTAGE INPUTS V1, V2, V3, AND V4, CAPABLE OF MEASURING UP TO 690 V L-L IN WYE OR DELTA CONFIGURATIONS. CURRENT INPUTS ARE COMPATIBLE WITH 0.333 V, 1A, OR 5A SECONDARY CURRENT TRANSFORMERS. THE DEVICE OPERATES ON A STANDARD POWER SUPPLY OF 100-240 VAC OR 110-250 VDC. COMMUNICATION IS FACILITATED BY AN EXPANSION CARD OFFERING 10/100 BASE-T ETHERNET, 100BASE-FX FIBER OPTIC, RS-485, AND RS-232 PORTS. IT PROVIDES ENERGY MEASUREMENT ACCURACY CONFORMING TO IEC 61557-12 PMD CLASS 0.2 AND ANSI C12.20 CLASS 0.2 STANDARDS, WITH A SAMPLING RATE OF 512 SAMPLES PER CYCLE. THE METER PERFORMS HARMONIC ANALYSIS UP TO THE 63RD HARMONIC AND INCLUDES EVENT LOGGING FOR MIN/MAX VALUES, DEMAND, SAG/SWELL, TRANSIENT EVENTS, AND WAVEFORM CAPTURE. IT TYPICALLY FEATURES A COLOR LCD FOR LOCAL DISPLAY AND IS DESIGNED FOR PANEL MOUNTING.
