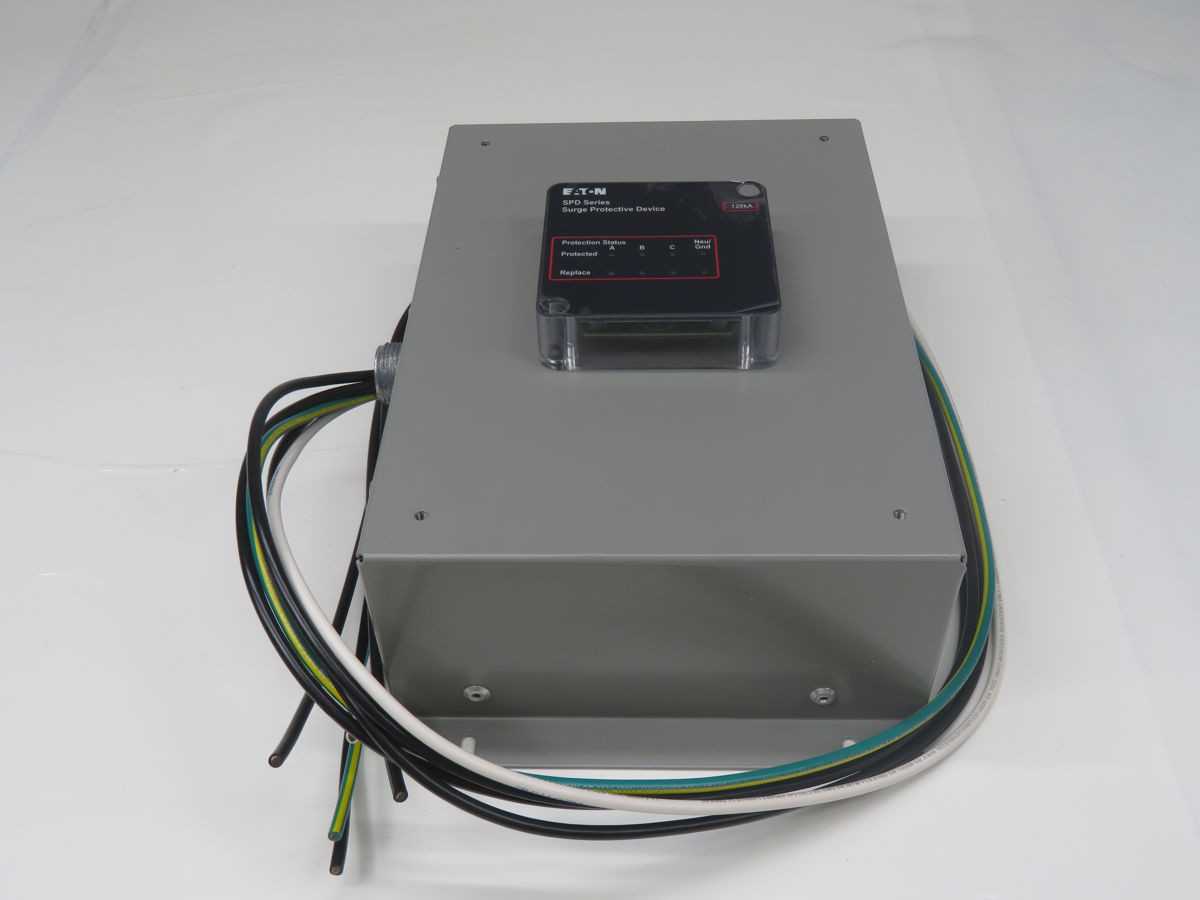

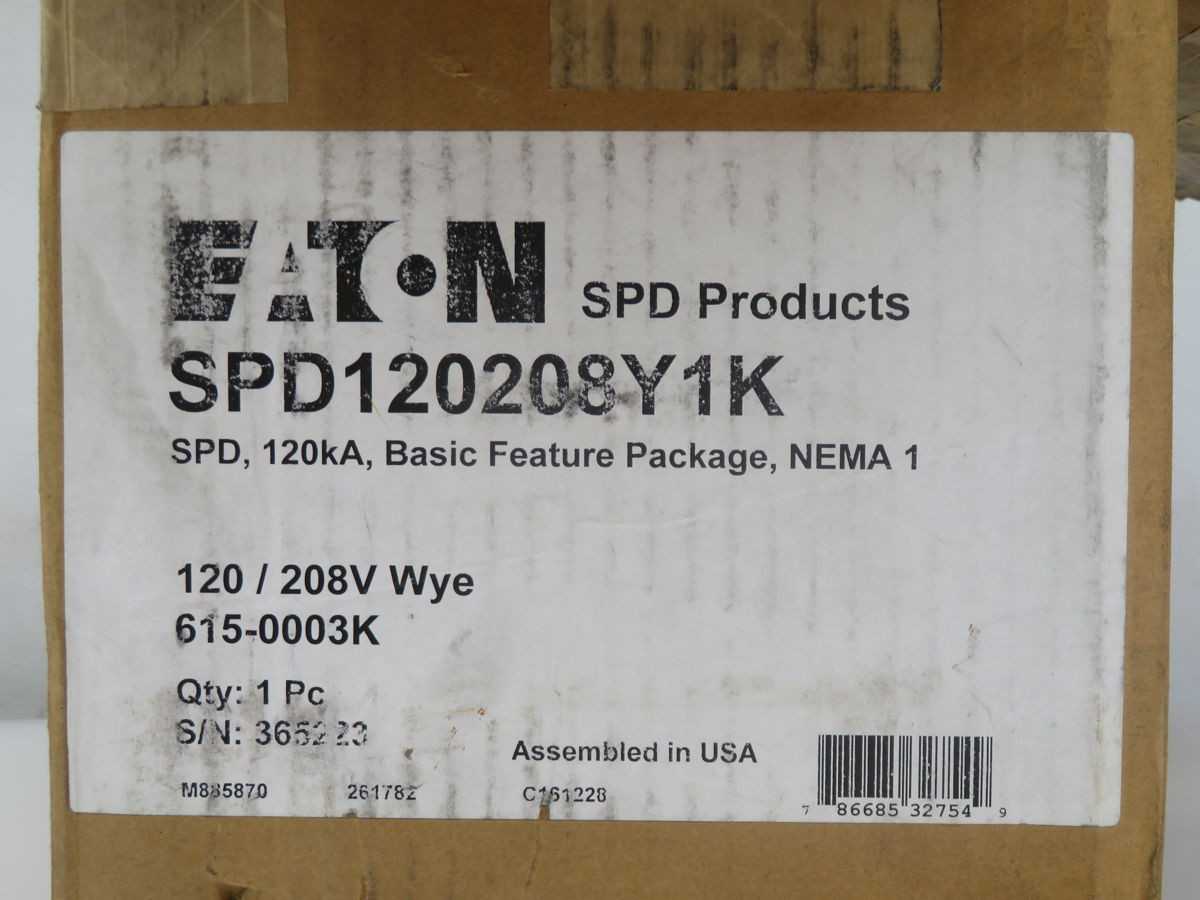

EATON, SPD120208Y1K, SURGE SUPPRESSORS, TYPE 2, 120/208V, 120 KA SURGE, 200 KA SCCR

THE EATON SPD120208Y1K IS A TYPE 2 SURGE PROTECTIVE DEVICE ENGINEERED FOR 120/208 V AC WYE ELECTRICAL SYSTEMS. IT OPERATES ON A 3-PHASE, 4-WIRE PLUS GROUND CONFIGURATION, COMPATIBLE WITH 50/60 HZ FREQUENCIES. THIS DEVICE DELIVERS A SURGE CURRENT CAPACITY OF 120 KA PER PHASE AND POSSESSES A SHORT CIRCUIT CURRENT RATING (SCCR) OF 200 KA. THE NOMINAL DISCHARGE CURRENT (IN) IS RATED AT 20 KA. VOLTAGE PROTECTION RATINGS (VPR) ARE SPECIFIED AS 600V FOR LINE-TO-NEUTRAL, LINE-TO-GROUND, AND NEUTRAL-TO-GROUND MODES, AND 1000V FOR LINE-TO-LINE MODE. IT IS HOUSED WITHIN A NEMA 1 ENCLOSURE, DESIGNATED FOR INDOOR APPLICATIONS, AND SUPPORTS EXTERNAL MOUNTING THROUGH A 1/2-INCH NPT CONNECTION.
