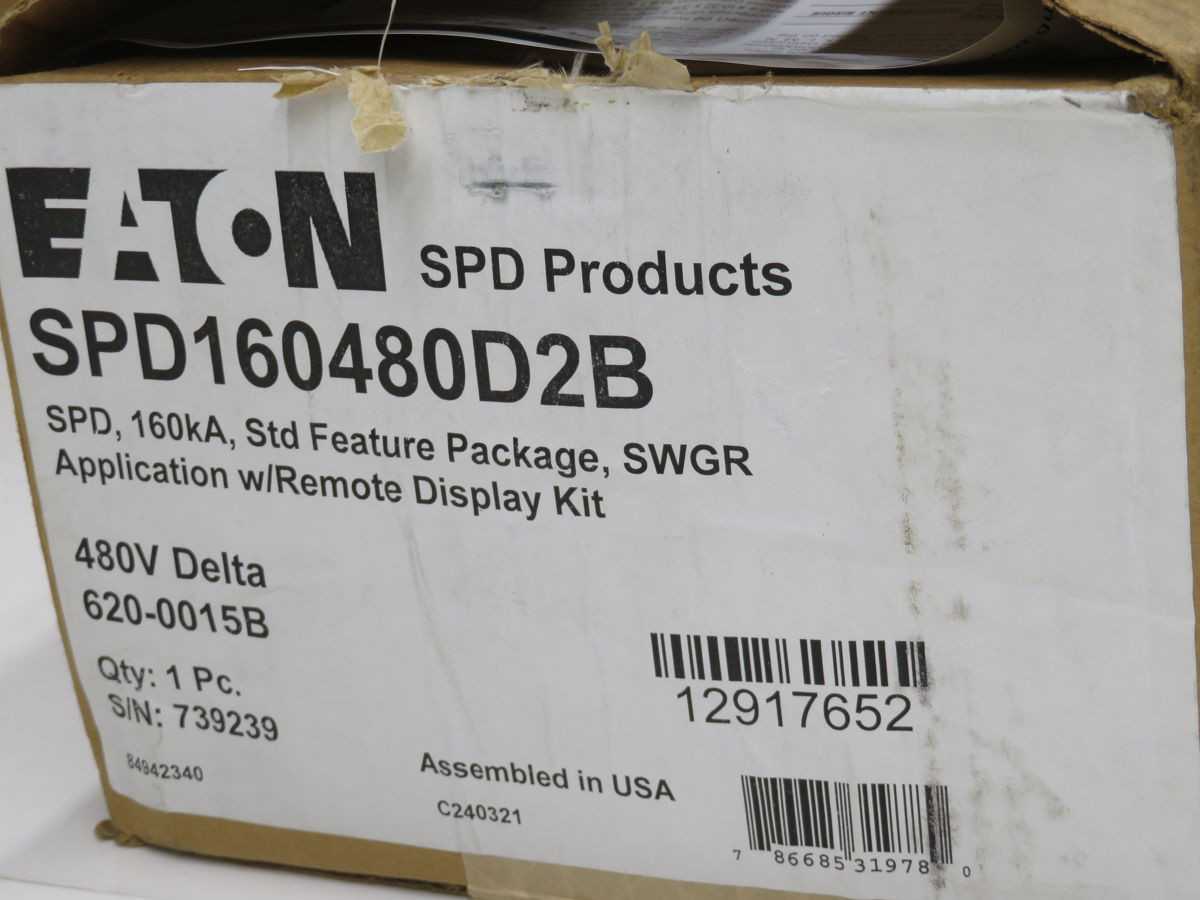

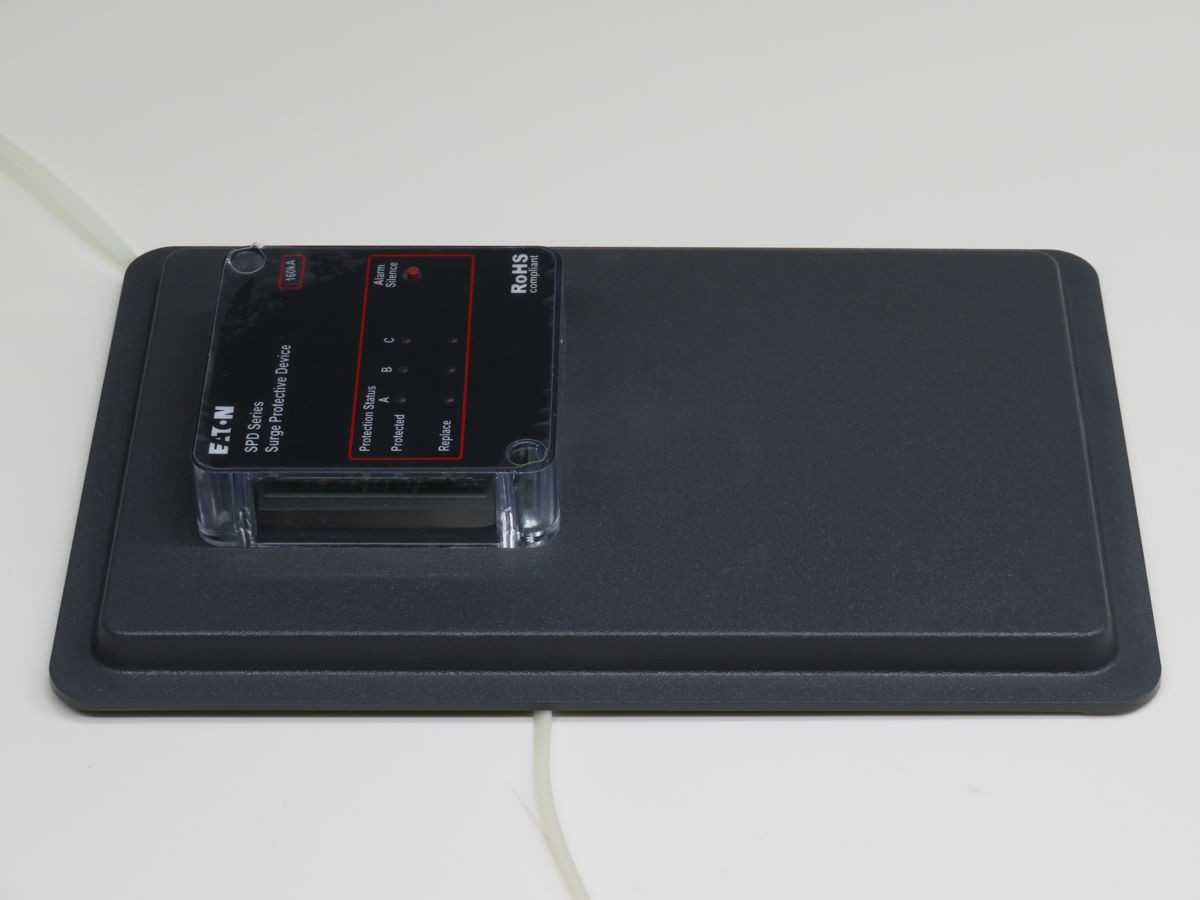

EATON, SPD160480D2B, SPD, 480V DELTA, 160 KA SURGE, 1800V VPR, NEMA 4X

THE EATON SPD160480D2B IS A TYPE 2 SURGE PROTECTION DEVICE DESIGNED FOR 480V DELTA ELECTRICAL SYSTEMS. IT FEATURES A MAXIMUM SURGE CURRENT RATING OF 160 KA PER PHASE AND A NOMINAL DISCHARGE CURRENT OF 20 KA. THE DEVICE PROVIDES A VOLTAGE PROTECTION RATING (VPR) OF 1800V (L-L, L-G) AND A MAXIMUM CONTINUOUS OPERATING VOLTAGE (MCOV) OF 550V (L-L, L-G). IT HAS A SHORT CIRCUIT CURRENT RATING (SCCR) OF 200 KA AND OPERATES AT 50/60 HZ. HOUSED IN A NEMA 4X RATED ENCLOSURE, THIS SPD IS SUITABLE FOR TYPE 1 AND TYPE 2 APPLICATIONS, COMPLYING WITH UL 1449 4TH EDITION AND UL 1283 STANDARDS. IT INCLUDES FUNCTIONALITY FOR A REMOTE DISPLAY KIT. THE DEVICE IS IDENTIFIED BY PART NUMBER 620-0015B.
