EATON SPD250480Y3B, SURGE SUPPRESSORS, 277/480V SYS VOLTAGE, 200KA SCCR, 1000V VPR
Aucto ID: #110388
293750ee-3e63-472f-8f91-7a3bd0b4ffd0
Ended
sold
Location: El Paso, Texas, United States
Logistics:
Rigging:
Included
Loading:
Included
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller - Since 2026
3106Product Description

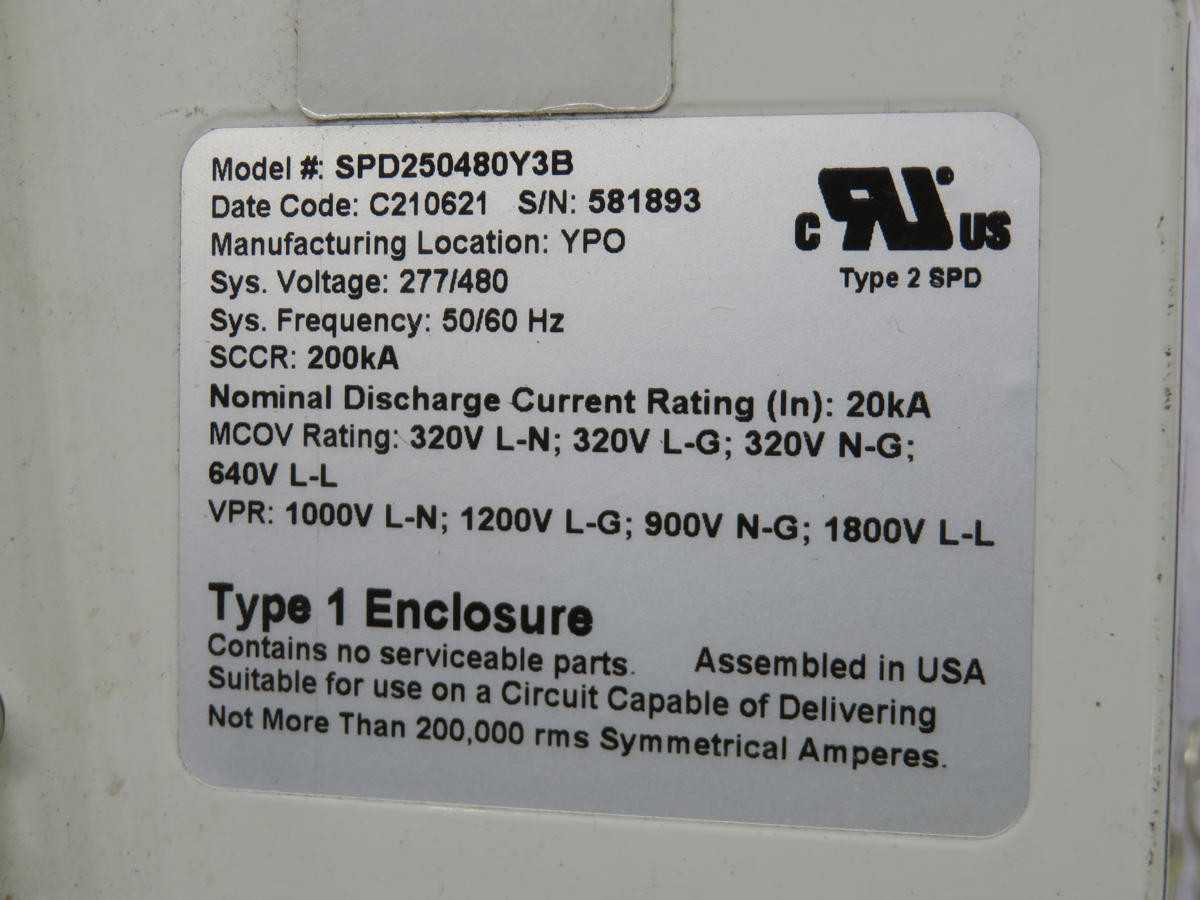

THE EATON SPD250480Y3B IS A SURGE PROTECTIVE DEVICE ENGINEERED FOR SYSTEM VOLTAGES OF 277/480 AND FREQUENCIES OF 50/60 HZ. IT FEATURES A SHORT CIRCUIT CURRENT RATING (SCCR) OF 200KA AND A NOMINAL DISCHARGE CURRENT RATING (IN) OF 20KA. THE DEVICE'S MAXIMUM CONTINUOUS OPERATING VOLTAGE (MCOV) IS RATED AT 320V LINE-NEUTRAL, 320V LINE-GROUND, 320V NEUTRAL-GROUND, AND 640V LINE-LINE. ITS VOLTAGE PROTECTION RATING (VPR) IS SPECIFIED AS 1000V LINE-NEUTRAL, 1200V LINE-GROUND, 900V NEUTRAL-GROUND, AND 1800V LINE-LINE.
Core Specifications
Manufacturer: EATON
Model: SPD250480Y3B
Condition: Fair
- Item functions as originally intended, shows signs of normal wear.Category:
 INDUSTRIAL PARTS > ELECTRICAL COMPONENTS > SURGE SUPPRESSORLogistics
Rigging Responsibility:
Included
Loading Responsibility:
Included
Shipping Responsibility:
Buyer
