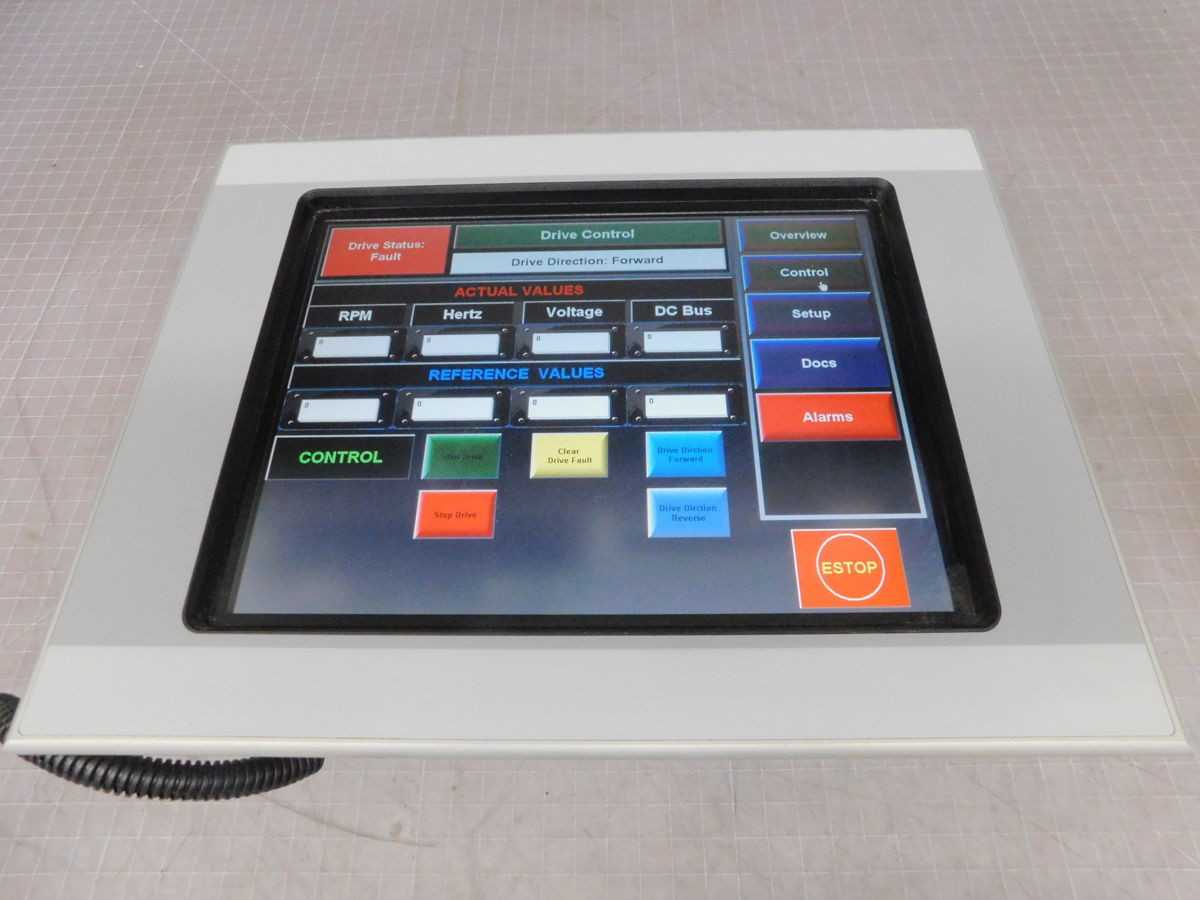

EATON XP-702-E0-12TXIJ-10 HMI, 12.1 INCH XGA DISPLAY, 800 MHZ CPU, 512 MB RAM, IP65 FRONT

THE EATON XP-702-E0-12TXIJ-10 IS AN HMI INDUSTRIAL PC FEATURING A 12.1-INCH XGA (1024X768 PIXEL) TFT COLOR DISPLAY WITH RESISTIVE TOUCH FUNCTIONALITY. IT IS POWERED BY AN ARM CORTEX A9 800 MHZ PROCESSOR, SUPPORTED BY 512 MB OF DDR3 RAM AND 512 MB OF INTERNAL EMMC STORAGE. THE UNIT OPERATES ON WINDOWS EMBEDDED COMPACT 7. CONNECTIVITY OPTIONS INCLUDE TWO 10/100 MBPS ETHERNET PORTS, TWO USB 2.0 PORTS, ONE RS232 SERIAL PORT, AND ONE RS485 SERIAL PORT. THE SYSTEM REQUIRES A 24V DC POWER SUPPLY. ITS DESIGN PROVIDES AN IP65 DEGREE OF PROTECTION FOR THE FRONT PANEL AND IP20 FOR THE REAR. THE HMI INDUSTRIAL PC IS PRE-INSTALLED WITH VISUAL DESIGNER SOFTWARE.
