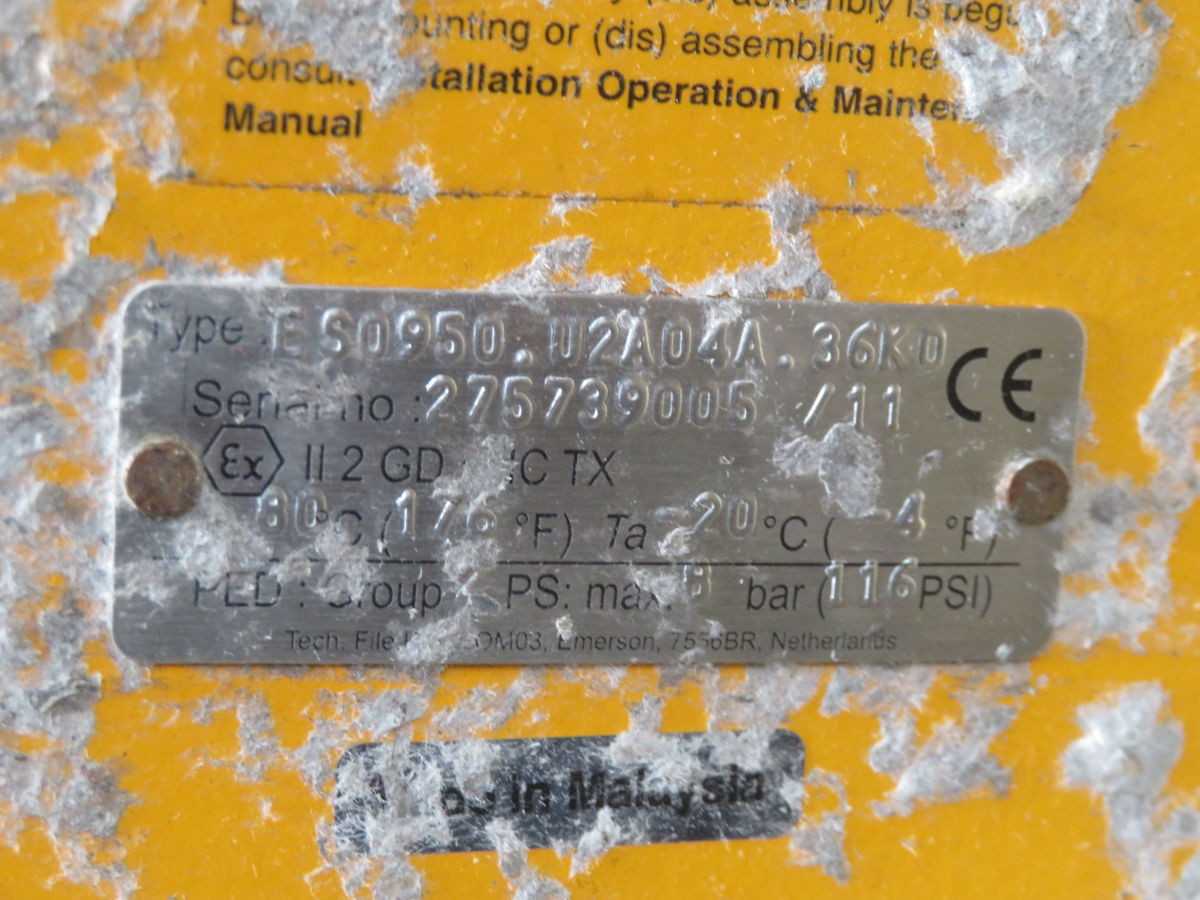

El-O-Matic ES0950.U2A04A.36K0 Pneumatic Valve Actuator, 950NM Torque, 8BAR Max Press

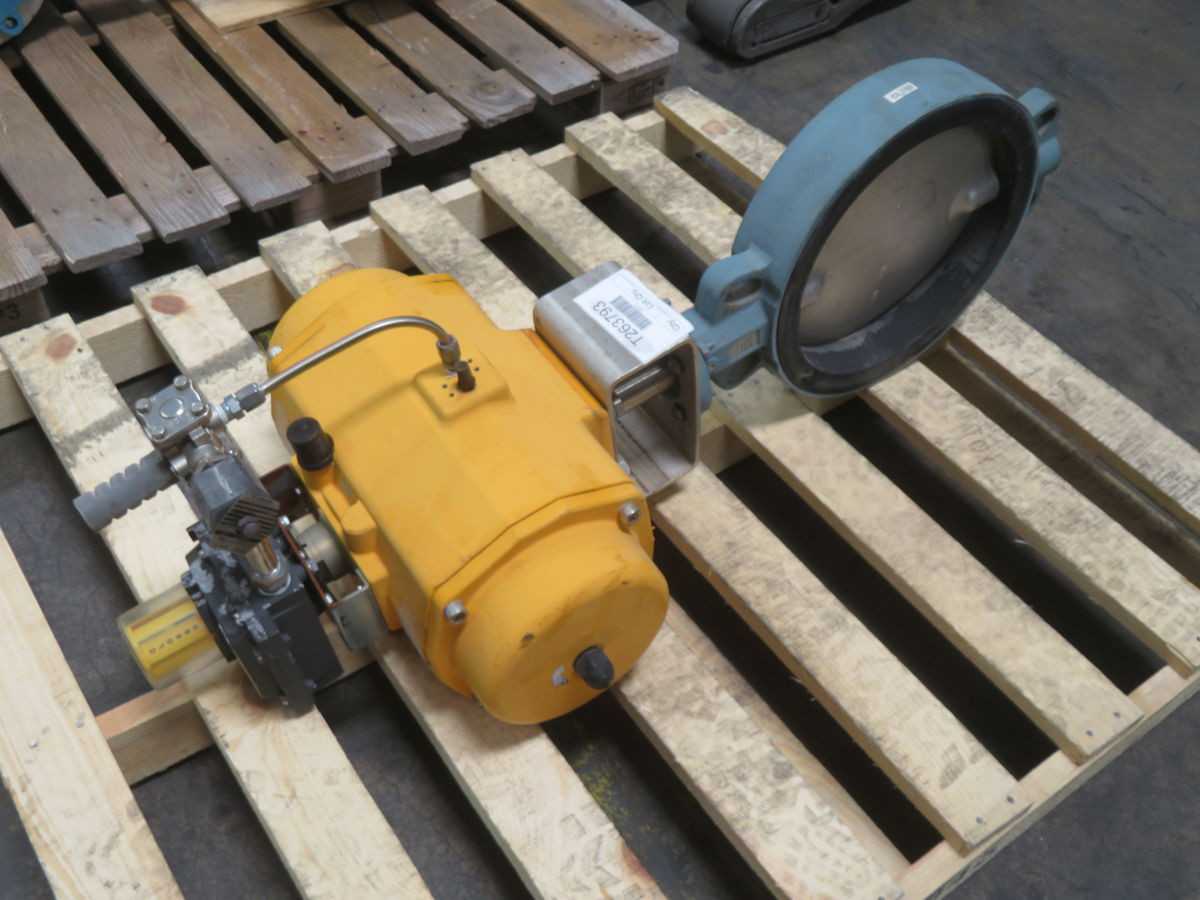

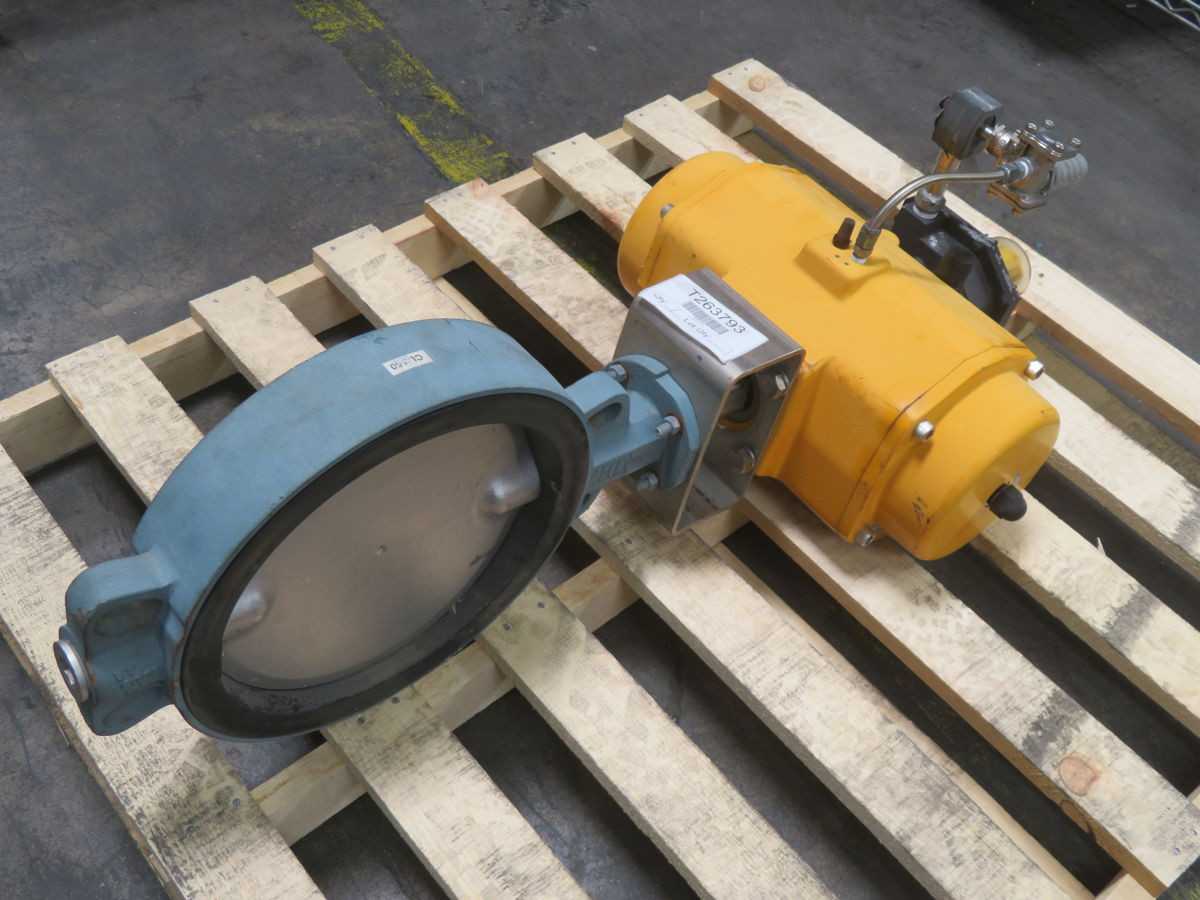

The El-O-Matic ES0950.U2A04A.36K0 is a double-acting, quarter-turn pneumatic rack and pinion valve actuator. It features a maximum supply pressure of 8 bar (116 PSI). The actuator provides an output torque of approximately 950 NM at 5.5 bar (80 PSI) for 90-degree rotation applications. Standard operating temperature range is -20°C to +80°C. The actuator typically incorporates an ISO 5211 F07/F10 mounting interface and G1/4" air connection ports. Construction materials commonly include an aluminum housing with a stainless steel pinion shaft.
