ELECTRO-ARC 25A/2SA TAP DISINTEGRATOR, 10 KVA, 220V/1PH, 26A, 60HZ, 18"X26" TABLE

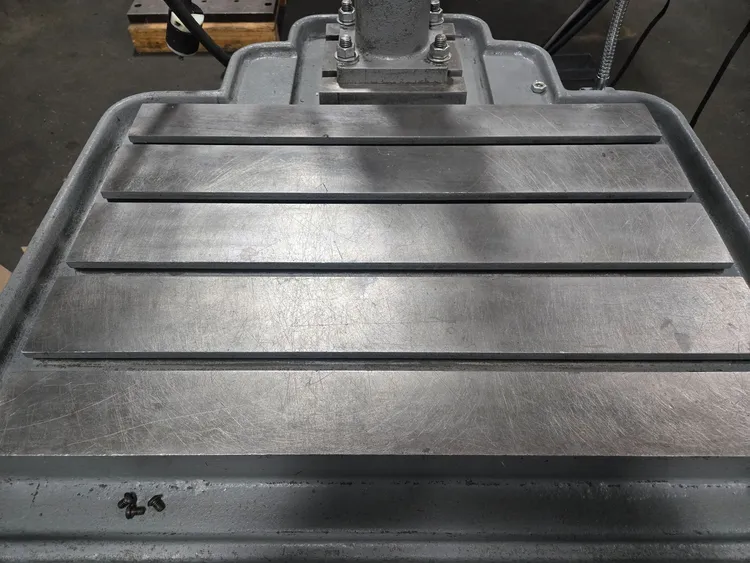

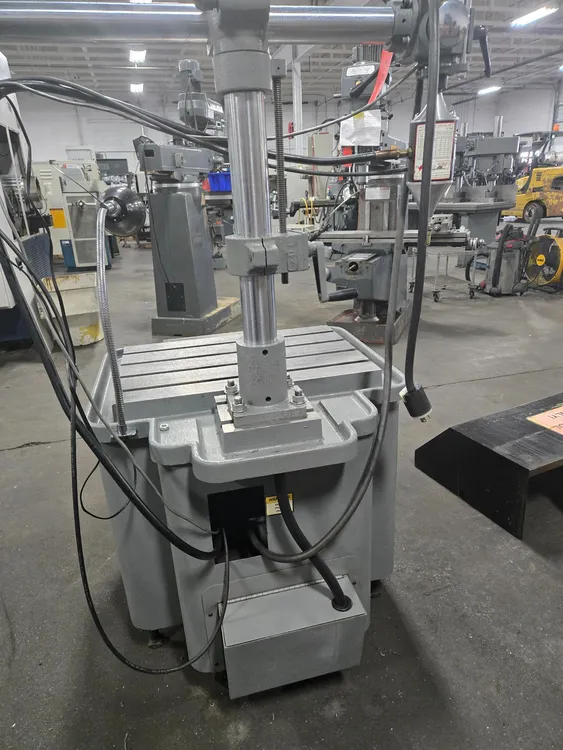

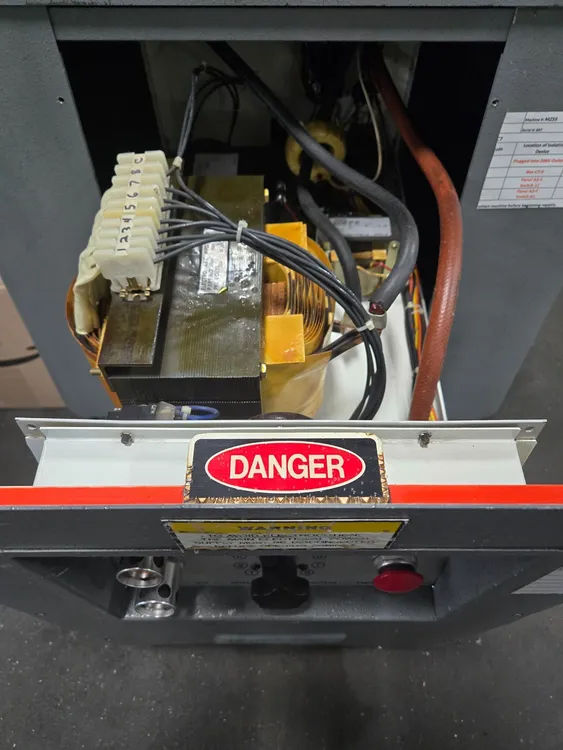

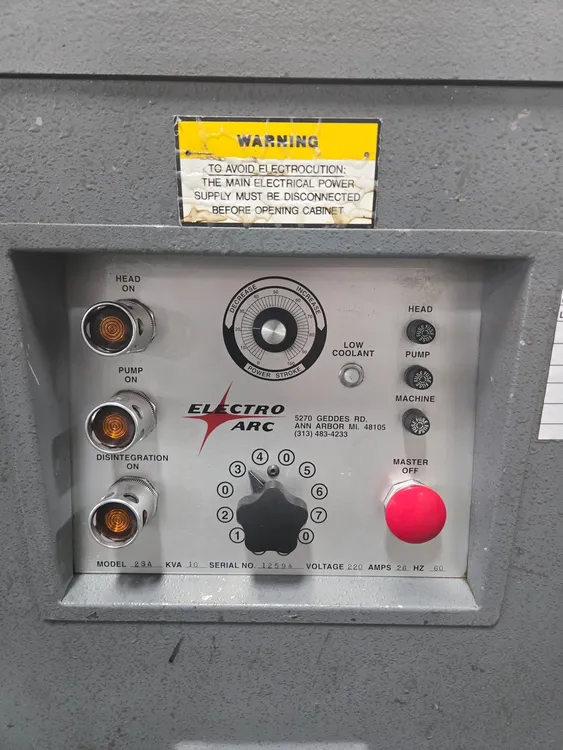

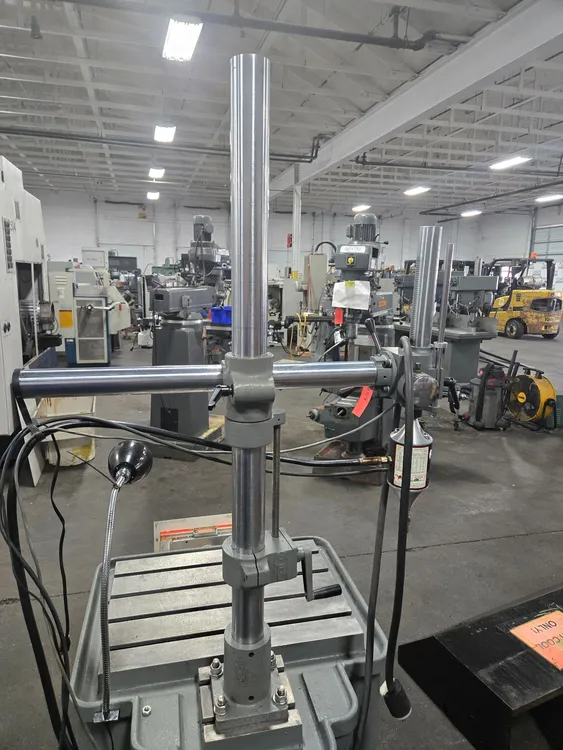

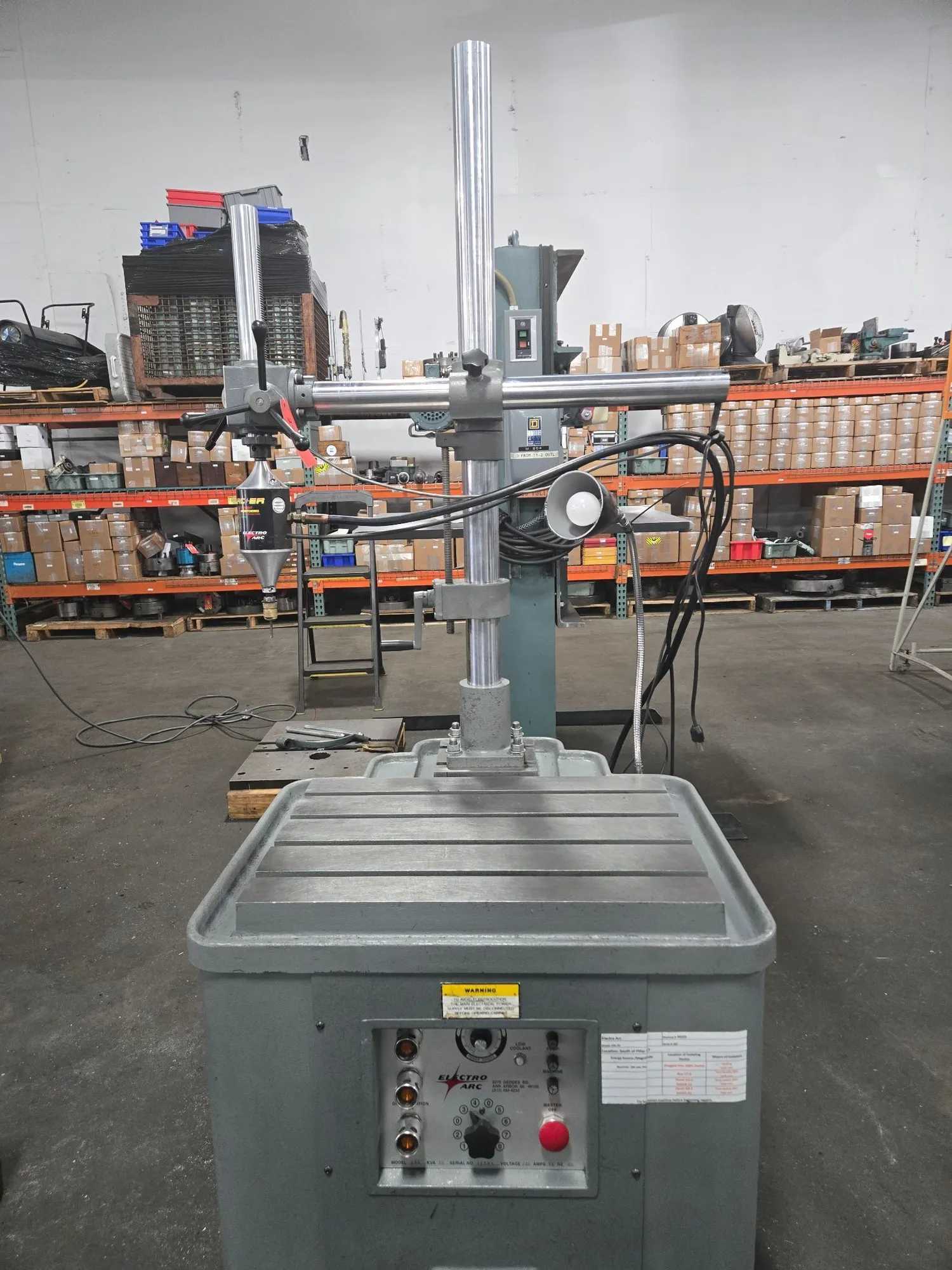

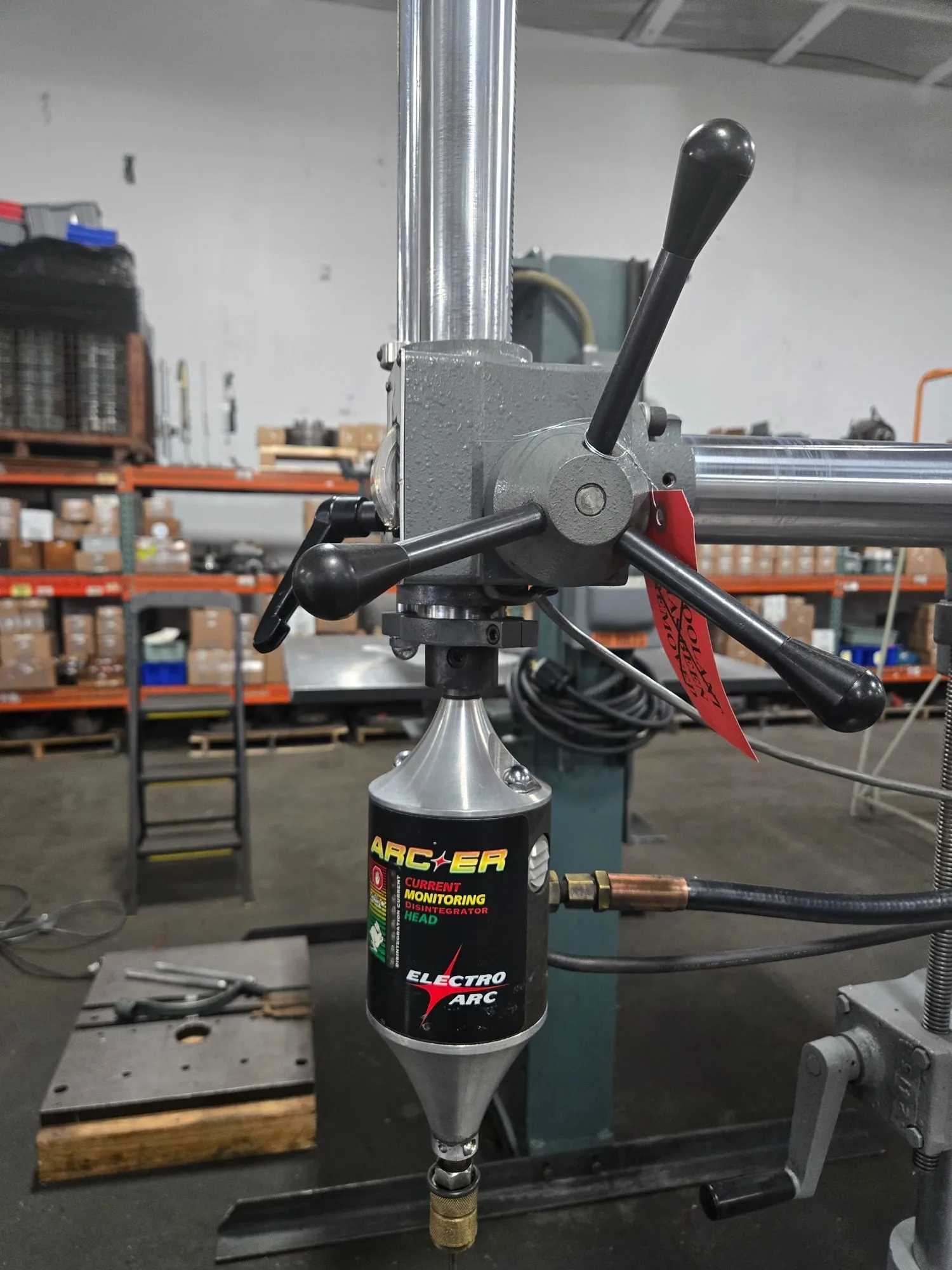

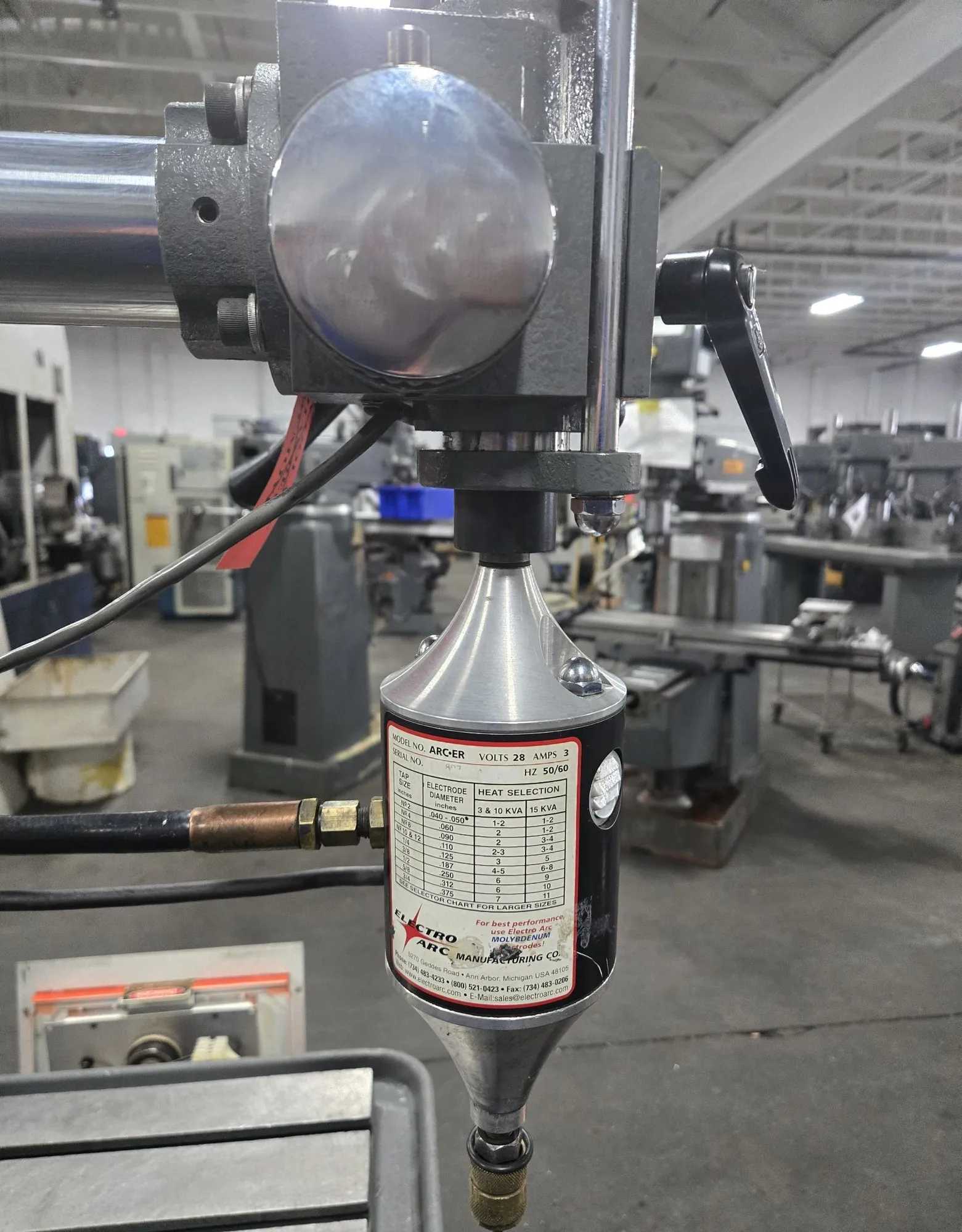

THE ELECTRO-ARC MODEL 25A TAP DISINTEGRATOR, DESIGNATED AS MODEL 2SA, IS RATED FOR 10 KVA AND OPERATES ON 220V SINGLE PHASE, 26AMPS, 60HZ POWER. IT IS EQUIPPED WITH AN ARCER HEAD AND FEATURES DUAL/HORIZONTAL CROSSARMS. THE MACHINE UTILIZES AN 18"X 26" T-SLOT TABLE WHICH IS A SOLID CAST, GROUND WORKTOP WITH T-SLOTS FOR ANCHORING AND TROUGHS FOR COOLANT RECYCLING. THE INTEGRATED BASE/CABINET SUPPORTS THE WORKTOP AND HOUSES THE POWER SUPPLY, CONTROL PANEL, AND THE BUILT-IN COOLANT SYSTEM, WHICH DELIVERS 90 PSI COOLANT PRESSURE VIA AN INTERNAL PUMP AND FILTER. THE SUPERSTRUCTURE FEATURES A STURDY, FIRMLY-MOUNTED COLUMN WITH A DIAMETER OF 2-3/4” (70 MM) AND A HEIGHT OF 50” (1270 MM). IT SUPPORTS THE OPERATING HEAD WITH DOUBLE CROSSARMS THAT MEASURE 36” (914 MM) LONG AND 1-1/2” (38 MM) IN DIAMETER, ENSURING RIGID SUPPORT ACROSS THE WORK SURFACE. THE UNIT INCLUDES HEAVY-DUTY CASTERS FOR MOBILITY AND LEVELERS FOR OPERATIONAL STABILITY.
