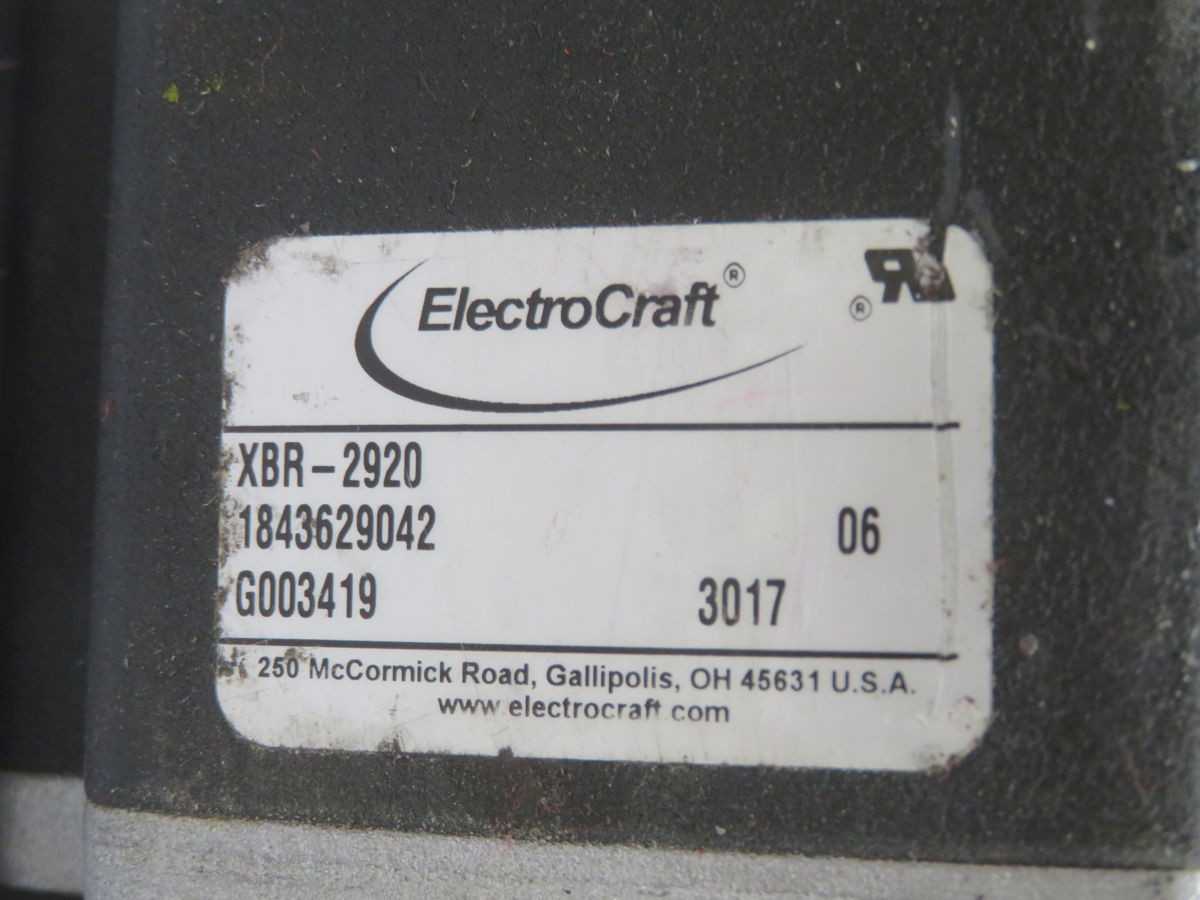

Electrocraft 1843629042 XBR-2920 Servo Motor, 0.75 kW Power, 2.37 Nm Torque, 4.5 kg Weight

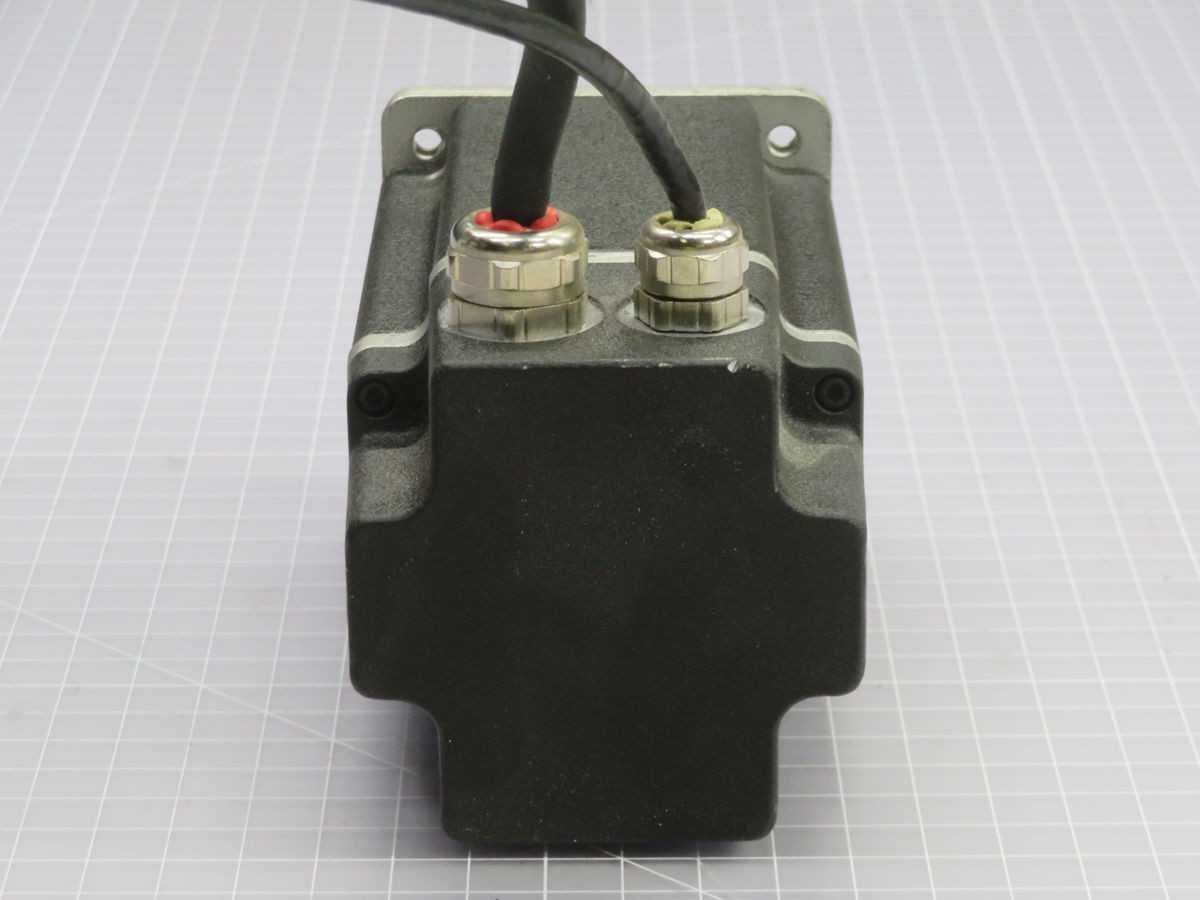

THE ELECTROCRAFT 1843629042 XBR-2920 SERVO MOTOR, ALSO IDENTIFIED AS XBR-2920, IS AN AC-OPERATED UNIT FROM THE XBR SERIES, FEATURING A FIXED CABLE CONNECTION. THIS MOTOR IS RATED FOR 230 VAC INPUT AND DELIVERS 0.75 KW (1 HP) OF CONTINUOUS OUTPUT POWER. IT PROVIDES A CONTINUOUS RATED TORQUE OF 2.37 NM (21 LB-IN) AT A RATED SPEED OF 3000 RPM. PEAK TORQUE CAPABILITY EXTENDS TO 7.11 NM (63 LB-IN), WITH A CONTINUOUS RATED CURRENT OF 4.5 AMPS. POSITIONAL FEEDBACK IS PROVIDED BY AN INTEGRATED RESOLVER. THE MOTOR'S ROTOR INERTIA IS APPROXIMATELY 0.000300 KGM^2, AND ITS APPROXIMATE WEIGHT IS 4.5 KG.
