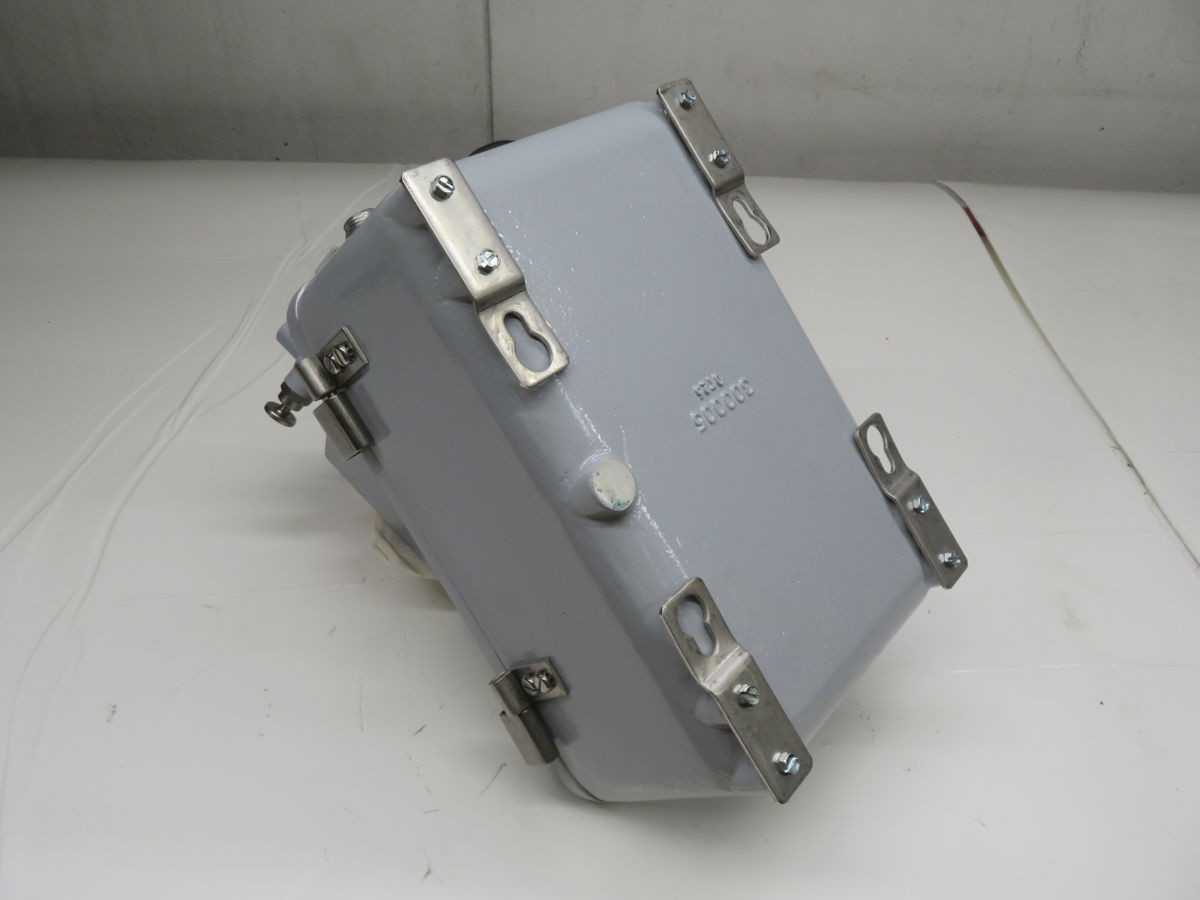

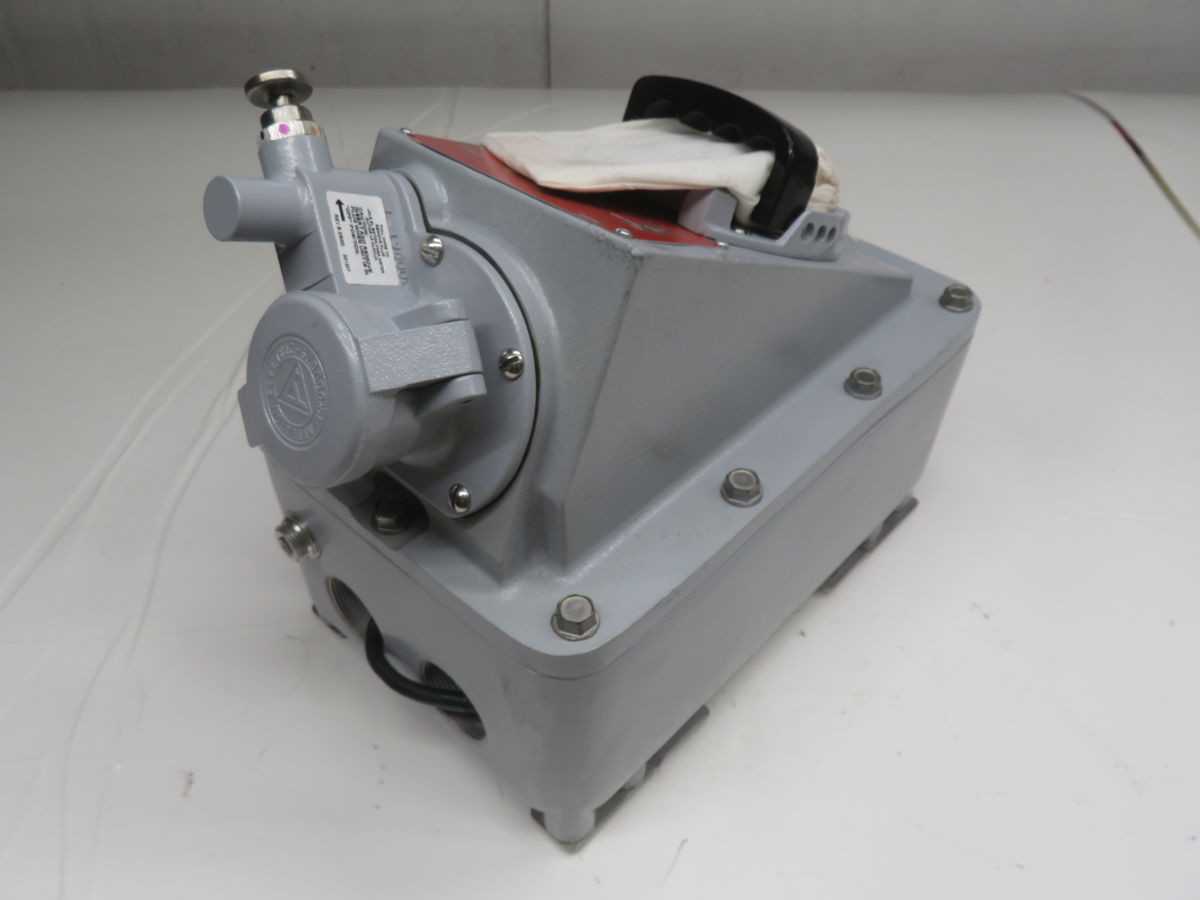

Emerson EBRH3023DSGB Explosion-Proof Disconnect Receptacle, 30A, 2-Wire, 3-Pole, 250V AC

The Emerson EBRH3023DSGB is an explosion-proof receptacle with an integrated disconnect switch. This unit is rated for 30 amperes and is configured for 2-wire, 3-pole operation, typically specified for 250 volts AC. It incorporates an interlocked mechanism designed to prevent plug insertion or removal while the switch is in the "ON" position, and conversely, it prevents the switch from being turned "ON" when the plug is not fully engaged. Constructed from copperfree aluminum and finished with an epoxy powder coat, the receptacle is engineered for use in hazardous locations, classified as Class I, Division 1 & 2, Groups C and D; Class II, Division 1 & 2, Groups F and G; and Class III. It features a factory-sealed enclosure, eliminating the need for external sealing fittings. This receptacle is certified to UL standard 1010A and CSA standard C22.2 NO. 159.
