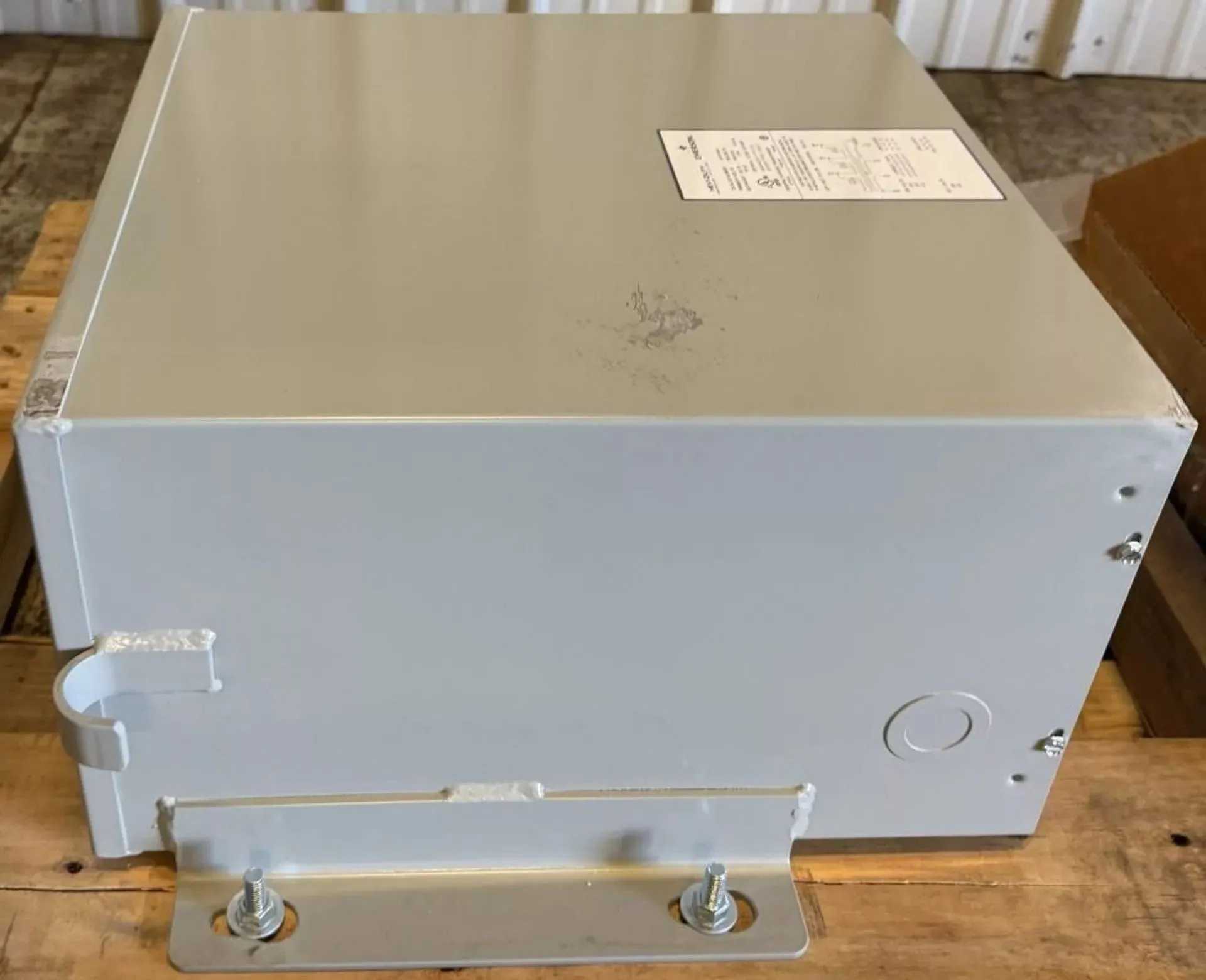

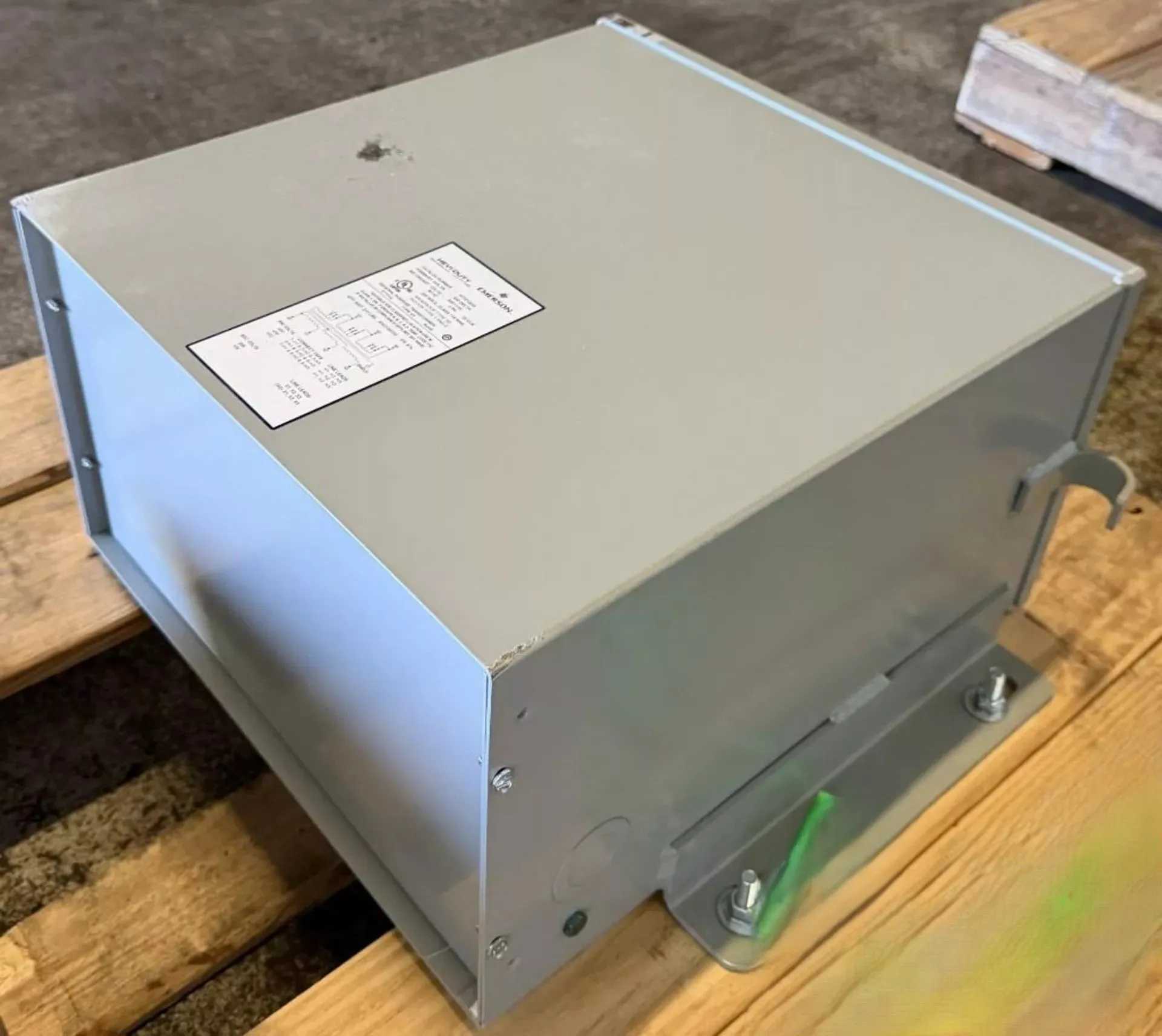

EMERSON HT1F15AS 3 PHASE TRANSFORMER, 15 KVA, 480V-208Y/120V

THE SOLAHD HT1F15AS, MANUFACTURED BY EMERSON ELECTRIC, IS A 15 KVA ENCAPSULATED, NON-VENTILATED THREE-PHASE AUTOMATION TRANSFORMER DESIGNED FOR USE IN HARSH INDUSTRIAL ENVIRONMENTS AND CLASS I, DIVISION 2, GROUPS A, B, C, AND D HAZARDOUS LOCATIONS. IT FEATURES A PRIMARY VOLTAGE RATING OF 480V AC AND A SECONDARY VOLTAGE RATING OF 208Y/120V AC, OPERATING AT A FREQUENCY OF 50/60 HZ WITH A MAXIMUM SECONDARY AMPERAGE OF 41.7 A. THIS LOW-VOLTAGE DISTRIBUTION TRANSFORMER IS BUILT WITH A RUGGED NEMA TYPE 3R ROLLED STEEL ENCLOSURE THAT PROVIDES PROTECTION AGAINST DUST AND MOISTURE, ALONG WITH ENHANCED RESISTANCE TO SHOCK AND VIBRATION. IT UTILIZES A UL CLASS 200 DEGREES C INSULATION SYSTEM WITH A 115 DEGREES C TEMPERATURE RISE UNDER FULL LOAD. THE UNIT IS DESIGNED FOR WALL MOUNTING, UTILIZES WIRE LEAD CONNECTIONS, AND HAS PHYSICAL DIMENSIONS OF 17 INCHES IN HEIGHT, 20 INCHES IN WIDTH, AND 11 INCHES IN DEPTH, WEIGHING APPROXIMATELY 315 LBS.
