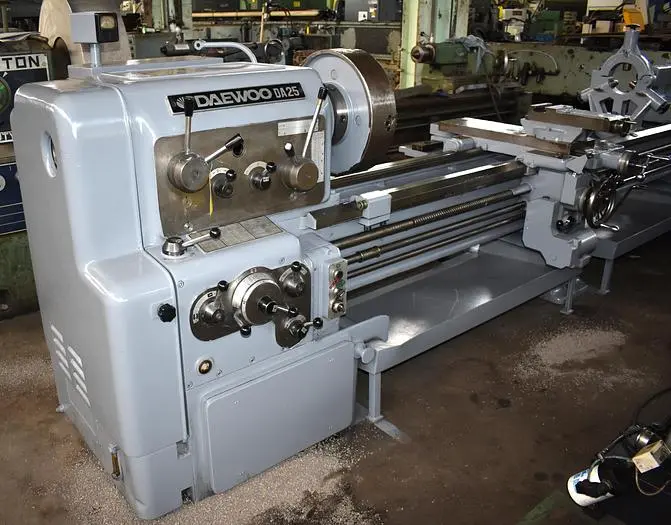

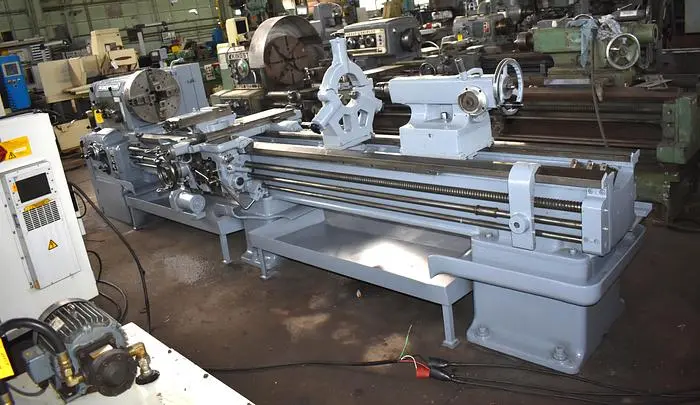

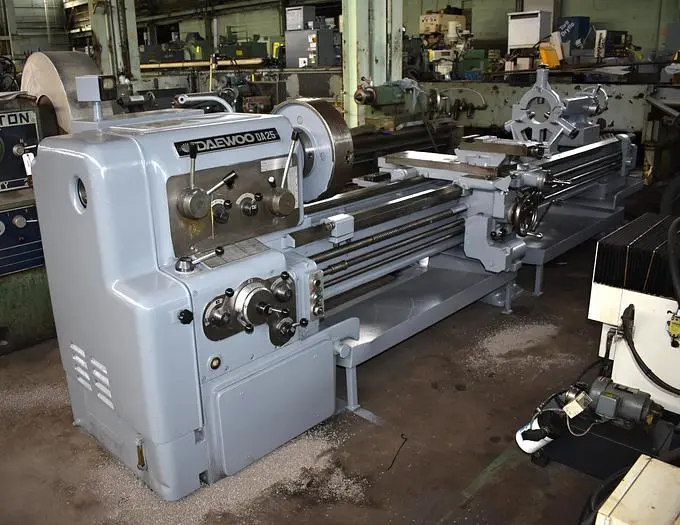

ENGINE LATHE, 25IN SWING, 120IN CENTERS, 15 HP, 10250 LBS

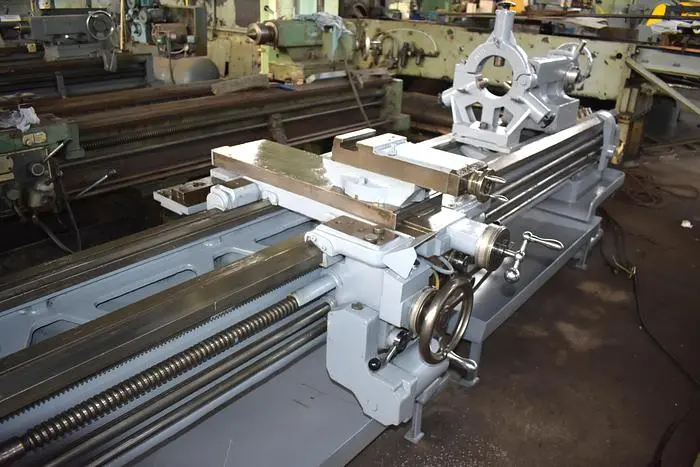

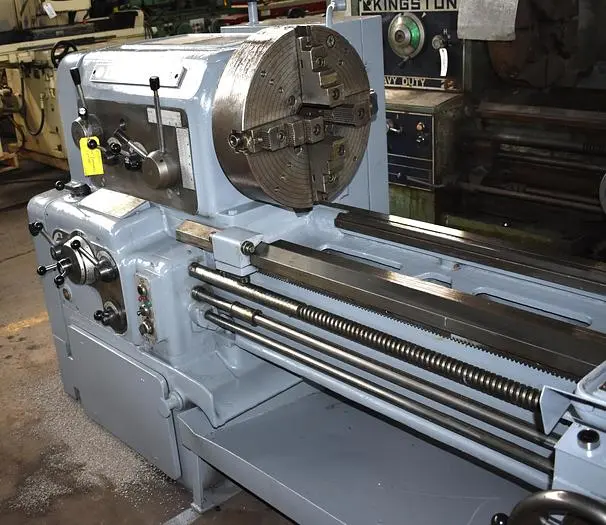

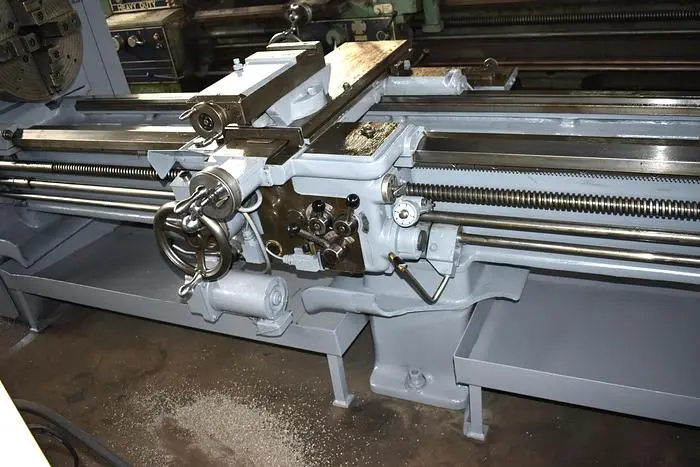

THIS HIGH-SPEED PRECISION ENGINE LATHE FEATURES A 25-INCH RATED SWING OVER THE BED WAYS (24.4 INCHES ACTUAL) AND A 15.5-INCH SWING OVER THE CARRIAGE, WITH A DISTANCE OF 120 INCHES BETWEEN CENTERS. THE SPINDLE HAS A 2.2-INCH HOLE AND OFFERS 20 SPEEDS RANGING FROM 25 TO 2000 RPM, POWERED BY A 15 HP MOTOR. ITS THREADING CAPABILITIES INCLUDE INCH-METRIC FUNCTIONALITY, WITH 40 WHITWORTH THREAD CHANGES (2 TO 28 TPI), 55 METRIC THREAD CHANGES (1 TO 224 MM), AND 42 MODULE THREAD CHANGES (.25 TO 56 MM), UTILIZING A LEAD SCREW PITCH OF 2 THREAD/INCH OR 12 THREAD/MM. FEEDS CONSIST OF 44 LONGITUDINAL FEEDS (.0067 TO .0957 IPR / .17 TO 2.43 MM/R) AND 44 CROSS FEEDS (.0024 TO .0033 IPR / .06 TO .83 MM/R). KEY EQUIPMENT INCLUDES A TAPER ATTACHMENT, THREADING DIAL, FOUR-WAY POWER RAPID TRAVERSE, 4-JAW CHUCK WITH JAWS, AND HARDENED AND GROUND BED WAYS. THE MACHINE OPERATES ON A 220-440/3/60 ELECTRICAL SYSTEM AND HAS AN APPROXIMATE WEIGHT OF 10,250 LBS.
