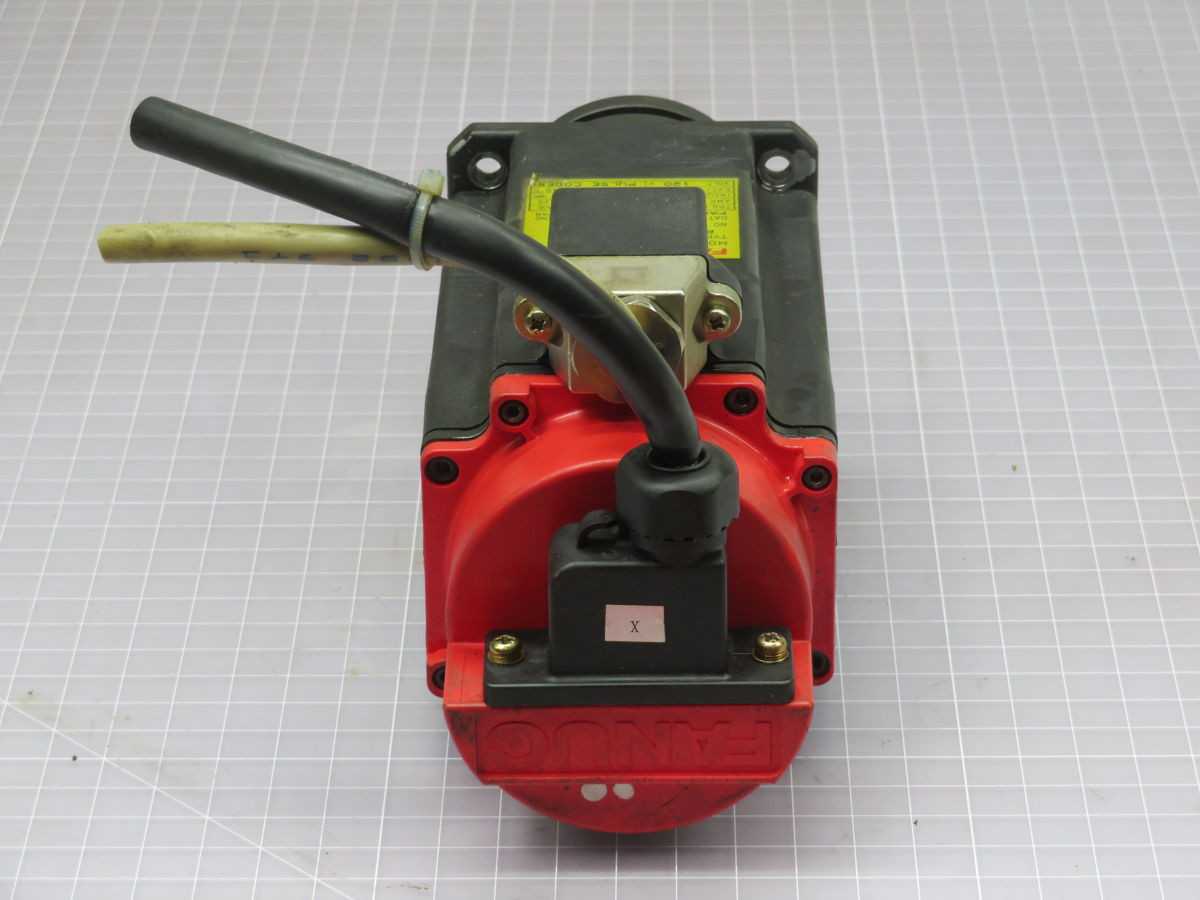

FANUC 1-0SP SERVO MOTORS, 3-PHASE, 8-POLE, 120V VOLTAGE, 2.2A CURRENT, 2.0NM TORQUE, 2000 RPM SPEED, IP65 RATING

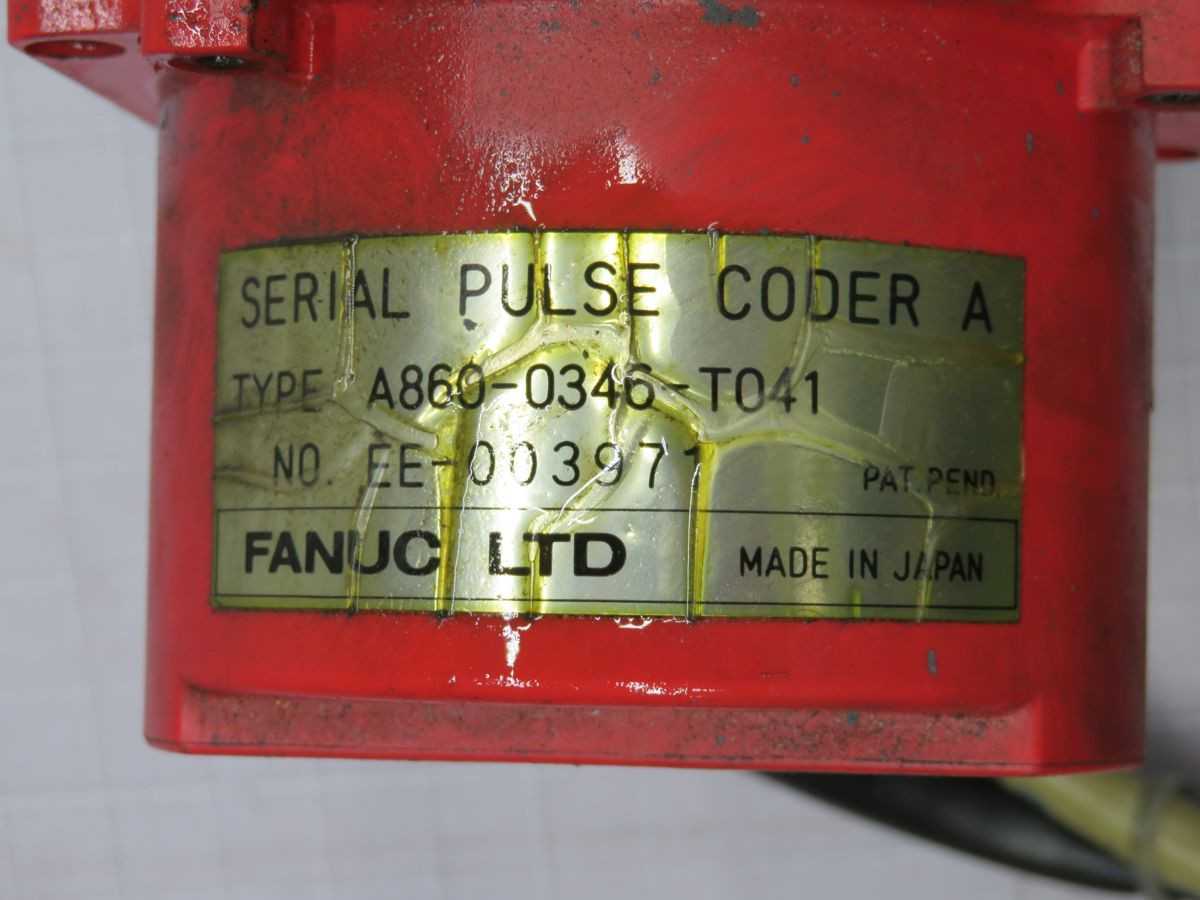

THE FANUC 1-0SP AC SERVO MOTOR, IDENTIFIED BY ALTERNATIVE PART NUMBER A06B-0372-B069, IS A 3-PHASE, 8-POLE INDUSTRIAL MOTOR DESIGNED FOR PRECISION CONTROL APPLICATIONS. IT FEATURES A TAPER SHAFT WITH A KEY FOR MECHANICAL COUPLING. ELECTRICAL SPECIFICATIONS INCLUDE A RATED VOLTAGE OF 120 V, A RATED CURRENT OF 2.2 A, AND A RATED TORQUE OF 2.0 NM. THE MOTOR IS CAPABLE OF OPERATING AT A RATED SPEED OF 2000 RPM. THIS MODEL TYPICALLY INTEGRATES AN INCREMENTAL PULSE CODER FOR POSITION FEEDBACK AND IS COMMONLY RATED WITH AN IP65 PROTECTION CLASS, ENSURING RESISTANCE TO DUST INGRESS AND LOW-PRESSURE WATER JETS.
