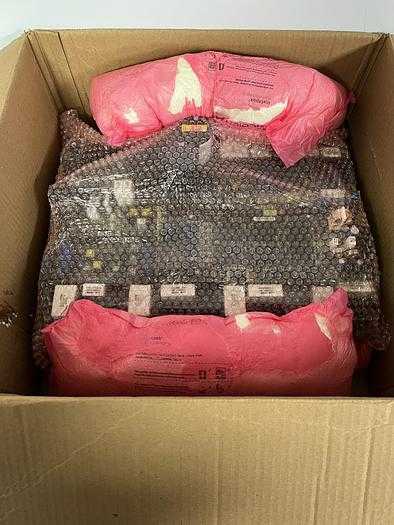

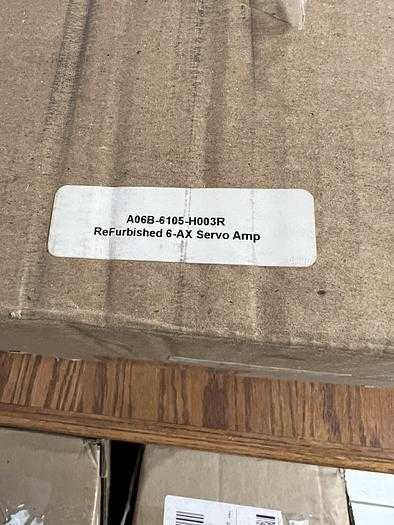

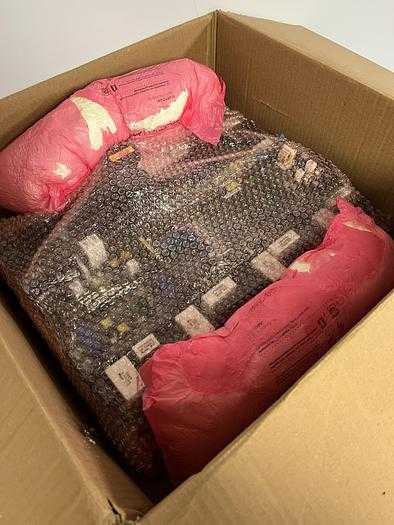

FANUC A06B-6105-H003R 6-Axis Servo Amplifier 1.5kW 200-240VAC 13A 2003

THE FANUC A06B-6105-H003R IS A 6-AXIS AC SERVO AMPLIFIER DESIGNED FOR USE WITH R-J3IB CONTROLLERS. IT IS ENGINEERED TO POWER 6-AXIS SERVO MOTORS FOR SPECIFIC ROBOT MODELS, INCLUDING THE R-2000IA (EXCLUDING 200T), M-710IB, M-420IA, M-421IA, M-16IB, M-16IB/10L, ARC MATE 120IB, AND S-500IB. THIS UNIT FEATURES AN INPUT VOLTAGE RATING OF 200 TO 240 VAC AND A POWER RATING OF 1.5 KW. IT PROVIDES SIX AXIS OUTPUTS, EACH WITH A RATED OUTPUT CURRENT OF 13 A, RESULTING IN A MAXIMUM TOTAL OUTPUT CURRENT OF 78 A. THE AMPLIFIER ADHERES TO THE EN50178 STANDARD AND INCORPORATES PCB ASSEMBLIES A16B-2000-0063/07D AND A16B-3200-0440/05C. PHYSICAL DIMENSIONS ARE APPROXIMATELY 70 MM IN WIDTH, 170 MM IN HEIGHT, AND 380 MM IN DEPTH, WITH A WEIGHT OF 16.5 KG. THE SYSTEM IS DESIGNED FOR HIGH-PERFORMANCE INDUSTRIAL AUTOMATION, OFFERING PRECISE MOTION CONTROL AND INTEGRATED CIRCUITRY FOR MULTI-AXIS ROBOTIC APPLICATIONS. NO YEAR OF MANUFACTURE WAS AVAILABLE IN THE PROVIDED TECHNICAL DOCUMENTATION.
