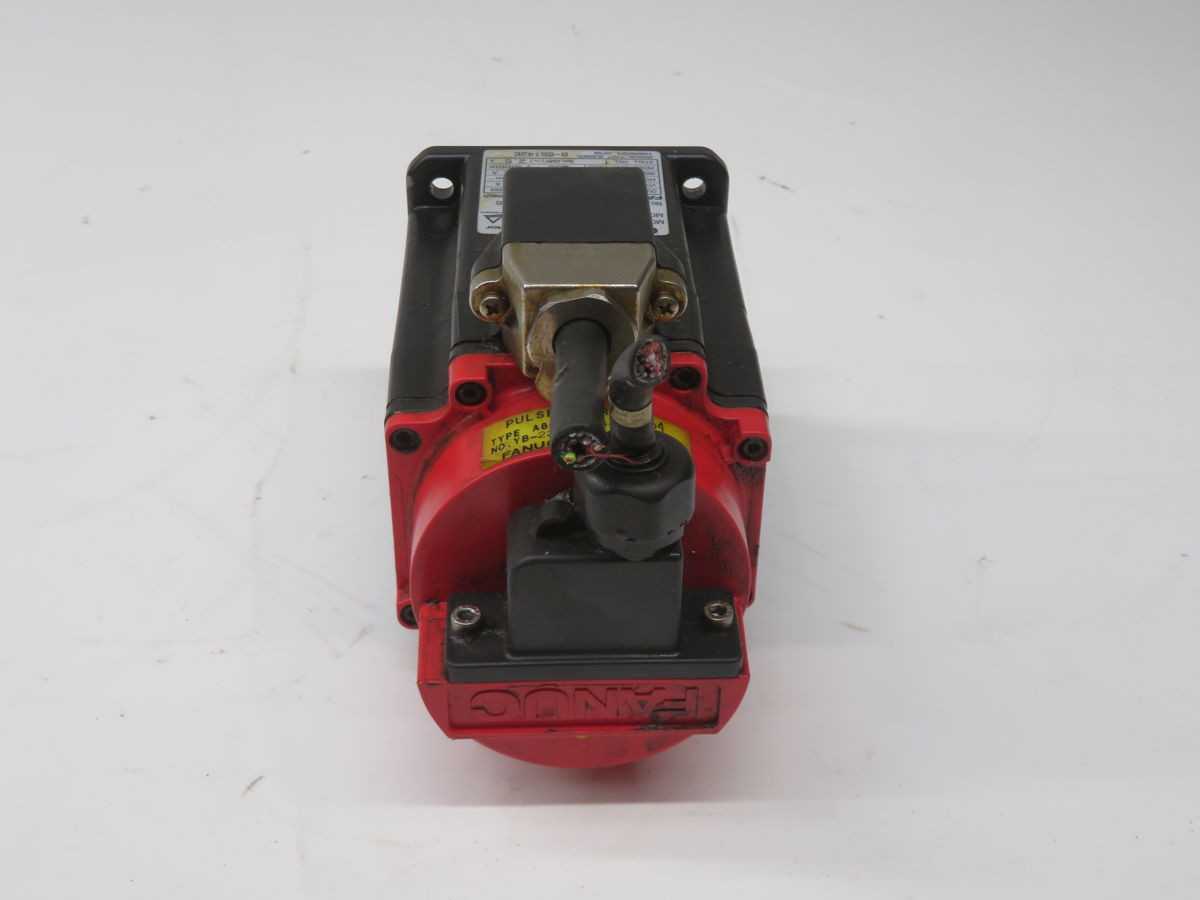

FANUC A1/3000 SERVO MOTOR, 90 VAC, 0.15 KW POWER, 0.48 NM TORQUE, 3000 RPM SPEED

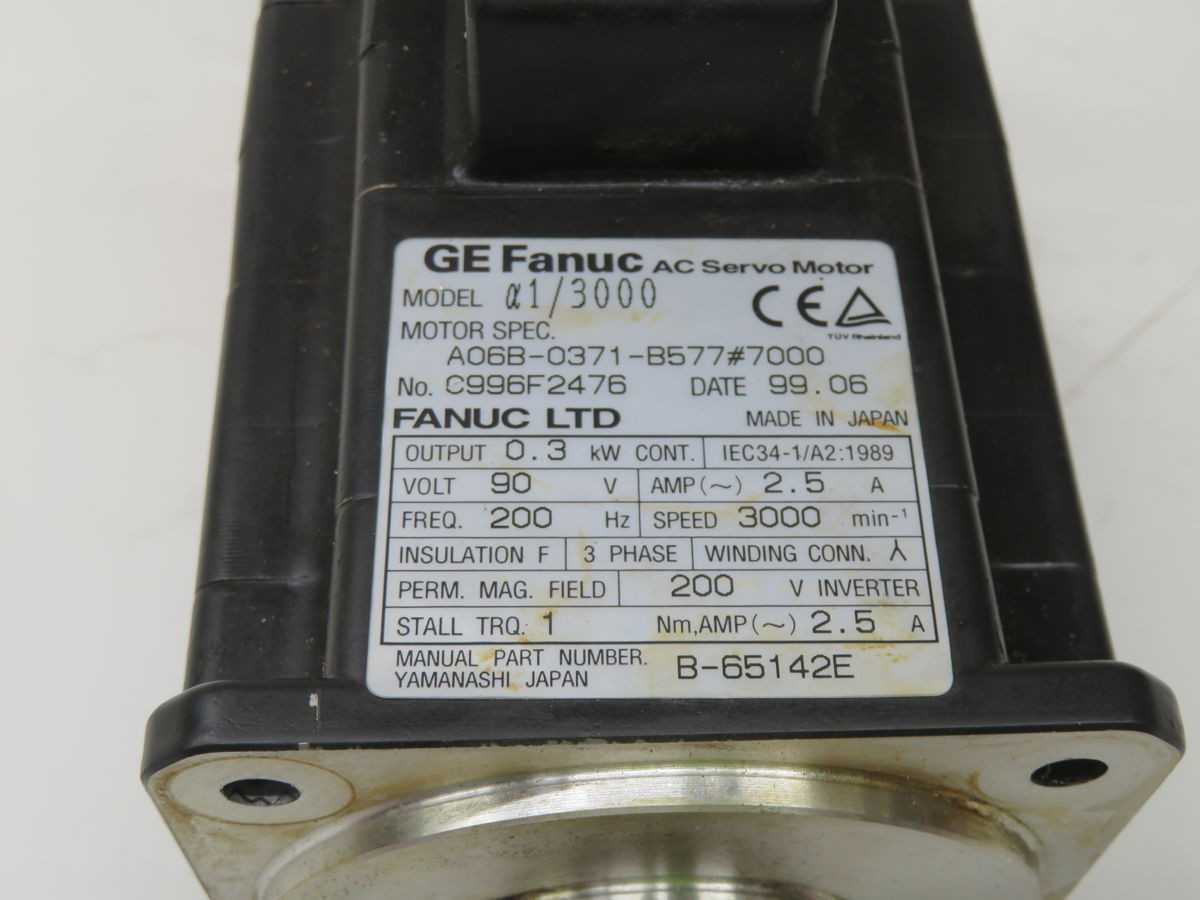

THE FANUC A1/3000 IS AN AC SERVO MOTOR FEATURING A STRAIGHT SHAFT AND AN INTEGRATED I64 ENCODER. THIS MOTOR IS SPECIFIED FOR A RATED VOLTAGE OF 90 VAC AT A FREQUENCY OF 200 HZ. IT DRAWS A RATED CURRENT OF 2.3 AMP AND PROVIDES A CONTINUOUS OUTPUT POWER OF 0.15 KW (150W), DELIVERING A RATED CONTINUOUS TORQUE OF 0.48 NM. THE UNIT IS DESIGNED FOR A MAXIMUM ROTATIONAL SPEED OF 3000 RPM. WITH A ROTOR INERTIA OF 0.00007 KGM², THIS MOTOR IS ENGINEERED FOR PRECISION MOTION CONTROL, TYPICALLY WITHIN CNC SYSTEMS. ITS ALTERNATIVE PART NUMBER IS A06B-0371-8577.
