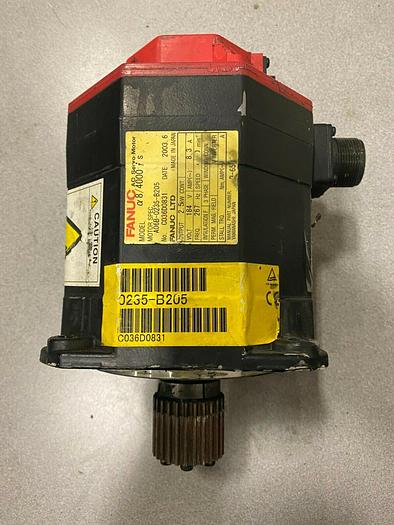

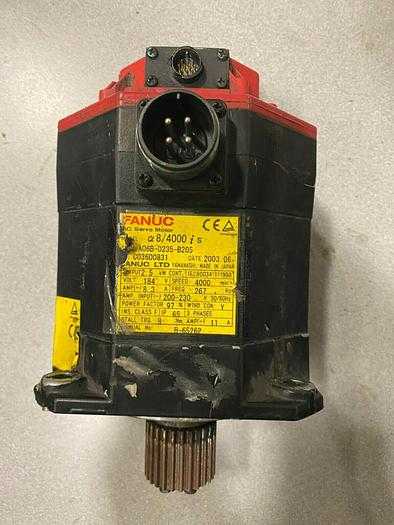

FANUC A8/4000 Is A06B-0235-B205 AC Servo Motor

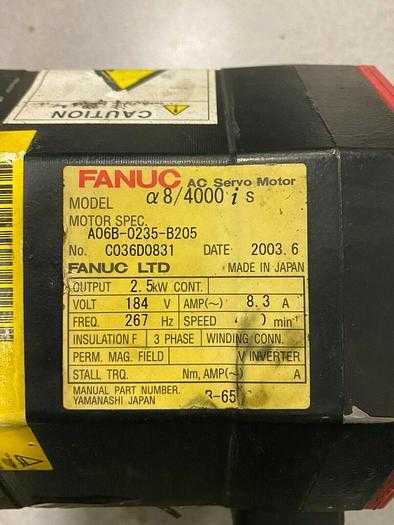

THE FANUC A06B-0235-B205 IS AN AC SERVO MOTOR FROM THE ALPHA IS SERIES, SPECIFICALLY THE MODEL AIS 8/4000. DESIGNED FOR HIGH-PERFORMANCE INDUSTRIAL AUTOMATION AND CNC APPLICATIONS, THIS THREE-PHASE MOTOR OPERATES AT A RATED SPEED OF 4000 RPM. TECHNICAL SPECIFICATIONS INCLUDE A POWER OUTPUT OF 2.5 KW, A VOLTAGE RATING OF 184 V, AND A CURRENT RATING OF 8.3 AMPS AT A FREQUENCY OF 267 HZ. THE MOTOR FEATURES A STRAIGHT SHAFT WITH A KEYWAY FOR SECURE POWER TRANSMISSION AND IS EQUIPPED WITH AN A64IA ALPHA I SERIES ENCODER FOR PRECISE POSITION AND SPEED CONTROL. ITS CONSTRUCTION PROVIDES PROTECTION AGAINST SOLIDS AND DRIPPING WATER, ENSURING RELIABILITY IN DEMANDING ENVIRONMENTS. THE UNIT HAS A WEIGHT OF APPROXIMATELY 16.55 LBS AND IS COMPATIBLE WITH FANUC SERVO AMPLIFIERS DESIGNED FOR 200 TO 240 VAC INPUT. NO SPECIFIC YEAR OF MANUFACTURE WAS AVAILABLE IN THE PROVIDED TEXT.
