FANUC Ais 8/4000 A06B-0235-B005 AC Servo Motor, 2.5 kW, 4000 RPM, 8 NM, 200-230 VAC

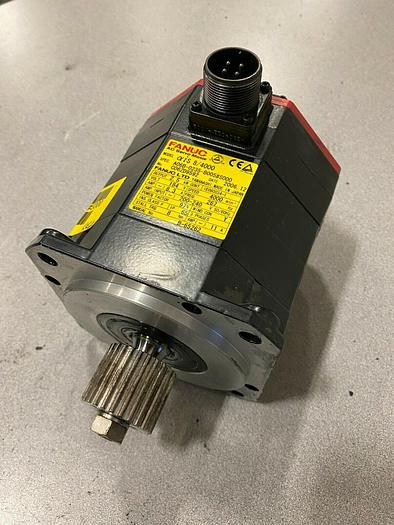

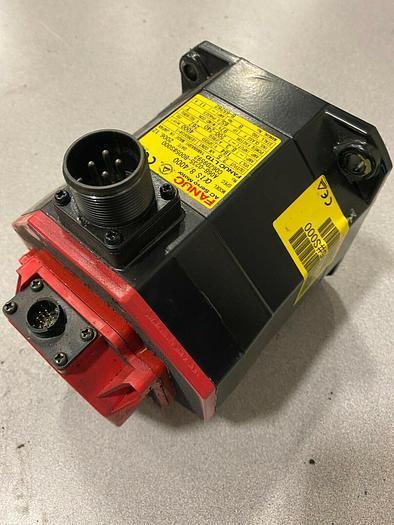

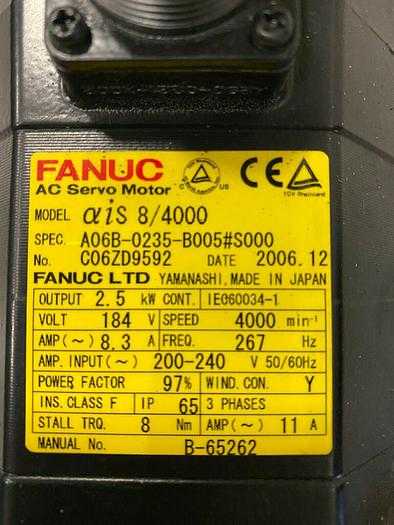

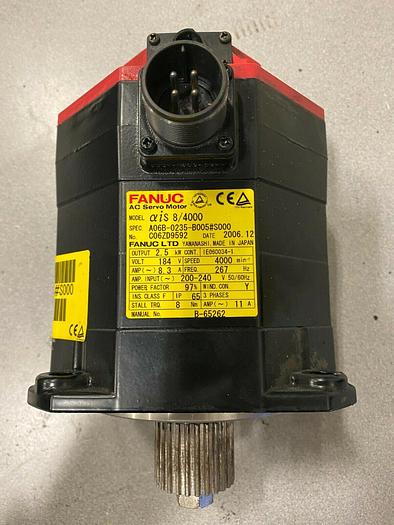

The FANUC Ais 8/4000 (A06B-0235-B005#S000) is a high-performance AC servo motor from the Alpha iS series designed for CNC lathes and machining centers. This three-phase motor features a rated output of 2.5 kW and a maximum speed of 4000 RPM. It operates with an input voltage of 200-230 VAC at 50/60 Hz and a rated current of 8.3 Amps. The unit provides a stall torque of 8 NM and utilizes a 267 Hz frequency. This specific model is configured with a tapered shaft and is equipped with a FANUC A64iA encoder (pulse coder Alpha iAR128) for high-resolution feedback. The motor has a mass of approximately 7.00 kg. Its design includes sealing members to protect against lubricant and cutting fluid ingress, making it suitable for demanding industrial automation environments. No year of manufacture was provided for this specific unit.
