FANUC ALPHA-T14IA 4-AXIS CNC VERTICAL DRILL & TAP CENTER W/ NIKKEN 4TH AXIS, BT-30 SPINDLE

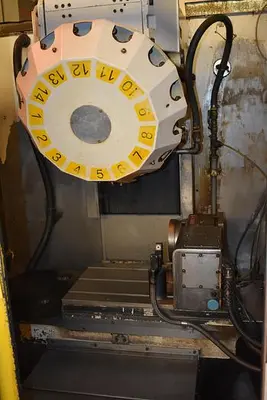

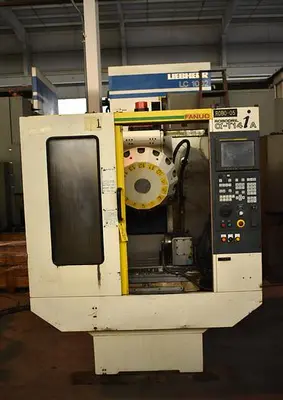

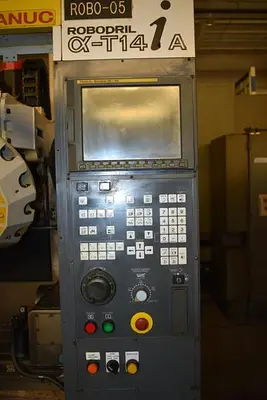

THE FANUC "ROBODRILL" ALPHA-T14IA IS A 4-AXIS CNC VERTICAL DRILLING & TAPPING CENTER CONTROLLED BY THE FANUC 16-IM CNC. THIS MACHINE IS EQUIPPED WITH A 14-POSITION AUTOMATIC TOOL CHANGER AND A NIKKEN NSVZ-180A21 CNC 4TH AXIS ROTARY INDEXING TABLE, ALONG WITH A RENISHAW TOOL SENSING LIGHT. KEY SPECIFICATIONS INCLUDE A TABLE MEASURING 14.96" X 21.6" (W X L) AND TRAVELS OF 19.68" (X-AXIS), 14.96" (Y-AXIS), AND 11.81" (Z-AXIS). THE SPINDLE UTILIZES A #BT-30 TAPER AND OFFERS INFINITELY VARIABLE SPEEDS RANGING FROM 80 TO 8000 RPM, POWERED BY A 5.5 KW MOTOR. THE DISTANCE FROM THE SPINDLE NOSE TO THE TABLE RANGES FROM A MINIMUM OF 5.9" TO A MAXIMUM OF 17.71". WORKING FEEDRATES FOR THE X, Y, AND Z-AXES ARE 590 IPM, WITH RAPID TRAVERSE RATES REACHING 1889 IPM. THE UNIT WEIGHS APPROXIMATELY 3750 LBS.
