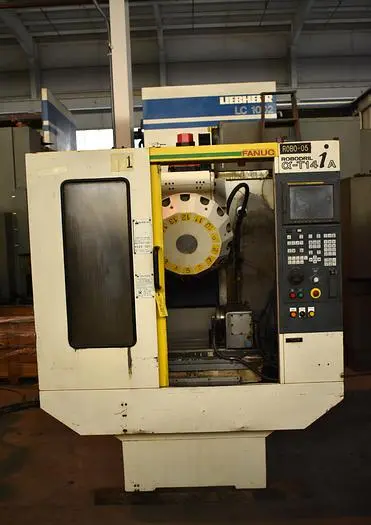

FANUC ALPHA-T14IA CNC DRILL/TAP CTR, 4-AXIS, BT-30, 80-8000RPM, X19.68 Y14.96 Z11.81, NIKKEN 4TH

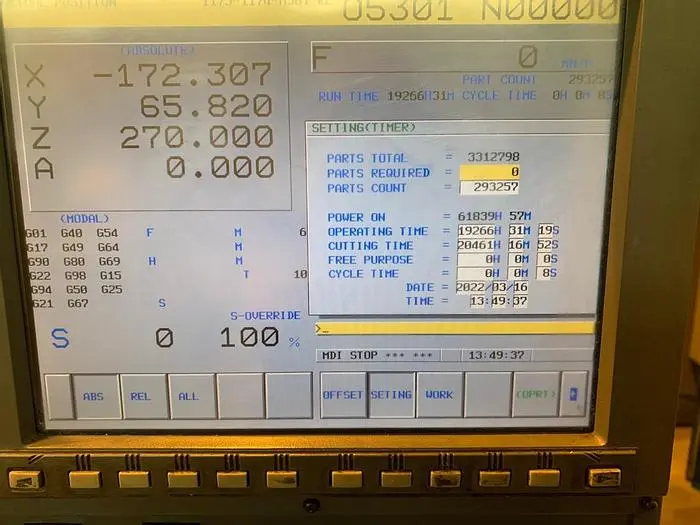

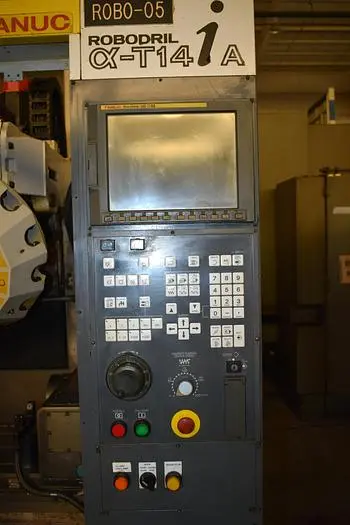

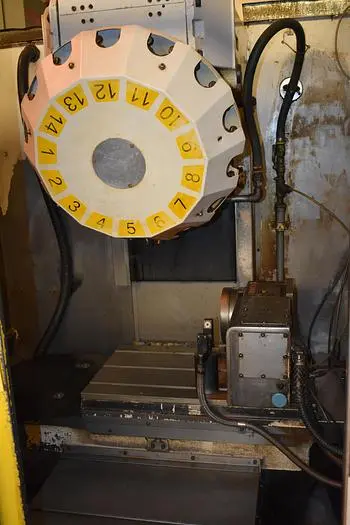

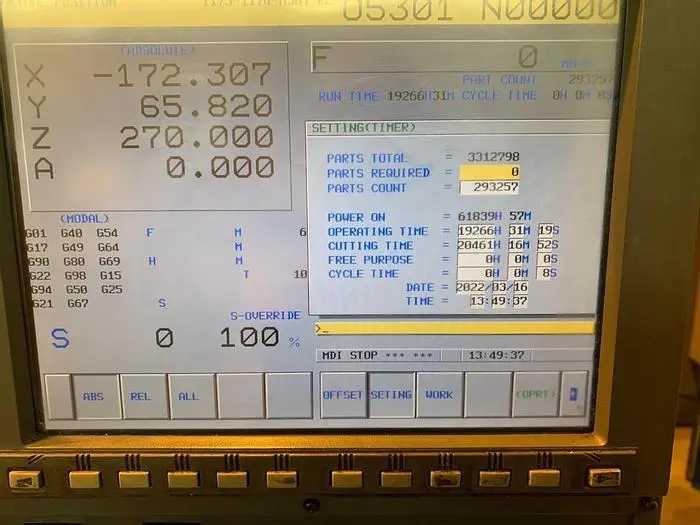

THE FANUC "ROBODRILL" MODEL ALPHA-T14IA IS A 4-AXIS CNC VERTICAL DRILLING & TAPPING CENTER, MANAGED BY A FANUC 16-IM CNC CONTROL. IT UTILIZES A #BT-30 SPINDLE TAPER WITH A 5.5 KW MOTOR, DELIVERING INFINITELY VARIABLE SPEEDS RANGING FROM 80 TO 8000 RPM. THE MACHINE FEATURES A 14-POSITION AUTOMATIC TOOL CHANGER AND IS EQUIPPED WITH A NIKKEN CNC 4TH AXIS ROTARY INDEXING TABLE (MODEL NSVZ180FA) AND A RENISHAW TOOL SENSING LIGHT. TABLE DIMENSIONS ARE 14.96 INCHES BY 21.6 INCHES. AXIS TRAVELS ARE 19.68 INCHES FOR THE X-AXIS, 14.96 INCHES FOR THE Y-AXIS, AND 11.81 INCHES FOR THE Z-AXIS. THE DISTANCE FROM THE SPINDLE NOSE TO THE TABLE RANGES FROM A MINIMUM OF 5.9 INCHES TO A MAXIMUM OF 17.71 INCHES. WORKING FEEDRATES FOR ALL AXES ARE 590 IPM, WITH RAPID TRAVERSE RATES REACHING 1889 IPM. THE UNIT HAS AN APPROXIMATE WEIGHT OF 3750 LBS.
