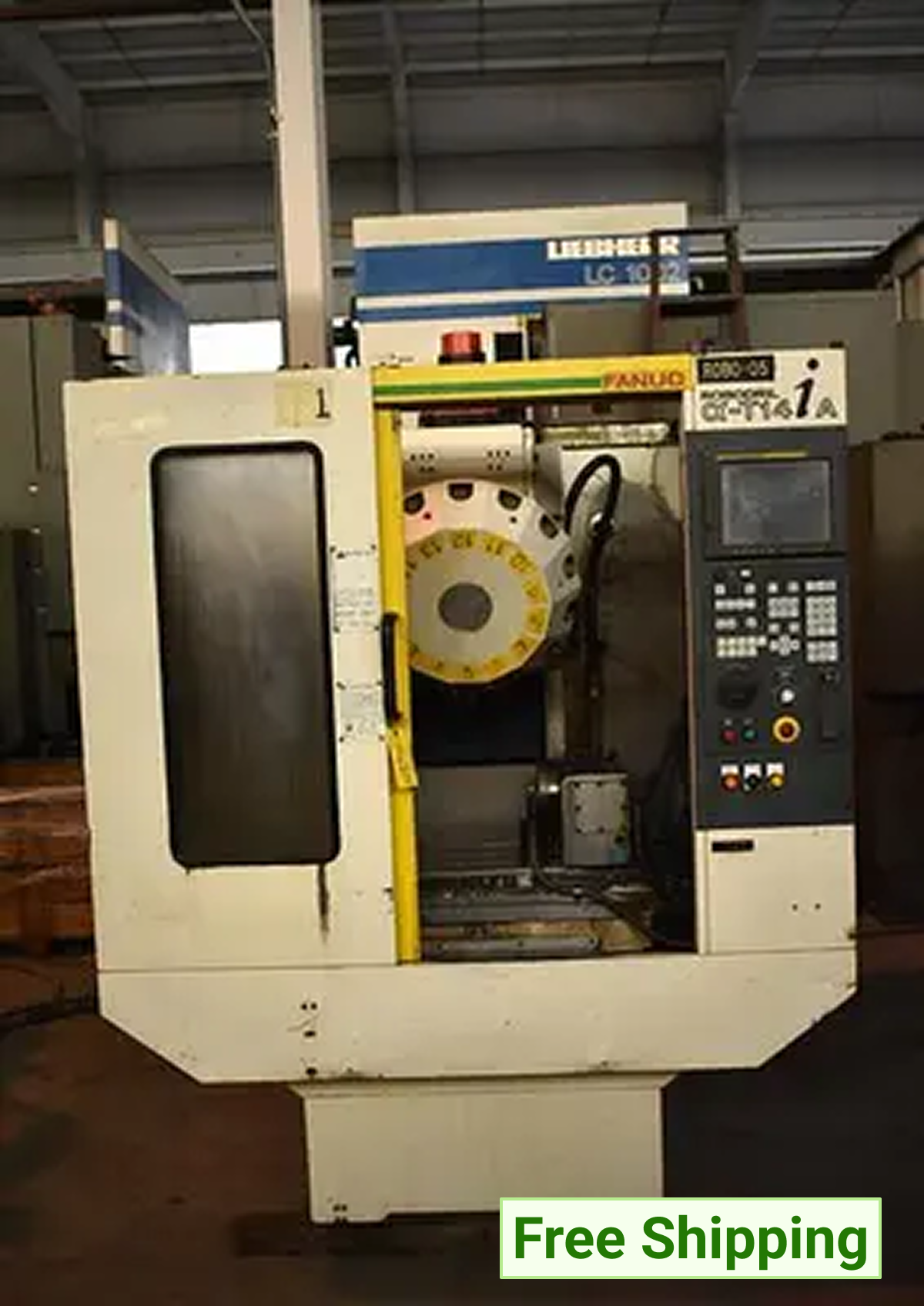

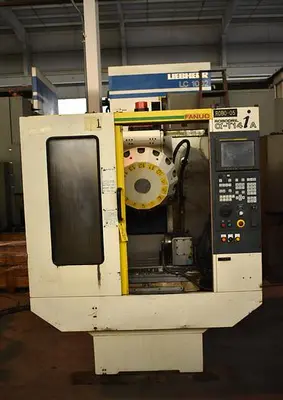

FANUC ALPHA-T14IA ROBODRILL VERTICAL MACHINING CENTER 4-AXIS, BT-30, 8000 RPM, 19.68" X-TRAVEL

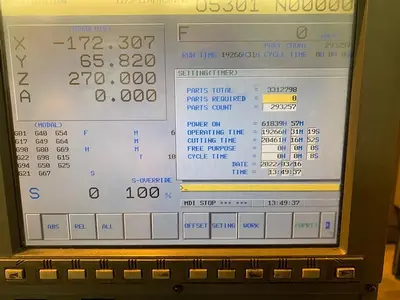

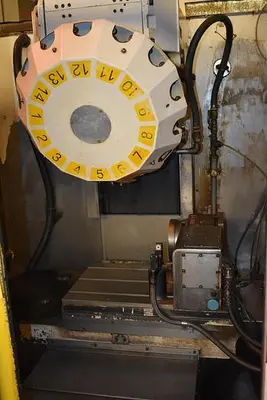

THE FANUC "ROBODRILL" ALPHA-T14IA 4-AXIS CNC VERTICAL DRILLING & TAPPING CENTER IS EQUIPPED WITH A FANUC 16-IM CNC CONTROL. THIS MACHINE FEATURES A 14-POSITION AUTOMATIC TOOL CHANGER AND INTEGRATES A NIKKEN MODEL NSVZ-180A21 CNC 4TH AXIS ROTARY INDEXING TABLE, COMPLEMENTED BY A RENISHAW TOOL SENSING LIGHT. KEY SPECIFICATIONS INCLUDE AN OVERALL TABLE SIZE OF 14.96 INCHES BY 21.6 INCHES. TRAVEL LIMITS ARE 19.68 INCHES FOR THE X-AXIS, 14.96 INCHES FOR THE Y-AXIS, AND 11.81 INCHES FOR THE Z-AXIS. THE MAXIMUM DISTANCE FROM THE SPINDLE NOSE TO THE TABLE IS 17.71 INCHES, WITH A MINIMUM CLEARANCE OF 5.9 INCHES. THE SPINDLE UTILIZES A #BT-30 TAPER, DRIVEN BY A 5.5 KW MOTOR, AND OFFERS AN INFINITELY VARIABLE SPEED RANGE FROM 80 TO 8000 RPM. WORKING FEEDRATES FOR THE X, Y, AND Z-AXES ARE 590 IPM, WITH RAPID TRAVERSE RATES REACHING 1889 IPM ACROSS ALL THREE AXES. THE UNIT WEIGHS APPROXIMATELY 3750 LBS.
