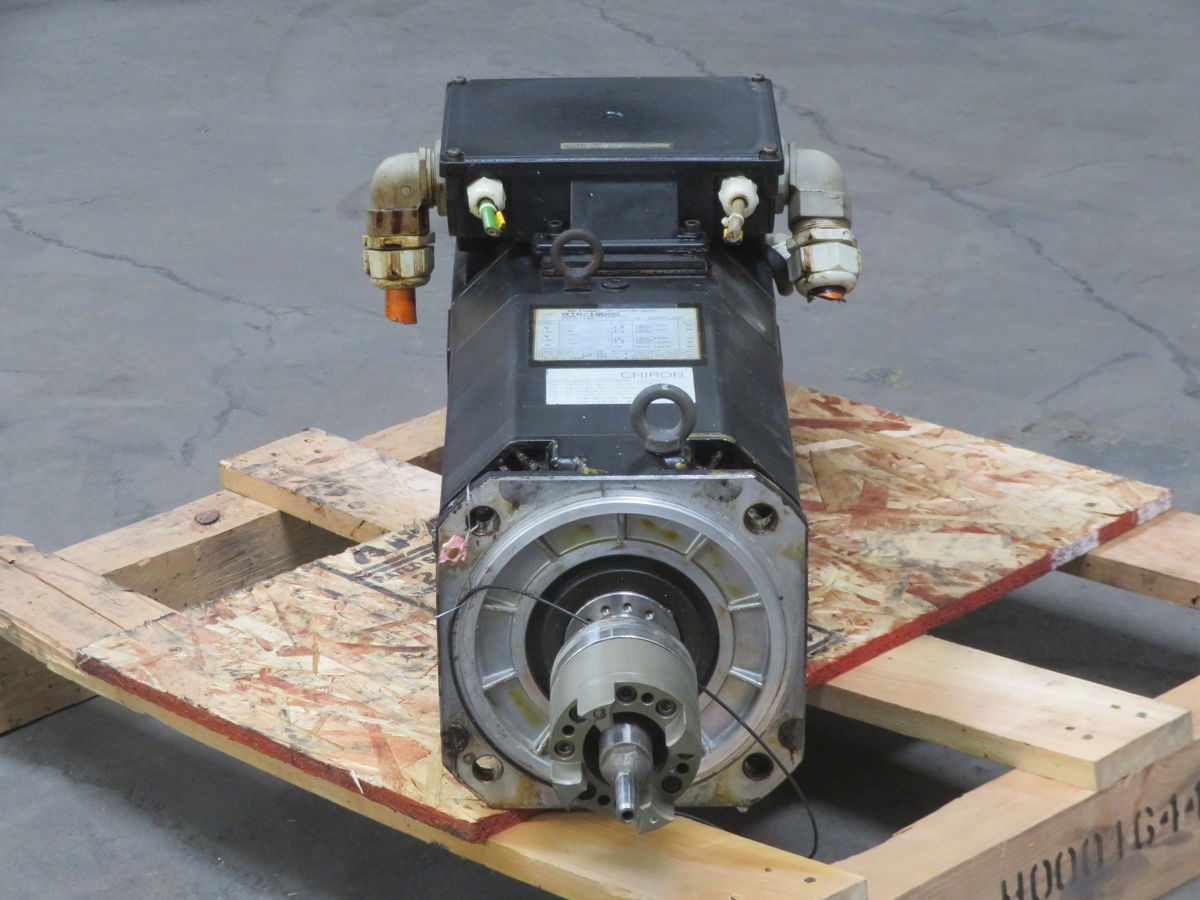

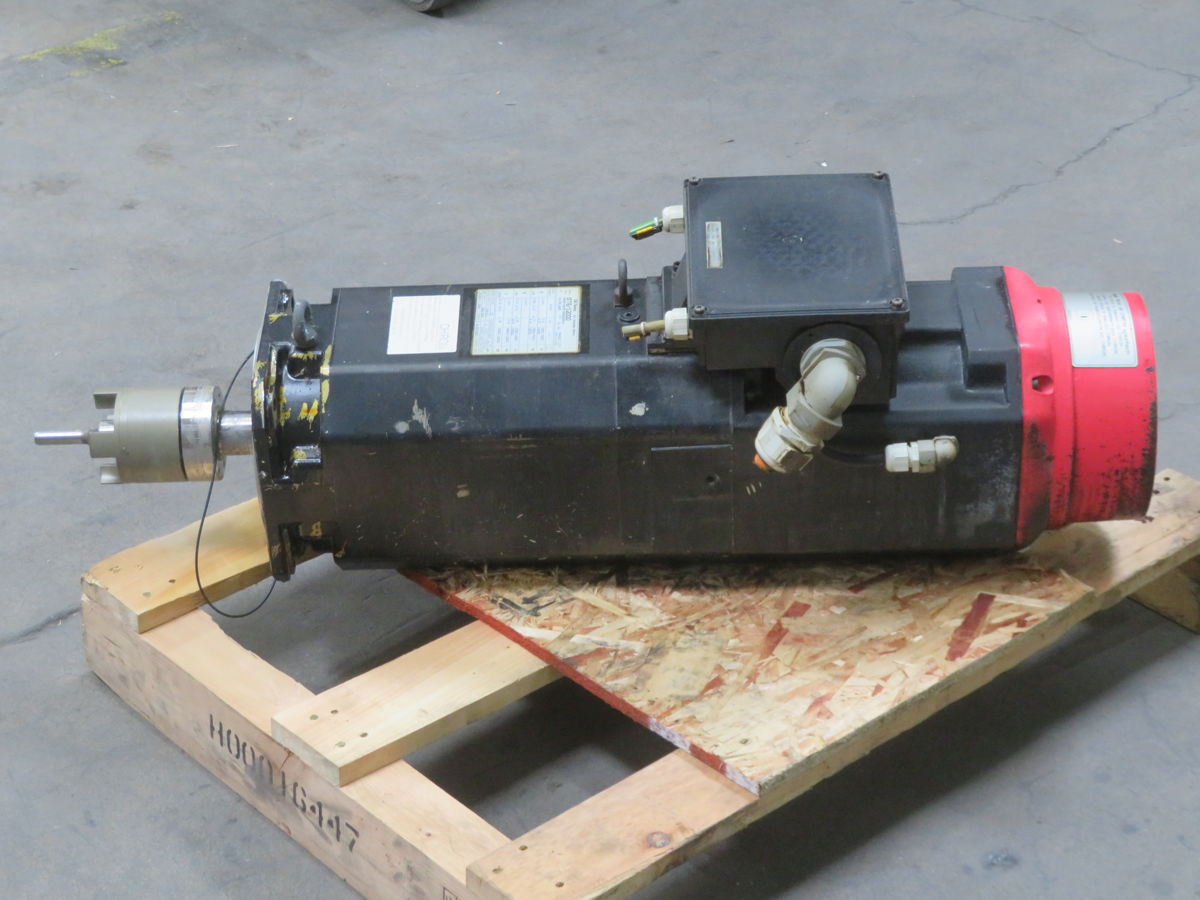

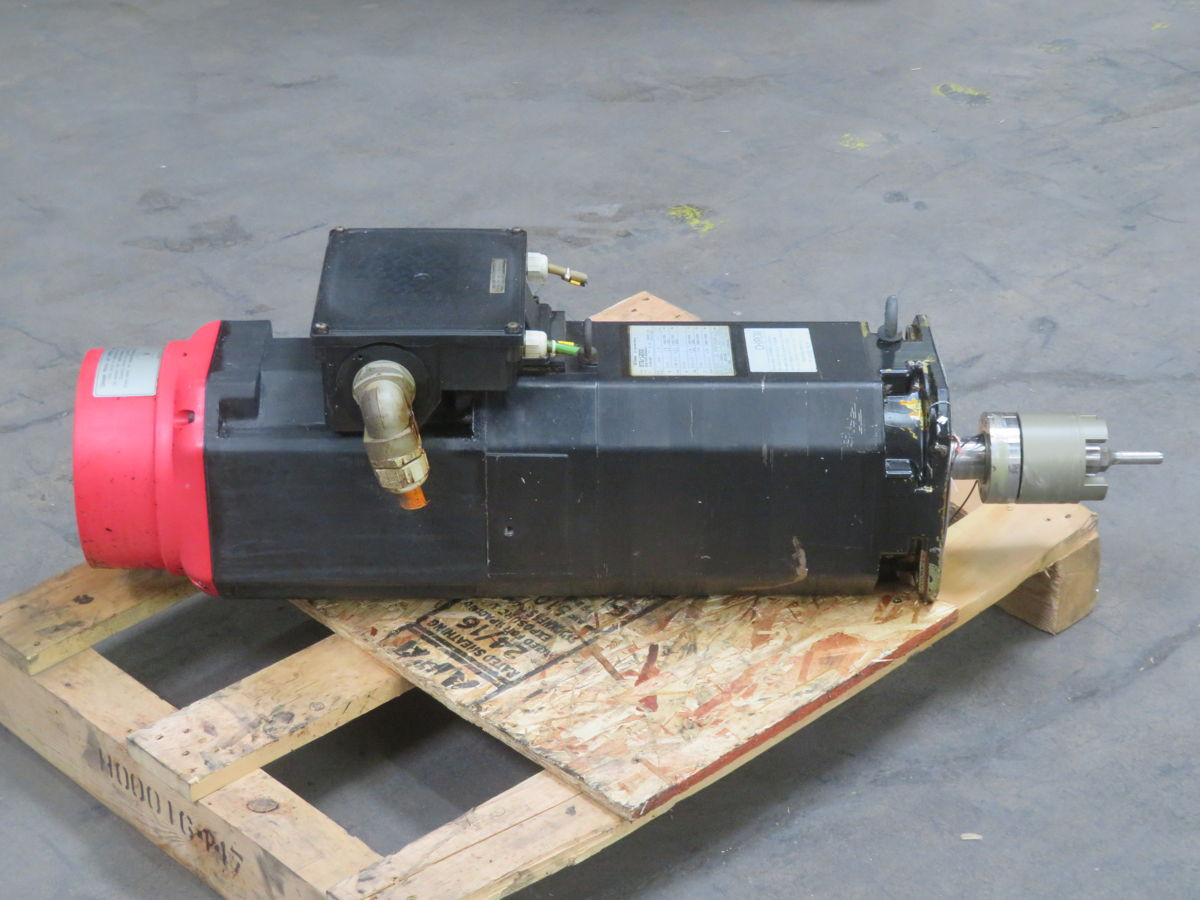

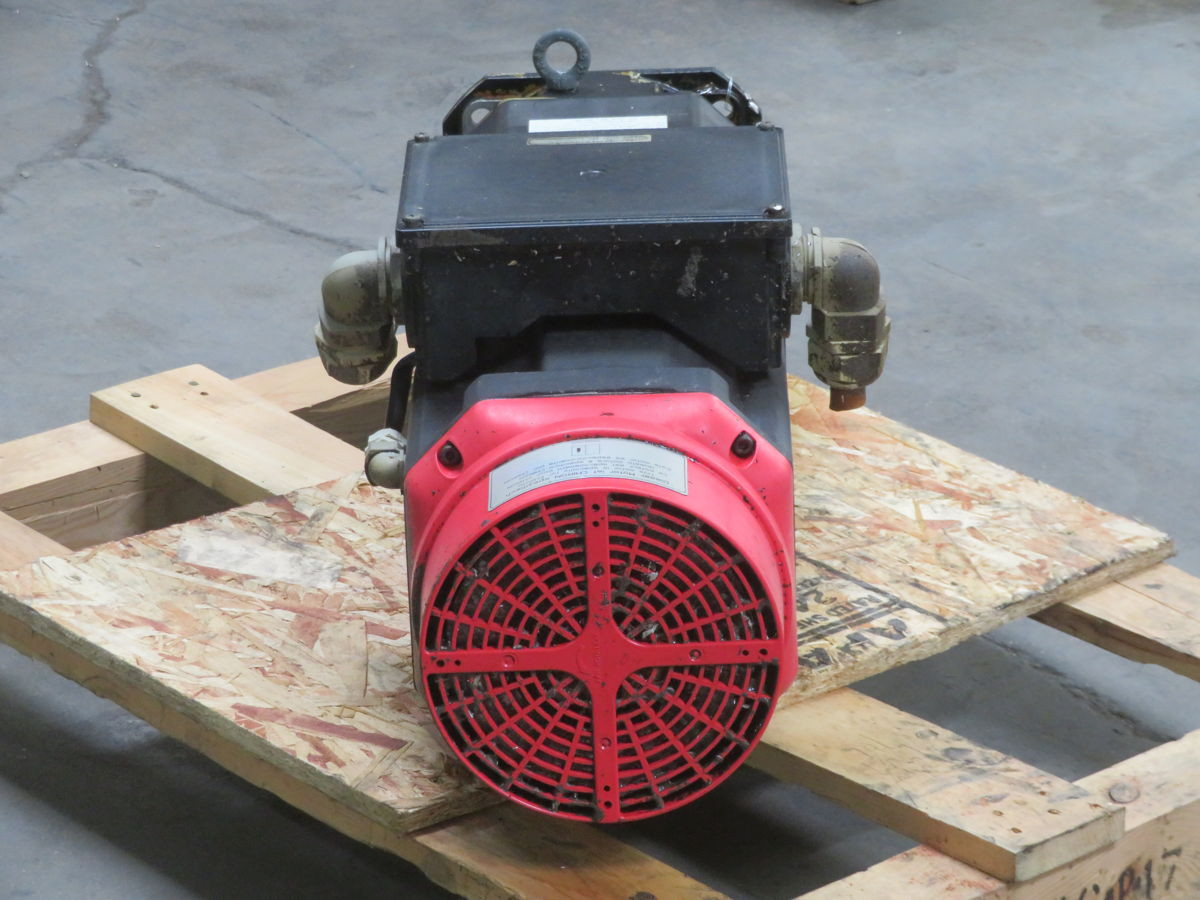

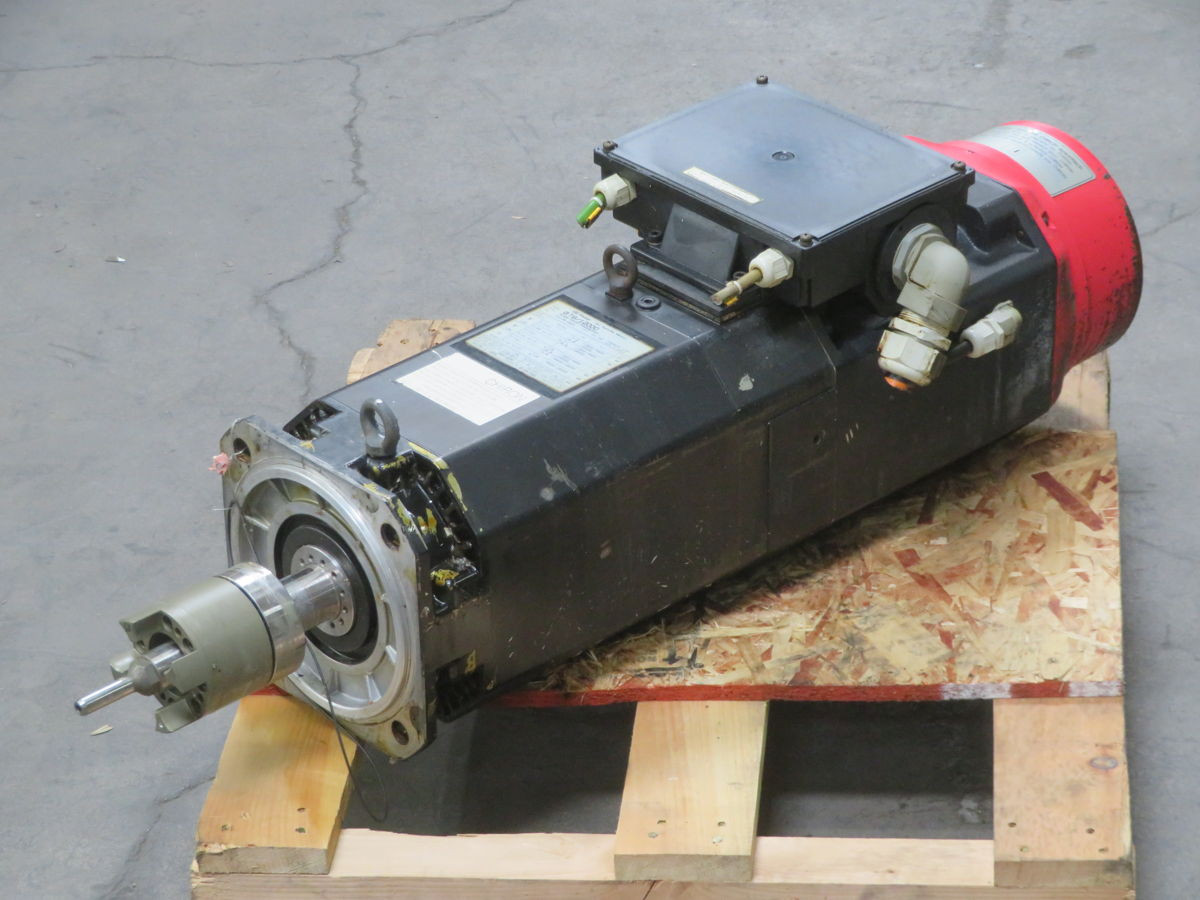

FANUC AT8/12000 A06B-0835-B926#3D41 AC SPINDLE MOTOR, 5.5KW CONT, 7.5KW 30MIN, 12000RPM

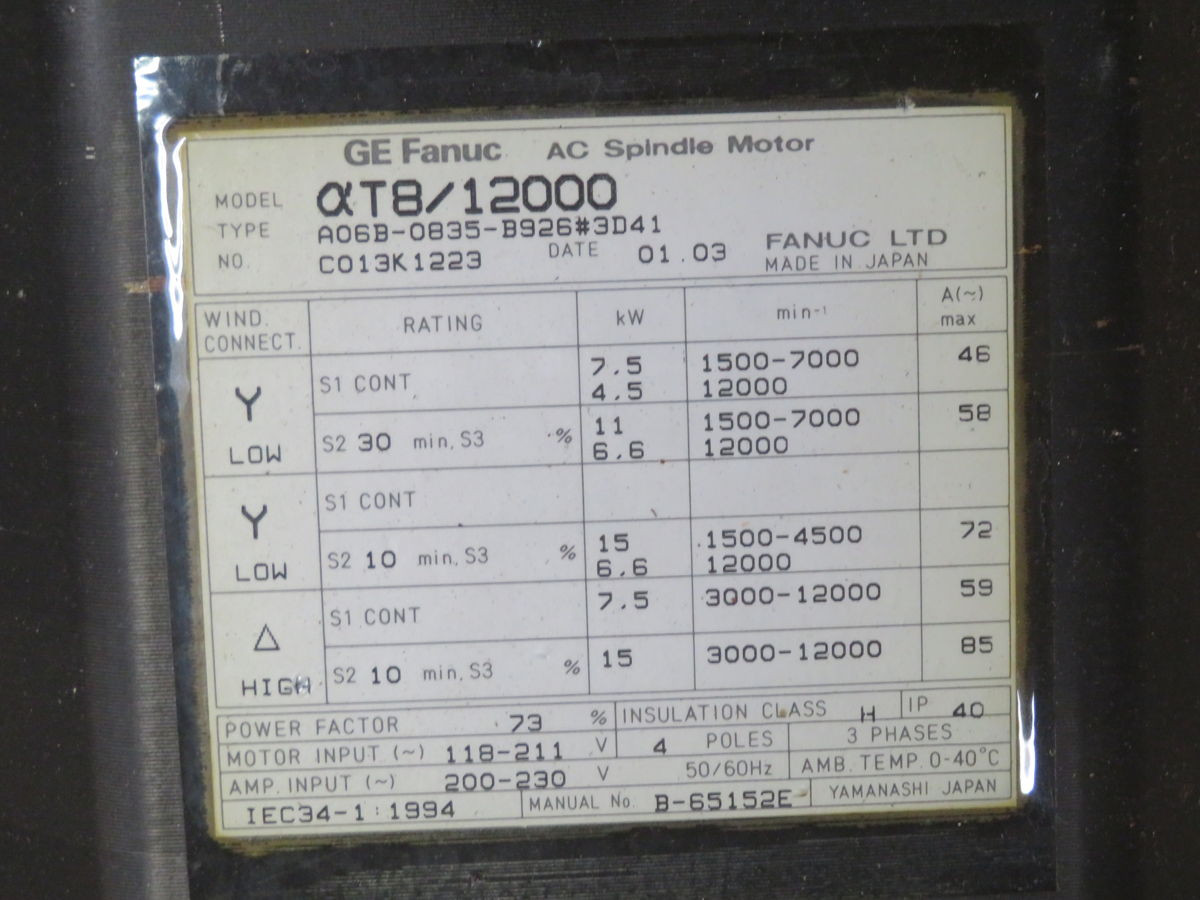

THE FANUC AT8/12000 A06B-0835-B926#3D41 IS A 4-POLE, 3-PHASE AC SPINDLE MOTOR. IT DELIVERS A CONTINUOUS OUTPUT POWER OF 5.5 KW AND A 30-MINUTE RATED OUTPUT POWER OF 7.5 KW. THE MOTOR OPERATES WITH A CONTINUOUS TORQUE OF 35 NM AND A 30-MINUTE TORQUE OF 47.7 NM. ITS RATED SPEED IS 1500 RPM, WITH A MAXIMUM OPERATIONAL SPEED OF 12000 RPM. ELECTRICAL SPECIFICATIONS INCLUDE A MOTOR INPUT VOLTAGE RANGE OF 118-211 V AND AN AMPLIFIER INPUT VOLTAGE OF 200-230 V AT 50/60 HZ. THE MOTOR FEATURES AN IP 40 DEGREE OF PROTECTION, AN INSULATION CLASS H RATING, AND A POWER FACTOR OF 73%.
