FANUC M-900 Gen VI Rtu, 28ft, 280-700KG, AC Servo, Rack & Pinion, 6-Axis, 0.1mm Repeatability

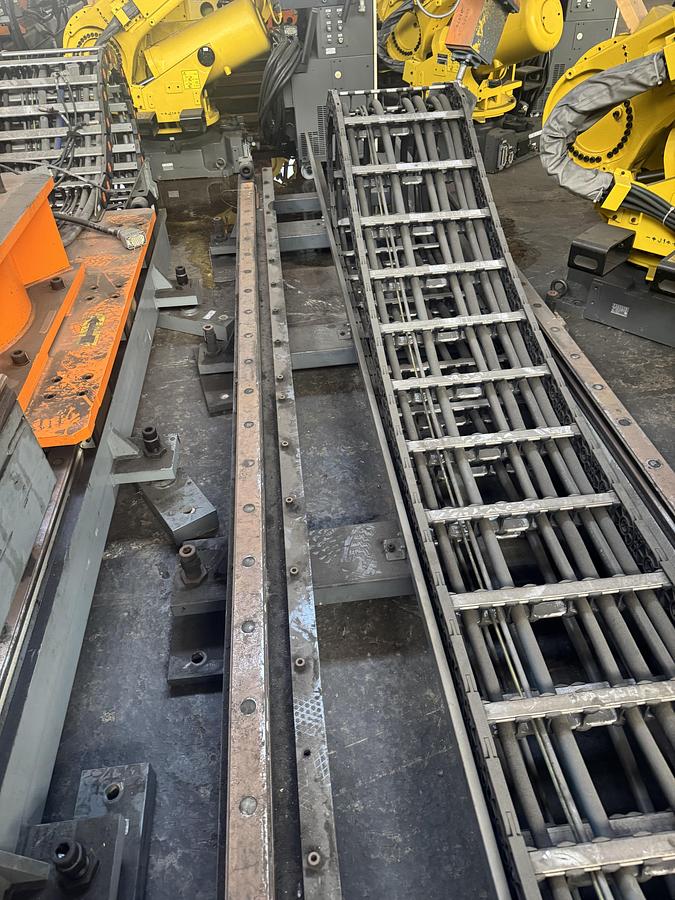

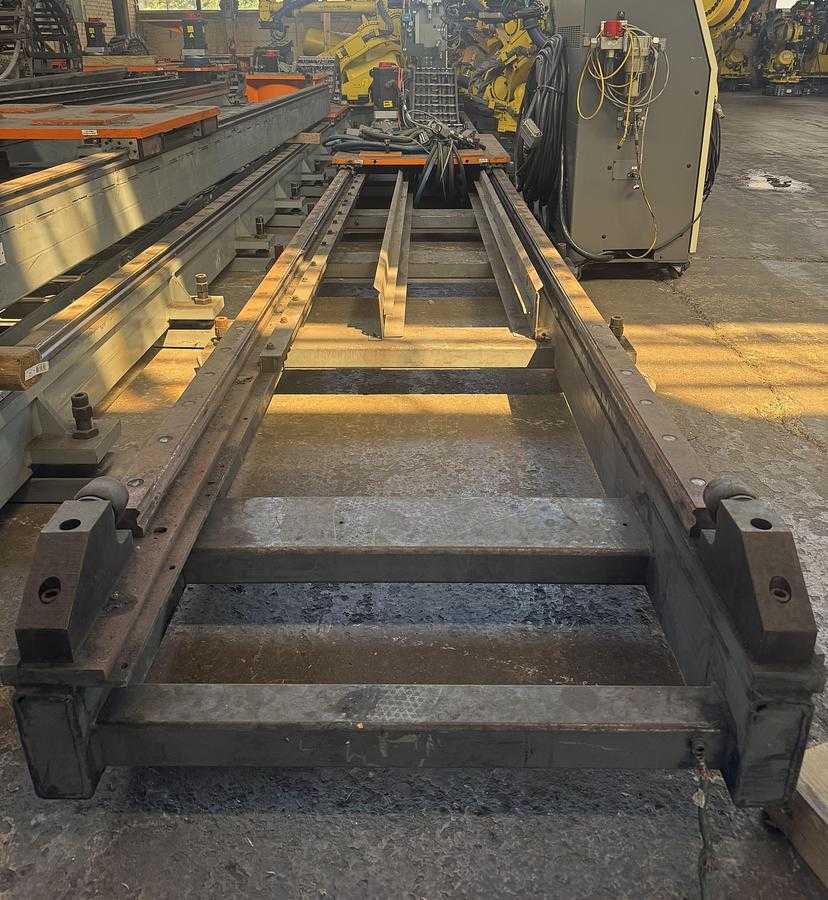

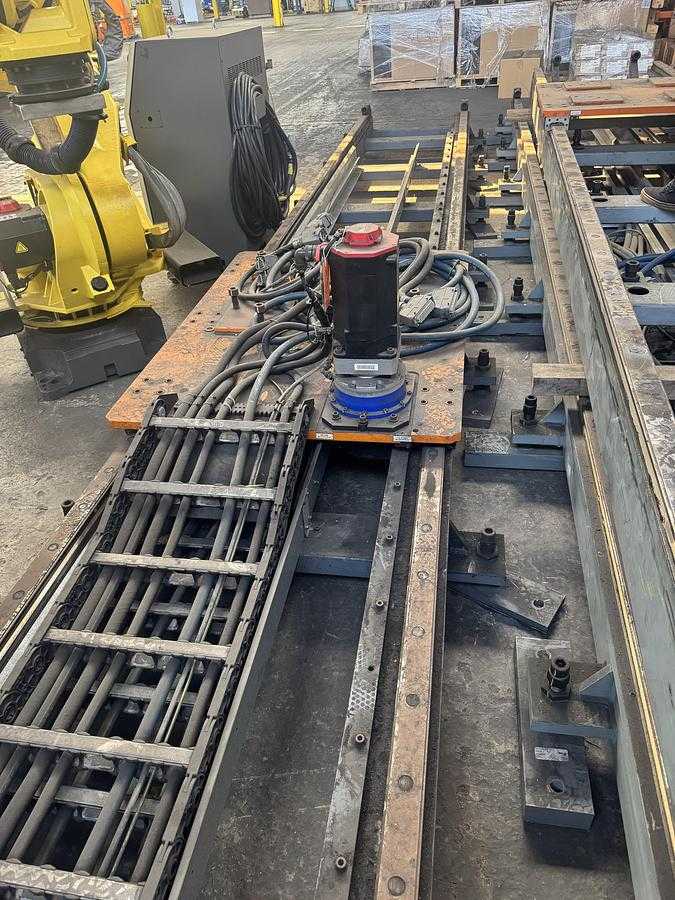

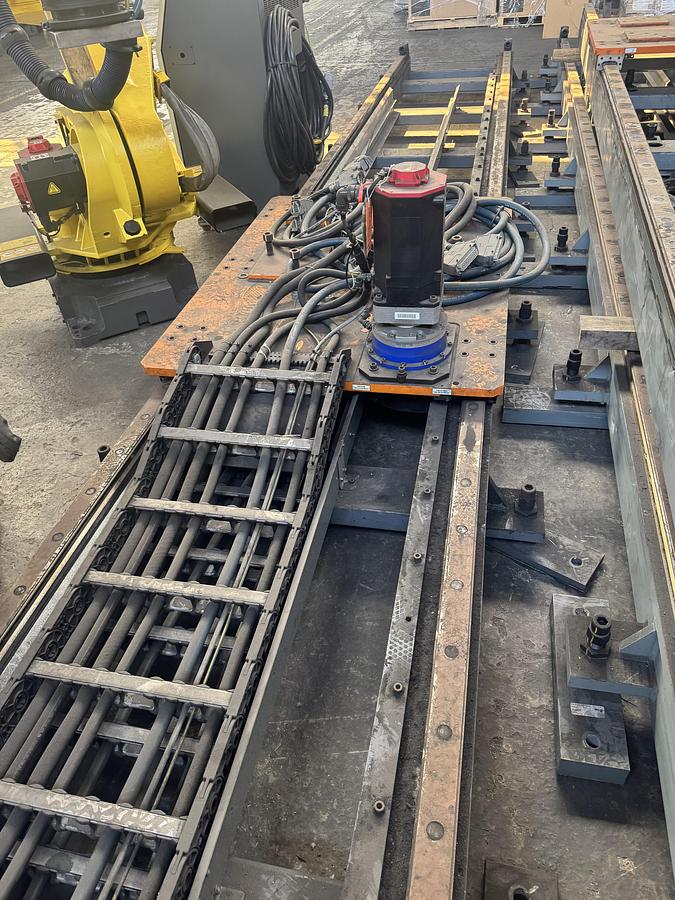

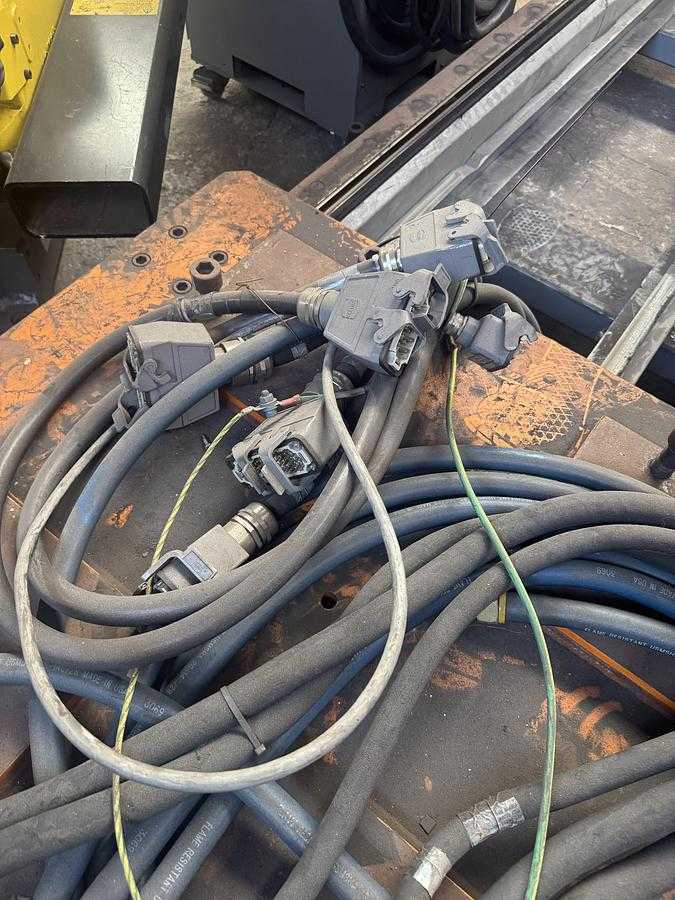

THE FANUC M-900 CAPACITY GEN VI IS A ROBOT TRANSFER UNIT (RTU) FEATURING A 28-FOOT OVERALL LENGTH. THIS 7TH-AXIS TRACK SYSTEM IS DESIGNED FOR HIGH-CAPACITY MATERIAL HANDLING AND IS SPECIFICALLY COMPATIBLE WITH THE FANUC M-900 SERIES ROBOTS, WHICH SUPPORT PAYLOADS RANGING FROM 280 KG TO 700 KG. THE UNIT IS EQUIPPED WITH A FANUC AC SERVO MOTOR CARRIER AND UTILIZES A RACK AND PINION DRIVE SYSTEM FOR PRECISE MOVEMENT. IT INCLUDES HEAVY-DUTY LINEAR WAYS FOR STRUCTURAL STABILITY DURING OPERATION. THE SYSTEM IS COMPLETE WITH A LUBE SYSTEM AND FLEX CABLES TAILORED FOR M-900 SERIES ROBOT INTEGRATION. THE M-900 SERIES ITSELF FEATURES SIX-AXIS ARTICULATED MOVEMENT, PROVIDING HIGH-SPEED OPERATION AND A LARGE WORK ENVELOPE, WITH CERTAIN MODELS OFFERING A REACH OF UP TO 3,704 MM AND REPEATABILITY OF 0.1 MM. THIS RTU EXTENDS THE ROBOT'S WORK ENVELOPE BY ALLOWING LINEAR TRAVEL ALONG THE 28-FOOT TRACK, FACILITATING APPLICATIONS SUCH AS LARGE PART TRANSFER, HEAVY-DUTY MATERIAL HANDLING, AND PALLETIZING ACROSS MULTIPLE STATIONS.
