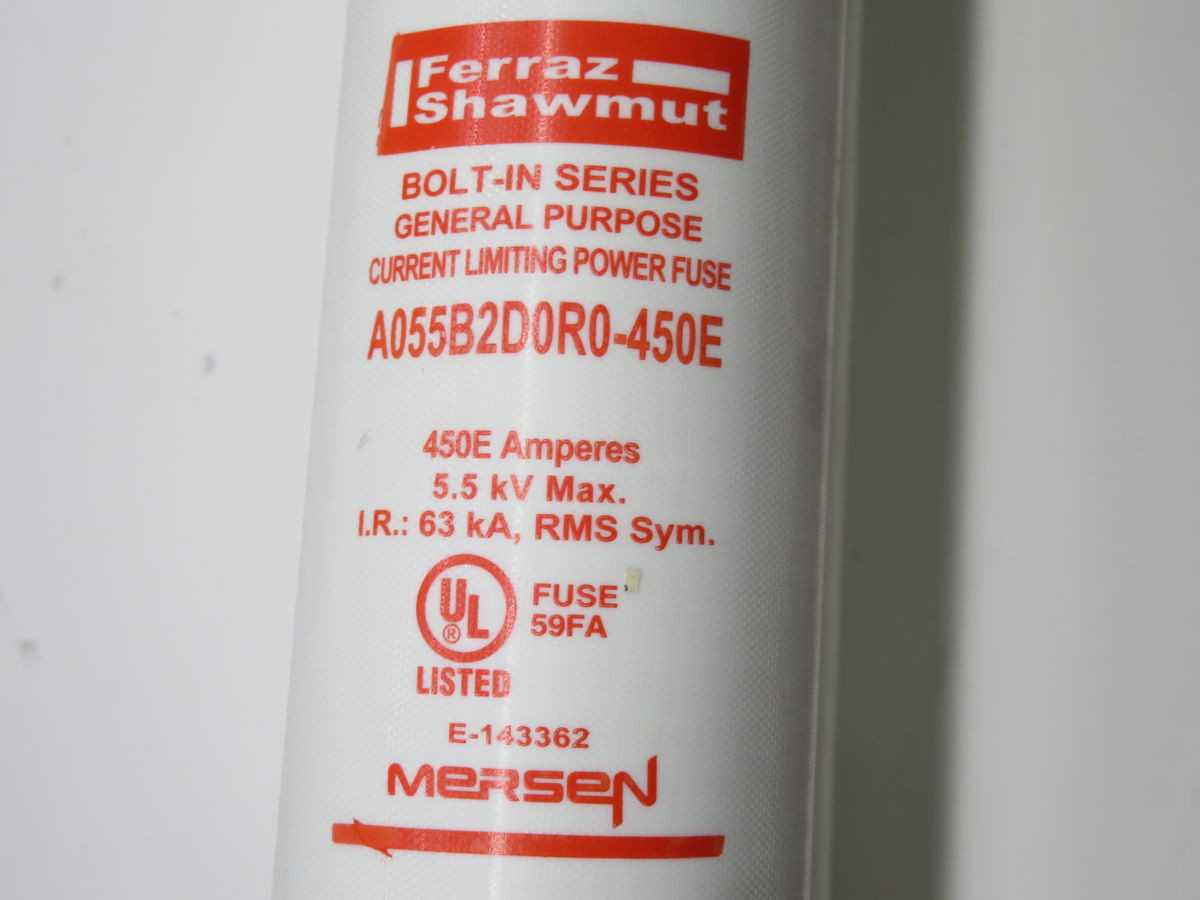

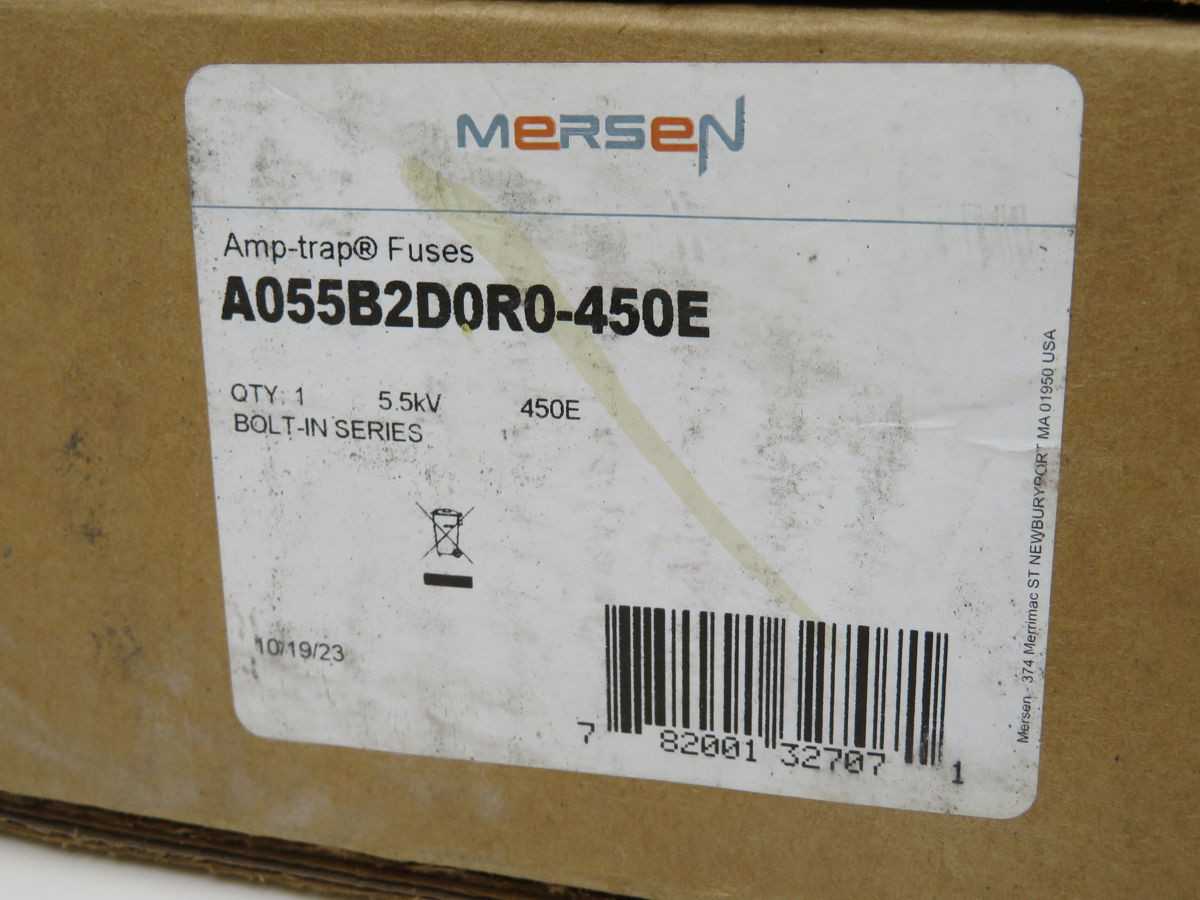

FERRAZ SHAWMUT A055B2D0R0-450E FUSE, 5.5 KV VOLTAGE, 450E A CURRENT, 65 KA RMS IR

THE FERRAZ SHAWMUT A055B2D0R0-450E IS A CURRENT-LIMITING, GENERAL-PURPOSE POWER FUSE FROM THE BOLT-IN SERIES, DESIGNATED AS A TYPE 255 E-RATED DEVICE. IT IS ENGINEERED FOR A NOMINAL VOLTAGE OF 5.5 KV AND A CONTINUOUS CURRENT RATING OF 450E AMPERES, ADHERING TO E-RATED FUSE CHARACTERISTICS FOR SPECIFIED OVERLOAD WITHSTAND AND MELTING TIMES. THIS FUSE FEATURES AN INTERRUPTING RATING OF 65 KA RMS SYMMETRICAL AND OPERATES EFFICIENTLY AT 50/60 HZ. ITS CONSTRUCTION INCLUDES A BODY DIAMETER OF 2 INCHES (50.8 MM) AND AN OVERALL LENGTH OF 13.06 INCHES (331.7 MM), EQUIPPED WITH SILVER-PLATED COPPER BOLT-IN TERMINALS FOR ROBUST ELECTRICAL CONNECTION.
