FERRAZ SHAWMUT A160UD93TDZ1250 FUSES, 1250 A CURRENT, 1600 VAC VOLTAGE, 100 KA IR
Aucto ID: #111859
6ecb41e9-663c-4b5e-be90-bbc404ccab20
Ended
sold
Location: El Paso, Texas, United States
Logistics:
Rigging:
Included
Loading:
Included
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller - Since 2026
3106Product Description

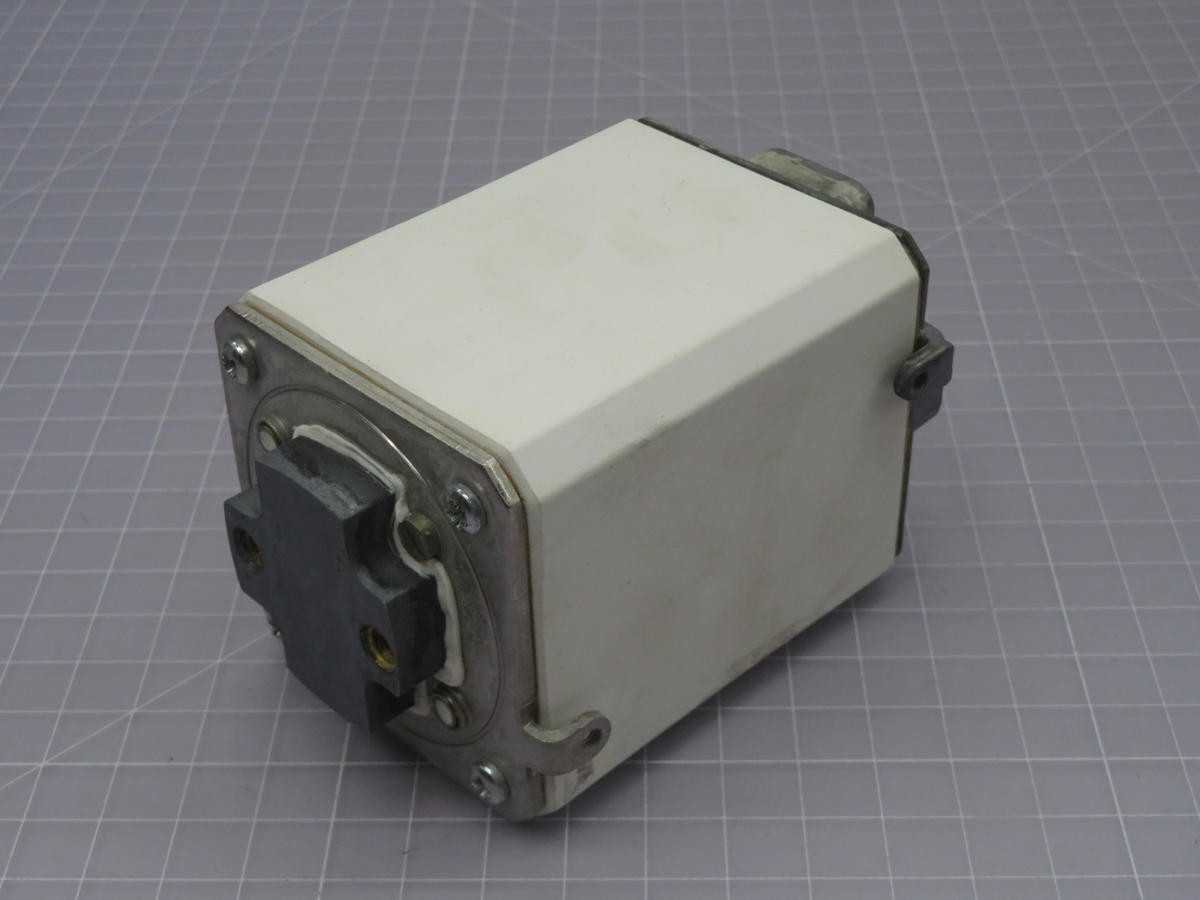

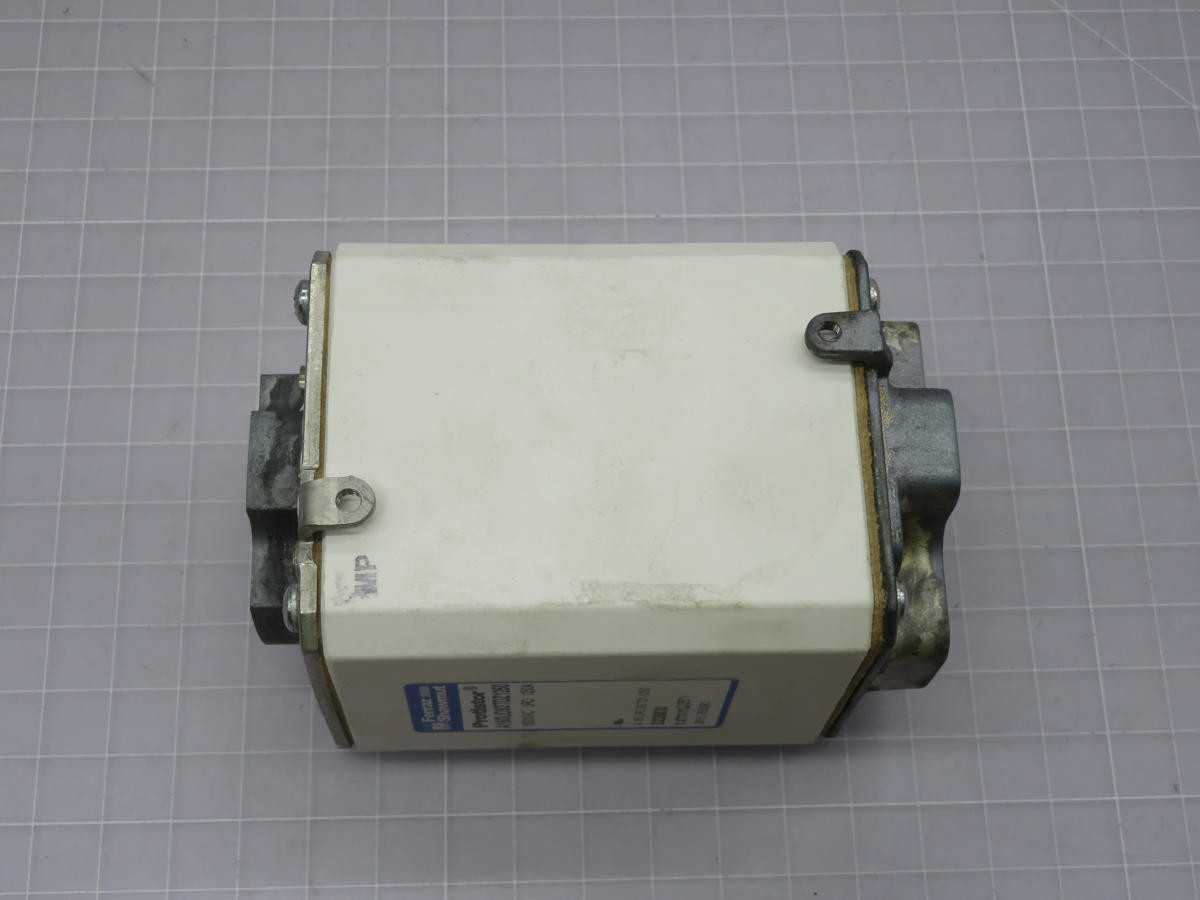

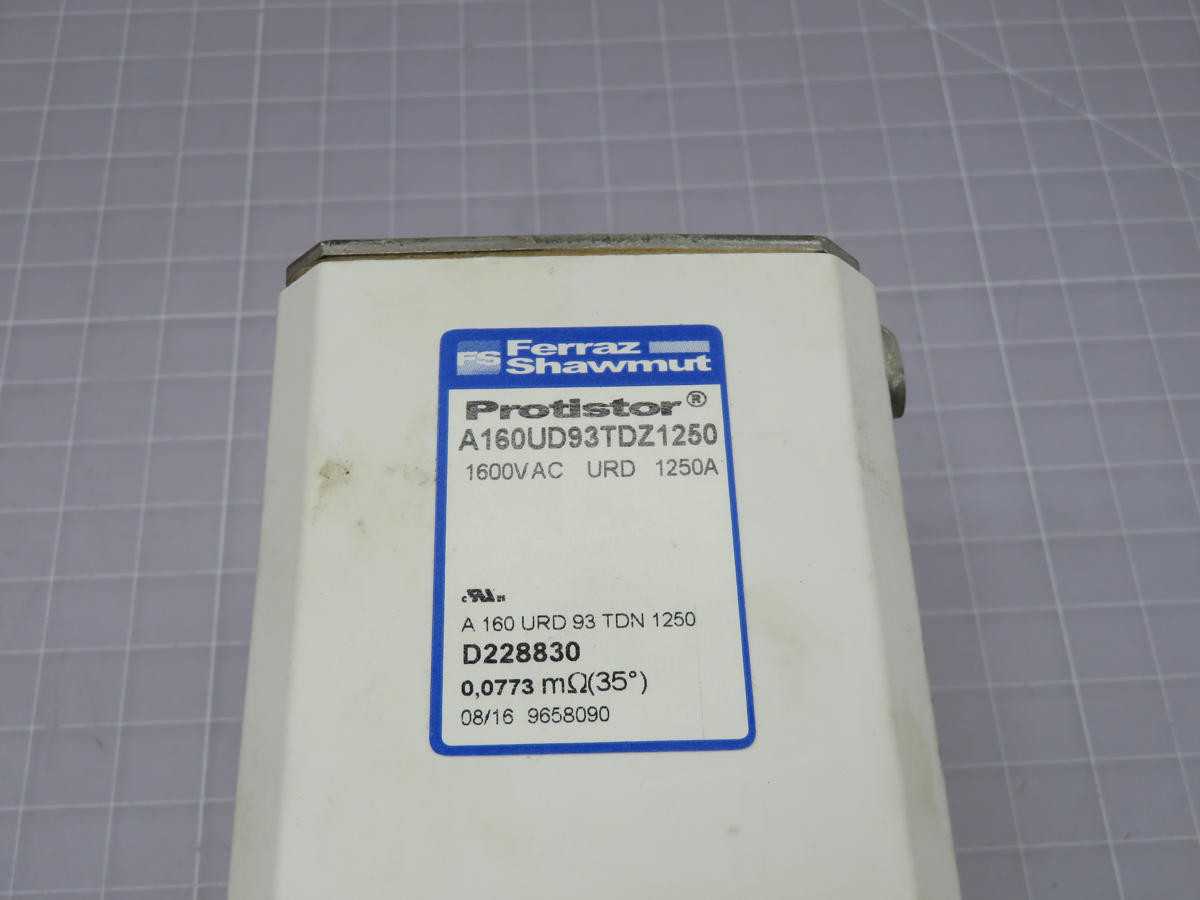

THE FERRAZ SHAWMUT A160UD93TDZ1250 IS AN ULTRA-FAST ACTING PROTISTOR FUSE ENGINEERED FOR THE PROTECTION OF POWER SEMICONDUCTORS IN AC APPLICATIONS. IT FEATURES A NOMINAL CURRENT RATING OF 1250 A AND A NOMINAL VOLTAGE RATING OF 1600 VAC. THE FUSE POSSESSES A HIGH INTERRUPTING RATING OF 100 KA AC. CONSTRUCTED WITH A SQUARE CERAMIC BODY, IT IS DESIGNED FOR BOLT-ON MOUNTING VIA INTEGRATED TERMINALS. ITS BODY DIMENSIONS ARE 93 MM IN WIDTH AND 93 MM IN HEIGHT, WITH AN APPROXIMATE OVERALL LENGTH OF 220 MM. THIS DEVICE CONFORMS TO IEC 60269-4 STANDARDS.
Core Specifications
Manufacturer: FERRAZ SHAWMUT
Model: A160UD93TDZ1250
Condition: Fair
- Item functions as originally intended, shows signs of normal wear.Category:
INDUSTRIAL PARTS > ELECTRICAL COMPONENTS > FUSESLogistics
