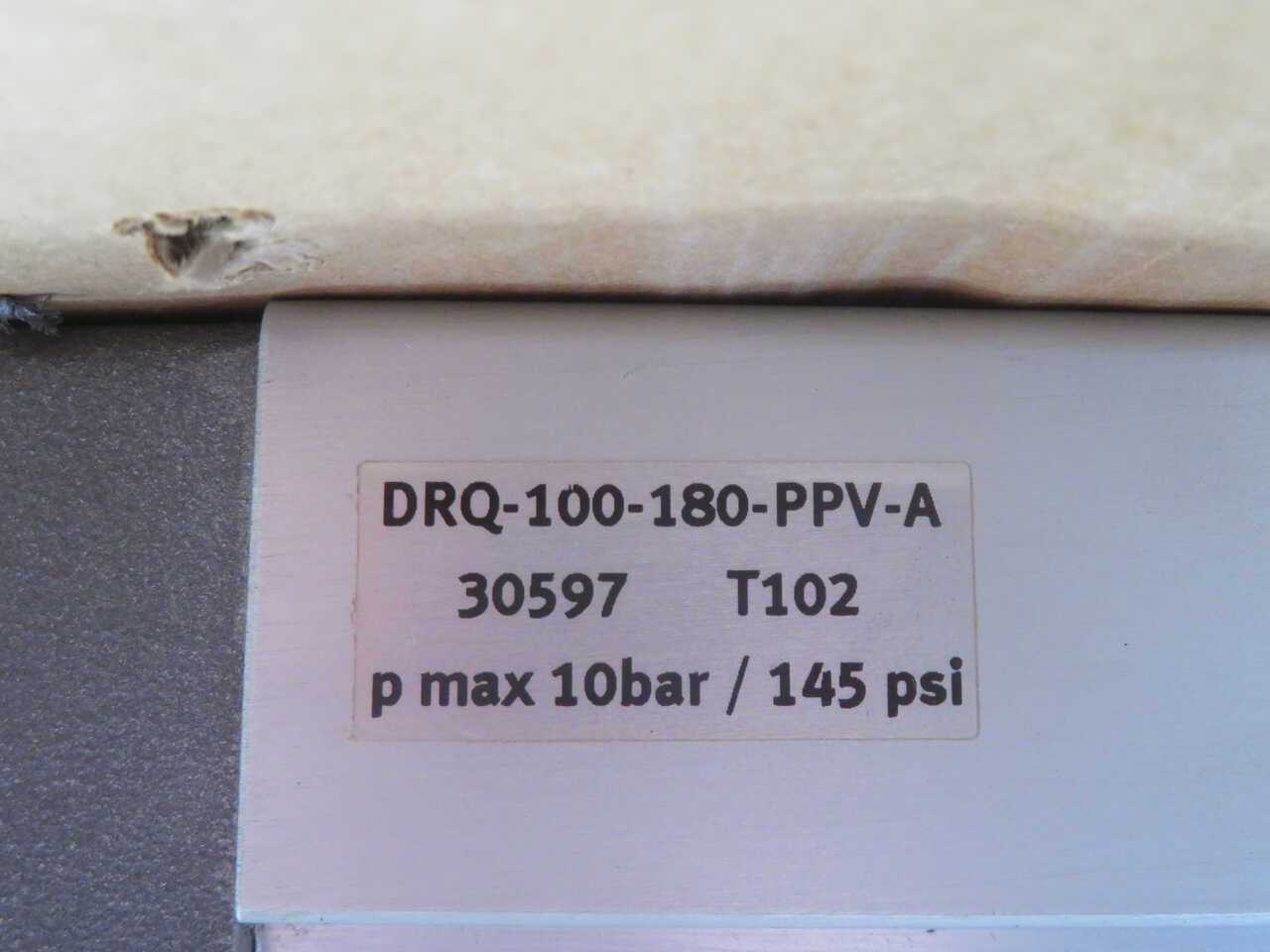

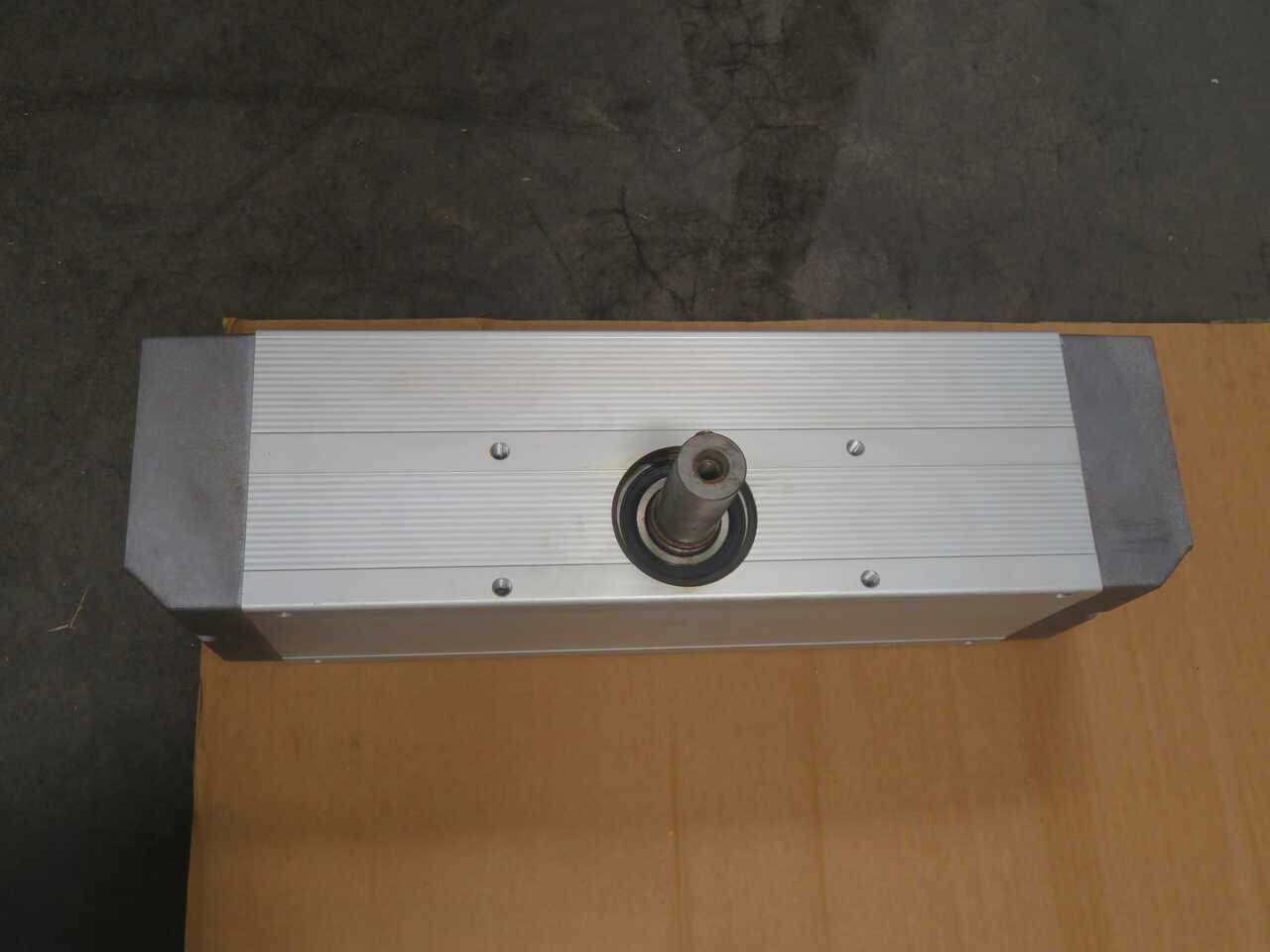

FESTO DRQ-100-180-PPV-A 30597, SEMI-ROTARY DRIVE, 100 MM SIZE, 180 DEG SWIVEL, 20 NM TORQUE

THE FESTO DRQ-100-180-PPV-A IS A DOUBLE-ACTING SEMI-ROTARY DRIVE WITH A NOMINAL SIZE OF 100 MM AND A MECHANICAL SWIVEL ANGLE OF 180 DEGREES. IT INTEGRATES ADJUSTABLE PNEUMATIC CUSHIONING AT BOTH ENDS (PPV-A). THE OPERATING PRESSURE RANGE FOR THE UNIT IS 2.5 BAR TO A MAXIMUM OF 10 BAR (145 PSI). IT OPERATES WITH FILTERED, EITHER LUBRICATED OR UNLUBRICATED, COMPRESSED AIR. AT AN OPERATING PRESSURE OF 6 BAR, THE DRIVE DELIVERS A NOMINAL TORQUE OF APPROXIMATELY 20 NM. END-POSITION ADJUSTMENT IS POSSIBLE WITHIN A RANGE OF ±1.5 DEGREES. THE SPECIFIED OPERATING TEMPERATURE RANGE FOR THE DRIVE IS -10 °C TO +60 °C.
